Donald Qualls

Subscriber
Joined
Jan 19, 2005
Messages
12,328
Location
North Carolina
Format
Multi Format
These look injection moulded. How often do we see injecion moulded 3rd-party spares?

Assuming they are in fact aluminum, that would technically be either investment cast or (more likely) die cast -- in the latter case, it would most commonly be an aluminum-zinc alloy in the Zamak family (generically called "pot metal" but when correctly alloyed is much better than the reputation pot metal has). Similar aluminum/zinc alloys were used for decades for things like car door handles and window cranks, and are still used for metal drawer pulls and cabinet handles.

Characteristic of Zamak family alloys is that they're much heavier than aluminum (density is close to cast iron), but avoid the "crystalline" look of pure zinc. The ability to die cast to high precision makes these alloys very popular in cost-efficient manufacturing; they'll stand up to light duty use in power tool gears and pretty heavy use in housings, for instance, and cost pennies on the dollar compared to parts that need to be machined before use because they can be installed and used as-cast.

At. 99 BPs,

That's the Riga-specific gray version. The black one actually linked is GBP 69 including a "coffin case" and set of (optional) light trap felts. Still high compared to used plastic ones on eBay, but perhaps not excessive for brand new, universal fit (except possibly early Riga models, as witness the same seller's alternative model) metal cassettes.


perkeleellinen

Subscriber
Joined
Apr 14, 2008
Messages
2,907
Location
Warwickshire
Format
35mm
A little bit of information from MS Hobbies when the project was just coming to fruition:


OP
OP
Minox

Minox

Member
Joined
Oct 25, 2022
Messages
357
Location
Europe
Format
Multi Format
If anyone has a tape that would work I'd love to hear it.

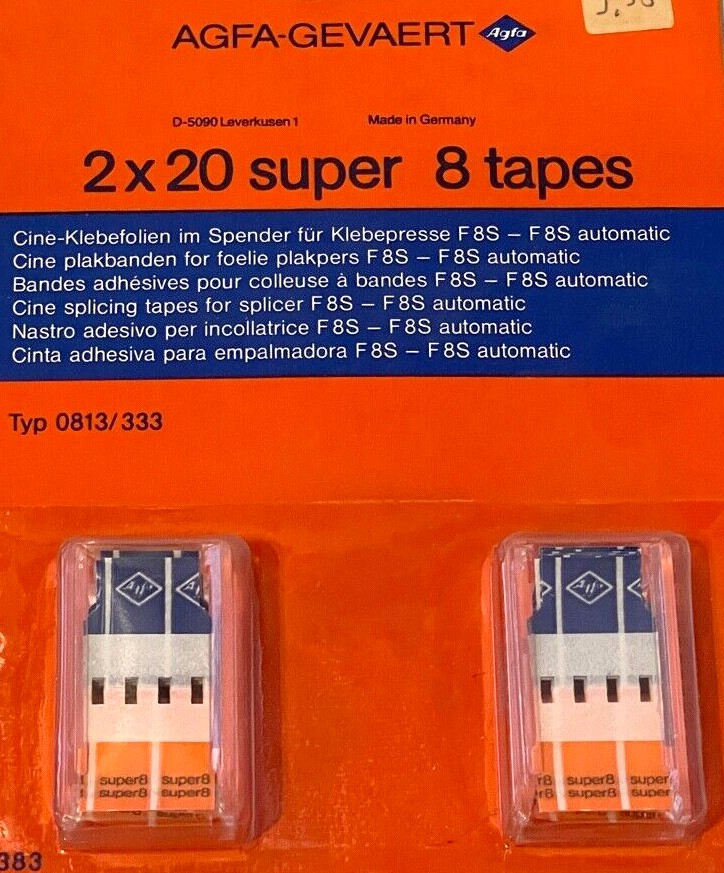

Just a thought: would the tape used to join the ends of the film (after splicing it) work? I mean, the tape would have to be extremely thin, so not to catch when the film is rolled in the projector. I know Agfa made some of this tape, certainly other manufacturers had their own.

agfa cinetape.jpg

Perhaps it would be worth checking out the Agfa Klebefolie, made for 8 and 16mm film. I would say that if the thickness of the tape is satisfactory, then the 8mm version of the tape would fit the height of the cassette spool (together with the cap), so you do not have to cut the tape in half.

There is a possible issue with the age of the tapes, probably the very old ones would not have the glue active.

Hope this helps!


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
Similar tape is used to splice audio tapes. But I also got super thin household tape. One has to look around.


Donald Qualls

Subscriber
Joined
Jan 19, 2005
Messages
12,328
Location
North Carolina
Format
Multi Format
Okay, no die casting, but CNC machining from billet. Should be a superior product to die cast, then -- but also fits better with the pricing.


davidb2

Member
Joined
Jun 2, 2021
Messages
1
Location
washington
Format
Sub 35mm
I have and use several of the M.S. Hobby's cassettes with mixed results.

First off, they are excellent I would have no problem recommending them keeping the following in mind.

I have one each minox Riga to ax. the cassettes fit fine in the II through ax with the exception of my IIIs. I tried three different M.S. cassettes in each camera and they all worked except for the IIIs. My guess is camera manufacturing tolerance limits is the culprit.

Minor problems for me.
I slit for 3mm and that is to wide for the M.S. cassettes I sacrificed two store bought and they work fine.

The coffin boxes are so tight I needed a nylon pry bar to open them (I think the manufacturer didn't realize how thick anodizing can be.. A small rotary tool and fine valve grinding compound took care of the problem.

That said, I did indeed ordered two more myself.
I use Japanese Wasi tape for the cassettes. app. 9mm wide and .07mm thick. found in small art stores or, i suppose online.
