After four years of intensive service and repair of SLRs from the 1980s, I'd like to summarize my experiences with the Minolta 9000 AF.
The Minolta (Maxxum, Alpha) 9000 AF was introduced in 1985 and was the first and last autofocus camera with manual film winding.
It was the professional model; alongside it were the Minolta 7000 AF and 5000 AF.
The 9000 AF is robust and features a die-cast body. The outer casing is made of plastic.
Minolta no longer exists today, therefore there is no service or repairs available, neither from the manufacturer nor from its successor organizations.
In my experience, repair shops usually reject the 9000 AF because it's considered too complicated.
DIY remains an option, and the good news is that most work on the 9000 AF can be performed by yourself.
The Minolta Service Manual for the 9000 AF is the only service and repair document I know of. It is exceptionally clear and well-structured, offering not only information on the technology, disassembly, and settings of the 9000 AF, but also troubleshooting and repair instructions.
Requirements
Performing service and repairs requires a minimum level of repair experience as well as basic knowledge of precision mechanics and electronics. You can acquire the necessary knowledge and skills on your own; excellent specialist literature is available. Courses in analog and digital electronics can support this. Important skills include interest, a willingness to learn, patience, perseverance, and resilience, and, of course, a steady hand. Knowledge and skills in soldering are important for all electronic SLRs.
No shortcuts
I'd like to emphasize that there are no shortcuts to service and repair, as is often the case, especially in videos on the web. The 9000 AF almost always requires more or less thorough disassembly in order to clean, lubricate/oil, and adjust it. This also applies to troubleshooting. The Minolta Service Manual for the 9000 AF provides all the necessary instructions.

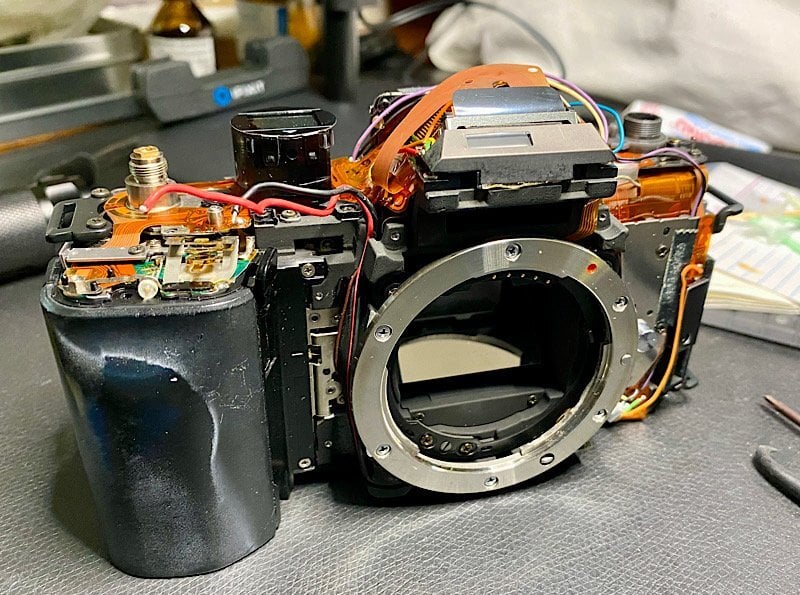

Without these instructions, I consider any attempts at service and repair pointless, as the 9000 AF must be disassembled in a specific sequence. This involves unscrewing parts and removing solder joints. It's not immediately obvious how to proceed, as the 9000 AF is densely packed with parts and flexible printed circuit boards (FPCs), some of which overlap.
A basic set of tools, equipment and materials is required to carry out the work. A digital multimeter and an oscilloscope are required for electronic measurements.
Practice
Before you start working on the 9000 AF you're repairing, you should practice all the procedures on a decommissioned 9000 AF. This will help you learn how the camera is constructed and gain valuable experience. Mistakes don't matter; you'll always end up with valuable spare parts.
CLA - Clean, lube, adjust
Service refers to the well-known CLA, which includes cleaning the outside and inside, lubricating/oiling, and adjusting a camera.
For thorough external cleaning, the covers are removed and cleaned with cleaning foam.
For internal cleaning, the mirror box must be removed. This gives access to the mirror box mechanism as well as allowing the shutter to be disassembled and cleaned, which, in my experience, is necessary on almost every 9000 AF. The reason for this is a plastic damper in the shutter that, over the decades, rots into a sticky brownish mass that clogs the shutter blades. The remains of this damper must be removed, the shutter cleaned, and reassembled. An improvised replacement can be used, I use parts of a suitable narrow rubber ring for this. Cleaning the shutter from the outside is not possible, even it is removed.
The five (!) solenoids of the 9000 AF also need to be cleaned on a CLA. Three of them (aperture 2, mirror 1) are located inside on the mirror housing, the other two on the shutter. If they are dirty, their function is impaired or even nonexistent, as the contact surfaces no longer separate properly or even at all. I clean the contact surfaces with benzine.
On the subject of lubrication and oiling, I refer you to Thomas Tomosy, who, in his first book, "Camera Maintenance and Repair," provides, among other things, a table listing lubricants and their applications. I follow the principle "less is more," and oil, in particular, should be applied sparingly, as it tends to spread. Old grease must be removed first. I also use bezine for this. Information on cleaning mechanical components can also be found in Tomosy's book.
Adjustments affect both the shutter and the electronics. The factory settings should only be changed if you know exactly what they do. Information on this can be found in the service manual. A camera tester is required to adjust the shutter. See the links below.
According to the service manual, the autofocus of the 9000 AF could only be adjusted by Minolta using a special camera tester (I/O tester). An alternative method for adjusting the autofocus is described in the C & C Associates Troubleshooting Guide for the Minolta 7000 AF. These instructions may be applicable to the 9000 AF.
Troubleshooting
A known problem with the 9000 AF is a faulty aperture control. In this case, the aperture does not close to the set value.

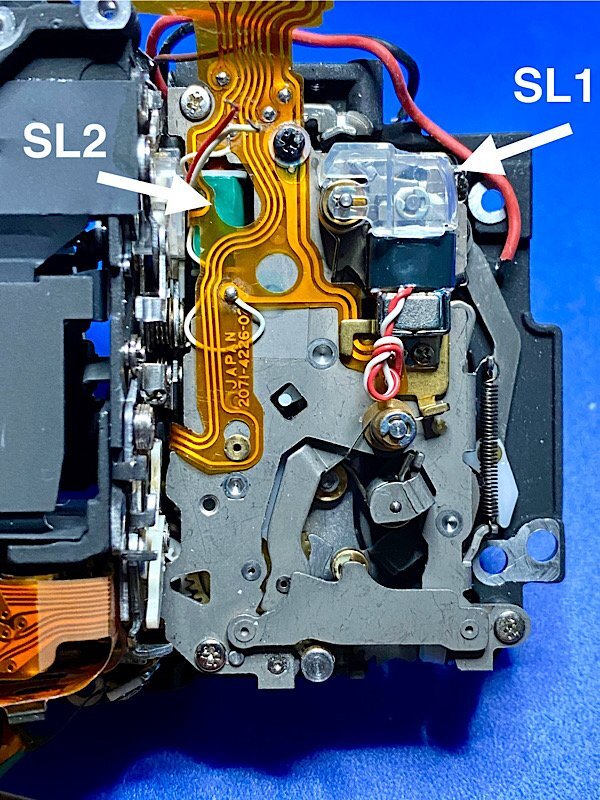

Aperture solenoids SL1 and SL2 on the inside of the mirrorbox, wind side.
I suspect the cause is contamination of the contact surfaces of the two solenoids (SL1, SL2) that control the aperture.
However, it could also be that the properties of the magnets used in the solenoids have changed over time.
As a solution, I recommend cleaning the contact surfaces with benzine or replacing the solenoids with functioning ones (from a decommissioned 9000 AF).
Other problems may include:
- Blurred viewfinder, even though AF and manual focusing using the focus aid produce sharp images.
- Blocked film transport, shutter, and mirror.
- Defective LCD in the viewfinder.
- Plastic parts on the handle and back door crack or fall off; whitish coating.
Minolta (Maxxum/Alpha) 9000 AF: DIY repair guide
The LCD on the top of the camera body likely shows dark spots ("LCD bleeding") on most 9000 AF models by now. In most cases, however, the LCD should still remain readable.
Further information on service and repair can be found here:
Minolta (Maxxum/Alpha) 9000 AF: DIY repair guide
Minolta (Maxxum/Alpha) 9000 AF: Tutorial for removing the mirror box, notes on assembly, cleaning/adjusting the Copal S shutter
Minolta (Maxxum/Alpha) 9000 AF: Blockage fixed, shutter cleaned/adjusted, exposure system checked, AEL, aperture control base plate, mirror stop
Minolta (Maxxum/Alpha) 9000 AF: Shutter disassembled, cleaned, tested, adjusted; exposure metering system checked - passed
Minolta 9000 AF: Removing the mirror box, cleaning the shutter, reassembling
Minolta 9000: Checking shutter and focusing screen, adjusting the mirror, replacing parts, cleaning
Minolta 9000: Examination of the sticky shutter and discussing solutions
Minolta (Maxxum/Alpha) 9000 AF: Removal of the mirrorbox/assembly, investigating the aperture issue, replacing the sticky damper in the shutter unit
Dissection Minolta NP-90M battery pack for Minolta (Maxxum) 9000; MD-90, BP-90M
Minolta (Maxxum, Alpha) 7000 and 9000 AF: Comparison of repair options
+++
A word of cautionPlease keep in mind that you’ll be using highly flammable solvents for service work, and their fumes are harmful to your health. Soldering also produces fumes that should not be inhaled. Dangerous high voltages can be present when handling electronics, especially in conjunction with electronic flash units and mains. Therefore, familiarize yourself with the safety regulations beforehand and ensure your safety. Depending on the activity, protective gear may be advisable.
All information provided without guarantee and use at your own risk.
