Minolta Dynax 800si rubber grip repair

[Andrew30]

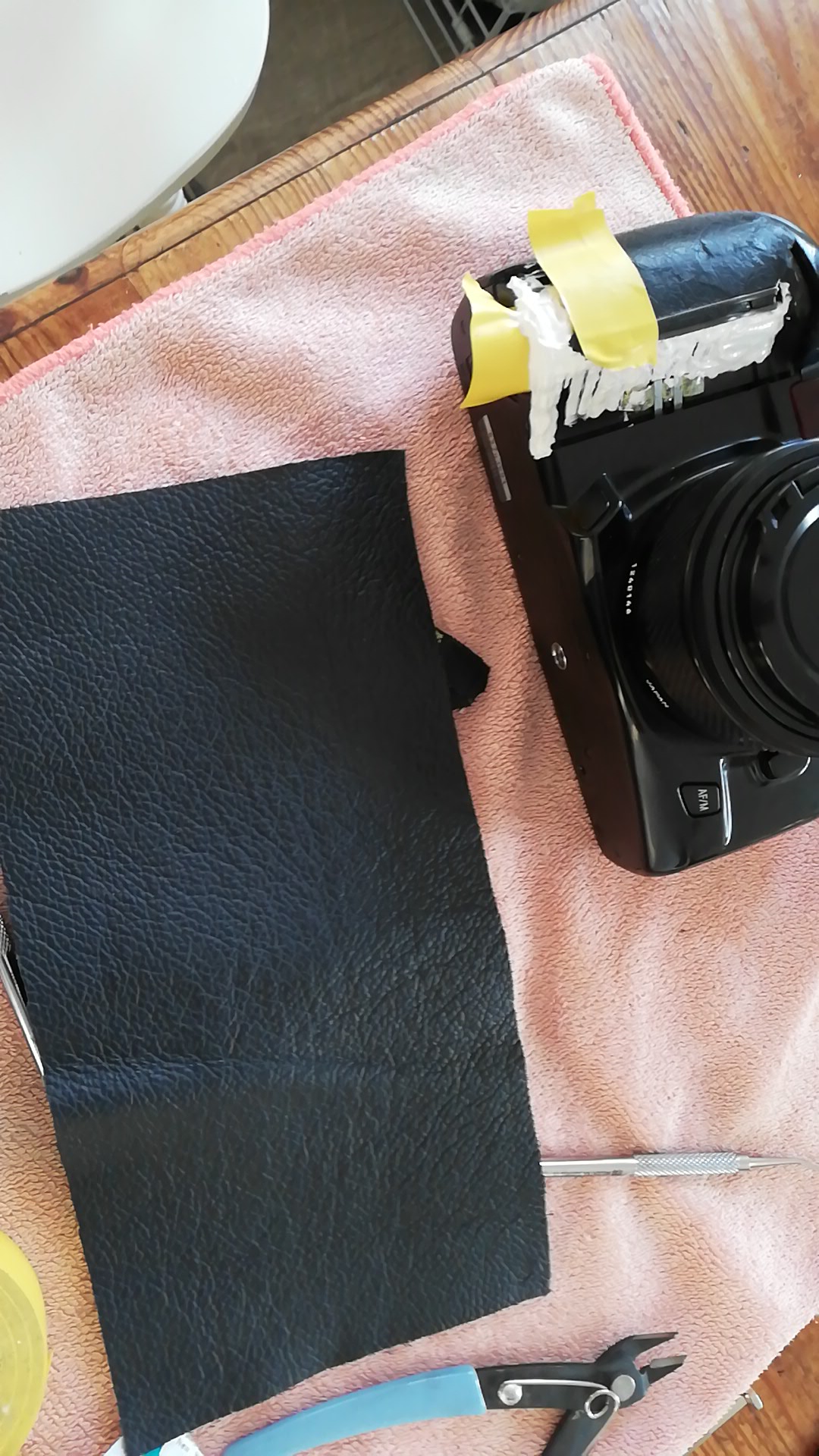

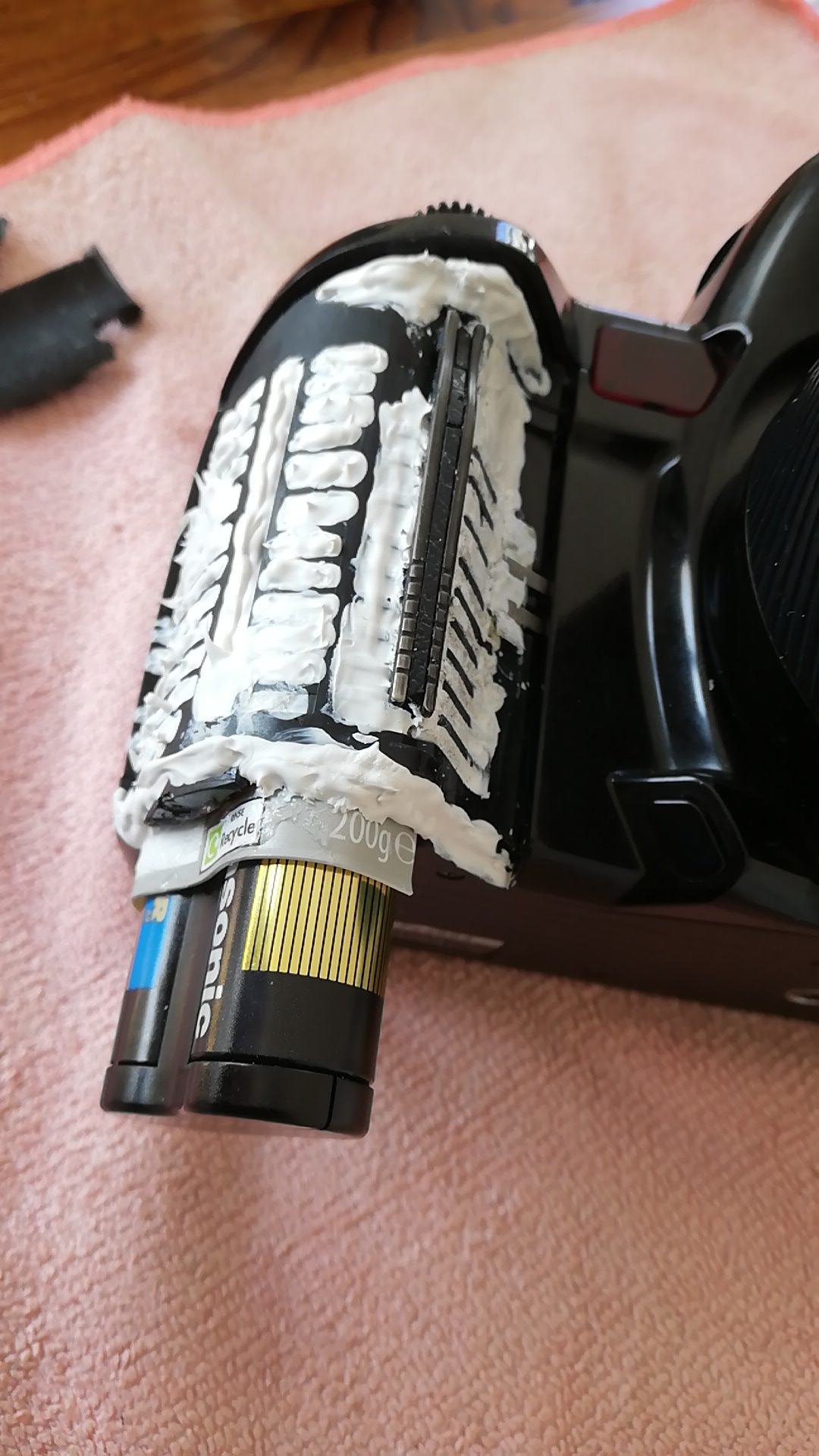

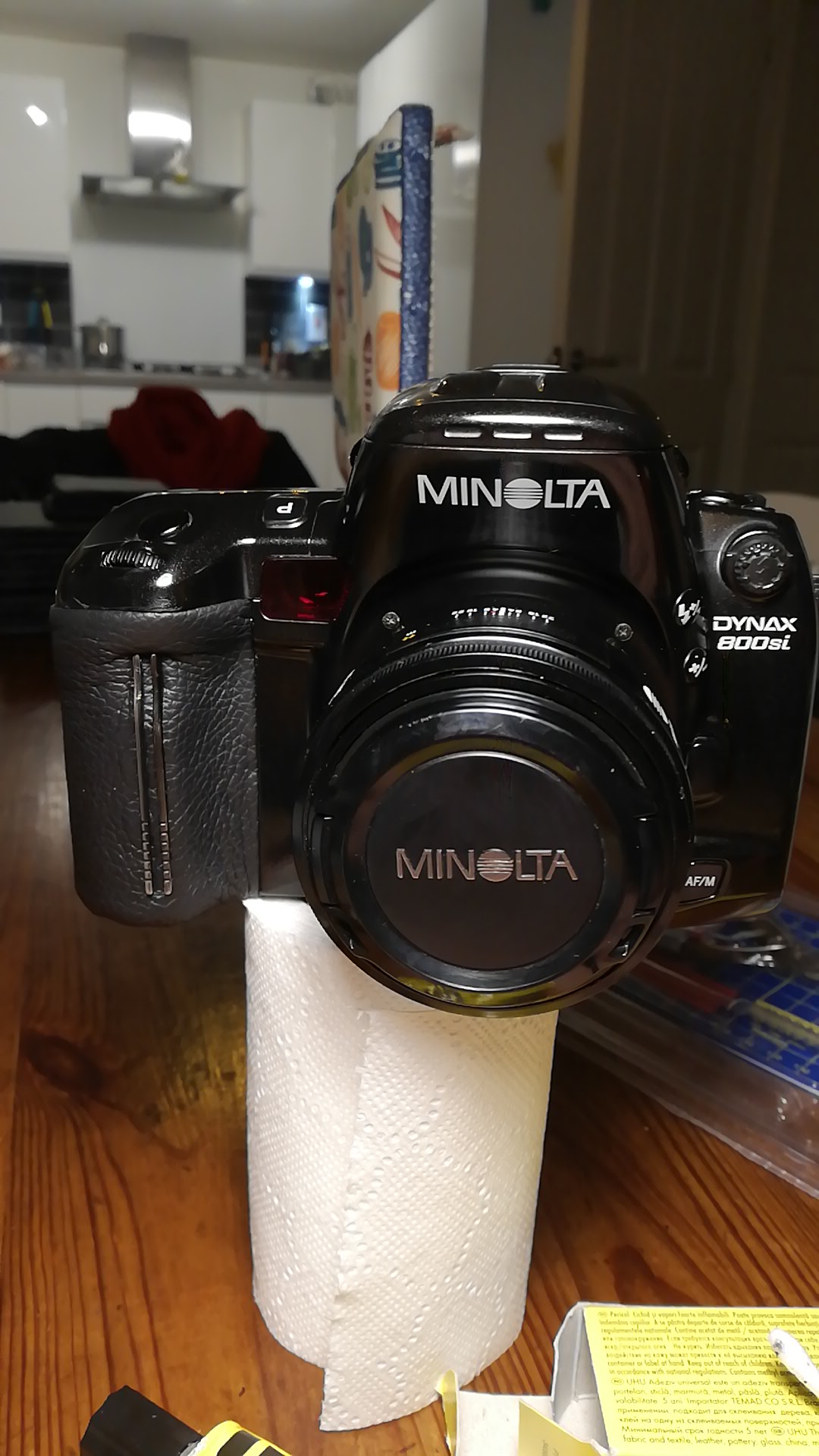

Repaired my Minolta 800si with leather. Removed old grip, built up base with plastic putty, carefully filed that down to correct level, glued on leather tucking it in at top and two sides and neatly trimming at bottom. Worked really well. Started leather by fitting neatly around eye start sensors and slowly worked in top and lens side, then outer side, and finally the base. Hope this may prove helpful to others.



[ant!]

Nice, might need to do something eventually with my 7 as well. I saw other people using Sugru to create a new rubbery surface.



[Paul Howell]

Thanks, timing is right, I found a working 600si with the plastic missing on the right side, I thought about using plastic filler to build up the missing area but had had thought about using leather for top layer.



[Andrew30]

Nice, might need to do something eventually with my 7 as well. I saw other people using Sugru to create a new rubbery surface.

Glad it was helpful. Thought of using sugru as well but was having difficulty getting it here in Scotland.



[Andrew30]

Thanks, timing is right, I found a working 600si with the plastic missing on the right side, I thought about using plastic filler to build up the missing area but had had thought about using leather for top layer.

Interestingly the leather gives it a nicer feel than the original rubber.



[jwd722]

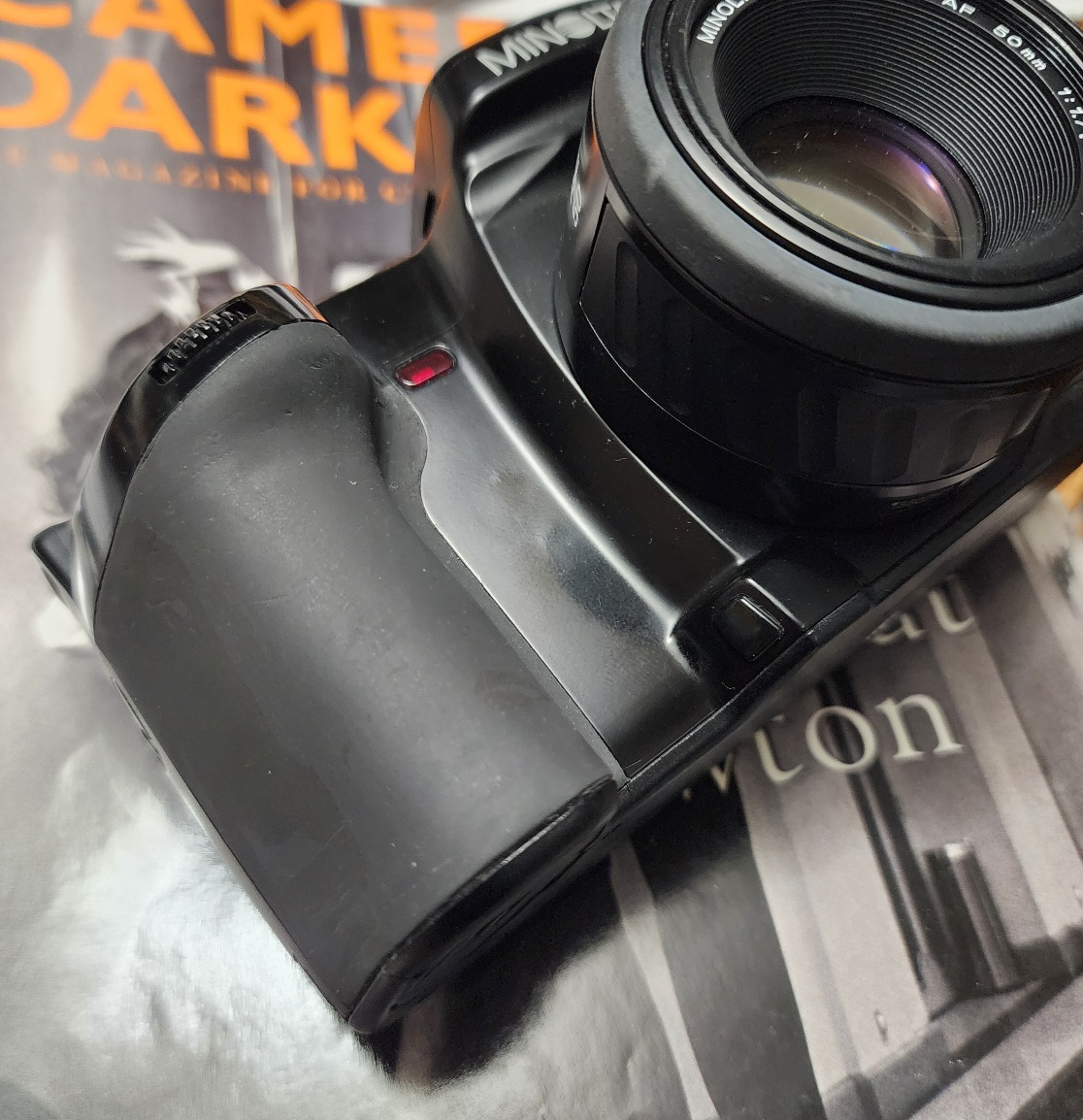

I used Sugru on my 600si. The grip was toast so I removed it, taped it off and started molding using fingers, popsicle sticks, a dowel and anything else I could find.

Final touches were with fingernail to clean lines between plastic and Sugru.

This was my first time using the stuff and really like the way it looks, feels ever so slightly soft.



[Patrick Robert James]

Wow, that is two different but fantastic results! Now I know what to do when my 9xi starts to shed it's grip.



[Andrew30]

I used Sugru on my 600si. The grip was toast so I removed it, taped it off and started molding using fingers, popsicle sticks, a dowel and anything else I could find.

Final touches were with fingernail to clean lines between plastic and Sugru.

This was my first time using the stuff and really like the way it looks, feels ever so slightly soft.

Looks fantastic! I think it is great that others who face the same problem will have a variety of choices to repair their camera.



[Andrew30]

Wow, that is two different but fantastic results! Now I know what to do when my 9xi starts to shed it's grip.

It's great that so many people are sharing their fix for the problem. Bodes well for keeping these great cameras working.



[RalphLambrecht]

Repaired my Minolta 800si with leather. Removed old grip, built up base with plastic putty, carefully filed that down to correct level, glued on leather tucking it in at top and two sides and neatly trimming at bottom. Worked really well. Started leather by fitting neatly around eye start sensors and slowly worked in top and lens side, then outer side, and finally the base. Hope this may prove helpful to others. View attachment 377609 View attachment 377610 View attachment 377611

good job



[Andrew30]

good job

Thanks.
