Mask/Holder for 4x5" sheet film

daliborwalk said:

Hello, you can find the info for the 3D printed 4x5! sheet film holder for scanning/enlarging with no glass tables(there is also info in English on that webpage):

Mask(a) 4x5" - Analog Prints

(English info listed below)Maska/držák plochého filmu rozměru 4×5 palců – umožňuje skenovat, či zvětšovat bez skel a přitom je film držen v rovině. Vyrobeno pomocí 3D tisku, potřebujete 2 kusy, které spojíte k sobě. Soubor pro 3D tiskárnu: https://www.thingiverse.com/thing:4524691 Testováno a...

www.analogova.fotoradost.cz

Click to expand...

koraks said:

Nice. I made something similar recently:

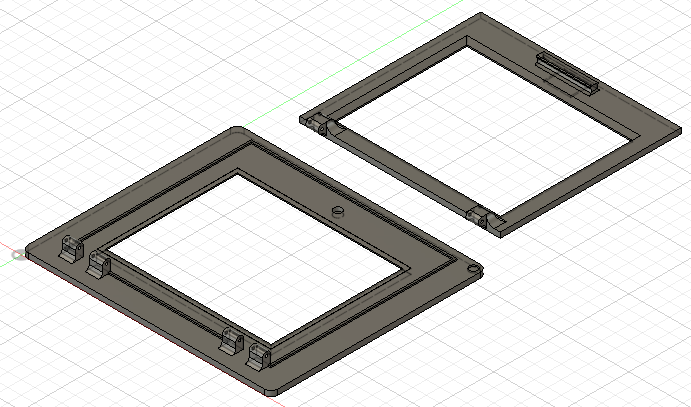

View attachment 331122
It's a 2-piece design like yours, but with a hinged lid. I included a recess for a little cylindrical magnet in the baseplate and a metal plate in the lid so that it snaps shut. For the hinges I generally melt plain iron nails (1.8mm diameter) through the hinge holes.

Since sheet film is quite stiff, it sort of works OK but for critical sharpness and big enlargements the sag can be a problem. A tensioning system or a glass carrier is preferable for those. These 3D printing thingies work in a pinch and for non-critical stuff.
