We all know film is sensitive to light outside the visible spectrum, but what are the limits? How far into ultraviolet and infrared can film be made sensitive to?

Just curious - I'm not sure if there are any practical benefits other than what we already know about UV and IR photography.


Bill Burk

Subscriber
Joined
Feb 9, 2010
Messages
8,084
Shooter
4x5 Format
Ultraviolet up through X-Rays and infrared down to baking in the car.


AgX

Member
Joined
Apr 5, 2007
Messages
29,661
Location
Germany
Shooter
Multi Format
Ultraviolet up through X-Rays and infrared down to baking in the car.

Not quite. That spectral sensitivity is not continuous.
For instance at the UV range there soon is the obstacle of opacity of the binder, about 250nm. For IR the nominal limit is at about 1200nm, however with ultra-long exposure times something in the region of 50,000nm is possible.


Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
41,510
Location
Southern California
Shooter
Multi Format
It is not only not necessarily continuous it varies on sensitivity.


glbeas

Subscriber
Joined
Sep 25, 2002
Messages
3,851
Location
Marietta, Ga. USA
Shooter
Multi Format
Not quite. That spectral sensitivity is not continuous.
For instance at the UV range there soon is the obstacle of opacity of the binder, about 250nm. For IR the nominal limit is at about 1200nm, however with ultra-long exposure times something in the region of 50,000nm is possible.
I’ve heard of that with uv photography. The researchers were using an etching technique to remove the gelatin from the surface of the emulsion to expose the silver halide grains and improving the sensitivity at those wavelengths. That article was a lot of years ago, cant remember who was doing it.


mshchem

Subscriber
Joined
Nov 26, 2007
Messages
8,829
Location
Iowa City, Iowa USA
Shooter
Medium Format
I use toy IR goggles. It has potent IR LEDS as illumination source. I can stare at any non IR film for a half hour with ZERO effects (arms length from the source ). Film manufacturers don't stumble around blind. From what I've been able to find there are areas that IR is used to view what's going on. Emulsions are brilliant white on my LED viewscreen on the goggles. Black marker ink is white, Jobo reels are brilliant white.


michr

Member
Joined
Sep 28, 2012
Messages
440
Shooter
Multi Format
I use toy IR goggles. It has potent IR LEDS as illumination source. I can stare at any non IR film for a half hour with ZERO effects (arms length from the source ). Film manufacturers don't stumble around blind. From what I've been able to find there are areas that IR is used to view what's going on. Emulsions are brilliant white on my LED viewscreen on the goggles. Black marker ink is white, Jobo reels are brilliant white.

I've been wanting a pair of these goggles myself. I hate stumbling around in the dark. What kind do you have?


mshchem

Subscriber
Joined
Nov 26, 2007
Messages
8,829
Location
Iowa City, Iowa USA
Shooter
Medium Format
I've been wanting a pair of these goggles myself. I hate stumbling around in the dark. What kind do you have?

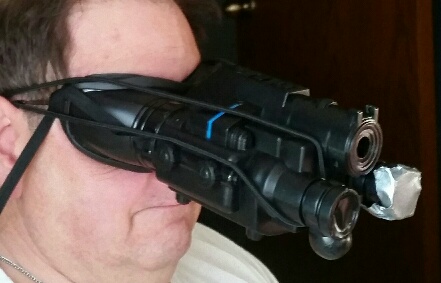

Don't try walking around. Very narrow angle of view single lens, no depth perception. Jakks Pacific Spy Net night vision "binoculars " I bungee these to my head, you look like an idiot, but no one else can see you . I can read the part numbers on Jobo stuff. Amazing toy, around 60 bucks.


michr

Member
Joined
Sep 28, 2012
Messages
440
Shooter
Multi Format
Don't try walking around. Very narrow angle of view single lens, no depth perception. Jakks Pacific Spy Net night vision "binoculars " I bungee these to my head, you look like an idiot, but no one else can see you . I can read the part numbers on Jobo stuff. Amazing toy, around 60 bucks.
View attachment 204318

Awesome, thanks for responding. Those googles look like pure science fiction.


michr

Member
Joined
Sep 28, 2012
Messages
440
Shooter
Multi Format
The duct tape is covering the LEDS that are near IR.they put out dim red light . The other LED array is pure IR. No problem.

Good to know. Did they fog film before you put on the duct tape?


mshchem

Subscriber
Joined
Nov 26, 2007
Messages
8,829
Location
Iowa City, Iowa USA
Shooter
Medium Format
Good to know. Did they fog film before you put on the duct tape?
Nope, I didn't try . I have a IR flood light that I tried for a while ,but I went back to the built in. All the security stuff now you can get all kinds of things.

OP
OP
Theo Sulphate

Theo Sulphate

Member
Joined
Jul 3, 2014
Messages
6,496
Location
Gig Harbor
Shooter
Multi Format

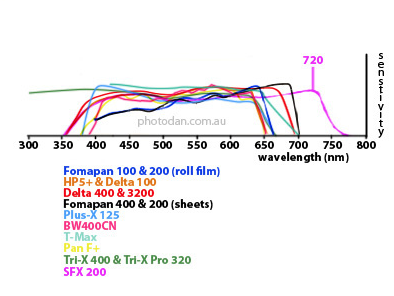

So with presently available or specialty film stock, the answer seems to be 250nm to 1200nm with 50,000nm in extreme circumstances.


Duolab123

Member
Joined
Sep 25, 2015
Messages
8
Shooter
Med. Format RF
I made a little video 2 minutes using the SPYNET recording goggles


OP
OP
Theo Sulphate

Theo Sulphate

Member
Joined
Jul 3, 2014
Messages
6,496
Location
Gig Harbor
Shooter
Multi Format
Yes, HIE and Rollei IR 400 if possible, please.

I made a little video 2 minutes using the SPYNET recording goggles
...

That was very helpful, thank you -- I have a film project where those goggles would be indispensable.

Last edited:
OP
OP
Theo Sulphate

Theo Sulphate

Member
Joined
Jul 3, 2014
Messages
6,496
Location
Gig Harbor
Shooter
Multi Format
Nice! Thank you.
