Kallitype how-to videos

Discussion in 'Hand Coated Wet Prints' started by tnp651, Mar 22, 2018.

  1. tnp651

    tnp651 Subscriber

    Messages:
    72
    Joined:
    Jan 9, 2017
    Location:
    St. Paul, Minnesota, USA
    Shooter:
    4x5 Format
    I've posted my very first YouTube videos, a 2-part series on how to make a kallitype. I hope you will find it helpful.
    PART 1: Setup and coating
    PART 2: Exposure and development

    Tom Nelson

  2. Peter Schrager

    Peter Schrager Subscriber

    Messages:
    2,962
    Joined:
    Jul 19, 2004
    Location:
    fairfield co
    Shooter:
    Large Format
    Thank you well done video

  3. ced

    ced Member

    Messages:
    497
    Joined:
    Oct 10, 2011
    Location:
    Belgica
    Shooter:
    Multi Format
    Groups:
    Well done! Enjoyed both thanks.

  4. grimp0teuthis

    grimp0teuthis Member

    Messages:
    33
    Joined:
    Aug 9, 2017
    Location:
    earth
    Shooter:
    Medium Format
    I've been thinking about getting into kallitype -- thanks!

  5. mard0

    mard0 Member

    Messages:
    29
    Joined:
    Oct 12, 2017
    Location:
    Netherlands
    Shooter:
    Analog
    Great video. My only point of critique is that no concentration are mentioned of the solutions that are used.

  6. OP
    OP
    tnp651

    tnp651 Subscriber

    Messages:
    72
    Joined:
    Jan 9, 2017
    Location:
    St. Paul, Minnesota, USA
    Shooter:
    4x5 Format
    There are a few concentrations (silver nitrate, citric, etc) but I hope specifics can be handled in the comments. Thanks for your feedback.

  7. Mainecoonmaniac

    Mainecoonmaniac Subscriber

    Messages:
    5,128
    Joined:
    Dec 10, 2009
    Shooter:
    Multi Format
    Great job with the video and the Kalitype print!

  8. nmp

    nmp Member

    Messages:
    451
    Joined:
    Jan 20, 2005
    Shooter:
    35mm
    Very good. Short and concise - just the right amount of info. Thanks for taking the time and effort to make these and sharing. I love the idea of the coating rod. I am going to steal it....I use glass rod but I need a handle.

    :Niranjan.

  9. Andrew O'Neill

    Andrew O'Neill Subscriber

    Messages:
    2,611
    Joined:
    Jan 16, 2004
    Location:
    Coquitlam,BC Canada
    Shooter:
    Multi Format
    Well done, Tom.

  10. Larry Cloetta

    Larry Cloetta Subscriber

    Messages:
    53
    Joined:
    Sep 21, 2015
    Location:
    Jackson, WY
    Shooter:
    35mm
    Really well done, thank you.

  11. awty

    awty Subscriber

    Messages:
    410
    Joined:
    Jul 24, 2016
    Location:
    Australia
    Shooter:
    Multi Format
    Excellent tutorial. Short intro, no life story, concise and unopinionated, the way they should be.
    I would like the basic how to in text I could easily print out, saves trying to write it all down.


    You should do more.

  12. mitch brown

    mitch brown Subscriber

    Messages:
    264
    Joined:
    Apr 25, 2006
    Shooter:
    4x5 Format
    this I really enjoyed ! now making Kalitype prints are on my to do list
    very well done

  13. michr

    michr Member

    Messages:
    439
    Joined:
    Sep 28, 2012
    Shooter:
    Multi Format
    Beautiful work! Thanks for the video, it will be my reference when I attempt to make my own Kallitypes.

  14. Tom Taylor

    Tom Taylor Member

    Messages:
    317
    Joined:
    Jul 10, 2005
    Shooter:
    Multi Format
    It was printed too deep which is why it popped-up too dark in the developer. Getting the correct exposure is the tricky part with the Kallitype and using a UV light box makes it harder unless you use a split-back contact printing frame so that you can examine the print during the exposure. If using a film negative the rebate will be readable if the exposure is on.

    Thomas

    Last edited: Mar 24, 2018
  15. ced

    ced Member

    Messages:
    497
    Joined:
    Oct 10, 2011
    Location:
    Belgica
    Shooter:
    Multi Format
    Groups:

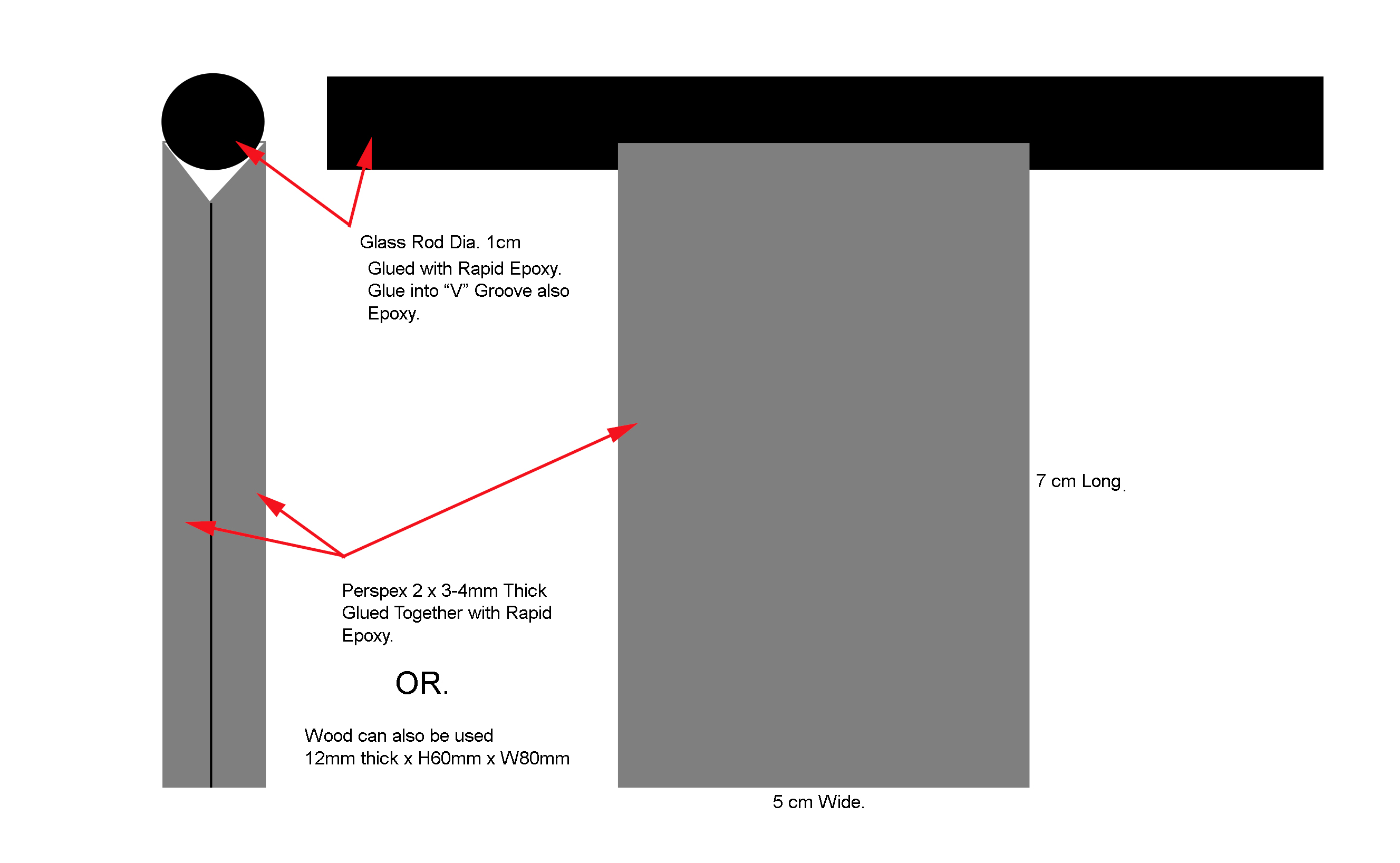

    One method here to help with putting a handle on a glass rod or tube. Measurements need to be adjusted for width required.
    Hope it helps. Coating Rod.jpg

  16. OP
    OP
    tnp651

    tnp651 Subscriber

    Messages:
    72
    Joined:
    Jan 9, 2017
    Location:
    St. Paul, Minnesota, USA
    Shooter:
    4x5 Format
    Hi Paul, here's the basics of it:
    Papers for kallitypes:
    Arches Platine
    Crane’s Platinotype
    Stonehenge Rising
    Buxton Platinotype

    Other supplies:
    My UV light: QUANS 110v 20W UV LED light US$49.99 on Amazon
    UV-safe goggles
    Gloves (and eye protection?)
    Safelight (dim incandescent or a yellow bug light)
    Coating rod and/or brush (Jack Richeson 9010)
    A flat, waterproof surface (plate glass?)
    Flat-bottomed tray
    pH test strips

    Coating solution:
    Ferric oxalate (20%) or Solution #1 (27%) cut 5:1 with water
    10% silver nitrate
    TWEEN-20
    Ammonium dichromate 5%

    Processing chemicals:
    Developer: there are many developers for kallitypes. 20% sodium citrate is the most common. I use a developer suggested by kallitypist Russell Young using borax and Rochelle salt. See https://unblinkingeye.com/Articles/Ferric/ferric.html
    Citric acid
    Toner (gold, palladium or platinum)
    Fixer: 3-5% sodium thiosulfate (hypo)
    Hypo clearing agent: 1% sodium sulfate

    Here’s the sequence of development:
    Develop: 10 minutes
    First rinse: 2 minutes
    Second rinse: 2 minutes
    Clear (3% citric acid): 2 minutes
    Wash: 1 minute
    Toner: 2-10 minutes (gold, palladium or platinum)
    Rinse: 1 minute
    Fixer: 2 minutes
    Wash: 1 minute
    Hypo clear: 2 minutes
    Wash: 20 minutes

    Tom

    Last edited: Mar 28, 2018
  17. Andrew O'Neill

    Andrew O'Neill Subscriber

    Messages:
    2,611
    Joined:
    Jan 16, 2004
    Location:
    Coquitlam,BC Canada
    Shooter:
    Multi Format
    Stonehenge is a nice paper, but it should be acidified first for smooth, even tones, and an improved Dmax. Another very nice paper is Hahnemühle Platinum Rag.

  18. awty

    awty Subscriber

    Messages:
    410
    Joined:
    Jul 24, 2016
    Location:
    Australia
    Shooter:
    Multi Format
    Thanks Tom I appreciate that.

  19. nmp

    nmp Member

    Messages:
    451
    Joined:
    Jan 20, 2005
    Shooter:
    35mm
    Thanks Ced.

  20. Bruce

    Bruce Subscriber

    Messages:
    185
    Joined:
    Oct 25, 2006
    Location:
    Centerville
    Shooter:
    35mm
    Tom- Nice videos and explanation. Just make sure you were gloves during the process. I am sure you do.

  21. OP
    OP
    tnp651

    tnp651 Subscriber

    Messages:
    72
    Joined:
    Jan 9, 2017
    Location:
    St. Paul, Minnesota, USA
    Shooter:
    4x5 Format
    I do wear gloves, and urge people to do so in the videos.
    Tom
