schitti

Member
Joined
Nov 10, 2013
Messages
1
Shooter
35mm
I would like to use the spot meter again but the lenses need cleaning. I was not able to find a repair instruction and I simply, as stupit it sounds, can not open the meter, at the same time I do not like to destroy it. Any help
is very much appreciated. Thanks.

From Switzerland, Werner


John Koehrer

Subscriber
Joined
Apr 3, 2004
Messages
8,240
Location
Aurora, Il
Shooter
Multi Format
Many lenses will have a very thin ring surrounding the decorator ring at the front although there are some where the ring simply unscrews.

This should give access to the inner and outer surface of the front and inner surface of the rear.


MarioAlbany

Member
Joined
Dec 12, 2019
Messages
2
Location
Albany, NY, USA
Shooter
35mm

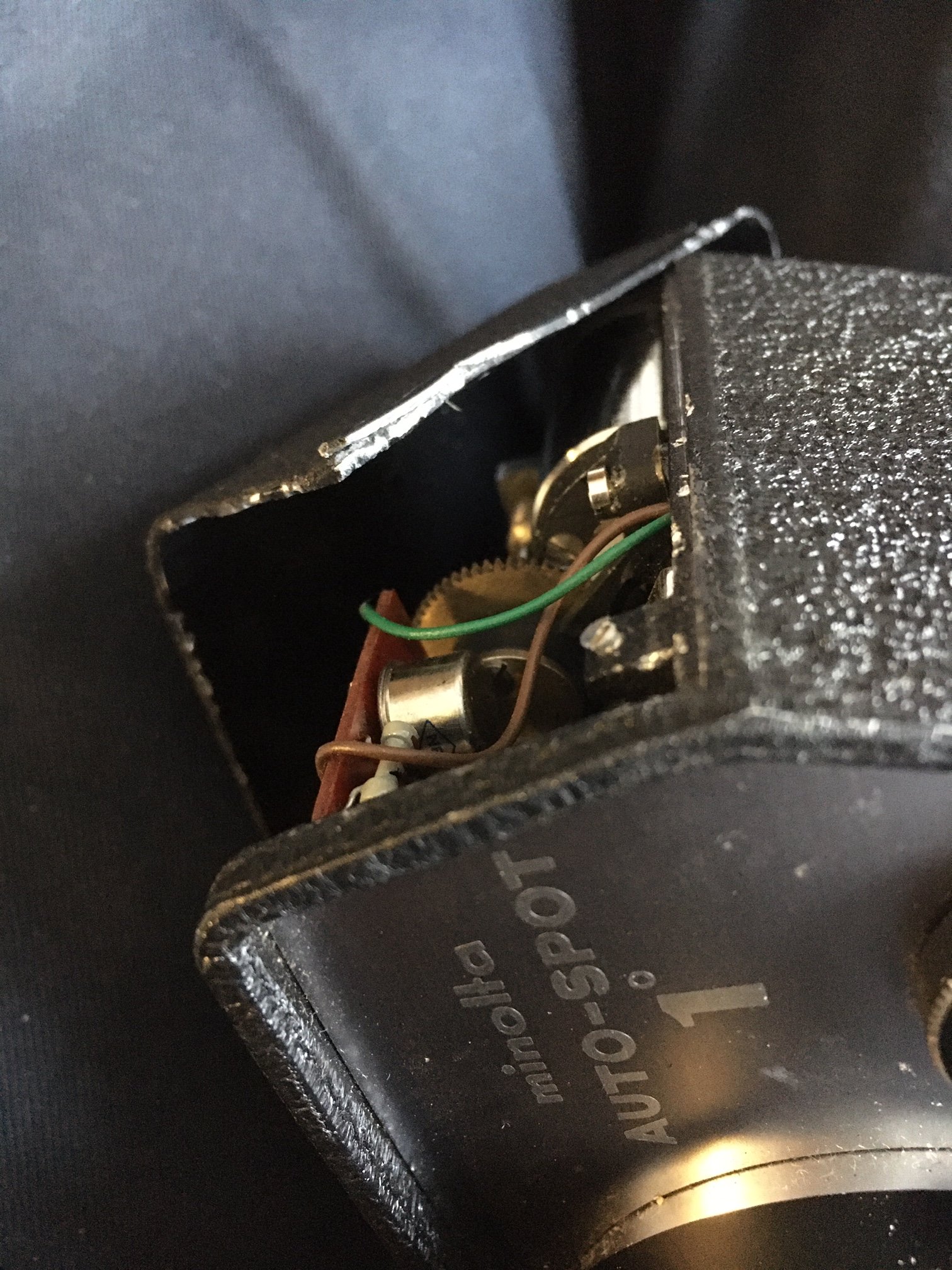

I was able, finally, to open the top of the meter. After removing the screw from the rear there are pins in the unit body at the front lower corners approx 1 cm from the front and 6 mm above the base where the two sections meet. In my case the pins were somewhat pressed into the tight opening in the top which resulted in deforming the metal in order to seperate them.


MarioAlbany

Member
Joined
Dec 12, 2019
Messages
2
Location
Albany, NY, USA
Shooter
35mm
My unit only seems to function part of the time, it seems to be caused by the intermittent loss of contact of the power continuity.

Also, it makes a whirring noise when it does function which I'll try to diagnose and resolve...


David A. Goldfarb

Moderator
Moderator
Joined
Sep 7, 2002
Messages
19,881
Location
Honolulu, Ha
Shooter
Large Format
Thread moved from RF forum to Misc Equipment


Deleted member 88956

My unit only seems to function part of the time, it seems to be caused by the intermittent loss of contact of the power continuity.

Also, it makes a whirring noise when it does function which I'll try to diagnose and resolve...
There is actually a motor inside that moves scales, these meters are not silent.
