How to install this lens on a shutter?

Recent Classifieds

Forum statistics

Threads
198,720
Messages
2,779,892
Members
99,691
Latest member
Vlad @ausgeknipst
Recent bookmarks
0

pgram

Member
Joined
Dec 18, 2012
Messages
21
Location
loiano, ital
Format
Medium Format
Hi all,

I found in a closing shop this lens:

Schneuder-Kreuznach Symmar 1:5,6/240 1:12/420 installed on a Sinar lens board.

The lens has no shutter, only a diaphragm with two scales on it, from 5,6 to 45 and from 12 to 45.

I would like to use it, but i need to install it on a shutter!

the thread of the two elements is 45.7 millimeters, both sides.

I cannot find any correspondance, it is not a Copal 1 nor a Copal 3...

Does anybody know what shutter i shall look for, and where to find it?

Any advice?

thanks,

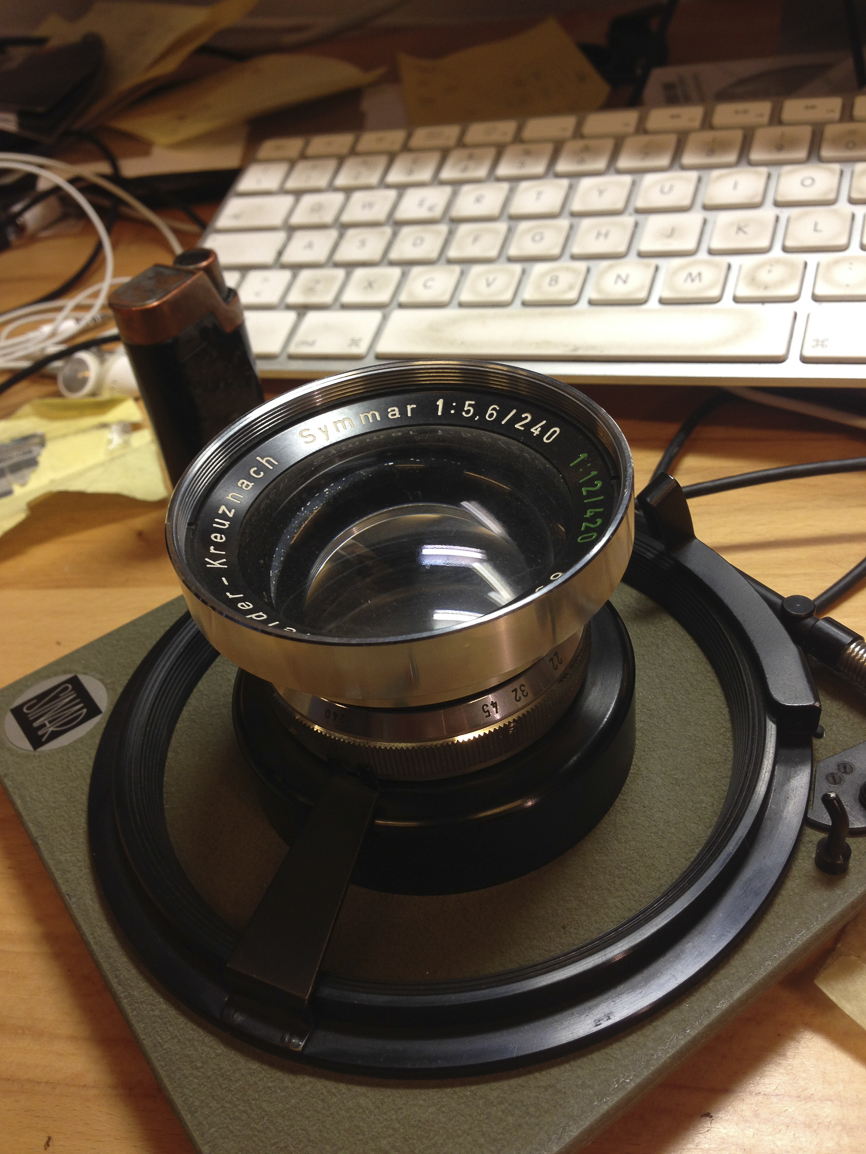

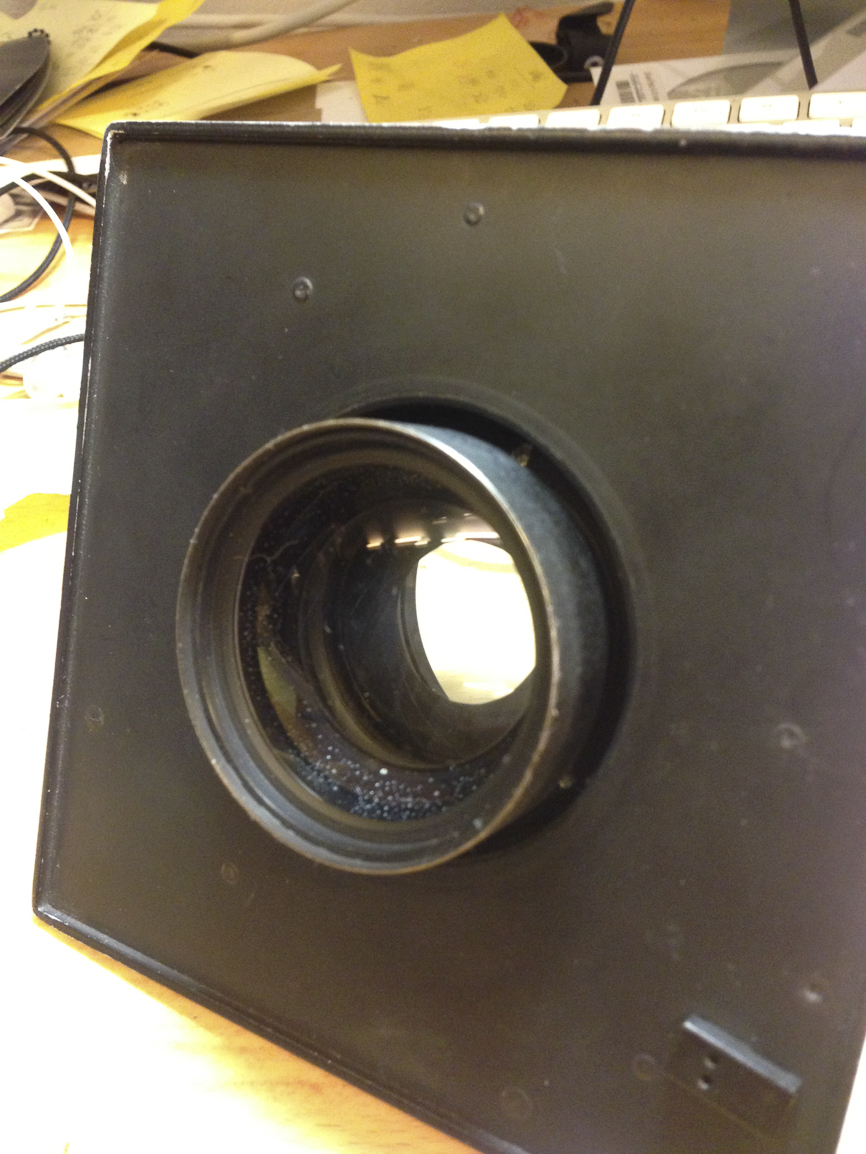

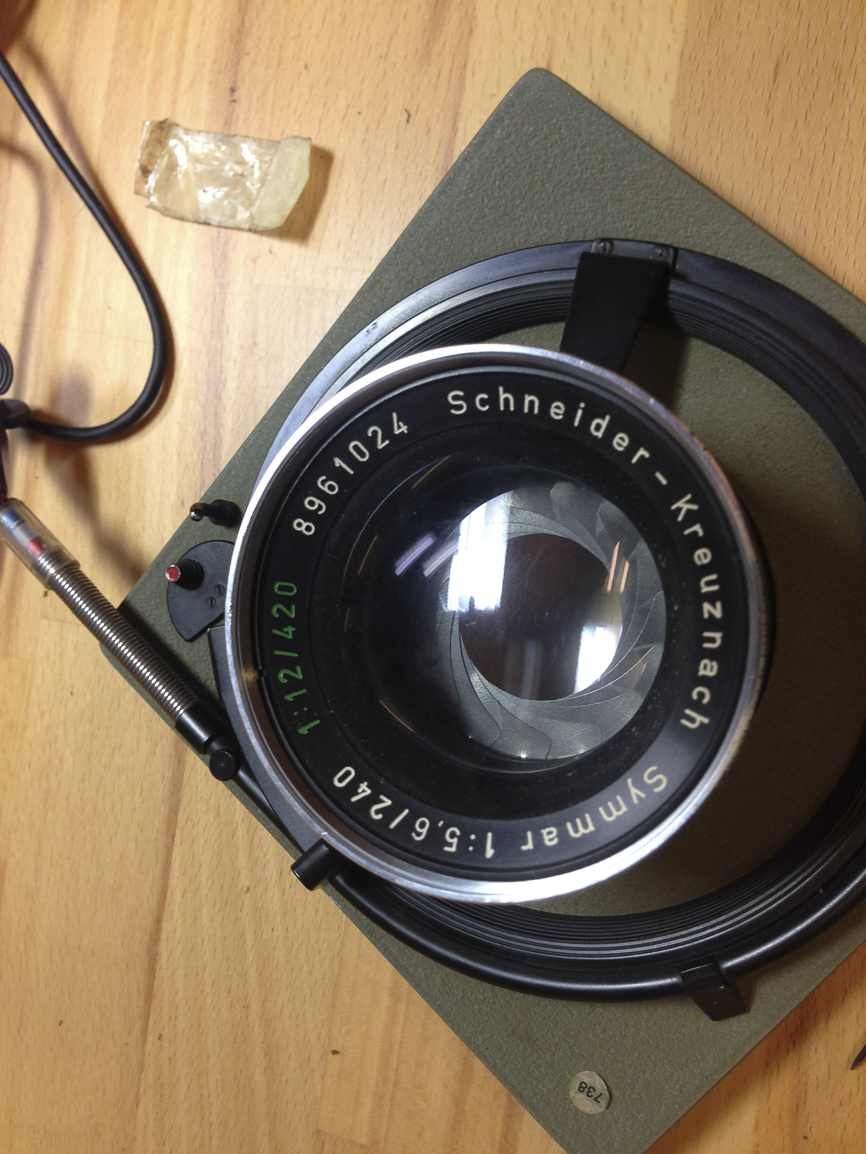

Paolo Schneider lens 2.jpg Schneider lens.jpg Schneider lens 3.jpg


shutterfinger

Member
Joined
Feb 25, 2013
Messages
5,020
Location
San Jose, Ca.
Format
4x5 Format
Looking at your pictures the lens is in a Sinar DB shutter, which I am not familiar with.

See: https://www.schneideroptics.com/info/vintage_lens_data/large_format_lenses/symmar/

A Compur 2-X tube 5/I has a 35mm front opening edge to rear opening edge
A Compur 2-X tube 5/II has a 25mm opening to opening
and both have a 45.8 mm opening.

You will probably have to have adapters made to fit the lens to current shutters unless you come across an older shutter that the lens barrels will fit and provide the correct spacing between groups.
The shutters are CN-1408-012 and CN-1408-013 in this service manual
http://benoit.suaudeau.perso.neuf.fr/manuels_rep/obturateurs/Compur-shutter-repair-manual.html

Last edited by a moderator:

smieglitz

Member
Joined
Oct 18, 2002
Messages
1,950
Location
Climax, Michigan
Format
Large Format
There is currently one listed on Ebay (#400212697245) in a Compur 2 shutter. That's probably what you need. Have a look through this old thread on photo.net:

http://photo.net/large-format-photography-forum/00CxrJ


FWIW, I have a convertible 240mm Symmar mounted in a modern Compur 3 shutter. Also currently on Ebay (#181170420857) you'll find one in a Linhof Compur (3?) and another (161058477231) in an electronic Compur 3.
