NedL submitted a new resource:

(there was a url link here which no longer exists) - How to fix a solargraph

Solargraphs are usually ephemeral and kept in a dark box. Here is a simple method to fix them so that they may be stored and viewed safely in the light.

Ilford MGIV and Adorama VC RC paper emulsions contain ingredients that act like incorporated developer. If you put the paper into alkali solution, you will get some self-limited development, and the amount of development can be controlled by how alkaline the solution is. This development is complete in less than 20 seconds at room...

(there was a url link here which no longer exists)

Mod edit Nov '23: this resources has moved and it is currently available here: https://www.photrio.com/forum/resources/how-to-fix-a-solargraph.72/

Last edited by a moderator:

ME Super

Member
Joined
Apr 17, 2011
Messages
1,479
Location
Central Illinois, USA
Format
Multi Format
Thanks! Will definitely try this out with my next solargraph.


pdeeh

Member
Joined
Jun 8, 2012
Messages
4,767
Location
UK
Format
Multi Format
I think you've tried this with Lumen prints as well Ned?


TheToadMen

Subscriber
Joined
Sep 18, 2012
Messages
3,560
Location
Netherlands, EU
Format
Pinhole
Excellent idea and clear instructions. I'm gonna try this! I'll place a pinhole camera for about 4 weeks to do a first test with normal B&W photo paper. I'll also try a sheet of Harman Direct Positive Paper to get a positive analogue image in the first place. I'm curious to see if the DDP will work as a solargraph the same way as regular B&W (negative) paper.

I'm also gonna post a pinhole camera in my garden this week for the next WPPD 2015 on April 26th, 2015. This gives me 7 months to expose the solargraph.

OP
OP
NedL

NedL

Subscriber
Joined
Aug 23, 2012
Messages
3,281
Location
Sonoma County, California
Format
Multi Format
I think you've tried this with Lumen prints as well Ned?
I used strips of lumen prints to dial in the recipe, but I haven't done it with them since then. MGIV lumen prints "develop" a funky olive green cast, which could work for some lumen prints. I left those out on the shelf in the sunny window for the same 8 months and they were fine too. I think it could be interesting to try this with various toners...

I thought if the developer was weak enough this might work, so I started out with caffenol which is supposed to be a weak paper developer. I kept reducing the amount of coffee more and more and more but every time there was fog and the result was black after fixing. In frustration, I tried it in just the water with soda, and was amazed when the same thing happened. Then I reduced the concentration of soda more and more, but didn't find good control until I started adding the bicarbonate. With strips of lumen prints and rows of baby food jars, all I needed was some lightning rods and crazy hair and the picture would have been complete!


ME Super

Member
Joined
Apr 17, 2011
Messages
1,479
Location
Central Illinois, USA
Format
Multi Format
With strips of lumen prints and rows of baby food jars, all I needed was some lightning rods and crazy hair and the picture would have been complete!

I'm gonna be a Mad Scientist this weekend. I've had a solargraph exposing for the past 6 months. I've got my bottle of Ilford Rapid Fixer, and gonna pick up some washing soda and baking soda on the way home. We'll see what develops... Muahahahaha!

And a little thread necromancy doesn't hurt the mad scientist image either. :D


tezzasmall

Member
Joined
Dec 29, 2013
Messages
1,115
Location
Southend on Sea Essex UK
Format
Plastic Cameras
I've only just found this link - just as Autumn and Winter approach and there's no light to do a lumen or solargraph,,,:sad:

But I've bookmarked this link and printed it out, so hopefully the next time there's a good bout of light I know what I'll be doing! :D

Terry S

OP
OP
NedL

NedL

Subscriber
Joined
Aug 23, 2012
Messages
3,281
Location
Sonoma County, California
Format
Multi Format
Hi Terry,

You can make a lumen print by putting it next to a window, even on cloudy days there is some UV. It might take a couple days but it will still work. Also, most CFLs will work... put it on a table with a CFL desk lamp for 5 or 6 hours....

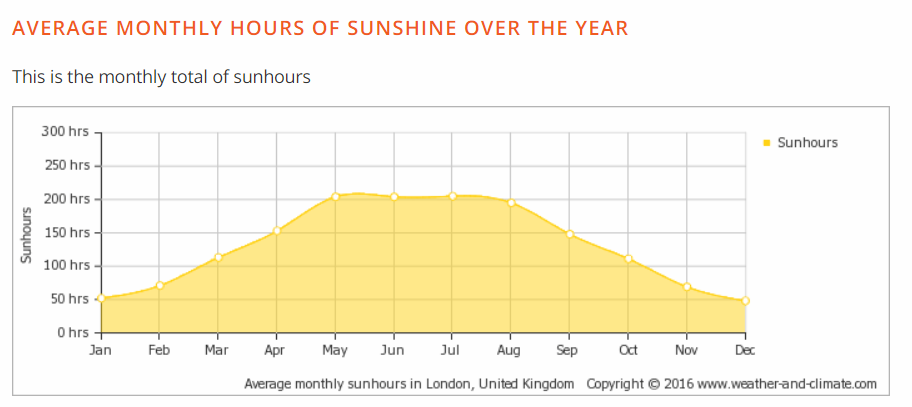

Wow...
that's not much sunshine during the winter. But still, if you stuck a solargraphy can out for 2 months, it might get 100 hours of sun, on different days, and they can look even more interesting if it's not sunny every day. A bigger challenge is keeping condensation out of it, and I haven't solved that yet. It's no fun going to collect your can and finding it full of water up to the pinhole. I've made a couple with a "drain hole" stuffed with black foam ( hoping it will keep the light and bugs out, but let the water seep through... ) but haven't tried them yet so don't know if it's a good idea or not.....


removed account4

Subscriber
Joined
Jun 21, 2003
Messages
29,849
Format
Hybrid
if you live near the ocean or where there's snow there's a lot of reflected light :smile:
have fun !!
ned, you are a wizard !


koraks

Moderator
Joined
Nov 29, 2018
Messages
12,216
Location
Europe
Format
Multi Format
Sorry for writing to such an old topic, but is there any way to see solargraph fixing recipe? because link as i see is not available anymore

Welcome to Photrio!
Apologies for this glitch. I've edited the opening post to include the new URL. For completeness' sake, it's here: https://www.photrio.com/forum/resources/how-to-fix-a-solargraph.72/
Please note that the 'Resources' can be searched separately through this link: https://www.photrio.com/forum/search/?type=resource


GhostDragon95

Member
Joined
Nov 11, 2023
Messages
3
Location
Ukraine
Format
35mm
You're welcome!

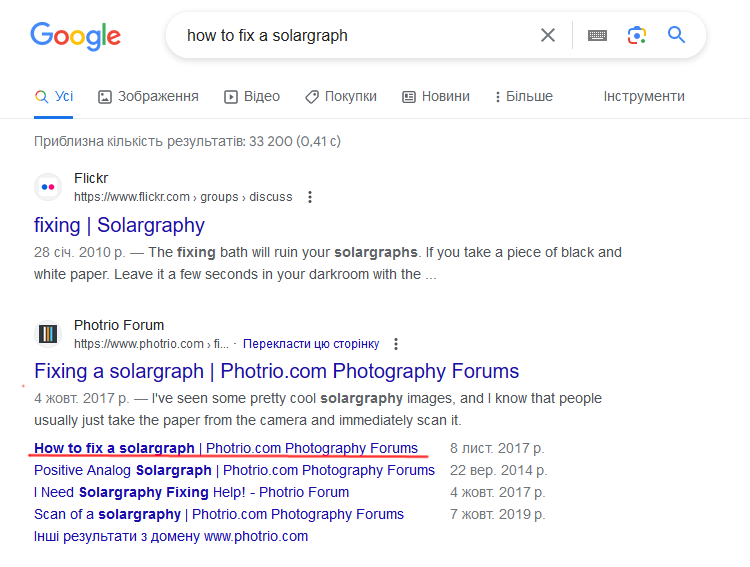

Can you show the Google search you used, please?
It's possible Google doesn't index our Resources.
of course,
mine looks like this, underlined one is this topic


Attachments

  • fix a solargraph.png
    fix a solargraph.png
    62 KB · Views: 25

jeanli

Member
Joined
Jan 22, 2024
Messages
7
Location
NYC
Format
Analog
Just wanted to pop on to say that I just tried this with my unfixed lumens--is still too soon to say about fading, but I defintely lost the gorgeous colors from the originals. Boo. I think I will try contact printing the original unfixed lumens to color paper next , why not? The lumens should be fine with a blast of enlarger light, its the sun I'm afraid of!


Nicholas Lindan

Advertiser
Advertiser
Joined
Sep 2, 2006
Messages
3,870
Location
Cleveland, Ohio
Format
Multi Format

jeanli

Member
Joined
Jan 22, 2024
Messages
7
Location
NYC
Format
Analog
Yes I see...hmm maybe I am doing it incorrectly? I lost all the purples.
