Heiland Cold Light source.

[mshchem]

Which Zone VI VC heads do you have? All the same as each other? I had one of the first 4x5 ones (still have in storage) and found it a bit dim for 35mm especially, and didn't give high contrast. Now I use an Aristo VCL4500 VC head which I'm happy with.

I have the last ones, after Calumet bought out Zone VI. 8x10, 5x7 and a 4x5. These are quite good.
I have Beseler 45 Universal heads as well, RGB dichro, color or VCCE controllers, these can act up, the cold lights work great. I believe that the last of the Z6 heads were made by Aristo, not sure of the specifics, plenty bright. I mostly use the 5x7 (6x17).

The enlargers are the type 2, have very little use.



[Fischbowl]

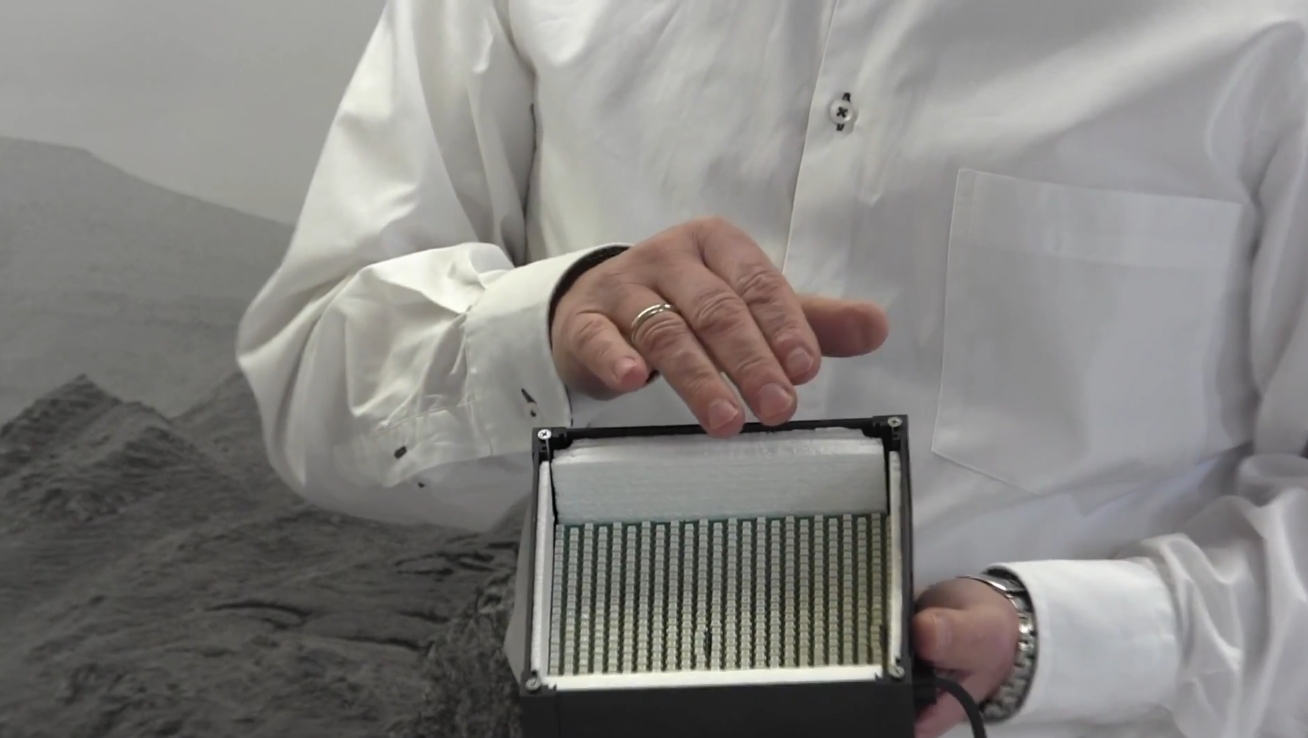

I use the Heiland splitgrade and LED head on my Beseler. I really had to get used to the short exposure time, the light is very bright. It is very soft too, which is good, but I had to lengthen my development times with 15 or 20% compared to the condensor head. That said, I’m now happy with my results and the quality of my prints.
Heiland Splitgrade promisses a lot of less work and says that test prints aren‘t necessary anymore. That is not true. Especially while they never update the standard times for film-paper combinations. Some important papers like Bergger neutral tone have never been added to the software and papers like AGFA Classic are in the system but are not available anymore. Adding your own standard times is far from user friendly, I don’t understand it at least.

Otto - which Beseler enlarger are you using with the Heiland? I have the Beseler 23Ciii-XL with the VC head and I'm unsure how the Heiland LED lamp attaches to or replaces the VC head. I think it's meant to be a replacement light sources on the condenser head, but since I do not have access to this lamphouse I'm unable to verify if it would resolve my light mounting issue.



[Pieter12]

Otto - which Beseler enlarger are you using with the Heiland? I have the Beseler 23Ciii-XL with the VC head and I'm unsure how the Heiland LED lamp attaches to or replaces the VC head. I think it's meant to be a replacement light sources on the condenser head, but since I do not have access to this lamphouse I'm unable to verify if it would resolve my light mounting issue.

Can't say about the Beseler, but with my Omega D5 the Heiland replaces the entire condenser and lamphouse, sitting right on top of the negative stage. Also, to Otto's comment about lengthened development times--this should not be. Paper should be developed to completion, no matter what the light source is. Unless you're making litho prints.



[otto.f]

Otto - which Beseler enlarger are you using with the Heiland? I have the Beseler 23Ciii-XL with the VC head and I'm unsure how the Heiland LED lamp attaches to or replaces the VC head. I think it's meant to be a replacement light sources on the condenser head, but since I do not have access to this lamphouse I'm unable to verify if it would resolve my light mounting issue.

I’ve got the 45MX or how they call it, for 4x5 and smaller in any case. I bought it with the Aristo cold light head and don’t have the original Beseler condenser. When the condensor is replaced the whole light house goes with it. You have to specify to Heiland which enlarger you have before ordering. I doubt whether the 23 has the same size for a light head as the 45. Heiland has different sizes of the LED head for different brands enlargers.
