Can some of you that have manufacturer's pinhole lenses for the Hasselblad 500 series or 'blad's earlier cameras, have images and experience that you can share about your use of these tools?

For example, I've got a German (I believe) the 75mm (duh) f256 apature lens which I like but sometimes wonder if a smaller stop might be something worth exploring for a less sharp photograph.

I, and others here would like to explore your thoughts and observations in this matter, so, Cheers and post when you can.


Light Capture

Advertiser
Joined
Feb 5, 2008
Messages
132
Location
Ontario, Canada
Shooter
Multi Format
Smaller or bigger pinhole will result in less sharp result.
Reason to use different than optimal size can also be shorter exposure in low light or longer exposure in good light.
Smaller than optimal pinholes will produce less sharp results via diffraction and larger pinholes will produce less resolution.

Next incremental size will not affect sharpness significantly. For example going from 0.30mm to 0.35mm. Going from 0.30mm to 0.50mm will be readily visible.

Thickness of the pinhole material will also have significant effect on smaller pinholes. It won't have any influence on Hasselblad pinhole cap due to longer focal length and narrow angle of view. Effects are visible at over 100 degrees.


Nick Dvoracek

Member
Joined
Feb 15, 2018
Messages
43
Location
Oshkosh WI
Shooter
Pinhole

BrianShaw

Member
Joined
Nov 30, 2005
Messages
13,449
Location
Here or there.
Shooter
Multi Format


xkaes

Member
Joined
Mar 25, 2006
Messages
1,070
Location
Colorado
Shooter
Multi Format
The size of the pinhole determines the focal length of the pinhole -- which is the distance between the pinhole & the film where the sharpest image is attained.

http://www.subclub.org/fujinon/pinhole.htm

The smaller the pinhole, the closer it needs to be to the film -- and vise-versa -- to get the sharpest results.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
41,404
Location
Delta, BC, Canada
Shooter
Multi Format
The size of the pinhole determines the focal length of the pinhole -- which is the distance between the pinhole & the film where the sharpest image is attained.

http://www.subclub.org/fujinon/pinhole.htm

The smaller the pinhole, the closer it needs to be to the film -- and vise-versa -- to get the sharpest results.

I find this an interesting point of view.
I always think of it the other way around - the focal length determines the necessary size of pinhole - to get the sharpest results.
Probably because xkaes likes to build cameras around existing pinholes, and I prefer to fit pinholes to existing cameras.


xkaes

Member
Joined
Mar 25, 2006
Messages
1,070
Location
Colorado
Shooter
Multi Format
I always think of it the other way around - the focal length determines the necessary size of pinhole - to get the sharpest results.
Probably because xkaes likes to build cameras around existing pinholes, and I prefer to fit pinholes to existing cameras.
It's a six of one -- half a dozen of the other.

OP
OP
eli griggs

eli griggs

Subscriber
Joined
Nov 15, 2005
Messages
2,299
Location
NC
Shooter
Multi Format
The make of my 75 mm f250 Hasselblad pinhole is "Lochblende".

There is a code for sizes f16 - f1000, as follows;

B L E N D E N
R E I H E
16 22 32 64 90 125 180

250 360 500 720 1000

It's well made, well machines with a flat, black finish, heavily made and easy to fit into the camera lens mount.


lxdude

Member
Joined
Apr 8, 2009
Messages
7,104
Location
Redlands, So
Shooter
Multi Format
Where can I buy a pinhole lens for the Hasselblad like that?

EDIT: I found on in the internet. Thank you for bringing this up.

Only German-made pinhole lenses by Zeiss are worthy of a Hasselblad. 😕


BrianShaw

Member
Joined
Nov 30, 2005
Messages
13,449
Location
Here or there.
Shooter
Multi Format

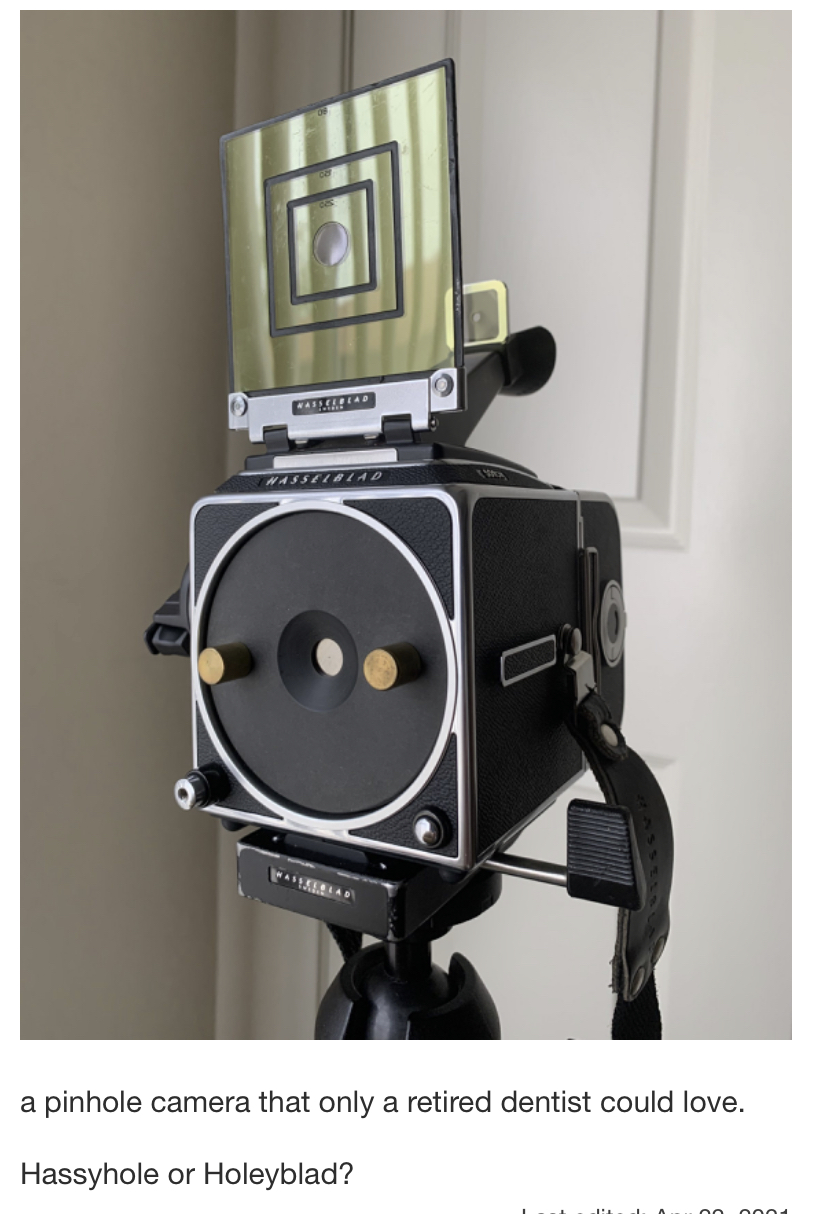

Who makes this pinhole? Have you used it?

I don’t recall who the manufacturer was. It was store bought, though.

Yes, I’ve used this configuration a couple of times. Looks weird; Works great.

Edit: found the data sheet for the pinhole attachment.



Arthurwg

Subscriber
Joined
Dec 16, 2005
Messages
1,798
Location
Taos NM
Shooter
Medium Format
Thanks for that. I've used a Zero Pinhole camera with great success, but this one looks like a great alternative.


lxdude

Member
Joined
Apr 8, 2009
Messages
7,104
Location
Redlands, So
Shooter
Multi Format
Last edited:

europanorama

Member
Joined
Aug 10, 2004
Messages
364
Location
Basel-CH
Shooter
Large Format Pan
Custom Camera Building can make P67, M65, HBV pinholelenses. I have P67. one can exchange the lenses. and other lensplates can be used by using elastic tape. thread is quite coarse. maybe he can make better. or i dont know since pitch is small. i have his rotatshift lens 28mm shift at any position. FL will be a bit increased compared to normal register.


Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
43,720
Location
Southern California
Shooter
Multi Format
After receiving a pinhole lens cap from Custom Camera Building, which is f/220, I thought great with ISO 400 film that would be about 1/2 second based on Sunny 16 on a bright day. Then it dawned on me that with my Hasselblad CX there is no focal plane shutter and I have estimate the time. So what does one use to cover and uncover the shutter? Gaffer's tape might gum up the pinhole. Suggestions please.


BrianShaw

Member
Joined
Nov 30, 2005
Messages
13,449
Location
Here or there.
Shooter
Multi Format
Fedora and foot taps. Use a fedora as a shutter and tap your foot fifteen times at a rate of 30 Hertz.


lxdude

Member
Joined
Apr 8, 2009
Messages
7,104
Location
Redlands, So
Shooter
Multi Format
Fedora and foot taps. Use a fedora as a shutter and tap your foot fifteen times at a rate of 30 Hertz.

At my age. tapping my foot 15 times hertz like 30..

OP
OP
eli griggs

eli griggs

Subscriber
Joined
Nov 15, 2005
Messages
2,299
Location
NC
Shooter
Multi Format
The rear baffles and mirror, with a holding cable release.

It throws opens the mirror and baffles when triggered and you just push down the cable lock release when through,bto close the baffles.

Resetting the mirror is just a normal rewind.

The mirror can be locked up, in advance, and the baffels only used but I do no see so much vibration risk keeping it down, before taking the long shot and so I do no use it.

OP
OP
eli griggs

eli griggs

Subscriber
Joined
Nov 15, 2005
Messages
2,299
Location
NC
Shooter
Multi Format
At my age. tapping my foot 15 times hertz like 30..

Use a credit size digital metronome, like my little, inexpensive, Sony to trigger and release the shutter/baffles.


BrianShaw

Member
Joined
Nov 30, 2005
Messages
13,449
Location
Here or there.
Shooter
Multi Format
The rear baffles and mirror, with a holding cable release.

It throws opens the mirror and baffles when triggered and you just push down the cable lock release when through,bto close the baffles.

Resetting the mirror is just a normal rewind.

The mirror can be locked up, in advance, and the baffels only used but I do no see so much vibration risk keeping it down, before taking the long shot and so I do no use it.

Bingo

OP
OP
eli griggs

eli griggs

Subscriber
Joined
Nov 15, 2005
Messages
2,299
Location
NC
Shooter
Multi Format
A little late but here are some snaps of my Hasselblad pinhole 'lens'.
