Hi All,

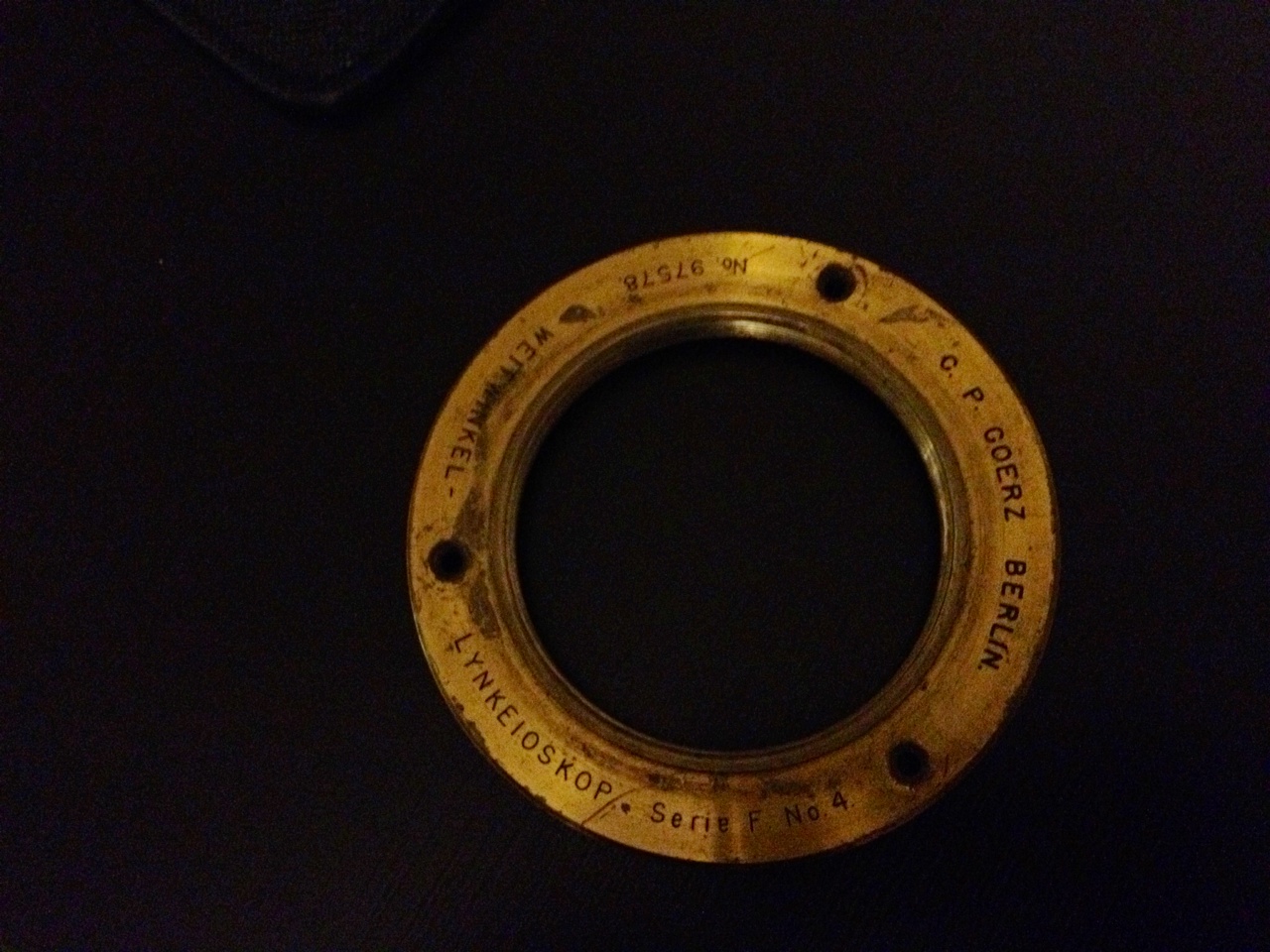

I just got a new treasure: Goerz Weitwinkel Lynkeioskop Series F No4, serial 97578.
Actually it's in really good shape, the glass looks almost perfect.

Anyone got more info on that? Focal length? How much it covers? When it's made? How much it can worth?


aaphoto.JPG aaaphoto.JPG


thanks


johnielvis

Member
Joined
May 21, 2010
Messages
966
Format
Medium Format
It's been described before as a "rare bird" and it has been stated that if the glass was messed with scratches and separation that up you wouldn't notice a difference.

OP
OP

polszki

Member
Joined
Feb 21, 2010
Messages
18
Location
Sweden
Format
Sub 35mm
hey johnielvis, what do you exactly mean by "if the glass was messed with scratches and separation that up you wouldn't notice a difference" ?


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format

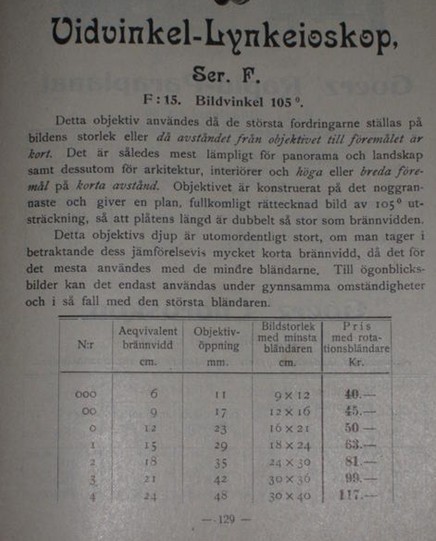

I got another source of information:

FL: 60-240mm
f: 15
angle: 105°
designed by: F. Weigert
offered: 1890


johnielvis

Member
Joined
May 21, 2010
Messages
966
Format
Medium Format
Whups--there is a small typo in there. Corrected is below:

It's been described before as a "rare bird" and it has been stated that if the glass was messed UP with scratches and separation that you won't notice a difference.

Also, there is some more info on this lens:

This lens "squeaks" around 11x14 and also buzzes wide open.


E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,197
Location
Adirondacks
Format
Multi Format
A quick view of what is available on the web place it at 1902/03 (http://motamedi.info/serial.htm#ross)
with a value in the range of 2-300 Euros (Dead Link Removed)

The standard Lynkeioskop appears to be a Rapid Rectilinear configuration (http://www.lungov.com/wagner/c/104c.html). Wide angle versions of that type of lens are not uncommon.

Whitey, you linked to the serial list for Goerz American lenses. This one was made in Berlin, Germany.

It's a wide-angle rectlinear, and a pretty good one. Not knowing the focal length, I can't say what it covers.


Dan Fromm

Member
Joined
Mar 23, 2005
Messages
6,806
Format
Multi Format
Whitey, you linked to the serial list for Goerz American lenses. This one was made in Berlin, Germany.

It's a wide-angle rectlinear, and a pretty good one. Not knowing the focal length, I can't say what it covers.

Per P-H Pont's Goerz chronology, 97578 was made no later than 1900, perhaps in 1899.

OP
OP

polszki

Member
Joined
Feb 21, 2010
Messages
18
Location
Sweden
Format
Sub 35mm
thanks pierre! Based on this info the lens will cover an A3 sheet, that is around 20 inch. Sounds huge to me.


Whiteymorange

Subscriber
Joined
Jul 27, 2004
Messages
2,387
Location
Southeastern CT
Format
Multi Format
Whitey, you linked to the serial list for Goerz American lenses. This one was made in Berlin, Germany.

It's a wide-angle rectlinear, and a pretty good one. Not knowing the focal length, I can't say what it covers.

Yes, I assumed that the parent company's serial numbers would be continued at the US spin-off–especially since the list started at 70001. Clearly this is not the case. The relationship between German manufacturing plants and their US expansion plants (pre-WWI) was complex and different in each case. Ah well, it was a very quick search. I'm glad better information was available.

OP
OP

polszki

Member
Joined
Feb 21, 2010
Messages
18
Location
Sweden
Format
Sub 35mm
just for the future generation, pictures of an other weitwinkel. Poor guy is in really bad shape.



E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,197
Location
Adirondacks
Format
Multi Format
Whups--there is a small typo in there. Corrected is below:

It's been described before as a "rare bird" and it has been stated that if the glass was messed UP with scratches and separation that you won't notice a difference.

Also, there is some more info on this lens:

This lens "squeaks" around 11x14 and also buzzes wide open.

Thank you for being so helpful. (sarcasm smiley)

Would you care to translate the above? Or is it just meaningless babble?


E. von Hoegh

Member
Joined
Sep 14, 2011
Messages
6,197
Location
Adirondacks
Format
Multi Format
Yes, I assumed that the parent company's serial numbers would be continued at the US spin-off–especially since the list started at 70001. Clearly this is not the case. The relationship between German manufacturing plants and their US expansion plants (pre-WWI) was complex and different in each case. Ah well, it was a very quick search. I'm glad better information was available.

Somewhere, I have a link to what seems to be a reliable list of the German numbers; I'll post it as soon as I find it.
Edit:
CPG Berlin:
up to 5,000 -- up to 1891
30,000 -- 1896
100,000 -- 1900
200,000 -- 1908
300,000 -- 1915
400,000 -- 1920
500,000 -- 1922
600,000 -- 1923
750,000 -- 1926

Last edited by a moderator:

johnielvis

Member
Joined
May 21, 2010
Messages
966
Format
Medium Format
Thank you for being so helpful. (sarcasm smiley)

Would you care to translate the above? Or is it just meaningless babble?

awwwww geeeze...now this guy has started with the internet stalking again...

get a life, dude
