Hi there.

I have an aluminum (unpainted) Tiltall tripod that has been neglected for a couple decades and the knurled stopper at the bottom of the centre post is not budging. I've tried WD-40 & vice grips and it's still bound up tight, refusing to move.

Any tips on dissolving aluminum corrosion inside a threaded tube?

I want to have the head at the bottom of the post and use the tripod as a permanent support for copying 4x5 negatives and photographing salt print step wedges with a digital camera.

Murray

Last edited:

mshchem

Subscriber
Joined
Nov 26, 2007
Messages
9,563
Location
Iowa City, Iowa USA
Shooter
Medium Format
Is a hacksaw an option? Aluminum is horrible like this. Maybe try really hot water? Beautiful old tripods.

OP
OP
MurrayMinchin

MurrayMinchin

Membership Council
Council
Joined
Jan 9, 2005
Messages
4,742
Location
North Coast BC Canada
Shooter
Hybrid
Is a hacksaw an option? Aluminum is horrible like this. Maybe try really hot water? Beautiful old tripods.
Plan B is the hacksaw.

They are good tripods, and I used it a lot back in the day. Now have a drool-worthy wooden Berlebach, a whiz-bang carbon fibre, and a "lightweight" Zone VI, so the Tiltall can be sacrificed to this ignoble task.


tom williams

Subscriber
Joined
Jan 24, 2020
Messages
185
Location
Arizona
Shooter
4x5 Format
Hi there.

I have an aluminum (unpainted) Tiltall tripod that has been neglected for a couple decades and the knurled stopper at the bottom of the centre post is not budging. I've tried WD-40 & vice grips and it's still bound up tight, refusing to move.

Any tips on dissolving aluminum corrosion inside a threaded tube?

I want to have the head at the bottom of the post and use the tripod as a permanent support for copying 4x5 negatives and photographing salt print step wedges with a digital camera.

Murray
Murray, the insert with the knurled rim unscrews from my Tiltall center post pretty easily, perhaps on account of the pasty residue on the threads of the inner sleeve, which I take to be plumber's putty, or something akin to the anti-oxidant that one uses - for instance - on some aluminum electrical components to retard corrosion. The sleeve with the knurled collar is aluminum, as is the center post - a regretable scenario that allows 'welding' of the components under the right conditions.

It would be a shame to mangle that tripod - have you tried heating the tube, perhaps while cooling the sleeve that terminates in the knurled ring? A mild butane torch flame outside, ice on the inside? A clothing iron might work for heating, or sun exposure, cigarette lighter etc. A pipe wrench with taped jaws (to prevent abrasion) might be helpful, but I would apply such to the knurled ring only.

Good luck
Tom

OP
OP
MurrayMinchin

MurrayMinchin

Membership Council
Council
Joined
Jan 9, 2005
Messages
4,742
Location
North Coast BC Canada
Shooter
Hybrid
Murray, the insert with the knurled rim unscrews from my Tiltall center post pretty easily, perhaps on account of the pasty residue on the threads of the inner sleeve, which I take to be plumber's putty, or something akin to the anti-oxidant that one uses - for instance - on some aluminum electrical components to retard corrosion. The sleeve with the knurled collar is aluminum, as is the center post - a regretable scenario that allows 'welding' of the components under the right conditions.

It would be a shame to mangle that tripod - have you tried heating the tube, perhaps while cooling the sleeve that terminates in the knurled ring? A mild butane torch flame outside, ice on the inside? A clothing iron might work for heating, or sun exposure, cigarette lighter etc. A pipe wrench with taped jaws (to prevent abrasion) might be helpful, but I would apply such to the knurled ring only.

Good luck
Tom
Thanks, but I read this too late.

Managed to get it moving a bit. Got to about a 1/16" gap, and now it spins without exiting the tube. Stripped.

"Honey...where's the hacksaw"?

It's not going to ever move again when I get the copy stand set up. Once I join that great herd of photographers in the sky perpetually and happily chasing sunset around Earth for ever-more, whoever cleans out my darkroom can decide what to do with it.

Last edited:

Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
43,894
Location
Southern California
Shooter
Multi Format
A job for a BFH*


* Big Friendly Hammer


If I had a hammer ...


tom williams

Subscriber
Joined
Jan 24, 2020
Messages
185
Location
Arizona
Shooter
4x5 Format
Thanks, but I read this too late.

Managed to get it moving a bit. Got to about a 1/16" gap, and now it spins without exiting the tube. Stripped.

"Honey...where's the hacksaw"?

It's not going to ever move again when I get the copy stand set up. Once I join that great herd of photographers in the sky perpetually and happily chasing sunset around Earth for ever-more, whoever cleans out my darkroom can decide what to do with it.
Drat! There are folks who posit unconditional forgiveness in the hereafter, so proceed without compunction. Just break it to the herd gently.

OP
OP
MurrayMinchin

MurrayMinchin

Membership Council
Council
Joined
Jan 9, 2005
Messages
4,742
Location
North Coast BC Canada
Shooter
Hybrid
Hacksaw 1
Tripod 0

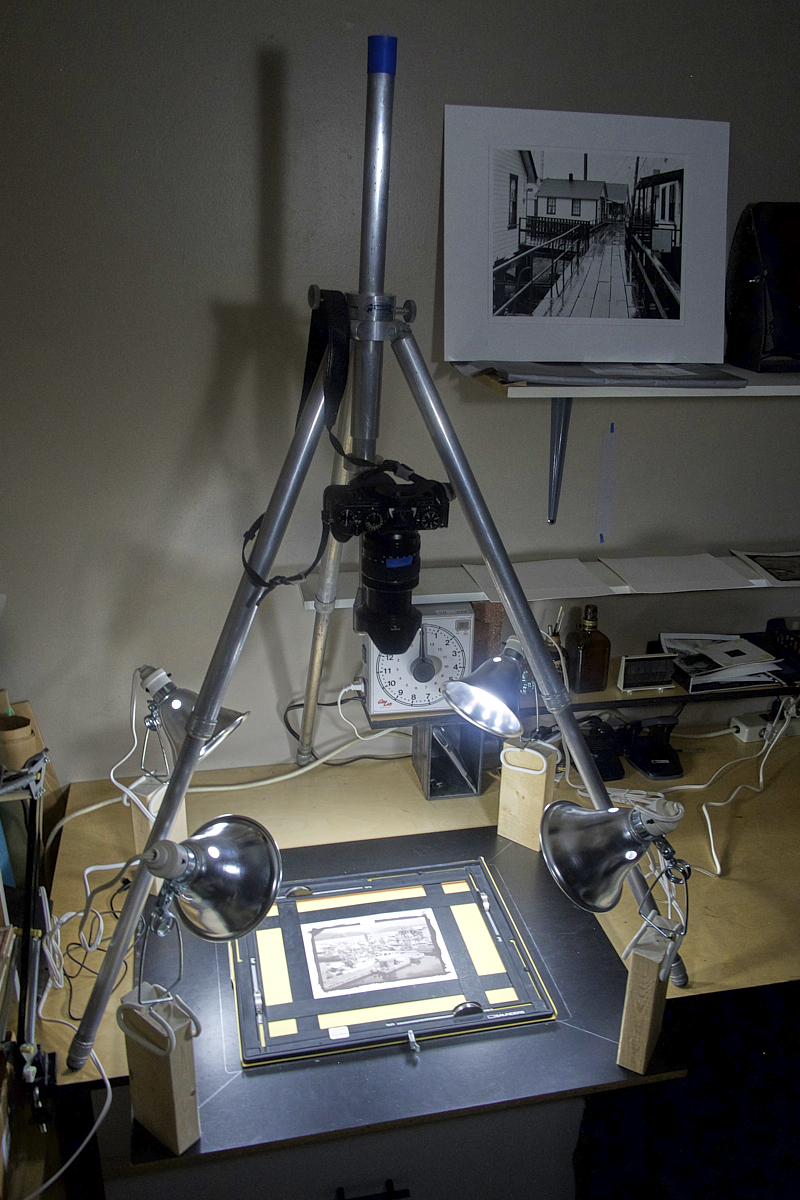

First stage mock up...**in other words**...I know the rig needs a 'tad bit' of refinement.

Exciting stuff, because it means I can take consistent/controllable photos of step wedge prints to enter into Peter Mrhar's EDN (easy digital negatives) system, and can start digitizing 40 years of 4x5's to make digitally enlarged negative for salt prints, maybe kallitypes, and maybe even.....




Last edited:
OP
OP
MurrayMinchin

MurrayMinchin

Membership Council
Council
Joined
Jan 9, 2005
Messages
4,742
Location
North Coast BC Canada
Shooter
Hybrid
First try with a gold toned salt print (test print with manual curve) using a Saunders 4 bladed easel to hold the print. Will need a 4 light set up me-thinks, as the corners are a bit darker.

Anybody have a DIY copy stand who wants to share some wisdom?


OP
OP
MurrayMinchin

MurrayMinchin

Membership Council
Council
Joined
Jan 9, 2005
Messages
4,742
Location
North Coast BC Canada
Shooter
Hybrid
Yup, 4 lights it is, but the colour temperature cooled off a bit:



guangong

Member
Joined
Sep 10, 2009
Messages
2,863
Shooter
Medium Format
For what it’s worth. My tripods were in room that caught fire. Painted Tiltalls and crackled Gitzo suffered no damage, but unpainted aluminum required a bit of cleaning up. Confirms earlier above posts regarding unpainted aluminum vulnerability.

OP
OP
MurrayMinchin

MurrayMinchin

Membership Council
Council
Joined
Jan 9, 2005
Messages
4,742
Location
North Coast BC Canada
Shooter
Hybrid
For anybody following along...indents in table top for tripod spikes...almost at a useable stage:
