brdo

Member
Joined
Jul 3, 2021
Messages
1
Location
Australia
Shooter
Medium Format
Hi everyone

I'm wondering if anyone knows of the best enlargers for ease of control of lens/head tilts (for up to 4x5)?

I've been using a De Vere 504 Dichromat in the darkroom I have access to but am looking forward to setting up my own darkroom, and I find the 504's deep centre click stop and general use of the tilts to be quite frustrating. Do any enlargers have geared tilts, or just easier to use manual tilts? Do any have lens tilts in more than one direction (so I can nail focus using vertical correction on the head and horizontal with the easel for example)?

Thanks in advance


albada

Subscriber
Joined
Apr 10, 2008
Messages
1,261
Location
Escondido, C
Shooter
35mm RF
In his book, "The Print", Ansel Adams bemoans the fact that few enlargers have tilts to correct for perspective-distortion. But he points out that the Beseler 45 M family of enlargers lets you tilt the lens left-right. I have a 45 MCX, and yes, the lens can be tilted left-right, although for me, it's a nuisance because it makes it harder to keep the lens in alignment.
You are in Australia -- Are Beseler enlargers available over there?

Mark Overton


ic-racer

Member
Joined
Feb 25, 2007
Messages
12,255
Location
USA
Shooter
Multi Format

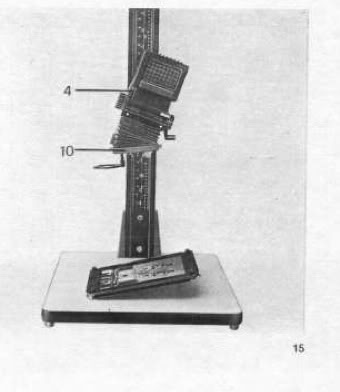

Most Durst enlargers with perspective correction function just like a view camera. I don't even know of a view camera with geared tilt or swing. The big Durst enlargers also have lensboard shift, to keep the image circle centered after the lensboard tit because it does not tilt on the optical axis of the lens.

It is a basic Scheimpflug setup; adjust the tilt angle of the head and baseboard to get parallel lines in the image then tilt the lens to get it in focus side to side.
How are you doing it?

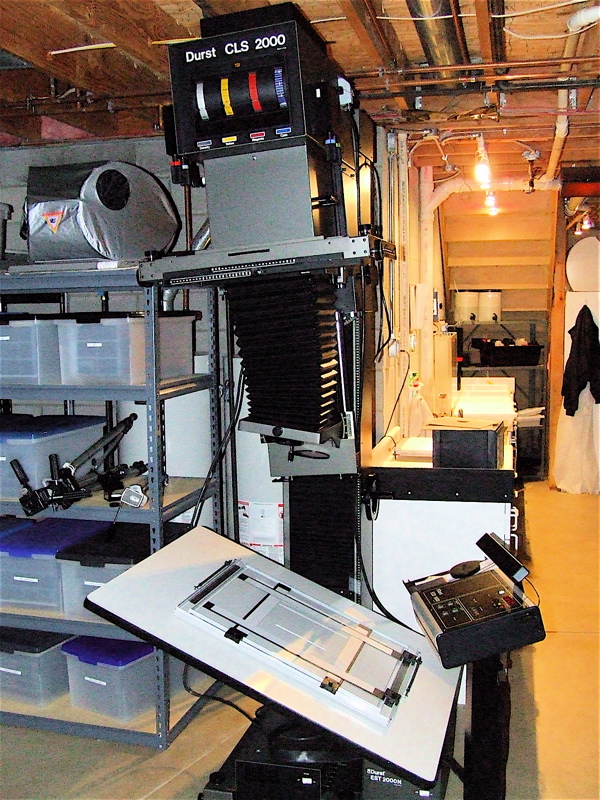

Perspective Correction.jpg




AgX

Member
Joined
Apr 5, 2007
Messages
29,240
Location
Germany
Shooter
Multi Format
Basically the enlarger needs 2 joints: filmstage (with the complete head) and lensboard.
To avoid the image gettuing off the baseboard either the easel has to be lifted at one side, or a 3rd joint has to be introduced, either by applying a hinge to the easel or to articulate the baseboard as in the 5x7 and 8x10 Durst enlargers.


John Koehrer

Member
Joined
Apr 3, 2004
Messages
8,213
Location
Aurora, Il
Shooter
Multi Format
Beseler has/had a tilting lens board adapter which I think is still available($$$$$$$$) probably.

It's probable that it wouldn't be hard to make one though. Think of two rigid surfaces with foam
between them and four adjustment screws to change the respective angle between the boards.
The screws need to fit the edges of the boards, not the corners.


Lachlan Young

Member
Joined
Dec 2, 2005
Messages
4,166
Location
Glasgow
Shooter
Multi Format
I'm wondering if anyone knows of the best enlargers for ease of control of lens/head tilts (for up to 4x5)?

Durst 138/ 184 et seq. - but I'd still take the De Vere in very, very strong preference (accurate detents!). Much less painful to get it as correct as possible in-camera rather than performing enlarger-yoga.


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
38,936
Location
Delta, BC, Canada
Shooter
Multi Format
For up to 6x7, the LPL 7700/Saunders 670DXL provides for relatively easy rotation of both the negative stage and the lens stage.
You are limited though to rotation in one orientation.


Mick Fagan

Subscriber
Joined
Sep 13, 2005
Messages
3,890
Location
Melbourne Au
Shooter
Multi Format
The only enlargers better than the DeVere 504, or any of their other vertical models, is the top of the range Durst units. The DeVere units cannot tilt the baseboard, whereas some of the Durst units are able to do that.

That said, I would take a DeVere unit any day over a Durst. Their simplicity, extreme accuracy of alignment possibilities, among other things make them my enlarger of choice. I have used both a 1000 and 2000 Durst, as in the picture shown by ic-racer, they are fabulous enlargers.

In Australia, wherever you are, your choice is somewhat limited, but we have a smattering of big Durst stuff still available, a more then reasonable supply of DeVere units and stacks of LPL enlargers.

The LPL 4x5 with a wall mount kit would be my first choice, followed by the LPL 6x7 with a B&W head (rare) or the ubiquitous colour head.

None of those enlargers have geared controls, as far as I can remember.

I have a DeVere 504 freestanding enlarger with a colour head,, you'll have to prise it from my death grip.


AgX

Member
Joined
Apr 5, 2007
Messages
29,240
Location
Germany
Shooter
Multi Format
When erecting converging lines at an enlarger, keep in mind that image area then is lost. Thus, when possible, take care of this and reduce scale a bit at taking to get more of the subject surrounding on film, than seemingly benefitial for the photo still with converging lines


guangong

Subscriber
Joined
Sep 10, 2009
Messages
2,530
Shooter
Medium Format
For 35mm negatives I use a Leitz Focomat with a grooved baseboard that allows the insertion of an easel sitting on a ball head.
