Enlarger Lens for 5x7, what focal length?

Forum statistics

Threads
179,558
Messages
2,472,417
Members
94,841
Latest member
Geoff mountfield
Recent bookmarks
1

Rick N

Member
Joined
Sep 21, 2015
Messages
16
Location
San Diego, CA-USA
Shooter
Multi Format
What would be the recommended focal length for a 5x7 enlarging lens?
I do have a Schneider 150mm Componon S, will this work for a 5x7 enlarging lens?
I don't plan on printing anything bigger than 20x24, enlarger would be a DeVere 5108 floor standing model 96” height. What brand and model do you recommend?

Thanks
-RICK-


jim10219

Member
Joined
Jun 15, 2017
Messages
1,635
Location
Oklahoma
Shooter
4x5 Format
210mm to 240mm would probably be the focal length I would be looking for. As for brand and model, well that depends on your budget.


silveror0

Member
Joined
Dec 3, 2007
Messages
360
Location
Seattle, WA
Shooter
Large Format
I have a 210 Componon on my Omega 5x7 (with XL column), but if I were not restricted by a fixed income in retirement I would have preferred a 240, mainly because it would offer reduced corner falloff from the cosine4 law.


RalphLambrecht

Subscriber
Joined
Sep 19, 2003
Messages
13,026
Location
K,Germany
Shooter
Medium Format
What would be the recommended focal length for a 5x7 enlarging lens?
I do have a Schneider 150mm Componon S, will this work for a 5x7 enlarging lens?
I don't plan on printing anything bigger than 20x24, enlarger would be a DeVere 5108 floor standing model 96” height. What brand and model do you recommend?

Thanks
-RICK-
a 'normal' enlarging lens for any format is equal in focal length to the focal length of a 'normal' taking lens for that format.


mshchem

Subscriber
Joined
Nov 26, 2007
Messages
8,926
Location
Iowa City, Iowa USA
Shooter
Medium Format
When I was young and foolish I used a 161mm Wollensak , neither I nor the ancient Elwood enlarger knew it was too short, still got some darn nice prints. Now since the collapse, I have a 210 El Nikkor for 5x7, and a 180 el Nikkor fo 6x17. And of course I have 3 different 240mm lenses, the ones I use is a brilliant Rodagon and a Componon -S. Then a 300mm Rodagon in perfect shape, paid 100 bucks for it. The 240 and 300 lenses go on my 8x10 .
Some crazy good deals if you stay on top of eBay. By the way the Wollensak and Ilex lenses of the 1960s are spectacular lenses.


Lachlan Young

Member
Joined
Dec 2, 2005
Messages
4,208
Location
Glasgow
Shooter
Multi Format
What would be the recommended focal length for a 5x7 enlarging lens?
I do have a Schneider 150mm Componon S, will this work for a 5x7 enlarging lens?
I don't plan on printing anything bigger than 20x24, enlarger would be a DeVere 5108 floor standing model 96” height. What brand and model do you recommend?

Thanks
-RICK-

Pretty much any 6-element lens from 180-240mm will likely be fine, and 4-elements from 210-240mm. Not going to be a problem with working height for 20x24". The 150mm G-Claron will apparently cover 5x7 for enlarging, but given the moderate enlargement size you are after, no need to use a shorter than normal focal length for enlarging. Main thing is making sure you can mount it successfully on the DeVere lens panel. Would suggest a 240mm Rodagon or similar, as it'll also give you the potential to handle 8x10.


Luis-F-S

Subscriber
Joined
Sep 19, 2013
Messages
769
Location
Madisonville
Shooter
8x10 Format
What would be the recommended focal length for a 5x7 enlarging lens?
I do have a Schneider 150mm Componon S, will this work for a 5x7 enlarging lens?
I don't plan on printing anything bigger than 20x24, enlarger would be a DeVere 5108 floor standing model 96” height. What brand and model do you recommend?

Thanks
-RICK-
180 mm lens for 57. Good luck in finding a 5108. It’s a matter of luck.


Fritzthecat

Member
Joined
Jan 18, 2018
Messages
99
Location
pa/ny
Shooter
Large Format
I used a 185mm Enlarging Ektar on my Elwood, Great lens if you can find a clean example.

OP
OP

Rick N

Member
Joined
Sep 21, 2015
Messages
16
Location
San Diego, CA-USA
Shooter
Multi Format
Thanks everyone for the recommendation! I just pickup a Rodenstock Rodagon180mm f5.6 on Ebay last night.

Now I just need to find the correct lens board for the the Rodenstock 180mm lens.

Luis-F-S, I already have a DeVere 5108 and 504 with the Dichromat color head.

Thanks a lot!
-RICK-


Lachlan Young

Member
Joined
Dec 2, 2005
Messages
4,208
Location
Glasgow
Shooter
Multi Format
Thanks everyone for the recommendation! I just pickup a Rodenstock Rodagon180mm f5.6 on Ebay last night.

Now I just need to find the correct lens board for the the Rodenstock 180mm lens.

Luis-F-S, I already have a DeVere 5108 and 504 with the Dichromat color head.

Thanks a lot!
-RICK-

You'll want the flat board with the 50mm hole.


Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
22,083
Location
West Midland
Shooter
Multi Format
All my larger Rodagon lenses have a lens flange that's 150mm, 210 and 270mm and the flanges are screwed to the De Vere lens boards of my 5108. It's the same with my 240mm and 300mm Componon S lenses.

Ian


Luis-F-S

Subscriber
Joined
Sep 19, 2013
Messages
769
Location
Madisonville
Shooter
8x10 Format

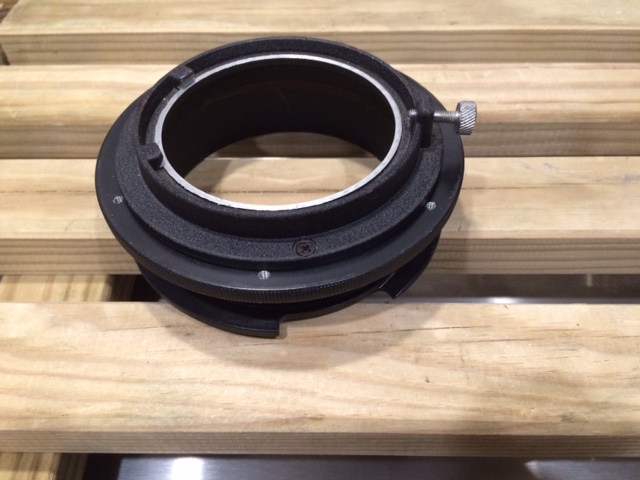

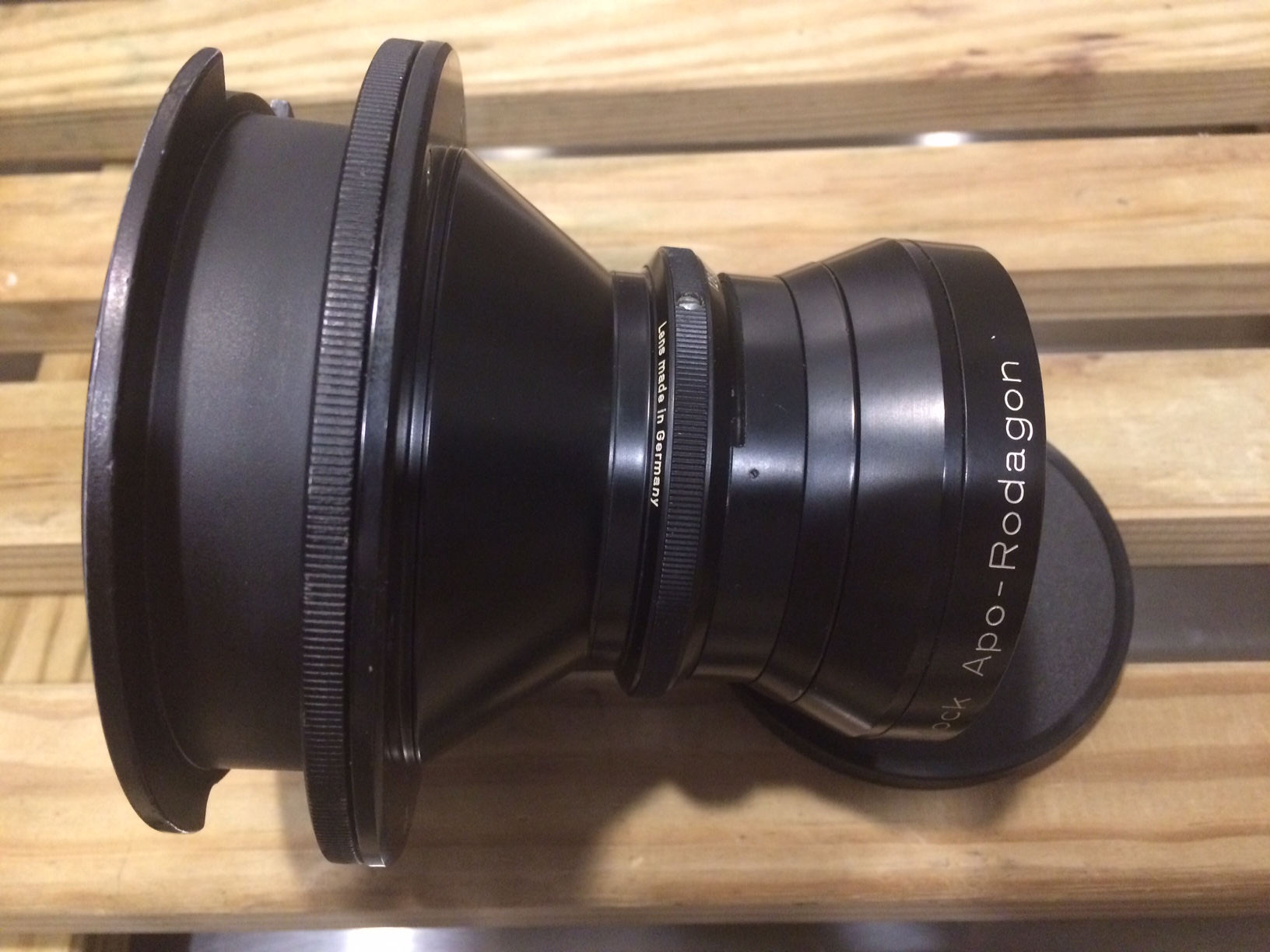

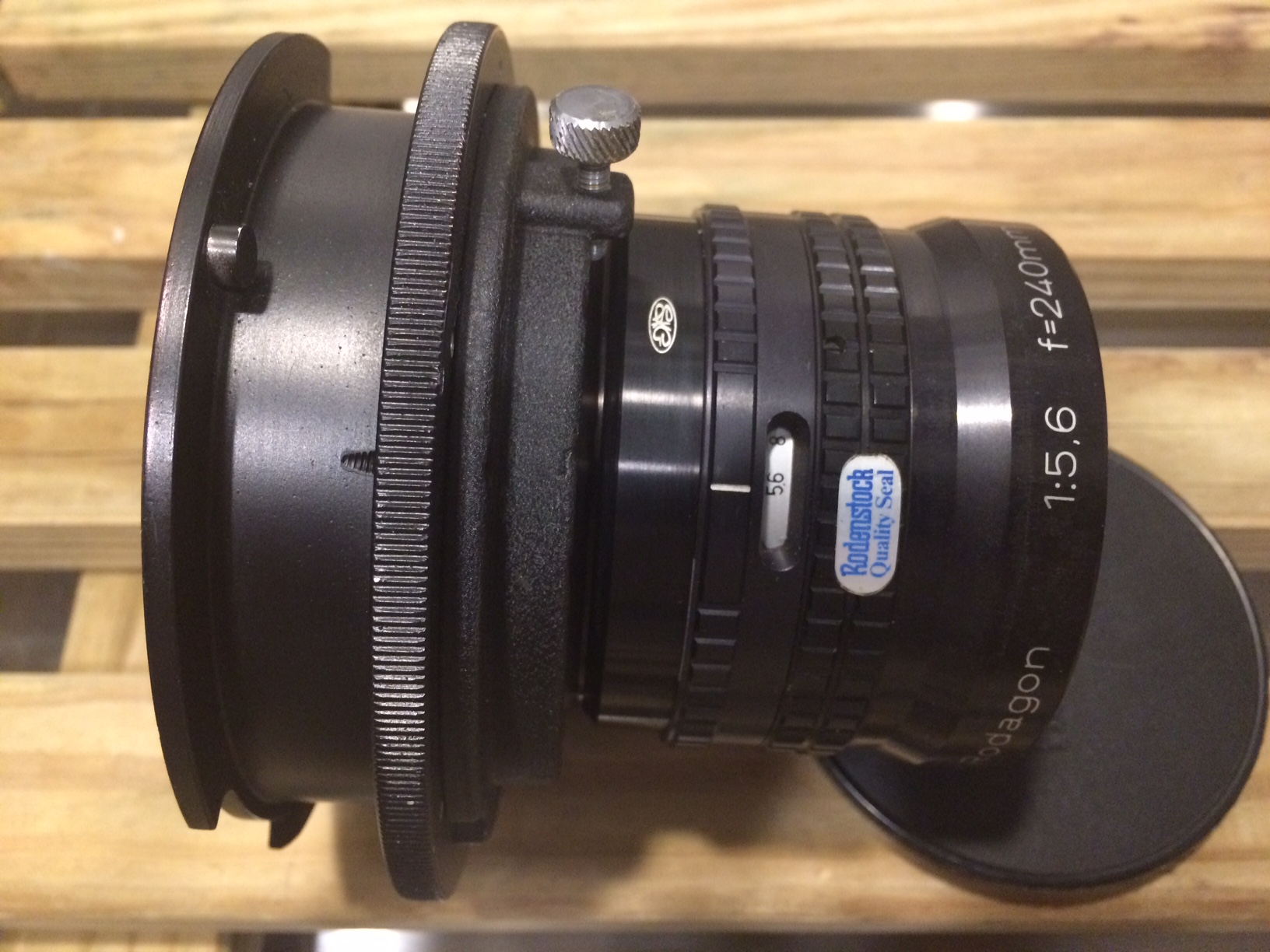

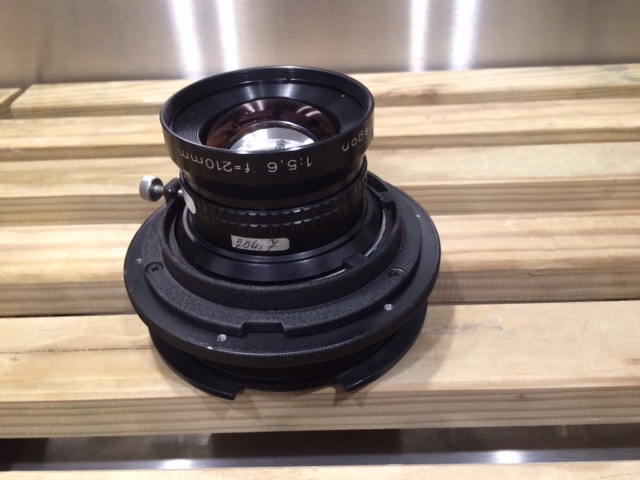

I have all my longer lenses (135 thru 240) mounted on Durst Lapla boards and have a single adapter board on an inverted panel for the DeVere. The short lenses are mounted on recessed boards. Larger lenses are mounted on an inverted panel. L








DREW WILEY

Member
Joined
Jul 14, 2011
Messages
9,893
Shooter
8x10 Format
I'd recommend a 180 Rodagon on the short end, 210 as "normal", and 240 as ideal. If you want an extremely sharp compact lens quite affordable on the used market, opt for a 240/9 4-element Apo Nikkor graphics lens. Note its small maximum aperture. But by f/11 it will outperform typical enlarging lenses. 150 would be dicey.


ic-racer

Member
Joined
Feb 25, 2007
Messages
12,516
Location
USA
Shooter
Multi Format
That is nice that you did not have to take the Durst flanges off the lenses to mount them on the DeVere.

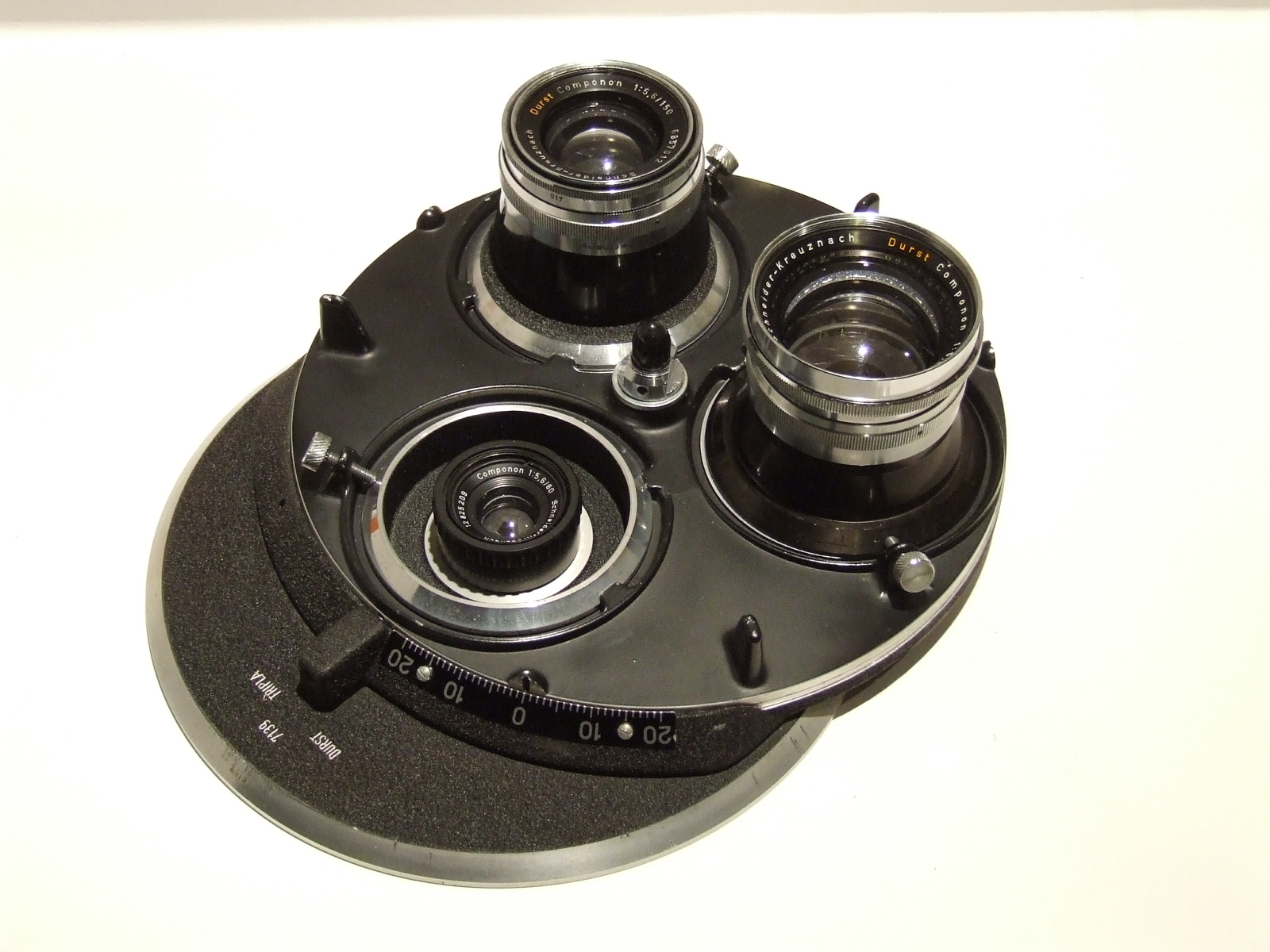

I got this Tripla and the three Componon lenses for almost nothing on e-bay a few years ago. I don't regularly use my 8x10 enlarger for these smaller formats, but I like to have these lenses just in case something comes up. For 5x7 I would use the 210mm.
