I need help in connecting a Durst CLS 301 head to the EST 301 power supply. One cord on the EST 301 is marked power which goes into the wall power outlet. There is another cord marked timer input and yet another Timer 110V. Does the Timer power cord plug into the Timer 110V and then the enlarger from the timer plug into the Timer input? I just don't want to fry anything.

Thanks, Luis



bluejeh2

Member
Joined
Dec 18, 2011
Messages
7
Format
Multi Format
Durst CLS 301

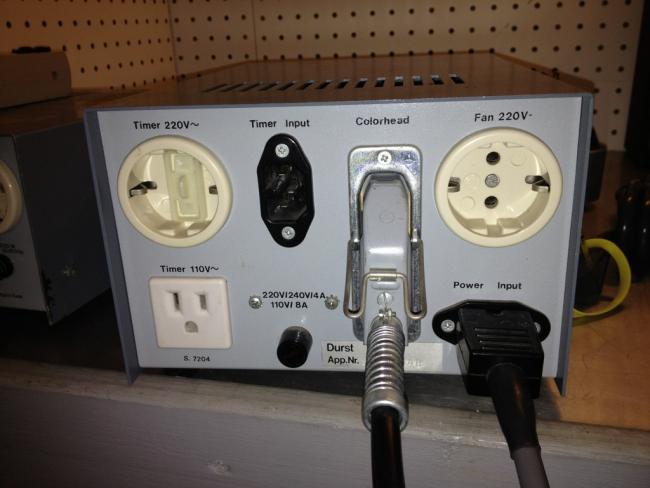

I have the Durst CLS 301 & TRA 301 Power Supply. The box connections are the same as the picture shown. The plug marked timer input is the power coming from your timer. The plug marked Timer 110 volt is not used at all. Therefore your power supply only has the 3 cords connected to it. One from the wall power supply, One from the timer and one going to the head.

Ed
