Drainage for basement darkroom...

Discussion in 'Darkroom Equipment' started by Ai Print, Dec 21, 2017.

  1. Ai Print

    Ai Print Subscriber

    Messages:
    731
    Joined:
    May 28, 2015
    Location:
    Colorado
    Shooter:
    Multi Format
    I think my plumber is on vacation for the holidays ( well deserved ) so in the meantime, I will toss a couple questions at you fine folks..

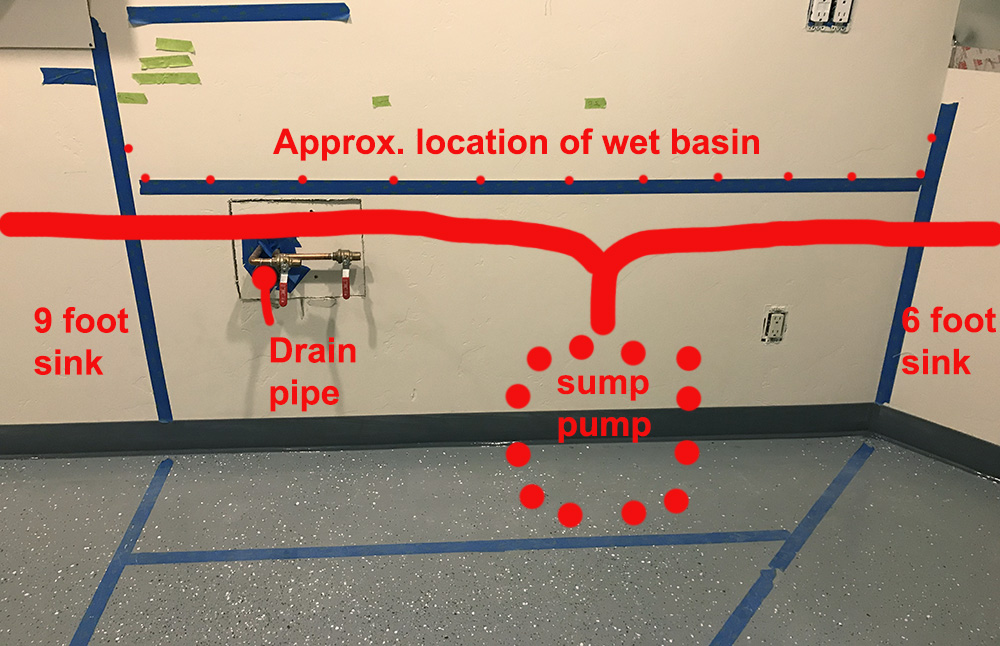

    I am installing two sinks in my basement darkroom, one 9 foot SS that will be 36” high in terms of low point and a 6 foot SS that will be the roughly the same. They will be divided by a wet basin transition area that will hold both my Job CPP3 and 16x20 print washer, 9 footer on the left, 6 footer on the right. Right below that wet transition area is my hot / cold water inlet and drain pipe, it will also house my sump pump and related infrastructure. The drain pipe comes in at about 21” off the deck and there is 28” of clearance between the floor and the underside of the wet basin.

    I have hunted high and low for answers but I am trying to figure out venting for the two sinks. I am not sure what is code for my area, I am sure the plumber will know once he gets back to me but I am at the point in that the rest of the wet side design will need to reflect the venting needs and I am ready to move on it.

    Typically what are people running into here with basement installs and sump pumps, are you going through the major hassle of connecting to an existing vent stack like I would have the plumber do in the crawl space ( $600-$1,000 ) or are air admittance vents doing the trick?

    The water distribution is pretty straight forward but this drain venting thing has me stumped.


  2. sepiareverb

    sepiareverb Subscriber

    Messages:
    961
    Joined:
    Feb 17, 2007
    Location:
    St J Vermont
    Shooter:
    Multi Format
    A Studor vent or similar air admitting vent is what I have used in both darkroom and kitchen installs, all under the advice of a plumber.

  3. OP
    OP
    Ai Print

    Ai Print Subscriber

    Messages:
    731
    Joined:
    May 28, 2015
    Location:
    Colorado
    Shooter:
    Multi Format
    What type of sump pump, self contained or pump in plastic tub style?

  4. Kilgallb

    Kilgallb Subscriber

    Messages:
    424
    Joined:
    Oct 14, 2005
    Location:
    Calgary AB C
    Shooter:
    4x5 Format
    I used one of those air admittance valves on the drain like they use for island sinks in a renovation. It works well and you do not need to go to the expense of tapping into the vent stack. Since you are doing a renovation it is likely you can use the air admittance valve.

    Here is a link to the Canadian Home Depot online:

    https://www.homedepot.ca/en/home/p.20-dfu-sure-vent-15-2-inch--abs.1000129763.html

  5. bdial

    bdial Subscriber

    Messages:
    6,100
    Joined:
    Jan 2, 2005
    Location:
    North East U.S.
    Shooter:
    Multi Format
    If your local plumbing codes are available on a town or county web site you should check that an air admittance device is approved. Some places don't allow them.

  6. M Carter

    M Carter Member

    Messages:
    1,481
    Joined:
    Jan 23, 2013
    Location:
    Dallas, TX
    Shooter:
    Medium Format
    I'd look into skipping the pump. Open the drywall under the drain inlet and see if you can tap into it at a lower level. If it's PVC it should be simple, if iron still not a huge deal. That's assuming the drain goes down from there; I'm in a non-basement area (Dallas), but when i grew up in Michigan, the drains went down below the foundation. Usually the lowest drain entry in the basement was the washer drain, up mid-level on the wall and relying on the washer's pump to get the water up there, but those drains went down below the floor (cinderblock basement walls so the plumbing was visible) - we only had gravity drains, no pumps.

    Code in my city, IIRC - sinks are sort-of vents, but there's code relating to how far away a sink can be from the in-wall vent, and island sinks require some oddball venting. Many people skip this though, and rely on the sink trap to keep gasses out and on the drain itself to provide a pressure differential for fast draining (not sure of the terminology). Good thing about a darkroom is it doesn't need to be pretty - it can be a little more "industrial" - vent stacks from the sink drain system should be able to tie into an existing stack, even if you have some 2" PVC running across the ceiling and so on.

  7. OP
    OP
    Ai Print

    Ai Print Subscriber

    Messages:
    731
    Joined:
    May 28, 2015
    Location:
    Colorado
    Shooter:
    Multi Format
    Actually the plumber installed the drain, we had to go up to get to the main sewer line, there is nothing below floor level so a pump is mandatory.

    As far as being pretty or not, this one will not only be for me but workshops...it is going to be stunning when finished.

  8. Fujicaman1957

    Fujicaman1957 Member

    Messages:
    68
    Joined:
    Jan 1, 2016
    Shooter:
    35mm
    What you might need is called an injector pump. It's designed for when you install a bathroom in the basement during a remodel and the sewer line is higher than the john, shower, etc.
    If you're just using a sump pump in some kind of tub to catch the water from the sinks, I think a air valve vent would be okay.

  9. Fujicaman1957

    Fujicaman1957 Member

    Messages:
    68
    Joined:
    Jan 1, 2016
    Shooter:
    35mm
  10. aoresteen

    aoresteen Member

    Messages:
    533
    Joined:
    Jun 8, 2004
    Location:
    Newnan, GA,
    Shooter:
    Multi Format
    I'm using a washing machine pump for my darkroom and it works very well.

  11. sepiareverb

    sepiareverb Subscriber

    Messages:
    961
    Joined:
    Feb 17, 2007
    Location:
    St J Vermont
    Shooter:
    Multi Format
    Over my head here. I have a drain line in the floor that I was able to tap into for my darkroom, but no stack available.

  12. Rich Ullsmith

    Rich Ullsmith Member

    Messages:
    1,105
    Joined:
    Jan 26, 2007
    Shooter:
    Medium Format
    Wouldn't worry too much about what is or is not according to "code."

  13. MattKing

    MattKing Subscriber

    Messages:
    21,374
    Joined:
    Apr 24, 2005
    Location:
    Delta, BC, Canada
    Shooter:
    Multi Format
    You may wish to worry about "code" if you purchase house insurance, and want to be in a position to claim on it anything ever goes wrong and causes water damage.

  14. Steve Goldstein

    Steve Goldstein Subscriber

    Messages:
    746
    Joined:
    Jul 8, 2007
    Location:
    MA, USA
    Shooter:
    Multi Format
    Adhering to code could also prove important when you sell the property. Better to pay a bit more now than potentially a lot more later should you be caught out and forced to bring it up to code later.
