Hi all,

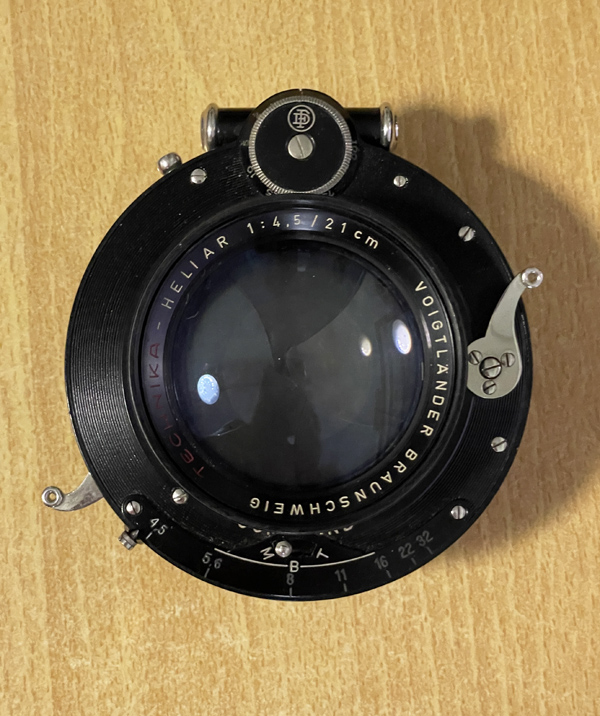

I recently picked up a "bargain" LF lens from the local used camera store for a song (~$150). It is a Heliar 21cm 4.5 lens, sold as defective. The lens has slight edge separation and the shutter fires only at one speed, probably 1/50 seconds. Otherwise, the glass is clean and clear.



I mounted the lens on my 4X5 camera and check the image on GG and was surprised by how nice the image was! It is soft and dreamy and yet sharp. So I sent it to a local camera repairman but was told that the shutter is a special one, known as Compound Shutter and he can't fix it! He told me that I could use it as is and still take nice portraits with this lens.

I am sure someone here may have repaired such a Compound Shutter before. Any recommendation/suggestion who to send it to? And possible repair cost?

TIA

yossi

Last edited:

Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
22,086
Location
West Midland
Shooter
Multi Format
Sometimes all that's needed is a clean of the piston that controls the slow speeds, to the right of the shutter speed dial. It's marked 8 in that PDF file on the Compound page. If the lubricant had gone dry it's easy to clean with some Isopropyl alcohol, then just a tiny drop of machine oil.

Ian

OP
OP

yossi

Member
Joined
Jul 24, 2022
Messages
56
Location
Singapore
Shooter
35mm RF
Sometimes all that's needed is a clean of the piston that controls the slow speeds, to the right of the shutter speed dial. It's marked 8 in that PDF file on the Compound page. If the lubricant had gone dry it's easy to clean with some Isopropyl alcohol, then just a tiny drop of machine oil.

Ian

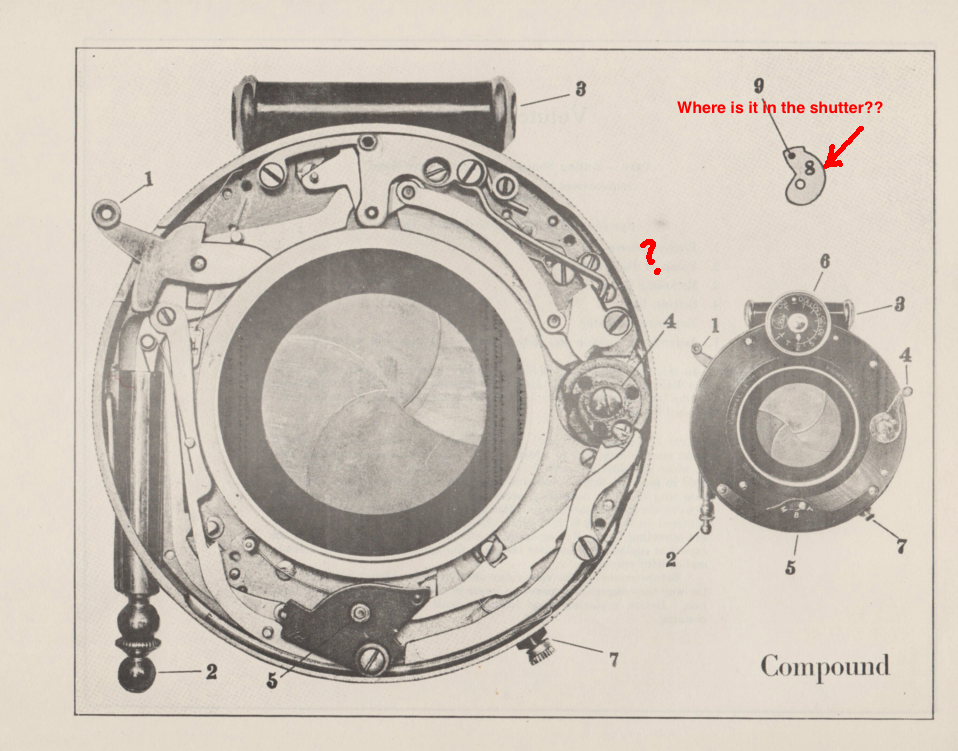

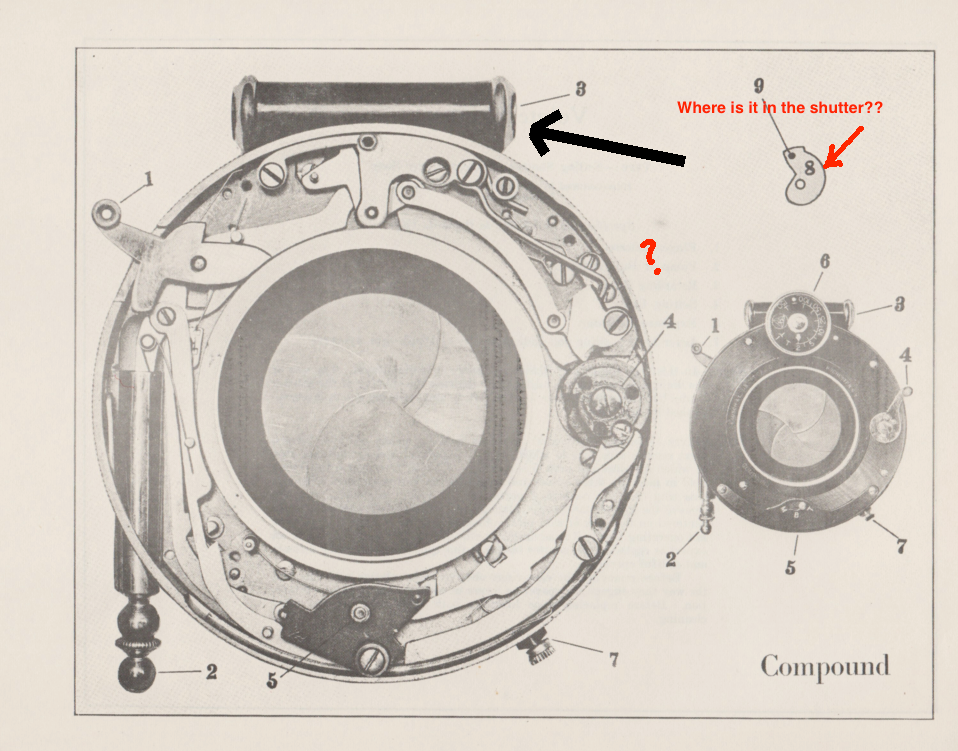

Thanks for the tip, but sorry for asking a dumb question: where is part 8 in the main shutter?

Screen Shot 2022-09-05 at 5.29.55 PM.png


Steve Goldstein

Subscriber
Joined
Jul 8, 2007
Messages
1,315
Location
Northeastern US
Shooter
Multi Format
Carol Flutot (flutotscamerarepair.com) is really good with Compound shutters. She's in California, a rather long way from Singapore, I'm afraid.


Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
22,086
Location
West Midland
Shooter
Multi Format
I'm not sure why SK Grimes don't like servicing Compound shutters. Plenty of repair shops will service them, I'd be surprised if there's not someone in Singapoore.

This lens and shutter look in very good condition, even my 109-year-old 12cm f6.8 Dagor's Compound #0 shutter still works very smoothly and accurately at all speeds, as do my 4 other larger.Compound shutters.

Ian


BrianShaw

Member
Joined
Nov 30, 2005
Messages
13,002
Location
Here or there.
Shooter
Multi Format
Their site gives good pictures of the mechanism, as well as some good precautionary guidance, if Yossi want to attempt to do-it-yourself. That was my only point in posting that link.

Last edited:
OP
OP

yossi

Member
Joined
Jul 24, 2022
Messages
56
Location
Singapore
Shooter
35mm RF

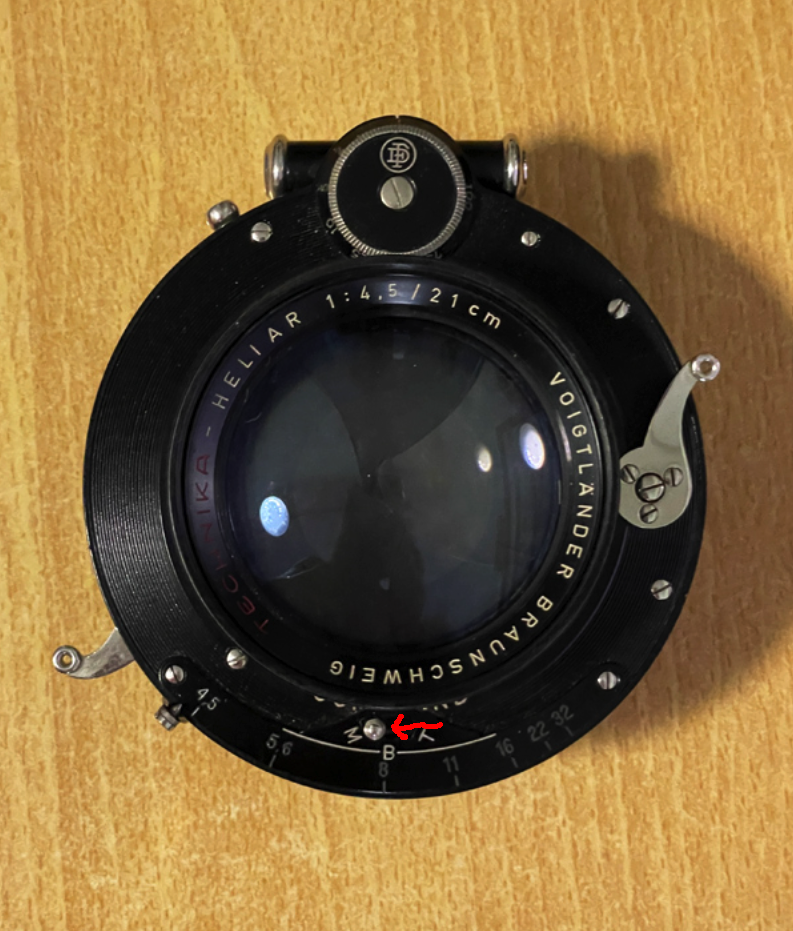

Gosh! Guess what: I accidentally found out that at M position, if I push the lever all the way to its left until it could not move anymore, then when I trigger the shutter, it works at all speeds!!

Screen Shot 2022-09-05 at 7.58.40 PM.png


What's happened?

Last edited:

Tel

Subscriber
Joined
May 9, 2011
Messages
615
Location
New Jersey
Shooter
Multi Format
For some reason, they used "M" for the "instantaneous" setting, which enables the speed selector. Most of these old shutters used the letter "I" for obvious reasons. I thought that maybe the Compound shutter was made in Germany, but it's a Bausch & Lomb product, so made in Rochester. Maybe M for "momentary"?


David Lindquist

Subscriber
Joined
Aug 18, 2006
Messages
181
Location
California foothills
Shooter
4x5 Format
I'm not sure why SK Grimes don't like servicing Compound shutters. Plenty of repair shops will service them, I'd be surprised if there's not someone in Singapoore.

This lens and shutter look in very good condition, even my 109-year-old 12cm f6.8 Dagor's Compound #0 shutter still works very smoothly and accurately at all speeds, as do my 4 other larger.Compound shutters.

Ian
It's not just Compound shutters, SK Grimes stopped doing CLA/Repair on all shutters some years ago.

Guessing they decided to devote all their efforts to the design/manufacturing/machine shop work side of the business.

David

Joined
Aug 23, 2020
Messages
68
Location
Yatesville, GA USA
Shooter
4x5 Format
Sometimes a new cam must be cut... and this is fairly straight-forward as the cam is made from brass and easily worked. Carol Flutot does exceptionally good work with these. Most complaints seem to stem from failing to allow a few seconds for the piston to settle in after setting the time. Despite appearing "klutzy" these are really good shutters (but are easily destroyed by folks attempting to lubricate them ) those shutter leaves are paper. The bore of the air piston does not require lubrication.
Joel


David Lindquist

Subscriber
Joined
Aug 18, 2006
Messages
181
Location
California foothills
Shooter
4x5 Format
For some reason, they used "M" for the "instantaneous" setting, which enables the speed selector. Most of these old shutters used the letter "I" for obvious reasons. I thought that maybe the Compound shutter was made in Germany, but it's a Bausch & Lomb product, so made in Rochester. Maybe M for "momentary"?
Compound shutters were mostly made in Germany by Deckel, the inventor. B&L made them under license.

David


Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
22,086
Location
West Midland
Shooter
Multi Format
Compound shutters were mostly made in Germany by Deckel, the inventor. B&L made them under license.

David

Christian Bruns designed the Compound, the company Bruns & Deckel set up in 1903 manufactured them. Bruns left the company and designed the Compur slow gear train which he Patented, in Germany. Deckel had previously worked at Zeiss, reporting directly to Ernst Abbe.

In 1910 Carl Zeiss took a share in Deckel along with Bausch & Lomb, and Alfred Gauthier (Deckekel's main competitor). In 1911 Zeiss bought the rights to the Bruns Patent. The Compur is essentially a Compound with a slow peed gear train rather than pneumatic damping.

Ian

OP
OP

yossi

Member
Joined
Jul 24, 2022
Messages
56
Location
Singapore
Shooter
35mm RF
Nice history of Compound shutter.

Any clue why M needs to be pressed to the very left without letting go my finger, only then the shutter would fire at correct speed?

Once I stop pushing the lever, even if it’s at M position, the shutter only fires at one same speed!

Last edited:

Tel

Subscriber
Joined
May 9, 2011
Messages
615
Location
New Jersey
Shooter
Multi Format
It might be that the cam marked number 5 in the diagram needs adjusting, or it could be that the cover is slightly out of alignment.


BrianShaw

Member
Joined
Nov 30, 2005
Messages
13,002
Location
Here or there.
Shooter
Multi Format
… or it could be that the levers are gummy and/or improperly lubricated and/or bent. Or, spring(s) have lost tension and/or improperly positioned. The fact that it somewhat works is a very good sign that with a full proper servicing it could be a useful shutter in the future.


Two23

Member
Joined
Jul 4, 2010
Messages
583
Location
South Dakota
Shooter
8x10 Format
For some reason, they used "M" for the "instantaneous" setting, which enables the speed selector. Most of these old shutters used the letter "I" for obvious reasons. I thought that maybe the Compound shutter was made in Germany, but it's a Bausch & Lomb product, so made in Rochester. Maybe M for "momentary"?

M = Moment, Z = Zeit = Time.


Kent in SD
