TimVermont

Member
Joined
Mar 8, 2005
Messages
468
Location
Boston
Format
Multi Format
I'm looking for a less pricey substitute for either the Jobo sheet film clips or the Patterson 2-pin clips. Some time ago there was a posting recommending a solid looking metal clip --but I can't find it using the search function. Anyone with a better memory (or better search skills) want to lend a hand? Thanks!

Joined
Mar 2, 2007
Messages
1,464
Format
Medium Format
technolab in italy make super ultra awesome racks and clips for 4x5.


PhotoJim

Member
Joined
Oct 9, 2005
Messages
2,314
Location
Regina, SK, CA
Format
35mm
If you really want to do it on the cheap, clothespins work. I use them when I'm out of proper film clips (sometimes I have frenzied film processing days where I process 15 or 20 rolls). A couple of pins at the top will suffice, but you probably want to put a few at the bottom for weight. I usually put 4 on 35mm and 6 on 120, plus the pair at the top.


PhotoJim

Member
Joined
Oct 9, 2005
Messages
2,314
Location
Regina, SK, CA
Format
35mm
Oh, I missed that you wanted this for sheet film. I use clothespins exclusively for sheet film. I pin one corner of the sheet only as much as is necessary to hold it securely.


ic-racer

Member
Joined
Feb 25, 2007
Messages
16,546
Location
USA
Format
Multi Format
I got a bunch of hemostats off the internet for a little over $1 USD each. They are stainless steel and grab the edge of the film very strongly (as good as a pin).

Like the pin-type, they leave a mark, but the mark is very small. (1.5mm x 1.5mm) Since the basic design of a hemostat requires it to hold the blood vessel at the tip of the insturment, even the cheap hemostats (or most that I have seen) do this very well.


Last edited by a moderator:

MikeSeb

Subscriber
Joined
Jun 12, 2005
Messages
1,104
Location
Denver, CO
Format
Medium Format
Like you I'd like a cheaper alternative to some of the commercially available film clips; but the problem with using other types are that most--like those Bulldog clips bobwysiwig referenced--grab the film with a flat surface that makes a lot of contact, and allows water to collect and then run down your film after you've finished drying it, leaving a streak.

Film clips tend to grip just by a few tiny sharp points, so that there is no water accumulation.


Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
23,263
Location
West Midland
Format
Multi Format
Like the CD-1 in another thread I don't have time to sort out things now, but yesterday put a large bag of film clip/hangers 100+ away in storage.

I'll find them when I'm next in the UK, and offer them for nominal prices.

Ian


ntenny

Subscriber
Joined
Mar 5, 2008
Messages
2,477
Location
Portland, OR, USA
Format
Multi Format
I got a bunch of hemostats off the internet for a little over $1 USD each.

That's a really good idea, and a better price than I can find easily---where'd you get them?

I've been using clothespins, but in some cases it'd be nice to have clips with a smaller and more clearly defined contact area.

-NT


Sean McEntee

Member
Joined
Jul 2, 2008
Messages
9
Format
8x10 Format
Clothespins. Since 1972, haven't dropped a sheet yet. 4x5, 8x10, 120, 35mm, minox. Clothespins have a million and one uses in the darkroom.


David A. Goldfarb

Moderator
Moderator
Joined
Sep 7, 2002
Messages
19,974
Location
Honolulu, HI
Format
Large Format

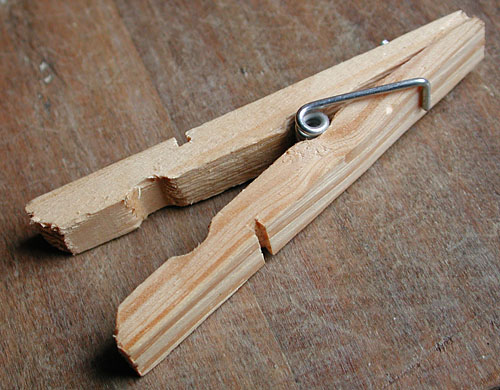

Ansel Adams trick: Take the two sides of the clothespin out of the spring and put them back in reversed, so what was the handle end becomes the pincer end. This will reduce the contact area.


Attachments

  • reversedclothespin.jpg
    96.5 KB · Views: 193

Jim Noel

Member
Joined
Mar 6, 2005
Messages
2,261
Format
Large Format
As the ads say, "See Your Dentist". If he has switched to digital x-ray, which many have, the old clips may still be hanging around and in the way. They are very small and have a small pin to hold the film very securely. I use them for everything up to and including 7x17.


bobwysiwyg

Subscriber
Joined
Mar 28, 2008
Messages
1,627
Location
Ann Arbor, M
Format
Multi Format
I tried using them and the chrome plating curled up and split off and the clips rusted. This was some time ago, but if they have changed they would be excellent.

PE

Probably have changed for the worse, if anything. Likely imported from China now. Thanks for the tip on the corrosion and pealing finish.


Síle

Member
Joined
Mar 27, 2006
Messages
1,088
Location
Wicklow, Ire
Format
DSLR
At the risk of outing myself as a "real girl".. I use Dead Link Removed.. They're really cheap, they're tiny, you can get them made of plastic so they will last for ages and they are very easy to source. And they grip just the tiniest edge of film and photos..

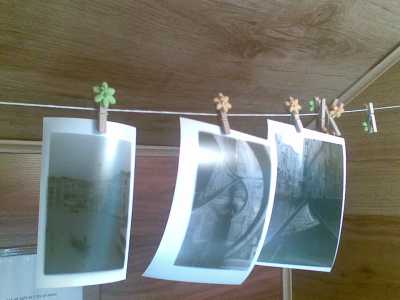

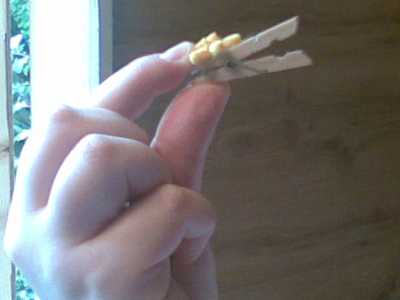

Here's mine in action.. they're wooden with little coloured flowers on them..thanks to my daughter for the hand modelling!


Attachments

  • 09072008(002).jpg
    11.7 KB · Views: 192
  • 09072008(004).jpg
    17.2 KB · Views: 249

Steve_7x

Member
Joined
Nov 24, 2004
Messages
88
Location
Sierra Footh
Format
Large Format
Another vote for the Kodak Dental Clips. Not sure if you can still get them trough Kodak or through a local Dental Supply company. I have had all sheet film sizes up to 12x20 negs on them - No issues and just a 1mm pimple on the corner (read as clear portion) of the film.

Steve


jeroldharter

Member
Joined
Nov 6, 2005
Messages
1,955
Location
Wisconsin
Format
4x5 Format
You might be referring to these which work very well. the spring is quite strong. The metal edge is rolled so it does not scratch but it will leave a tiny imprint in the unexposed margin of a 4x5 negative:

http://www.craft-inc.com/gui/gui1/p...439&QtySelected=1&value1=100&value3=.160+dia.

The cost $18.00 per 100. I also use them for paper. For 11x14 and up, I use one clip one each of the two upper corners and hang to dry. Then I put a clip on each of the two lower corners which helps prevent curling.


Changeling1

Member
Joined
Mar 19, 2005
Messages
655
Location
Southern Cal
Format
4x5 Format
Don't know what the correct name is for them but run-of-the-mill roach-clips will do in a pinch.


David A. Goldfarb

Moderator
Moderator
Joined
Sep 7, 2002
Messages
19,974
Location
Honolulu, HI
Format
Large Format

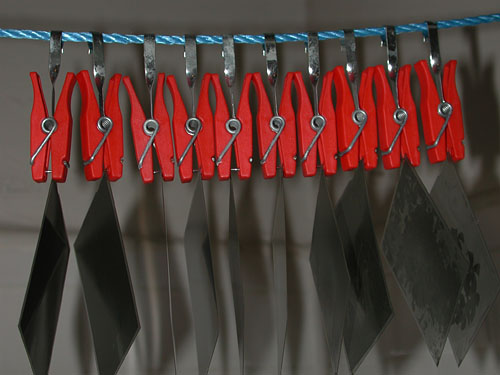

For those who wonder about the attraction of my absurdly expensive Jobo sheet film clips, here's a picture. They make it possible to hang lots of film of any sheet format in little space, because the film hangs perpendicular to the drying line, they have pinprick contact area, and because the needle pierces the film, they can hold any format securely. On occasions where I've had a lot of film to process (these sheets are 2.25x3.25, but my largest are 11x14" and 7x17"), they've been worth the expense. I've got 40 of these clips (some purchased new when they weren't quite so expensive, some purchased second hand), and even when I am using all of them, I have room to hang more film with clothespins.


Attachments

  • joboclips.jpg
    71.1 KB · Views: 256

Sean McEntee

Member
Joined
Jul 2, 2008
Messages
9
Format
8x10 Format
Don't know what the correct name is for them but run-of-the-mill roach-clips will do in a pinch.
Dude, you are so busted. They are called Alligator clips, I mean I'm told by a friend they are called alligator clips. :wink:
