Canon 7sZ top cover removal

Joined
Oct 7, 2019
Messages
6
Location
Massachusetts
Format
Medium Format
I have a Canon 7sZ rangefinder camera that I would like to work on, specifically removing its top cover to clean up the rangefinder mirror/prism assembly. I have the service manual for the 7s, but the 7s vs. 7sZ flash syn are different. The 7s simply unthreads, but I can’t figure out how to remove the one on a 7sZ. Any help would be appreciated.


canon7szgp

Member
Joined
Apr 23, 2022
Messages
4
Location
Agrate Brianza (MB)
Format
35mm

Anche a me interessa la domanda. Hai avuto risposte?


4season

Member
Joined
Jul 13, 2015
Messages
1,987
Format
Plastic Cameras

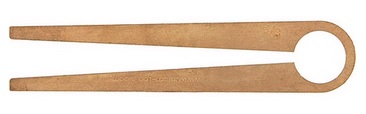

I am pretty certain that you will need to buy or DIY a "flexiclamp" wrench:


Dan Daniel

Subscriber
Joined
Jul 4, 2009
Messages
2,885
Location
upstate New York
Format
Medium Format
Is this flash sync slotted inside the recess? So that you basically pull the recessed barrel out that sits around the sync pin? Or maybe that whole sync pin assembly unscrews.


canon7szgp

Member
Joined
Apr 23, 2022
Messages
4
Location
Agrate Brianza (MB)
Format
35mm
Is this flash sync slotted inside the recess? So that you basically pull the recessed barrel out that sits around the sync pin? Or maybe that whole sync pin assembly unscrews.

It could be any of the questions mentioned, but I have no answers, which is why I was hoping that the author of the TH had got them from someone


RalphLambrecht

Subscriber
Joined
Sep 19, 2003
Messages
14,655
Location
K,Germany
Format
Medium Format

Don't support the smartphone industry. They ae the ones who killed film photography!


4season

Member
Joined
Jul 13, 2015
Messages
1,987
Format
Plastic Cameras
It appears that Canon had at least 2 versions of the part of that 7sZ part:

if yours has no slots cut to allow the use of a spanner wrench, and a flexiclamp-type wrench didn't work, the only other thing I can think of is to try a rubber pad-type tool:


canon7szgp

Member
Joined
Apr 23, 2022
Messages
4
Location
Agrate Brianza (MB)
Format
35mm

grazie per la risposta; Il mio connettore del flash è come la foto a sinistra, quindi non ha "prese di forza" per una chiave, quindi penso che proverò con i gommini che hai suggerito.


Daimon

Member
Joined
Nov 11, 2023
Messages
2
Location
Poland
Format
35mm RF
Has anyone figured out best way to unscrew the port?

Flexi clamp would work only if outer ring can be used for unscrewing. If port is the same as in Canon 7 then actually internal brass part needs to be unscrewed?



Dan Daniel

Subscriber
Joined
Jul 4, 2009
Messages
2,885
Location
upstate New York
Format
Medium Format
Isn't there a slot deep inside? Maybe I am misremembering. But I think that I can see it in your photo. A slot at about 5 o'clock and 11 o'clock at the bottom of the flash sync rod. Take a long thin screwdriver that fits down there and unscrew it- standard counterclockwise. Or carve one from a wooden chopstick.


Daimon

Member
Joined
Nov 11, 2023
Messages
2
Location
Poland
Format
35mm RF
Nope, no slots at all it's possible to grab outer ring with a flexi clamp - and I managed to do it but it just turns, does not unscrew.
