Can Canon EF 35-80 Old Zoom take 35mmX35mm image on 120 film without problem ?

[Mustafa Umut Sarac]

Can Canon EF 35-80 Old Zoom take 35mmX35mm image on 120 film without problem ?



[koraks]

There may be vignetting at the widest zoom setting. If this is the case, I expect this to be mostly gone by about 45mm.
One of they key issues with this lens for use on 120 film is that if you want a functioning aperture, you'll have to electronically control it, for instance with a butchered Canon EOS camera. If you're OK with only using it wide-open, you can ignore this.



[Mustafa Umut Sarac]

There may be vignetting at the widest zoom setting. If this is the case, I expect this to be mostly gone by about 45mm.
One of they key issues with this lens for use on 120 film is that if you want a functioning aperture, you'll have to electronically control it, for instance with a butchered Canon EOS camera. If you're OK with only using it wide-open, you can ignore this.

Hello Koraks , Can I set the aperture to f:22 in the camera and remove the lens with setting in this aperture or removing the lens makes set to f:4.5 or so ?



[koraks]

You can indeed use a camera to set the aperture to f/22. Mount the lens on the camera, turn on the camera, then set the aperture to f/22 and press the depth-of-field preview button. If the camera doesn't have one, make a photo with a long shutter speed. While the aperture is stopped down, remove the lens from the camera. The aperture will then remain stuck at this value.



[Mustafa Umut Sarac]

You can indeed use a camera to set the aperture to f/22. Mount the lens on the camera, turn on the camera, then set the aperture to f/22 and press the depth-of-field preview button. If the camera doesn't have one, make a photo with a long shutter speed. While the aperture is stopped down, remove the lens from the camera. The aperture will then remain stuck at this value.

Thank you very much indeed , this saves the day. Thank you.



[koraks]

Great, have fun with the experiment!



[Mustafa Umut Sarac]

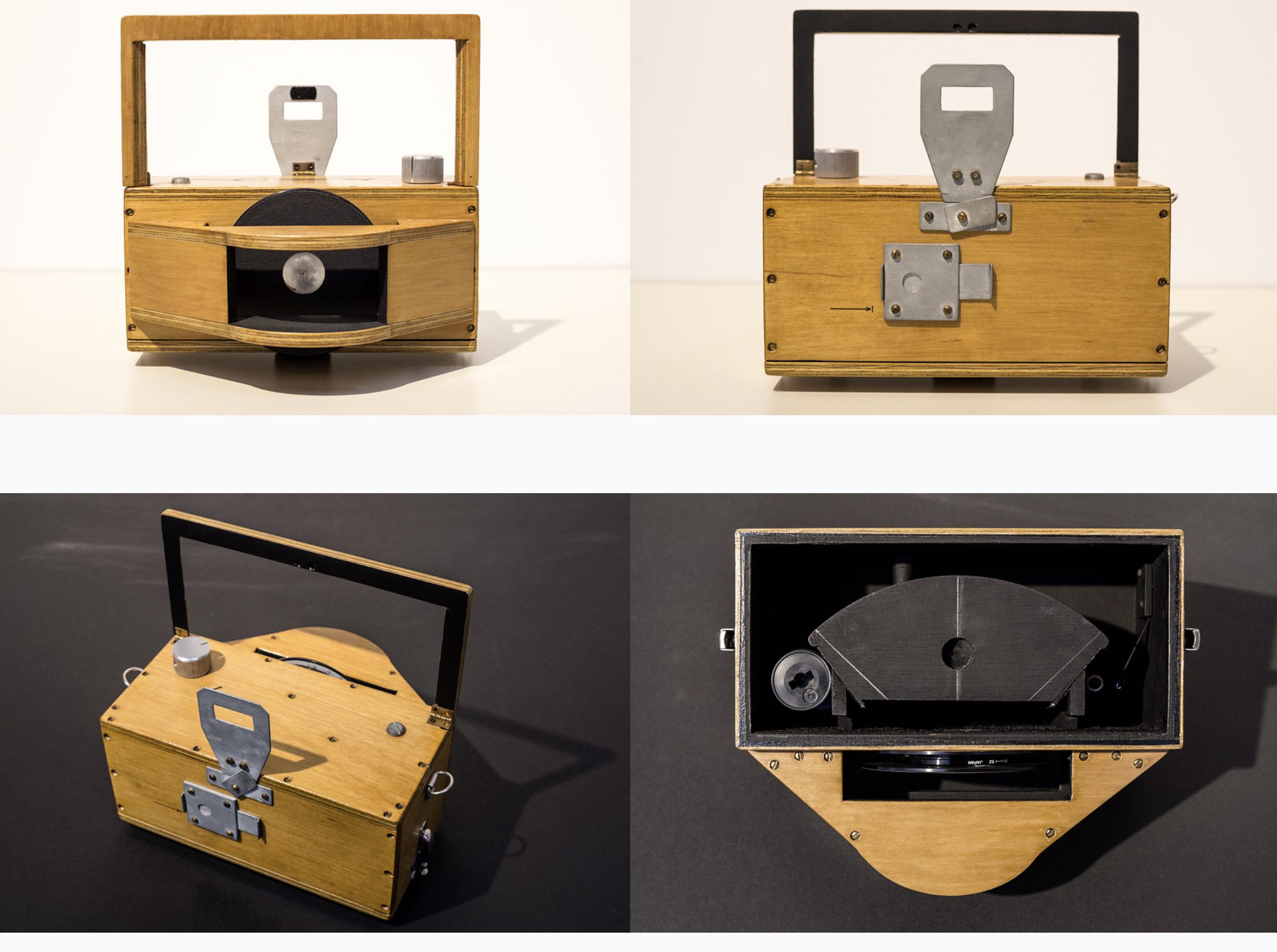

DIY Swing Lens 120 Film Jeff Bridges inspired Camera with Canon EF 35-80 - Which Format Should I go ?

I loved the attitude of jeff bridges to widelux cameras and I found his idea a widelux is between cinema and photography. It takes time photographs really.

As a poor folk , I found a canon ef 35-80 zoom lens and I want to take 35mm high format swing pictures with it when the lens set to f:22 and the zoom to 35mm.

I want to learn your wildest ideas what format should I go , 35mm X WHAT ?



[OAPOli]

Nominally, the lens will cover a 43mm circle. Some lenses have a rectangular baffle at the rear which may vignette the circle. 35x35mm fits in a 49mm circle.

This choice of lens is an awkward one to make a DIY camera.
