Beseler 45 MX Condenser head set up??


A

  • 2
  • 0
  • 99
Stray (2014)

H
Stray (2014)

  • 6
  • 2
  • 149
Time #2

Time #2

  • 1
  • 0
  • 87
Summer Dreaming

A
Summer Dreaming

  • 6
  • 0
  • 153

Recent Classifieds

Forum statistics

Threads
181,869
Messages
2,516,425
Members
95,430
Latest member
MellowCat
Recent bookmarks
0
Joined
Feb 3, 2016
Messages
333
Location
NE Oklahoma
Shooter
Multi Format
I've been using my 45MX for over a year now with the old Dichro head but I finally got fed up witht he timing issues and mounted the condenser head.

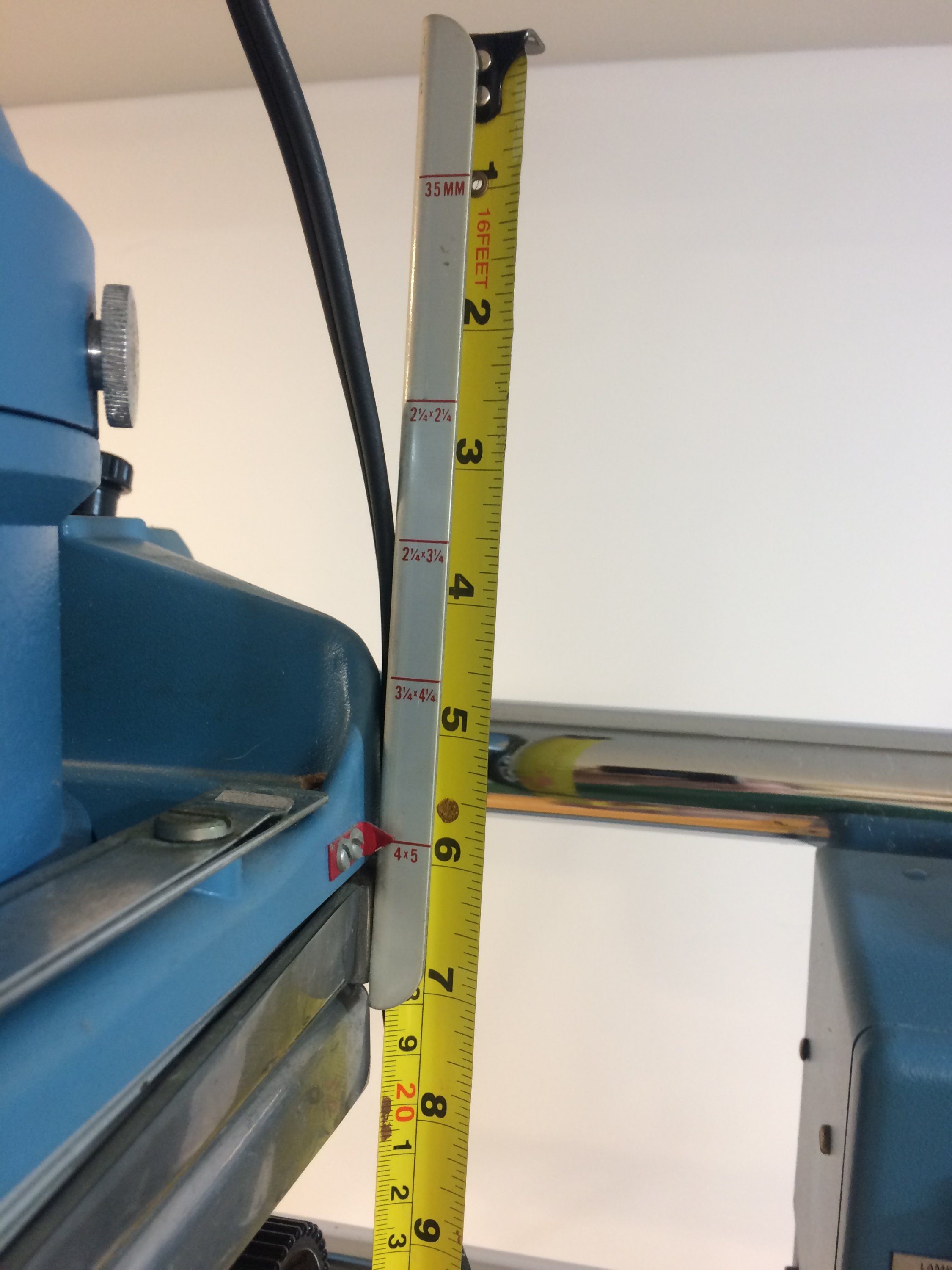

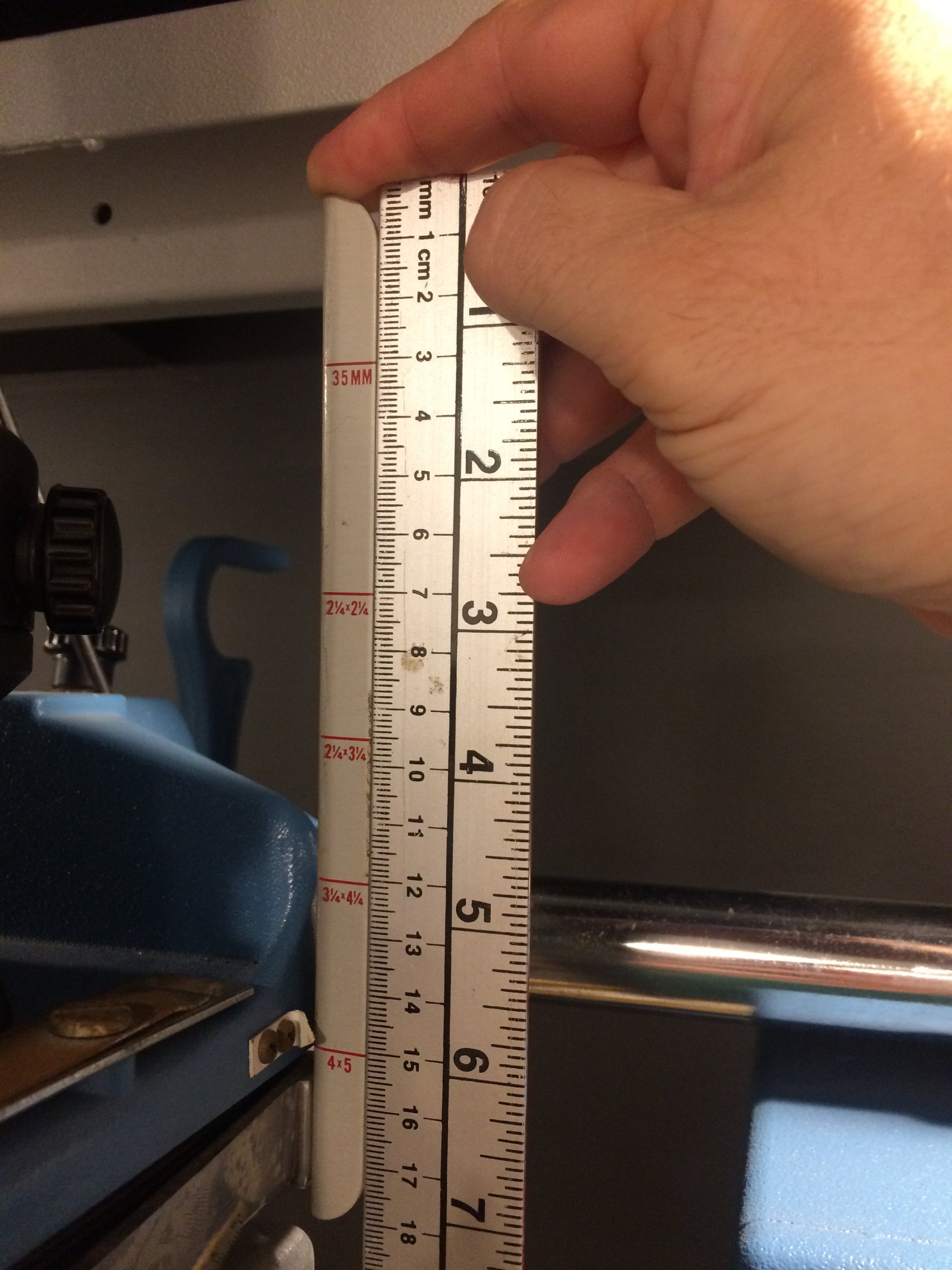

Looking at manuals online it shows a scale guide on the side of the lamp stage which I do not have. this is used to set the upper bellows for different size formats.
Could someone possibly snap a picture of this scale and post it so I can see what it is supposed to look like and maybe duplicate it?
Thanks.


Mike Hiscock

Member
Joined
Mar 4, 2011
Messages
17
Location
Gander Newfoundland
Shooter
Multi Format

OP
OP
Larry the sailor
Joined
Feb 3, 2016
Messages
333
Location
NE Oklahoma
Shooter
Multi Format
Thank you Mike, I can work with that!


David Brown

Member
Joined
Feb 16, 2004
Messages
3,986
Location
Earth
Shooter
Multi Format
You can easily make one from thin metal, plastic, wood, even cardboard. Here are the indicator mark measurements for the different size negatives, all from the LOWER of the two screw holes:

4 x 5--one inch up
3 /14 x 4 1/4--2 3/16" up
2 1/4 x 3 1/4--3 1/4 " up
2 1/4 x 2 1/4--4 1/4" up
35mm--5 3/4" up.

Keep in mind that the precision required here is not very great. Actually, you can enlarge all the smaller sized negatives with the head set at 4 x 5, although that doesn't make greatest use of the enlarger's light intensity. If in doubt, just fudge a bit on the side of a bigger negative.

OP
OP
Larry the sailor
Joined
Feb 3, 2016
Messages
333
Location
NE Oklahoma
Shooter
Multi Format
Once I saw a good picture of this thing I couldn't help but think I'd seen one around here somewhere... Went out to the shop and dug around in a couple of the "boxes of stuff" that came with he darkroom set up I bought when I got the enlarger and found the scale.

Thanks again guys.


grahamp

Subscriber
Joined
Mar 2, 2004
Messages
1,417
Location
Vallejo (SF Bay Area)
Shooter
Multi Format
Basically you set the head so the projected light circle is a little larger than the format of your negative. At one point I was switching heads a lot and could not be bothered to put the scale back every time.


CMoore

Subscriber
Joined
Aug 23, 2015
Messages
5,744
Location
USA CA
Shooter
35mm
As an old, cantankerous, foreman used to say......."Well, I'll Be Go To Hell.!" :smile:
Is that scale some thing was was Easily/Typically removed.?
I have 3 of these chassis, and none of them have that. They all have the little pointer, but none have that scale.:wondering:

OP
OP
Larry the sailor
Joined
Feb 3, 2016
Messages
333
Location
NE Oklahoma
Shooter
Multi Format
Two small screws hold it to the chassis. Look for a small boss just below the pointer with two screw holes.


David Brown

Member
Joined
Feb 16, 2004
Messages
3,986
Location
Earth
Shooter
Multi Format
Is that scale some thing was was Easily/Typically removed.?
I have 3 of these chassis, and none of them have that. They all have the little pointer, but none have that scale.:wondering:

Yes. In fact, it had to be removed for any of the Beseler color heads, and probably some other heads such as the Ilford or a cold light.

The thing is, it is not strictly needed (see my earlier post) and it is available (last time I looked) as a replacement part.

Photrio.com contains affiliate links to products. We may receive a commission for purchases made through these links.
To read our full affiliate disclosure statement please click Here.

PHOTRIO PARTNERS EQUALLY FUNDING OUR COMMUNITY:



Ilford ADOX Freestyle Photographic Stearman Press Weldon Color Lab Blue Moon Camera & Machine
Top Bottom
