Aristso cold light & VC filters?

Discussion in 'Darkroom Equipment' started by chip j, Feb 5, 2018.

  1. chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    I just got a NIB Aristo for my Beseler 23C II XL. Can regular VC filters be used w/it? Thanks.

  2. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    Thanks.

  3. mgb74

    mgb74 Subscriber

    Messages:
    3,718
    Joined:
    Jan 24, 2005
    Location:
    Brainerd, MN US
    Shooter:
    Multi Format
    CC40Y filter in large enough size can be difficult to find. I've "modified" an Aristo head with a Rosco 30Y gel and seems to work fine. More discussion here, including stacking a 30Y and 15Y.

  4. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    Thanks.

  5. jnanian

    jnanian Advertiser Advertiser

    Messages:
    24,549
    Joined:
    Jun 21, 2003
    Location:
    paswonquitte
    Shooter:
    Multi Format
  6. ic-racer

    ic-racer Member

    Messages:
    8,645
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format

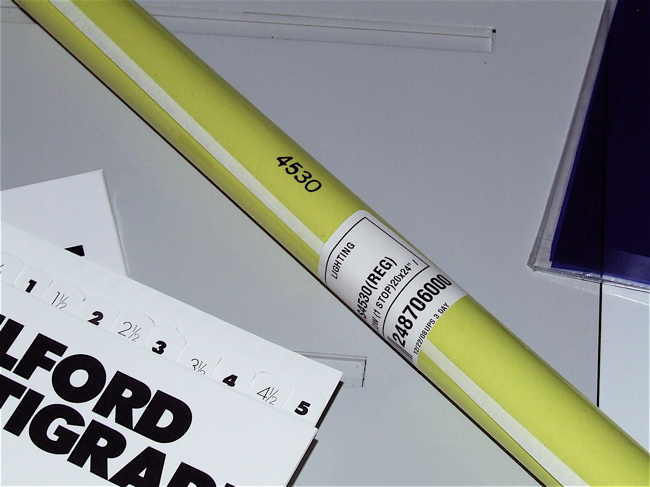

    30ccY is easy to find and only cost a few bucks for a very large sheet. Rosco #4530
    Rosco Yellow.jpg

  7. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    I think it's the older one--there is no mention of any model or wattage number on the original packaging or the instructions--just that it will last a lifetime. It says "H.I. 23, Pre "B", 8x8, & SP25.

  8. Doremus Scudder

    Doremus Scudder Member

    Messages:
    1,799
    Joined:
    Sep 10, 2002
    Location:
    Eugene, Oregon
    Shooter:
    4x5 Format

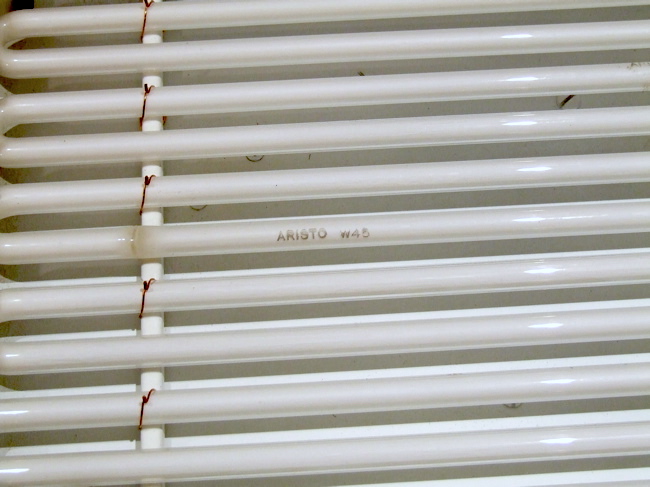

    The older Aristo W45 tubes give a distinct cyan-colored light. If your tube gives "white" light, it's the newer one and works just fine with VC filtration. The older one will too, just the contrast grades will be spaced differently. VC paper just needs a spectral range from green to blue.

    Best,

    Doremus

  9. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    Thanks.

  10. voceumana

    voceumana Member

    Messages:
    372
    Joined:
    Aug 4, 2004
    Location:
    USA (Utah)
    Shooter:
    Multi Format
    HI probably indicates High Intensity, and is likely the older, bluer tube (W45).

  11. jnanian

    jnanian Advertiser Advertiser

    Messages:
    24,549
    Joined:
    Jun 21, 2003
    Location:
    paswonquitte
    Shooter:
    Multi Format
    HI was the newer model they made ( v54 and they were hi intensity / brighter )

  12. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    Well! 2 opposing answers??

  13. jnanian

    jnanian Advertiser Advertiser

    Messages:
    24,549
    Joined:
    Jun 21, 2003
    Location:
    paswonquitte
    Shooter:
    Multi Format
    i have the D2HI (the v54 bulb).
    why don't you call voltarc and ask them what you have ?
    they can probably tell you by the code on the housing ...
    and if it is the old bulb they used to retrofit the new bulb in there too for like $80
    ( they used to a few years back )
    http://www.aristogrid.com/contact.htm
    rick's not there anymore but i am sure someone there can help you.

  14. mgb74

    mgb74 Subscriber

    Messages:
    3,718
    Joined:
    Jan 24, 2005
    Location:
    Brainerd, MN US
    Shooter:
    Multi Format
    I checked about a year ago. As I recall, it was much more that $80 - but I could be wrong. Certainly worthwhile to check.

  15. jnanian

    jnanian Advertiser Advertiser

    Messages:
    24,549
    Joined:
    Jun 21, 2003
    Location:
    paswonquitte
    Shooter:
    Multi Format
    you are right, the price most likely has gone up , everything seems to have gone up ..
    my memory is from like .. 10 or more years ago,

    sorry for the false hopes ... :pouty:
    john

  16. NedL

    NedL Subscriber

    Messages:
    2,620
    Joined:
    Aug 23, 2012
    Location:
    Sonoma County, California
    Shooter:
    Multi Format
    Groups:
    Not only that but just to make matters more confused, I thought the one that looked "cyan" was the V54 and the one that looks whiter was the old kind.
    I think it's actually the increased green in the light that makes it look different from white.

    After reading about all this, I went straight to split-grade printing w/ mine, and never got a set of VC filters.

  17. ic-racer

    ic-racer Member

    Messages:
    8,645
    Joined:
    Feb 25, 2007
    Location:
    Midwest USA
    Shooter:
    Multi Format
    Any markings on the tube?

  18. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    I'll try to check. Thanks.

  19. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    No markings on tube--just a single white bulb. Actually, the white diffusing disc is not attached--does it press on?

  20. mgb74

    mgb74 Subscriber

    Messages:
    3,718
    Joined:
    Jan 24, 2005
    Location:
    Brainerd, MN US
    Shooter:
    Multi Format
    I've seen / handled 4 or 5 of these. The white disc just sits is the housing ring below the light.

  21. OP
    OP
    chip j

    chip j Subscriber

    Messages:
    1,822
    Joined:
    Oct 26, 2012
    Location:
    NE Ohio
    Shooter:
    35mm
    Thanks

  22. ChuckP

    ChuckP Subscriber

    Messages:
    719
    Joined:
    Jan 8, 2003
    Location:
    NW Chicagola
    Shooter:
    Multi Format
    The V-54 lamp should look more green. Here is some info on the lamps:
    https://www.light-sources.com/wp-co...colors_and_spectral_distribution_charts_0.pdf

    A good reprint of a Howard Bond article on the V-54 is also available on this site. Installation on a 23c is easier if you have an extra condenser housing to put the cold light into. Else you will need to remove the glass from your housing. Makes switching back to condenser harder.
