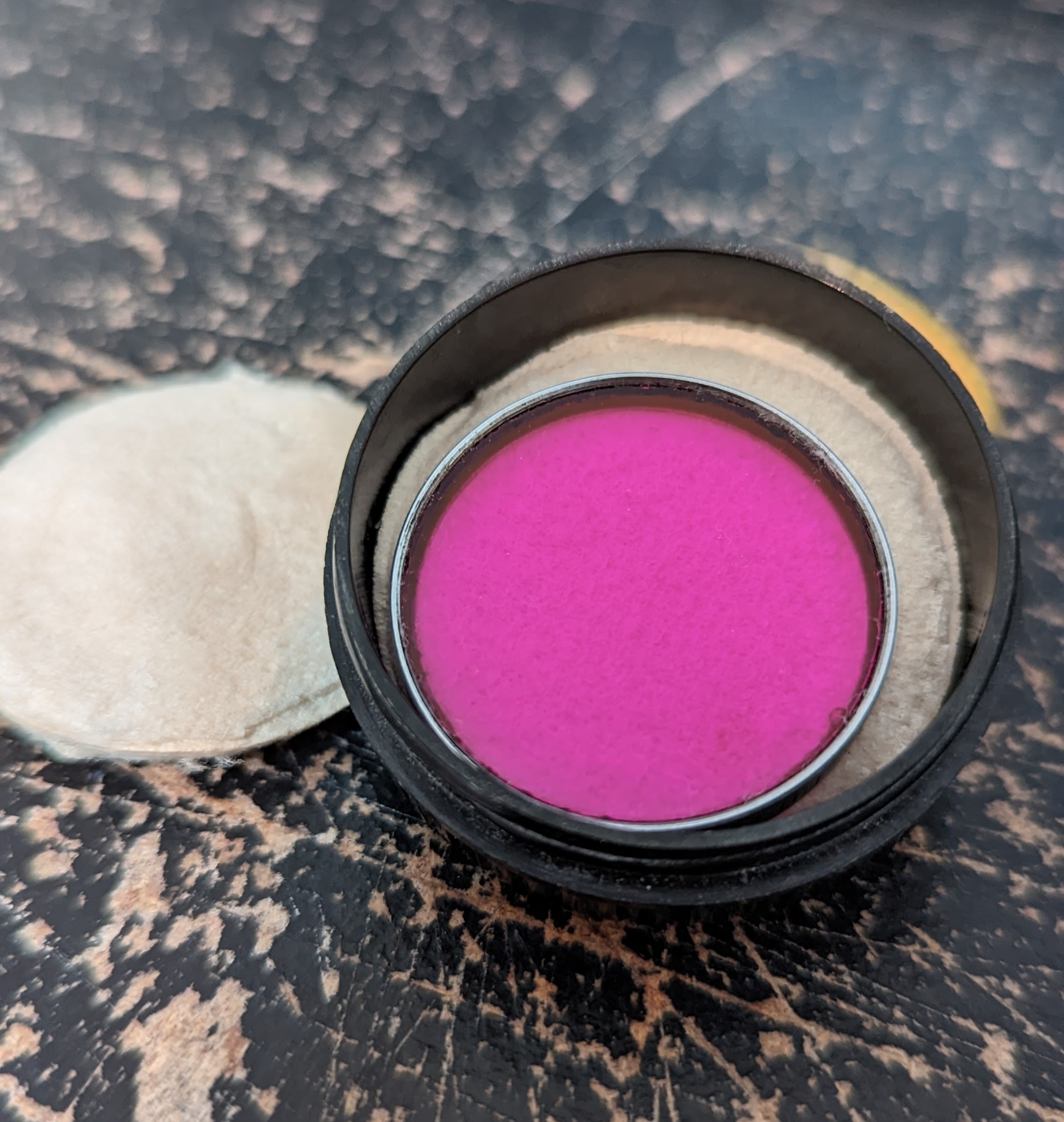

I bought this filter some time ago at a garage sale, its the "Kodak Series V MC1" filter. Does anyone know what it's for and the filter factor? I attached an image of the filter, its pretty darn pink, so I'm thinking it might be for some sort of contrast effect?


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,632
Location
Delta, BC, Canada
Shooter
Multi Format
It is, of course, a Series V filter, which means it is the correct size to fit in a Series V holder.
If you are not familiar with the Series approach to sizing of and fitting filter, this article will give you an idea: http://camera-wiki.org/wiki/Series_filters

OP
OP
Howl23

Howl23

Subscriber
Joined
Sep 2, 2022
Messages
28
Location
Houston, Texas
Shooter
Multi Format
Yes, that article did come up during my search online, but I have yet to find any information regarding this specific filter and its intended effect on film.


albada

Subscriber
Joined
Apr 10, 2008
Messages
1,467
Location
Escondido, C
Shooter
35mm RF
If the color on my monitor is close, that filter looks magenta to me. That means it blocks green, which is what a #5 filter does on an enlarger, raising contrast. In nature, green foliage would look dark. Also, magenta filters on cameras were used to correct for the green-cast of florescent lights. Unless it's not magenta.


AgX

Member
Joined
Apr 5, 2007
Messages
29,757
Location
Germany
Shooter
Multi Format
Yes, either such filter (type FL-D) or a "pop-colour" filter. Or both...


EDIT:

A FL-D filter is,

-) rather pink than magenta
-) at single pass merely coloured and at double-pass (as in the OP's set up) still very pale.

Thus remains a magenta effect filter.

Last edited:
OP
OP
Howl23

Howl23

Subscriber
Joined
Sep 2, 2022
Messages
28
Location
Houston, Texas
Shooter
Multi Format
I would say it is magenta, not necessarily pink as I had initially described it. If it does block green, then it would make for some interesting landscape phots I think.


Paul Howell

Subscriber
Joined
Dec 23, 2004
Messages
7,196
Location
Scottsdale Az
Shooter
Multi Format
In the day of many color films balanced for various artificial light sources there were many filters to correct, the pink or magenta I think is in the 85 series, which was to be used with Tungsten film in daylight. It came as a comb filter incorporating a natural density factor ranging from 1 to 3 stop loss of film speed. Then again, I find that guessing the true color of a filter. If it is pink, then a filter used to tint daylight film.

OP
OP
Howl23

Howl23

Subscriber
Joined
Sep 2, 2022
Messages
28
Location
Houston, Texas
Shooter
Multi Format
I thought the 85 line of filters were closer to orange in color? Either way the ones for the 85 line of filters usually state that either on the filter itself or on the box, but this one I have is specifically labelled MC1


Tel

Subscriber
Joined
May 9, 2011
Messages
615
Location
New Jersey
Shooter
Multi Format
I thought the 85 line of filters were closer to orange in color? Either way the ones for the 85 line of filters usually state that either on the filter itself or on the box, but this one I have is specifically labelled MC1
Yes, the 85s are usually described as "amber" although lighting gels of the same color (and for the same purpose) are labelled CTO for "color temperature orange", so consistency is not something to look for in this nomenclature. My first guess would be fluorescent correction; if I recall correctly those were made in varying shades because the greens of fluorescent tubes were wildly inconsistent. But that doesn't explain the "MC" labelling. M for magenta....?


MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
39,632
Location
Delta, BC, Canada
Shooter
Multi Format
May we see the edge writing or other insignia on it?

OP
OP
Howl23

Howl23

Subscriber
Joined
Sep 2, 2022
Messages
28
Location
Houston, Texas
Shooter
Multi Format

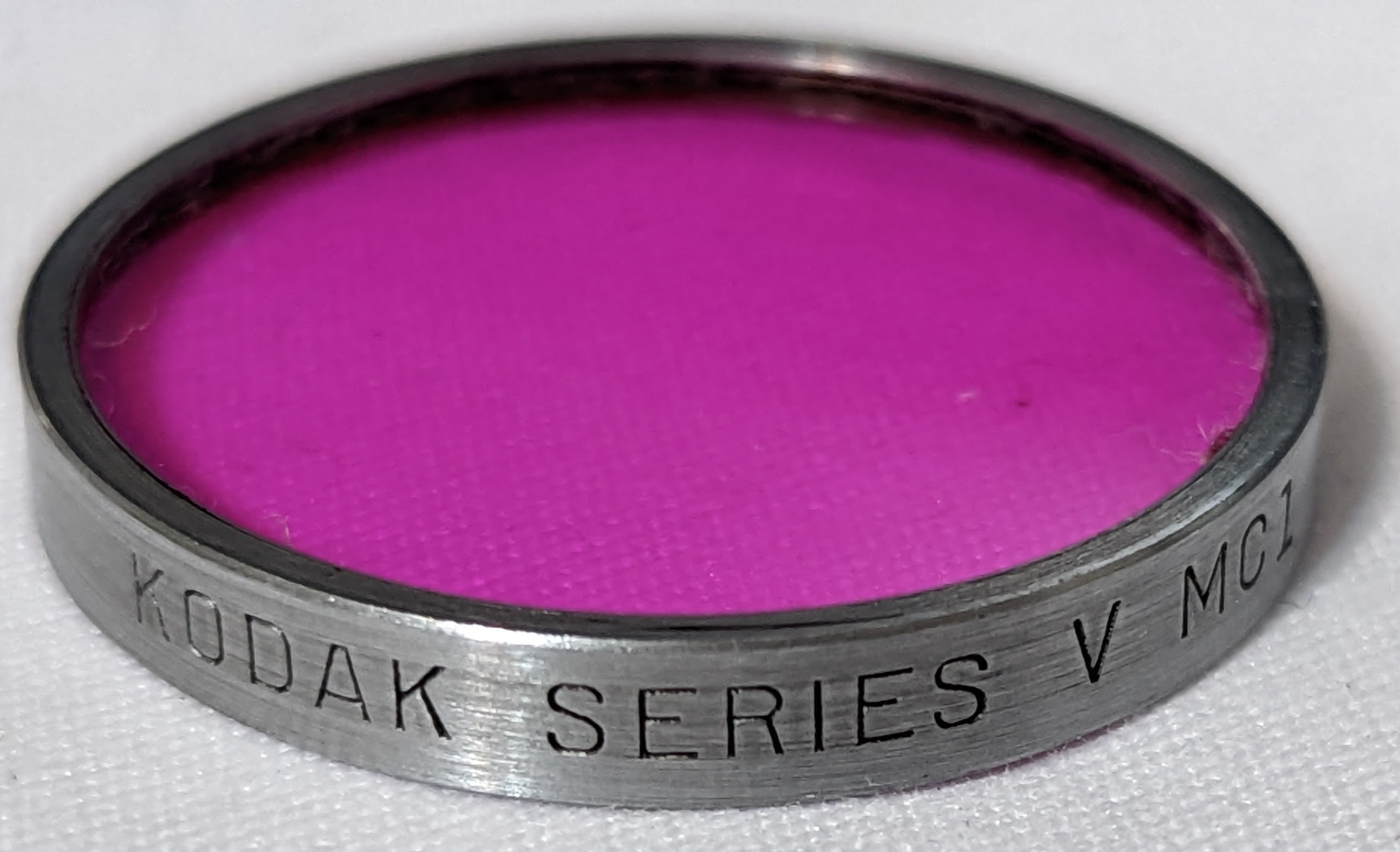

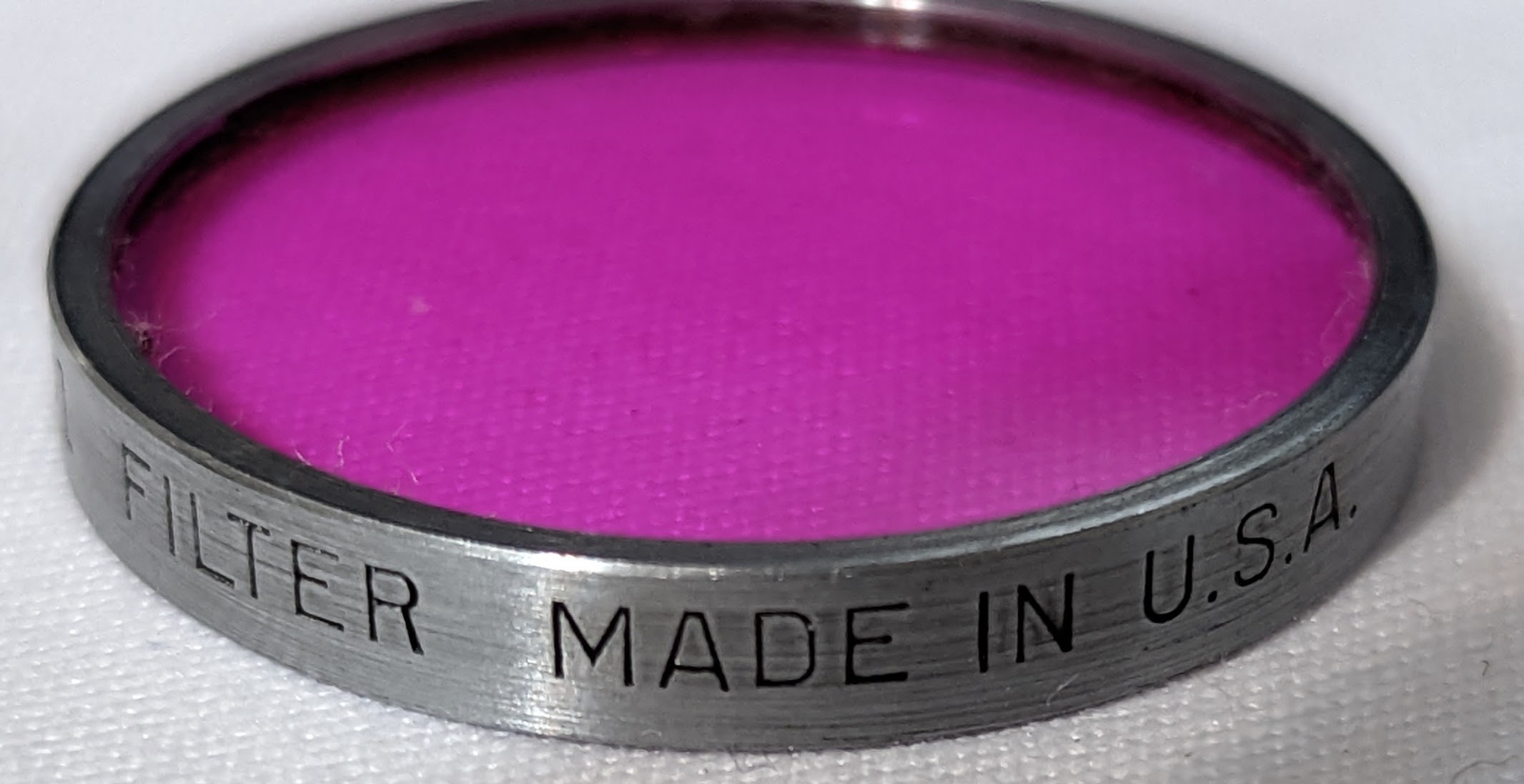

Yes, of course. Attached are the only edge writings on the filter.


Attachments

  • PXL_20220910_220222224.jpg
    351.8 KB · Views: 41
  • PXL_20220910_220338404.jpg
    253.9 KB · Views: 41
  • AgX
  • Deleted

xkaes

Member
Joined
Mar 25, 2006
Messages
624
Location
Colorado
Shooter
Multi Format
It's a Multi-Contrast filter. That's what the MC stands for -- for Kodak MC paper.


AgX

Member
Joined
Apr 5, 2007
Messages
29,757
Location
Germany
Shooter
Multi Format
Good point! Recently Drew hinted at glass (-laminated) filters for printing multi-contrast paper, which I never heard of.
And by now I forgot about it again...

for Kodak MC paper.
But Kodak's papers and filter sets were called Polycontrast, thus I would expect something as PC-1 ....

OP
OP
Howl23

Howl23

Subscriber
Joined
Sep 2, 2022
Messages
28
Location
Houston, Texas
Shooter
Multi Format
Interesting, then I will definitely be using this filter with my camera to boost the contrast. I wonder what sort of compensation I will need.


AgX

Member
Joined
Apr 5, 2007
Messages
29,757
Location
Germany
Shooter
Multi Format
"Contrast Filter" in this case (if Xkaes got it right) refers to setting the paper grade optically at enlarging multi-contrast (milti-grade) paper.

Of course you can use it at taking with b&w film, as you hinted at in post #8.

(The advised and manufactured range of b&w contrast filters did not include Magenta. But sometimes magenta filters were offered explicetely to give colour photos a magenta cast.)


Sirius Glass

Subscriber
Joined
Jan 18, 2007
Messages
41,695
Location
Southern California
Shooter
Multi Format
So the best guess is a magenta filter for polycontrast paper ...


reddesert

Member
Joined
Jul 22, 2019
Messages
1,225
Location
SAZ
Shooter
Hybrid
It looks like a magenta color compensating filter, a fairly strong one, perhaps about a CC40M or so, although filter colors are hard to judge from a picture. I don't have an idea of why Kodak would have labeled it "MC1".

I have a Kodak photo handbook from 1946 and they list color compensating filters as CC3, CC4, CC5, CC6, etc rather than the modern terminology of CC - number of units - color letter (ie C,M,Y,R,G,B). They don't list any filters named MC in 1946.

Magenta CC filters are pretty close to the harder grades of variable contrast paper filtering, but Kodak never called variable contrast paper "MC" to my knowledge. It's certainly not "grade 1" which would usually be a yellow filter.

I don't think this would be particularly useful as a taking-lens filter unless you need to photograph in very greenish light. If you wish to boost contrast in B&W photography, a yellow, orange, or red filter (or sometimes green) is useful.


AgX

Member
Joined
Apr 5, 2007
Messages
29,757
Location
Germany
Shooter
Multi Format
I don't think this would be particularly useful as a taking-lens filter unless you need to photograph in very greenish light. If you wish to boost contrast in B&W photography, a yellow, orange, or red filter (or sometimes green) is useful.

I all depends on the colours you want to manipulate (either darken or lighten). And in this context the omission of Magenta from the classic range does not make sense to me, unless one looks at "typical" subjects and situations and the resulting market request.


It looks like a magenta color compensating filter, a fairly strong one, ...

So, if not for the b&w market, was there a market in the colour market for glass or glass-lamited strong CC filter? As said I know these magenta ones only being promoted for effect.


randyB

Member
Joined
Sep 7, 2005
Messages
473
Location
SE Mid-Tennessee, USA
Shooter
Multi Format
I cannot find any reference to a MC-1 filter in the Kodak booklet "Kodak filters for scientific and technical uses" #B-3. Being that it is a series V (5) size and with the font and style of the engraving it may be from the 1940's/50's. Also being a series 5 makes me think it is for a camera lens with a small front diameter. I have serious doubts it is for contrast control with "mulit-contrast" paper since Polycontrast paper wasn't made in the 40's/50's. It is too strong of a tint to be a Color Compensating filter. I would venture to say that it might be a special use, one-off filter system for a very specific scientific/military/government/top secret? program. Being a strong magenta color which is minus green which darkens green things on B&W film, so what could it be used for? Something to think about. RB

OP
OP
Howl23

Howl23

Subscriber
Joined
Sep 2, 2022
Messages
28
Location
Houston, Texas
Shooter
Multi Format
After doing another round of search on Google, I found an article discussing how magenta filters are used in microscopy and even photo micrography to help compensate for the intense tungsten halogen lightbulbs used. That may have been the purpose for this filter, if we assume a scientific route.


AgX

Member
Joined
Apr 5, 2007
Messages
29,757
Location
Germany
Shooter
Multi Format
What benefit should a magenta-filter yield at "intense tungsten halogen lightbulbs" ?


BrianShaw

Member
Joined
Nov 30, 2005
Messages
13,002
Location
Here or there.
Shooter
Multi Format
I would venture to say that it might be a special use, one-off filter system for a very specific scientific/military/government/top secret? program. Being a strong magenta color which is minus green which darkens green things on B&W film, so what could it be used for? Something to think about. RB

Not likely to be one off as I have at yeast one of them also. Maybe more… in different sizes. Baffled me to the point of throwing it into a junk box!
