Anyone know anything about this Mamiya RB67 bulk film loader and motor drive?

Discussion in 'Medium Format Cameras and Accessories' started by mitchamtuell, Mar 1, 2018.

  1. mitchamtuell

    mitchamtuell Member

    Messages:
    24
    Joined:
    Feb 28, 2018
    Location:
    Georgia, USA
    Shooter:
    Multi Format
    I recently bought a Mamiya RB67 Pro-S for cheap. It was in a heavy trunk-like case and came with the body (needs a bit of work), a 127mm lens (needs mold cleaning), a waist level viewfinder (partially disassembled, but everything is there), and a 45 degree viewfinder (great condition!).

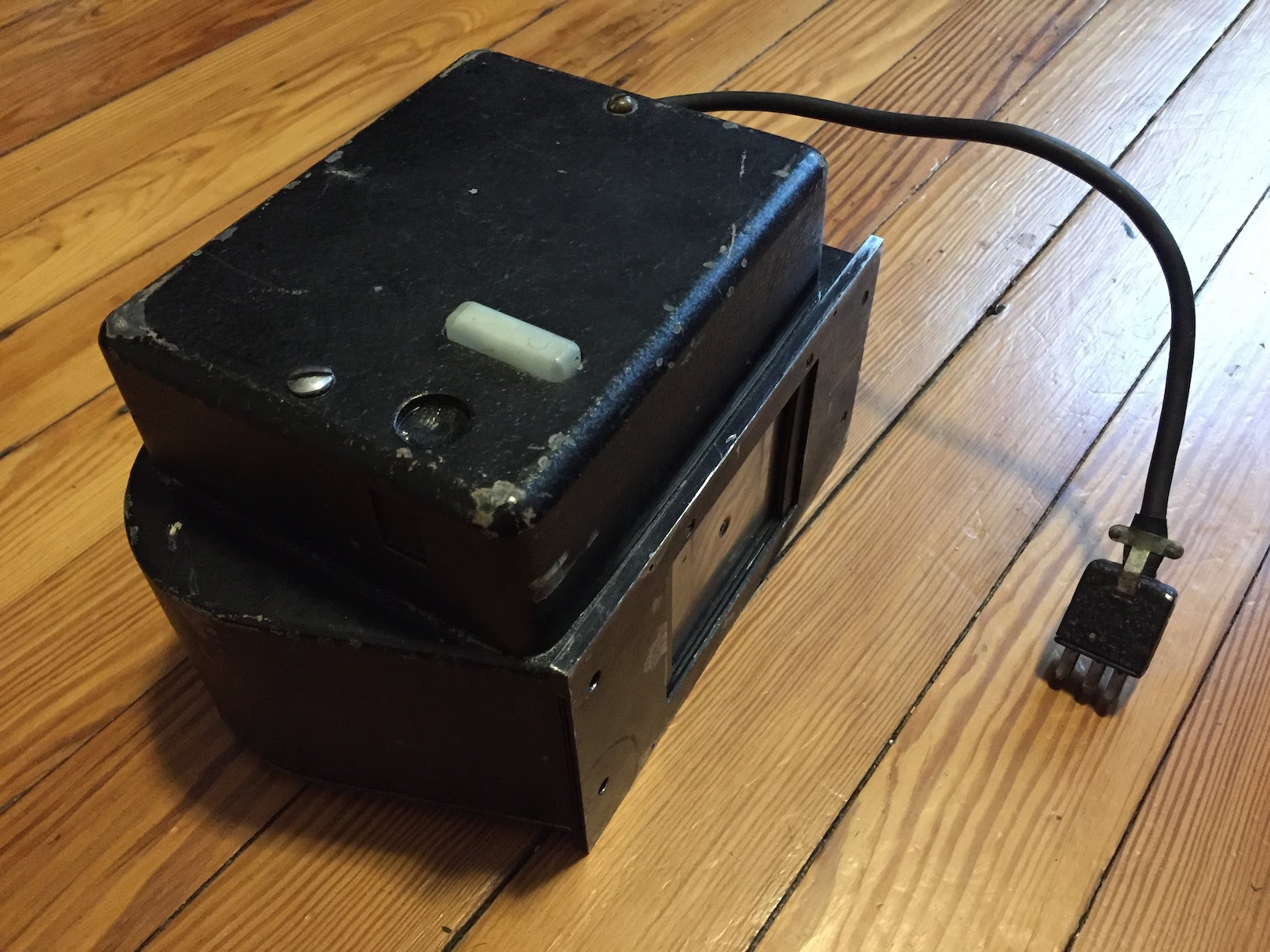

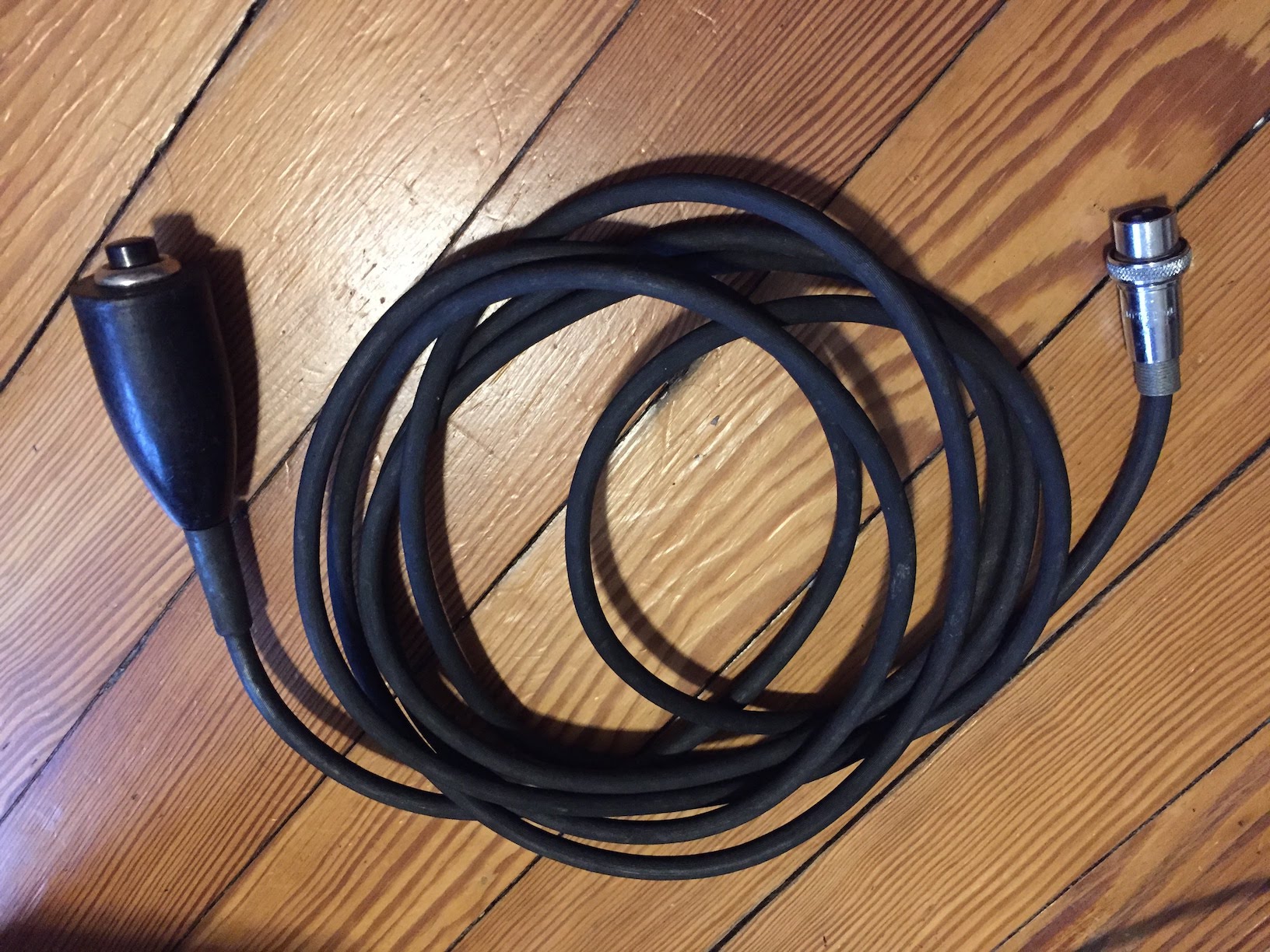

    Additionally, there were several large and heavy black metal objects that at first I didn't realize what they were, but after inspection I determined that they were a system for bulk loading film into the camera and a motor drive and electronic cable release. It looks like the motor drive piece attaches to the outside of the camera and actually presses the cocking lever and the shutter release mechanically with moving arms. I have no idea if any of it works because there is no power cable. I can't even figure out how to put it on the camera...

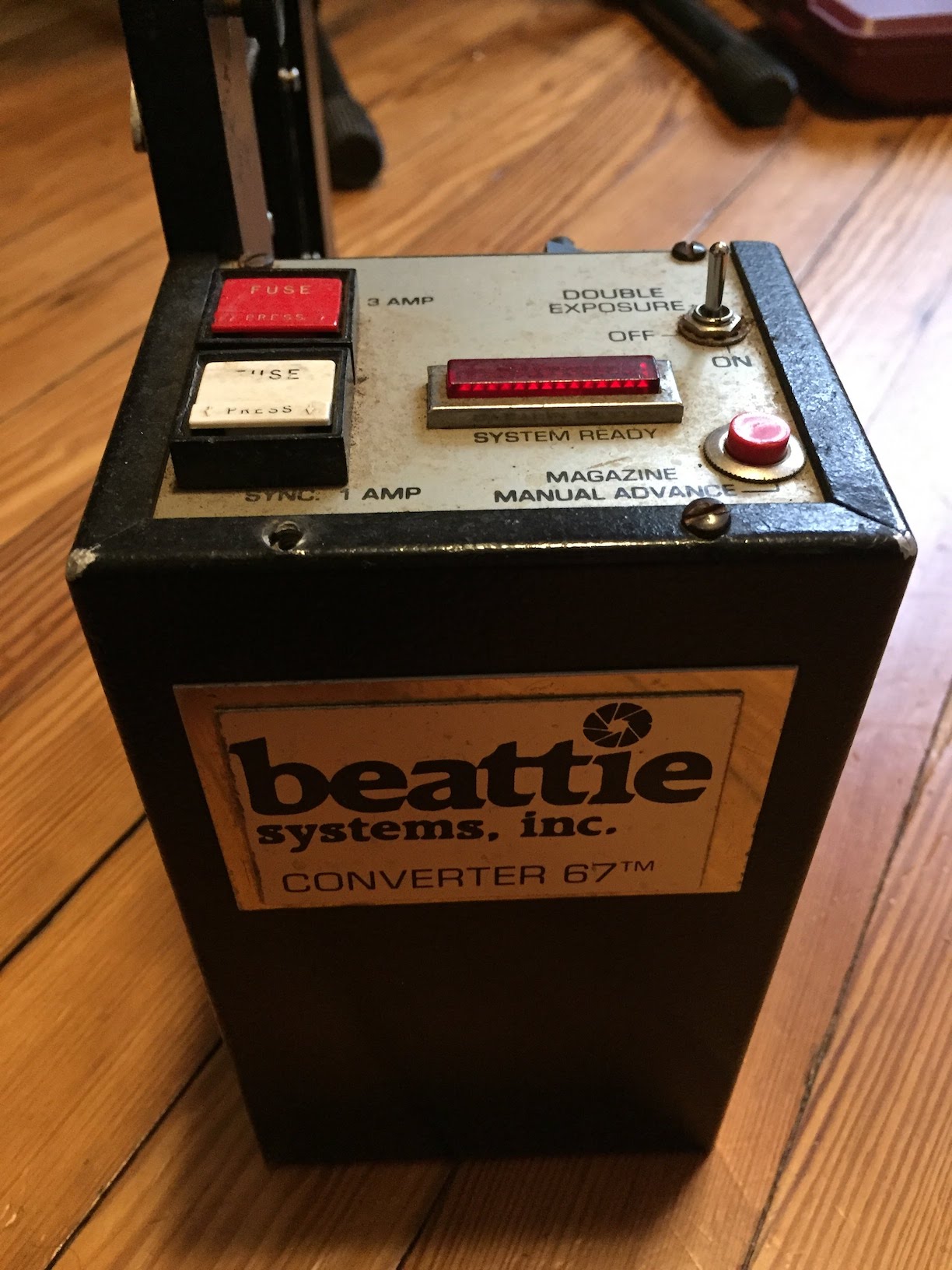

    It says it's a Beattie Converter 67 Type 67-001.

    Here are some photos of the set:
    IMG_3777.jpg IMG_3778.jpg IMG_3779.jpg IMG_3781.jpg IMG_3782.jpg IMG_3783.jpg IMG_3784.jpg

    Does anyone know anything about this setup? I called KEH and they said they used to buy them like 20 years ago but don't anymore. Is it still usable or valuable to anyone these days? The camera didn't come with a regular 120 or 220 back, so best case for me would be to be able to trade this rig for a regular back, but I'm not getting my hopes up that it's even that valuable.

    Thanks!

  2. nakol

    nakol Member
    Ads Enabled

    Messages:
    3
    Joined:
    Feb 25, 2018
    Location:
    North Carolina
    Shooter:
    Medium Format
    I don't know for sure, but it looks like a 70mm film back.

  3. cramej

    cramej Subscriber
    Ads Enabled

    Messages:
    390
    Joined:
    Dec 29, 2009
    Shooter:
    Multi Format
    Probably a bulk system used for things like school portraits.

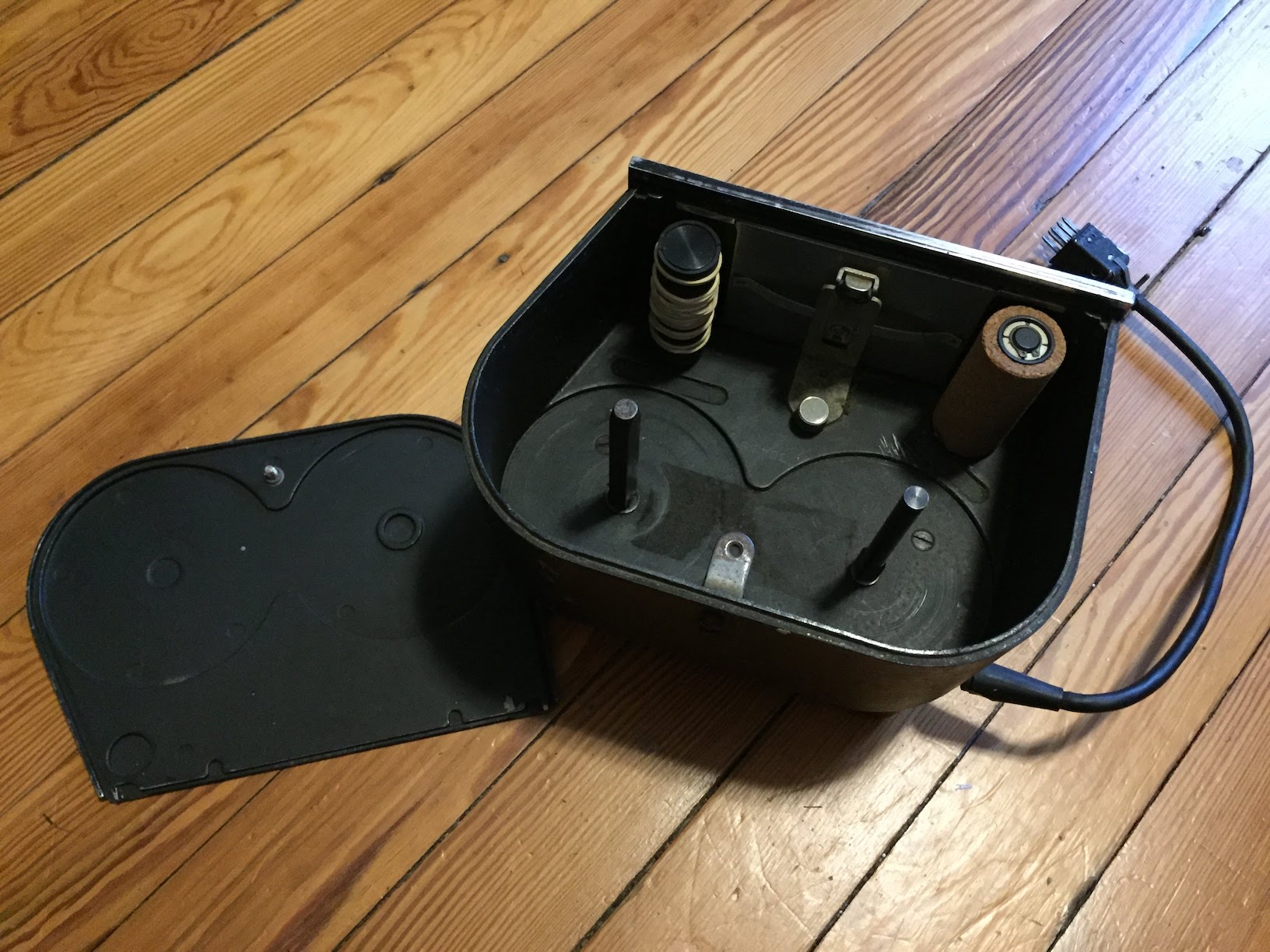

    In the third photo, the 4 pins attach the adapter plate to the camera body. You would remove the film back adapter from the camera with the lever on the bottom(i think?) of the camera body and put this in its place. The film magazine would slide in from the side on the other side of the motorized adapter.

  4. OP
    OP
    mitchamtuell

    mitchamtuell Member

    Messages:
    24
    Joined:
    Feb 28, 2018
    Location:
    Georgia, USA
    Shooter:
    Multi Format
    The kind used for unperforated 70mm cinematography film? Is that useful today?

    Yeah that was how I imagined it. A bored guy taking 1000 identical portraits in a day. I guess your thumb would get tired of cocking the camera after all of that - with this all you have to do is press a button!

  5. nakol

    nakol Member
    Ads Enabled

    Messages:
    3
    Joined:
    Feb 25, 2018
    Location:
    North Carolina
    Shooter:
    Medium Format
  6. wjlapier

    wjlapier Subscriber
    Ads Enabled

    Messages:
    229
    Joined:
    Aug 19, 2006
    Location:
    USA
    Shooter:
    Multi Format
  7. voceumana

    voceumana Member

    Messages:
    401
    Joined:
    Aug 4, 2004
    Location:
    USA (Utah)
    Shooter:
    Multi Format
    I think that there are no longer any 70mm film stocks available for still photography. About 15 years ago I looked into 70mm and only found a couple of films still available back then.

  8. AgX

    AgX Member

    Messages:
    18,217
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format

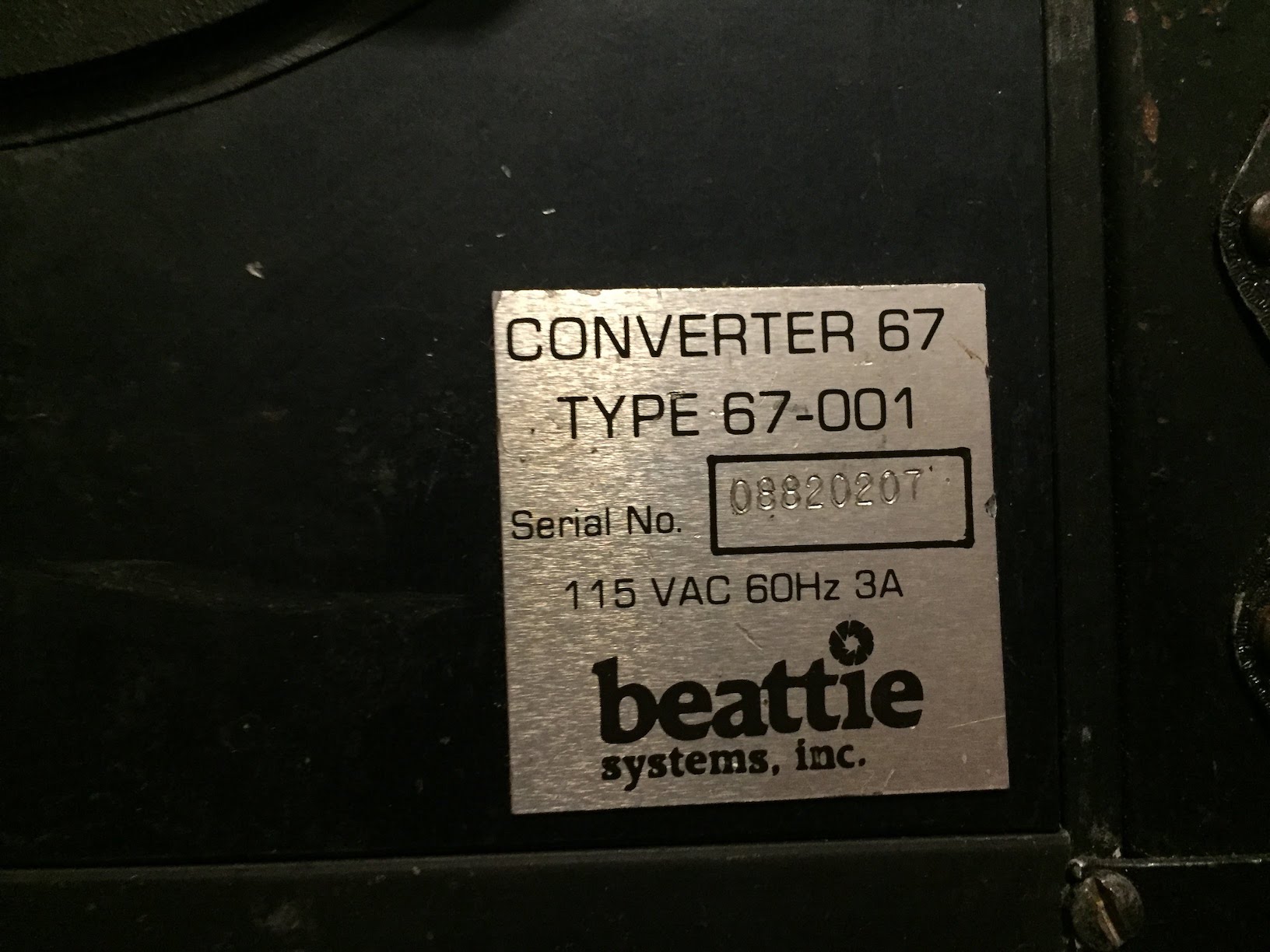

    115 V , 3A

    What is this thing doing ??
    With this power consumption you could iron the film...

  9. wjlapier

    wjlapier Subscriber
    Ads Enabled

    Messages:
    229
    Joined:
    Aug 19, 2006
    Location:
    USA
    Shooter:
    Multi Format
    The thread over on RFF is long but informative.

    https://www.macodirect.de/en/film/i...ed-400s-70mm-x-30.5m-double-perforation?c=614

    Took about 2 days to get here--PNW.

    This is fresh film. Apparently you can get some from Ilford but you have to pre-order and it cost more.

    [​IMG]

    [​IMG]

    Above film shot in a RB67 with 90mm KL.

  10. Mainecoonmaniac

    Mainecoonmaniac Subscriber
    Ads Enabled

    Messages:
    5,305
    Joined:
    Dec 10, 2009
    Shooter:
    Multi Format
    I think the bulk 120 film back is for volume portrait shooters like high school portraits and companies like Life Touch used them.
    http://lifetouch.com/

  11. Dennis-B

    Dennis-B Subscriber
    Ads Enabled

    Messages:
    165
    Joined:
    Jan 18, 2018
    Location:
    Southeast Michigan
    Shooter:
    35mm
    Just a guess, but cocking the shutter, and advancing the film takes a bit of juice just to get things moving from a dead start.

  12. AgX

    AgX Member

    Messages:
    18,217
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    There is no sprocked wheel.

    Torque seems only built up by the left, square core shaft.

    Last edited: Mar 2, 2018
  13. OP
    OP
    mitchamtuell

    mitchamtuell Member

    Messages:
    24
    Joined:
    Feb 28, 2018
    Location:
    Georgia, USA
    Shooter:
    Multi Format
    Thanks for the information everyone. It's cool to hear that 70mm still film is still out there, but to be honest I'm not really interested in getting into it. I'm hardly into plain old medium format yet. I don't have a ton of space or money to store the stuff, so I'd love to get rid of it. Even if I got into 70mm stuff I think this whole electric rig is overkill and I would just get a manual wind one.

    My question is: is it valuable to anyone? Would anyone pay for it? If it's useless I might just throw it away, as sacrilegious as that feels. Like I said, best case scenario would be to be able to trade it for a 120 or 220 back.

  14. AgX

    AgX Member

    Messages:
    18,217
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    How is the shutter cocked by this back? I am lost on this.

  15. OP
    OP
    mitchamtuell

    mitchamtuell Member

    Messages:
    24
    Joined:
    Feb 28, 2018
    Location:
    Georgia, USA
    Shooter:
    Multi Format

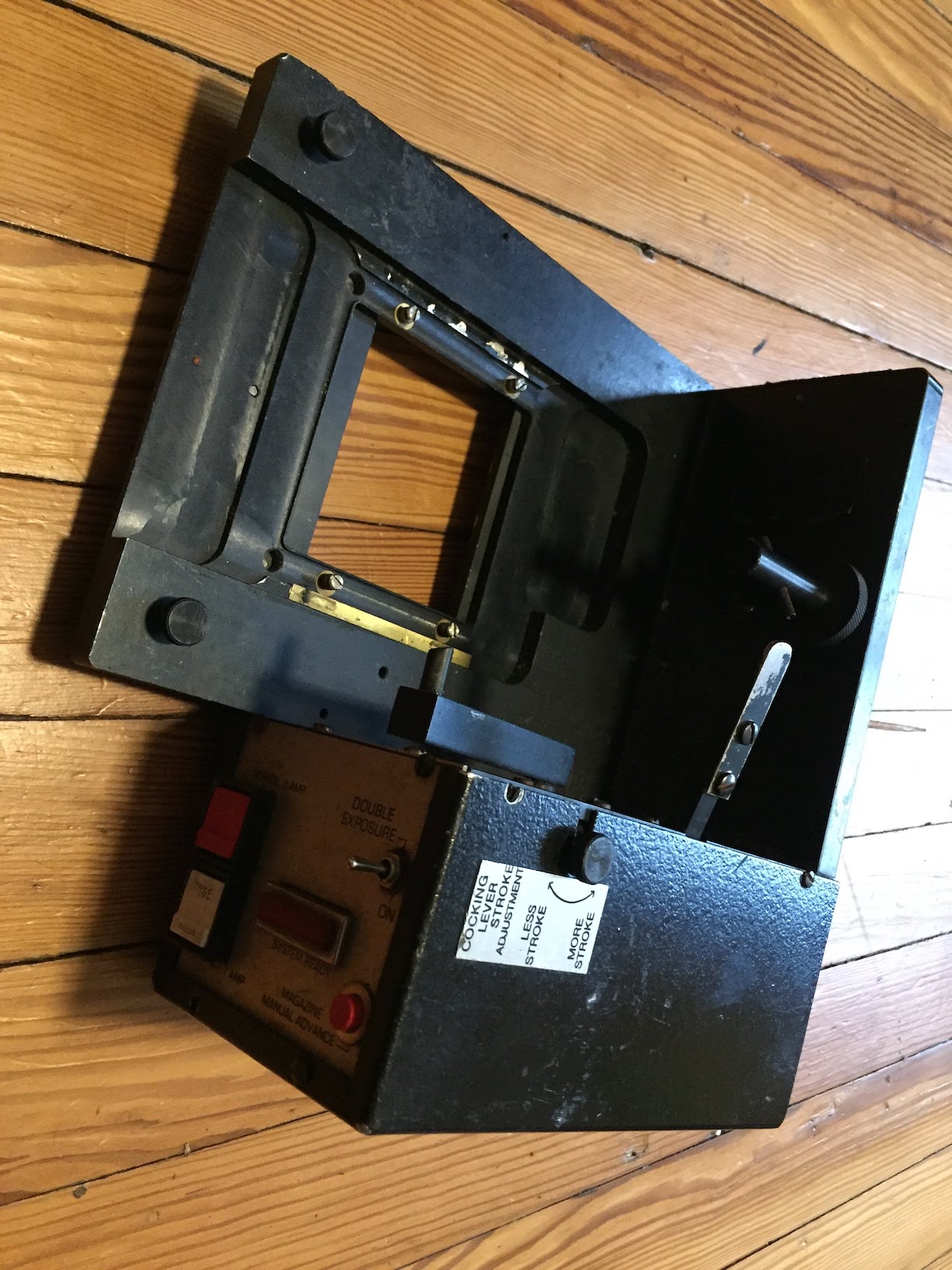

    So I think how it works is in the third photo you can see a black lever arm coming out of the side by the switches, and that's what swings over and cocks the shutter. Then the silver piece sticking out just below it presses the shutter release button.

  16. AgX

    AgX Member

    Messages:
    18,217
    Joined:
    Apr 5, 2007
    Location:
    Germany
    Shooter:
    Multi Format
    I see. So there are TWO units:
    One consisting of the magazine and its drive, the other of the adapter, control-unit and cocking drive.
