Anyone installed the Graflok back for RB Graflex kit by Bert Saunders?

Discussion in 'Large Format Cameras and Accessories' started by Captain Kodak, Jun 29, 2013.

Thread Tools

Thread Tools

  1. Jun 29, 2013 #1
    Captain Kodak

    Captain Kodak Member

    Messages:
    2
    Joined:
    Jun 29, 2013
    Shooter:
    4x5 Format
    Hi everyone. Just joined out of desperation as I have a small problem...

    About 5 years ago I purchased a few custom Series D lensboards and a Graflok conversion kit from Bert Saunders, a name familiar to all of us who use RB Graflexes. Well, I made immediate use of the lenboards, but somehow never got around to completing the back conversion. Yesterday I stumbled across the conversion plate and a spare Graflok back and said 'what the heck...'


    Problem is that I can't find the fasteners he sent me and seeing how my emails came back with an invalid address and his phone seems to be disconnected, I'm afraid he may no longer be is business.

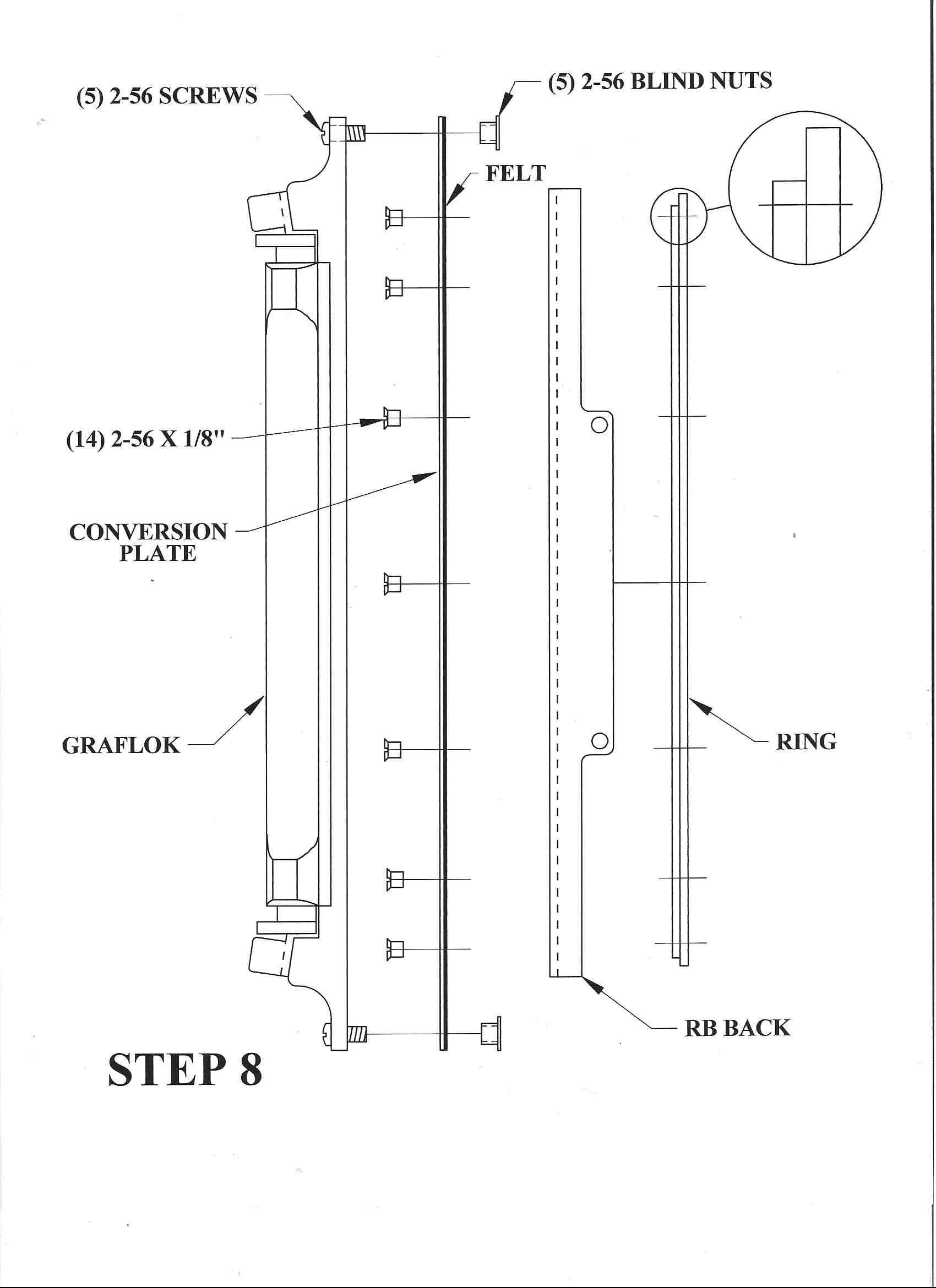

    So I am not sure how to finish this project. This is the schematic he sent me:
    STEP 8.jpg

    I don't know how long the set of 5x 2-56 screws and blind nuts are supposed to be. I can see the other set of 14 are 1/8" - So I will ask anyone who has installed one of his kits, if they can give me the specifications of the 2-56 screws and nuts, I would really appreciate it.

  2. Jun 29, 2013 #2
    k_jupiter

    k_jupiter Member

    Messages:
    2,576
    Joined:
    Feb 3, 2004
    Location:
    san jose, ca
    Shooter:
    Multi Format
  3. Jun 29, 2013 #3
    shutterfinger

    shutterfinger Subscriber

    Messages:
    2,018
    Joined:
    Feb 25, 2013
    Location:
    San Francisco Peninsul
    Shooter:
    4x5 Format
    "I don't know how long the set of 5x 2-56 screws and blind nuts are supposed to be."
    Sit your Graflok back against the adapter plate and measure from the base of the screw hole (where the bottom of the screw head mates with the screw hole) to the bottom of the blind nut when installed on the adapter plate. It will probably be 3/8 to 1/2 inch.

    ----
    If Bert Saunders phone and email are no longer active then he is in an assisted living facility or no longer with us.
