Sharktooth

Member
Joined
Apr 4, 2022
Messages
101
Location
Canada
Shooter
Medium Format

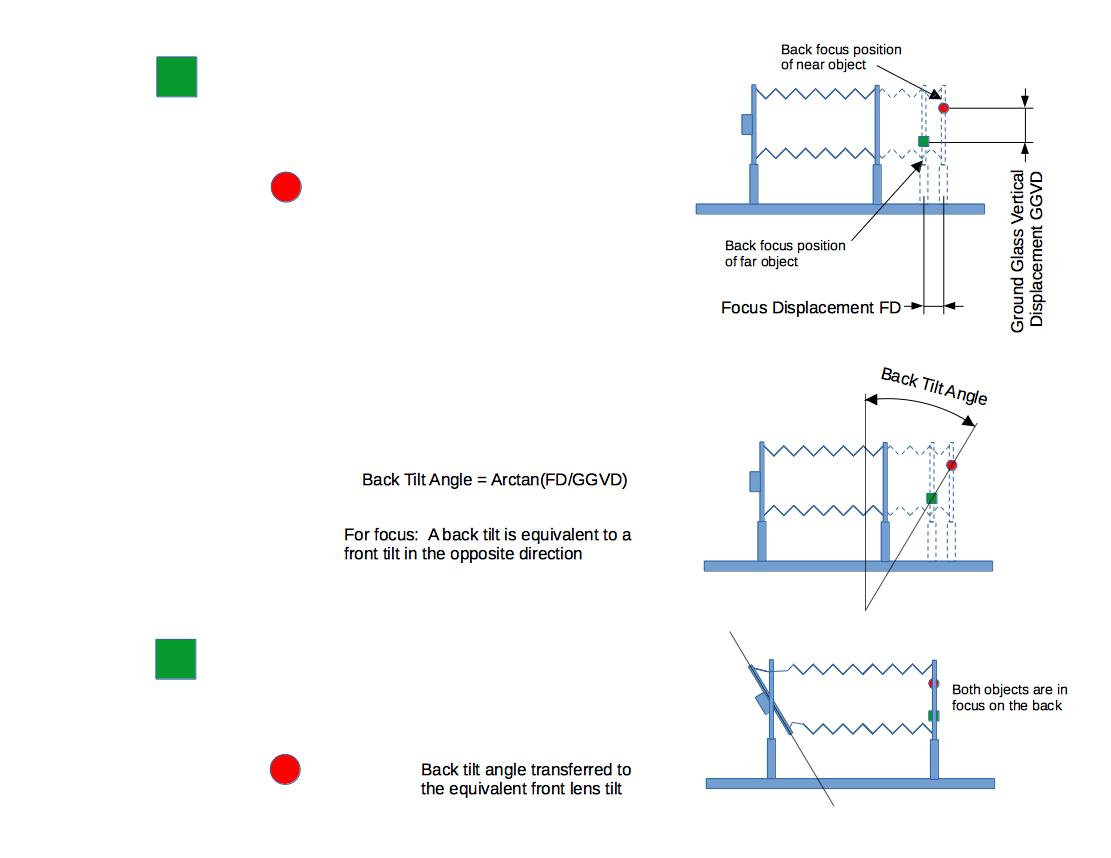

EasyBake Scheimpflug 1.jpg


Donald Qualls

Subscriber
Joined
Jan 19, 2005
Messages
10,480
Location
North Carolina
Shooter
Multi Format
This gets the same result as the geometric method and looks easier, but I generally set up tilts and swings by eye -- "bottom of scene is out of focus, need to tilt the front foward (and, since getting a centered-movements camera, not need to tilt-refocus-repeat).


otto.f

Subscriber
Joined
Aug 18, 2017
Messages
243
Location
Netherlands
Shooter
Multi Format
This gets the same result as the geometric method and looks easier, but I generally set up tilts and swings by eye -- "bottom of scene is out of focus, need to tilt the front foward (and, since getting a centered-movements camera, not need to tilt-refocus-repeat).
👍🏼

OP
OP

Sharktooth

Member
Joined
Apr 4, 2022
Messages
101
Location
Canada
Shooter
Medium Format
It's just an alternative technique. It might be useful in some situations, and with some cameras. I haven't seen this method described anywhere else.


brbo

Member
Joined
Dec 28, 2011
Messages
814
Location
EU
Shooter
Multi Format
It's just an alternative technique. It might be useful in some situations, and with some cameras. I haven't seen this method described anywhere else.

I might be missing something... but what do you mean?! That you haven't yet heard that back tilt will change the plane of focus?


abruzzi

Member
Joined
Mar 10, 2018
Messages
2,047
Location
New Mexico, USA
Shooter
Large Format
I might be missing something... but what do you mean?! That you haven't yet heard that back tilt will change the plane of focus?

thats well known as is the process of determining angle on the rear and moving the angle adjustment to the front. I think whats clever here is using two measurements--the distinace of the rear displacement for focus along with the distance between the objects on the ground glass, and from that determining the angle. Its not well explained in the graphic but i think that what hes doing.

EDIT: also to say that it requires that you have standards where swing/tilt are marked in degrees.


Donald Qualls

Subscriber
Joined
Jan 19, 2005
Messages
10,480
Location
North Carolina
Shooter
Multi Format
it requires that you have standards where swing/tilt are marked in degrees.

Or else two standards that are the same height, so you don't have to mess with "similar triangles" and proportions to get the right offset on the front.

Much easier, IMO, to do the front tilt by eye on the ground glass.


brbo

Member
Joined
Dec 28, 2011
Messages
814
Location
EU
Shooter
Multi Format
I think whats clever here is using two measurements--the distinace of the rear displacement for focus along with the distance between the objects on the ground glass, and from that determining the angle.

Thanks! I did need that explanation.

OP
OP

Sharktooth

Member
Joined
Apr 4, 2022
Messages
101
Location
Canada
Shooter
Medium Format
Yes, it's the math to calculate the tilt angle (or swing angle). The unique feature is that you don't need to actually tilt or swing anything to determine the angle.

It's not meant to replace the traditional methods. It's just an alternative approach that may be useful in some situations. As abruzzi noted, you will need some type of tilt angle scale on the front standard. Most of the wooden field cameras, and metal technical cameras. don't have tilt scales, so they wouldn't be useful for this technique.

It's a fun novelty for the mathematically minded. I go into more detail in this link over at the Large Format Photography Forum. Just be forewarned that it's very "wordy" Easy-Bake Scheimpflug

Last edited:

tih

Subscriber
Joined
Sep 12, 2006
Messages
173
Location
Norway
Shooter
Multi Format
This is closely related to the canonical (and documented) way of finding the correct front tilt with Sinar P cameras. They have angle scales on the standards, and the standards tilt around axes that are offset from center and marked on the ground glass. The idea is that you first focus on something close to the tilt axis, and then tilt the rear standard (around that line) until you get the focus plane you need. Read the angle, zero the rear tilt, and tilt the front standard the other way to the same angle. If you need a combination of tilt and swing, you start by finding focus on something at or near the intersection of the tilt and swing axis lines on the ground glass, as that point will be unaffected by either movement.


abruzzi

Member
Joined
Mar 10, 2018
Messages
2,047
Location
New Mexico, USA
Shooter
Large Format
Yes, it's the math to calculate the tilt angle (or swing angle).

trig to the rescue!

EDIT: I'll add that what I like about this it it lines up with how I've long visualized lenses and cameras--specifically that a lens creates an upside-down miniature version of what is in front of it. and the key to focus is that to focus on an object or objects the film/sensor has to intersect those objects.

OP
OP

Sharktooth

Member
Joined
Apr 4, 2022
Messages
101
Location
Canada
Shooter
Medium Format
trig to the rescue!

EDIT: I'll add that what I like about this it it lines up with how I've long visualized lenses and cameras--specifically that a lens creates an upside-down miniature version of what is in front of it. and the key to focus is that to focus on an object or objects the film/sensor has to intersect those objects.

Be careful with that "t" word, abruzzi! It causes many people to run away in terror.

I find it quite beautiful, and that's what attracts me to this approach. It's the magic that was given to use by ancient mathematicians a few millennia ago, and is fundamental to the modern world we live in today. 🙂
