A3 Size Digital Negative and How many MB or Mp image we can inject maximum

Valencia

A
Valencia

  • 0
  • 0
  • 40
Tied to the dock

D
Tied to the dock

  • 4
  • 0
  • 86

Recent Classifieds

Forum statistics

Threads
203,091
Messages
2,849,709
Members
101,656
Latest member
9000man
Recent bookmarks
1

Mustafa Umut Sarac

Member
Allowing Ads
Joined
Oct 29, 2006
Messages
4,959
Location
İstanbul
Format
35mm
My friend is telling me how new sony cameras are excellent and talk about 40-60 megapixel images they can capture. I want to ask , with todays epson technology and QTR software , how many megapixels or megabytes we can inject in to A3 size digital negative maximum ? What happens remaining data ?

umut

Multiply the inches of the A3 size times the dots per inch (dpi) of the printing. Expect some percentage of loss as pixels are converted into dots.

For example, 300 dpi at 16 x 12 inches would be 4800 * 3600 which is about 15 megapixels. If you factored in 30-40% losses in the conversion, you would want to start with about 25 megapixels in your source image.

At 600 dpi, you'd already be at the 60 megapixels of a high end camera, before you factor in the losses. You don't need 600 dpi for contact printing. Unless you plan on looking at the result with a loupe.

What do you need? Depends on what you are doing. Most photos do not need 60 megapixels.

Multiply the inches of the A3 size times the dots per inch (dpi) of the printing. Expect some percentage of loss as pixels are converted into dots.

For example, 300 dpi at 16 x 12 inches would be 4800 * 3600 which is about 15 megapixels. If you factored in 30-40% losses in the conversion, you would want to start with about 25 megapixels in your source image.

At 600 dpi, you'd already be at the 60 megapixels of a high end camera, before you factor in the losses. You don't need 600 dpi for contact printing. Unless you plan on looking at the result with a loupe.

What do you need? Depends on what you are doing. Most photos do not need 60 megapixels.

Interesting , I would not think an contact print can take 60 megapixels.
And last question , what is the maximum dpi can a epson printer print ?

5760x1440 dpi chat gpt says

but chat gpt says this is marketing , real one 1200x1200 dpi

Last edited:
Interesting , I would not think an contact print can take 60 megapixels.
And last question , what is the maximum dpi can a epson printer print ?

5760x1440 dpi chat gpt says

but chat gpt says this is marketing , real one 1200x1200 dpi

It is somewhat difficult to directly equate pixel count in an image (PPI) vs. INK DOT density (DPI). One pixel might be 0.005" in a print at 200 pixels per inch, and that single pixel might be comprised by 24 dots of ink across the paper (assuming 4800 dpi from the printer)

AI summary of the topic...
"DPI (Dots Per Inch) measures physical ink dots on paper for print quality, while PPI (Pixels Per Inch) measures digital pixels in an image file or screen; a single image pixel (like green or dark orange) can require multiple ink dots (DPI) to create the color, meaning high DPI gives more detail by packing more ink dots where pixels are just single points of light on a screen, making DPI about print detail and PPI about digital resolution. "​

Mustafa, you don't need a maximum, you only need what your eyes can see. That is around 300 (and less if it will be viewed from farther away).

5760x1440 dpi chat gpt says

but chat gpt says this is marketing , real one 1200x1200 dpi
It depends on the imaging system. See @wiltw's response above, which refers to color/multi-channel inkjet prints. There's a similar story to laser prints (which is relevant for you given your idea of using a copy center to print your negatives). A laser printer can really only print small dots of identical size, and these dots are 100% black - no in-between grey scales. This means that to image a pixel that will have shades or grey (or color), a laser printer will need to print a number of closely spaced dots that, together with the white space between them, create the required shade when viewed at a distance. Inkjet has a little more flexibility as most photo-oriented inkjet systems can to an extent vary dot size (although this is also quite limited).

When you see a resolution of 1200dpi, it's nearly always in reference to a laser printer. Resolutions like 1440dpi and multiples thereof are nearly always inkjet resolutions. There's no particular reason for this; it's a bit of a historical coincidence that things developed this way.

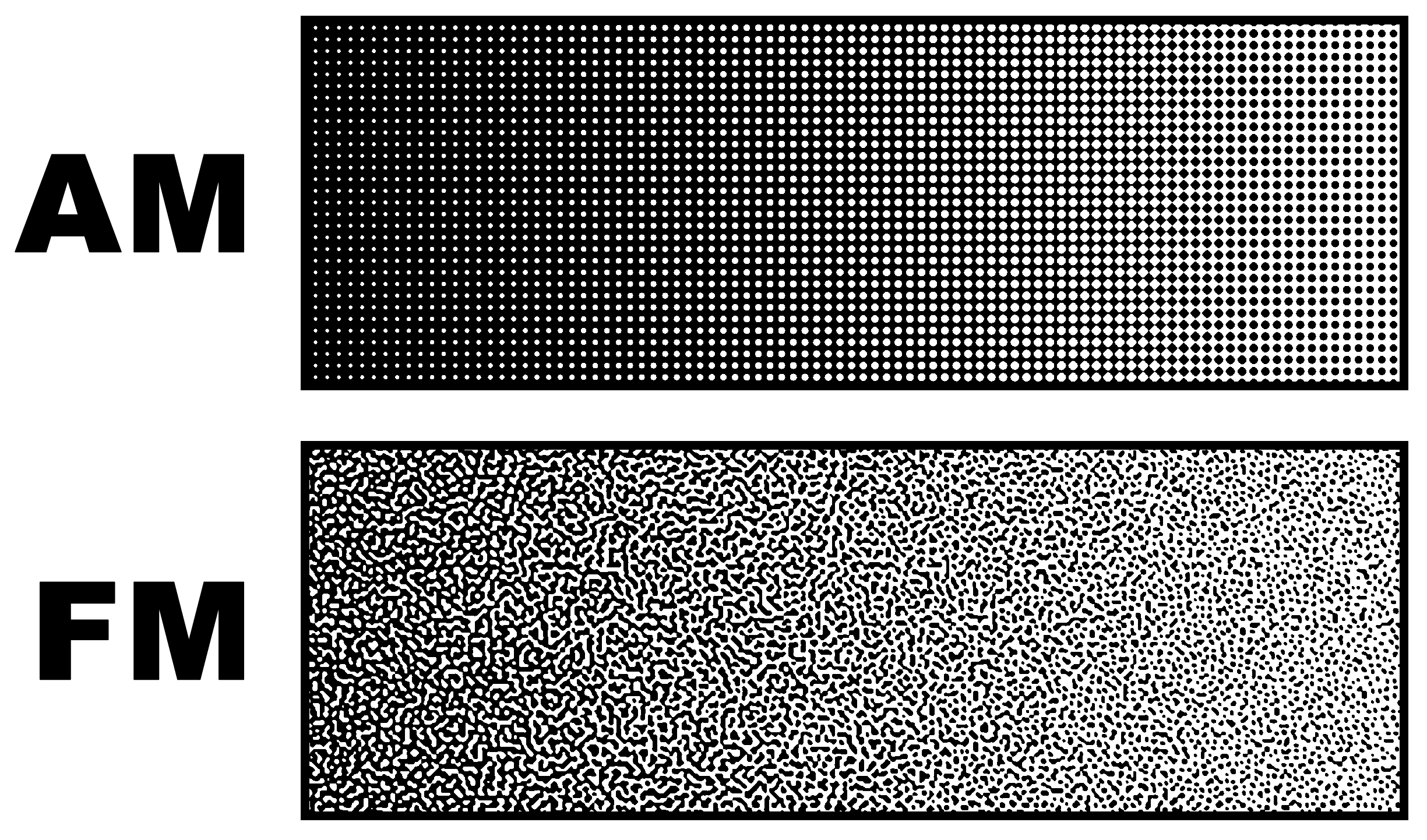

To understand the real resolution in terms of PPI from the 1200dpi laser printer, let's assume the printer needs to be able to create 256 shades (including white) by clustering small dots in a grid pattern. Since every dot is either white (unprinted) or black (printed), this means that an 16x16 (=256) grid is needed to create all required shades. This means that the effective ppi of the laser printer is actually 1200/16 = 75ppi. That's a pretty abysmal resolution, and in practice it isn't quite so bad since the grid approach I just described is only a very crude and simplistic way of arranging individual dots; it's what you get when you use a typical 1990s laser printer with AM (amplitude modulation) halftone screening (see example below; taken from here). So your typical HP LaserJet II from 1994 or so may indeed be limited to about 75ppi prints. However, printer manufacturers adopted FM screening (frequnecy modulation) which, very simplistically put, scatters dots in a quasi-random fashion instead of printing a neat little grid. The results is the little wormlike patterns you may have seen when looking at a laser print from up close. Inkjet printers also use FM screening; moreover, they rely on dots bleeding together a little as the ink fans outward into the paper a tiny bit, making them blend together a little (this is not possible with laser prints).


To cut a very long story short, it turns out that most of the desktop printing systems we generally use have an effective imaging resolution of around 300-360dpi - although a concrete number is impossible to give when FM screening is involved. However, resolving power is somewhere along these lines in a best-case scenario, although for inkjet digital negatives, you often end up at a little less than this. I frequently print cliche's for PCB manufacturing on my Epson 3880 inkjet printer and the smallest features it will reliably image are around 0.12-0.15mm or so, which means that the real resolution of the black ink channel used in that application is around 200-250dpi.

This means that in practice, when you output to print, it's usually sufficient to stick to the 300dpi that @loccdor mentions.

Consequently, an A3 sized full-page print (11.7x16.5") will print OK from a file that's 3510x4950px in size, or ca. 17 megapixels.

Does that mean you only need a 17 MP image? Not necessarily, since the actual resolving power of a digital camera is not necessarily equal to the pixel dimensions of its sensor. The simple summary of all that is that to get a really excellent 17MP image, you may have to start with an original digital camera capture that's larger - perhaps 20-30MP. However, this depends a lot on the taking conditions (think of motion blur etc.), the lens used etc.
On the other hand, if you consider the typical viewing distance of an A3 print, people will take a little distance to appreciate the image. This means that the human eye resolving power which may indeed be around 300dpi under optimal conditions (but alas - anyone over 40 probably doesn't qualify anymore to begin with!), but we won't usually be able to distinguish such small features. So in practice, we may often get away with a smaller file than the 17 MP mentioned above and still get a decent A3-sized prints. If you look at threads from the period 2005-2010 or so, when people were using digital cameras with 5-10 MP resolution, you'll notice that plenty of people say they've made excellent 16x20" prints from their (by today's standards) tiny digital files. How many pixels you need, depends a lot on the type of image, viewing distance, printing process etc.

There's no hard & fast answer.

In practice, I find that the limitations of digital negatives aren't so much in the digital file you start with. The real problems are things like banding, interference artifacts that turn up as lines or block-like patterns (esp. when using laser printers/copiers for making negatives), coarse transitions (posterization) in smooth gradients and an overall 'grainy' look as a result of the individual inkjet or laser dots showing up in the final print. Optimizing the quality of the final (kallitype, van dyke etc.) print has far more to do with optimizing the quality of the negative itself, which means controlling the printing process parameters, than with the digital image you start with.
