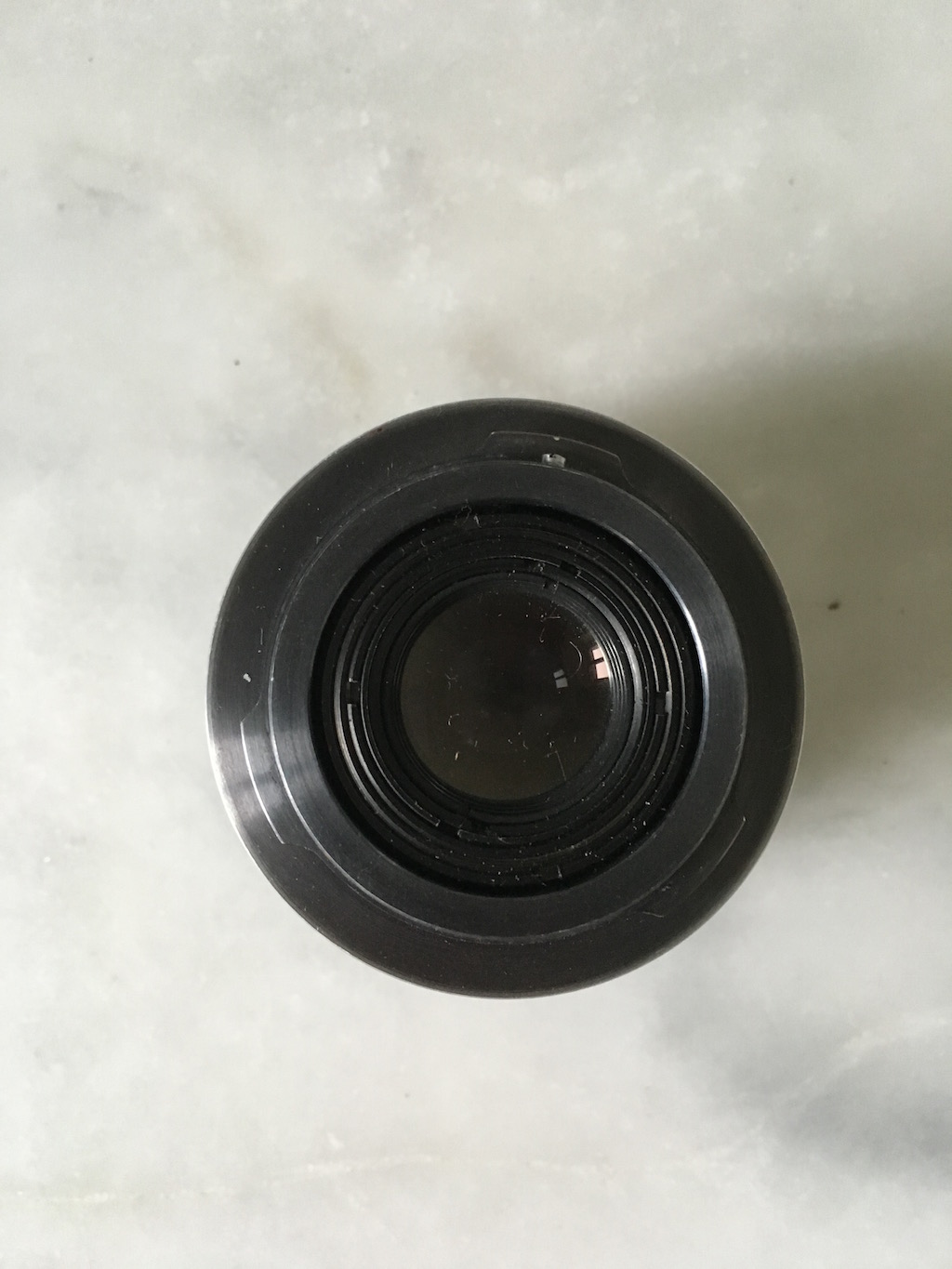

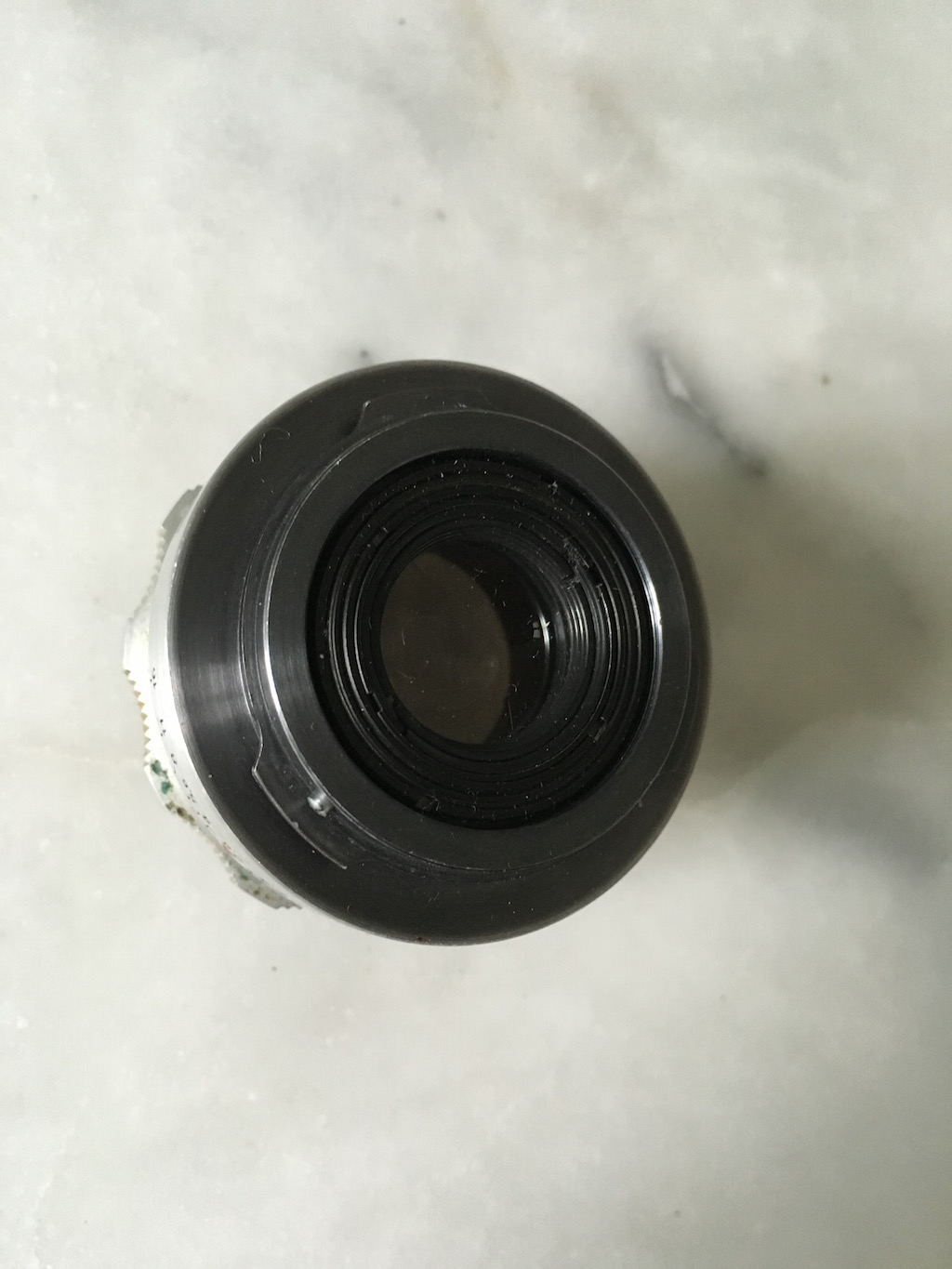

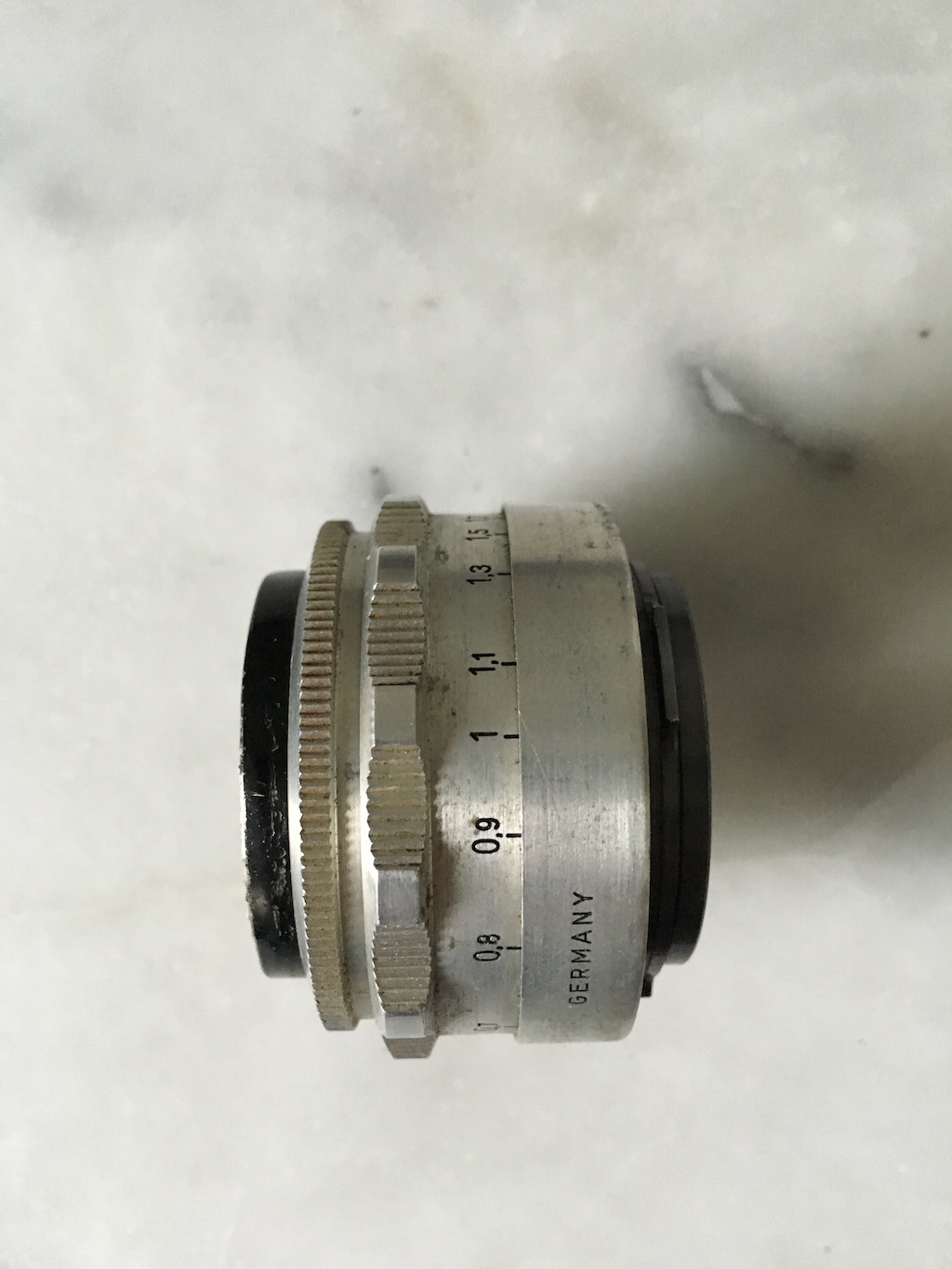

I have this Zeiss Tessar 50mm f/2.8 lying around (see attached pictures). However, I don't know what mount this is for. According to http://vintage-camera-lenses.com/carl-zeiss-jena-tessar-50mm-2-8/ this lens was produced with the following mounts:
  • M42 / Pentax mount
  • Exa / Exakta mount
  • Zeiss Ikon Bayonett Mount (BM mount)
  • Praktina mount
  • Altix-N mount
Looking at pictures of other lenses with those mounts, it doesn't seem to be any of these? (However, I'm not really familiar with most of these mounts, so I might be wrong). Thanks for helping me out!


Attachments

  • Photo 10-01-16 13 40 33.jpg
    Photo 10-01-16 13 40 33.jpg
    197.8 KB · Views: 200
  • Photo 10-01-16 13 40 42.jpg
    Photo 10-01-16 13 40 42.jpg
    195.7 KB · Views: 181
  • Photo 10-01-16 13 40 50.jpg
    Photo 10-01-16 13 40 50.jpg
    211.1 KB · Views: 236
  • Photo 10-01-16 13 41 03.jpg
    Photo 10-01-16 13 41 03.jpg
    192.1 KB · Views: 196
OP
OP
Joined
Oct 10, 2014
Messages
9
Format
Multi Format
Update: I think it's an Altix mount

I now have had another look around the internet, and, looking at http://www.ebay.de/itm/Carl-Zeiss-T...ix-Bajonett-/262186843437?hash=item3d0b8dbd2d it seems to me that this is an Altix mount (the trick seems to be googling for "altix mount" rather than "altix-n mount"...)

Can anyone confirm this?

Bonus question in case it is the Altix mount: Does anyone know an affordable adapter to any more common mount - doesn't really matter which one? I have seen there quite expensive adapters here http://www.altix-adapter.de/altix.html and there are some people doing conversions of such lenses, but I don't want to irreversible change the lens.


Aron

Member
Joined
Aug 27, 2009
Messages
256
Location
Hungary
Format
Multi Format
To me it seems to be the Praktina breech lock mount which is very similar to the Pentacon Six mount, only the diameter is different.


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
The Praktina breech lock ring cut-outs seem to be longer than those wings. (Though that could be done to ease use.)


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
As I said, "seems", and "maybe because of".
It can be hard to be precice on defining a mount just on the monitor, even if one would try to work with a caliper.

On the other hand: how many mounts are there that have a breech lock ring at the camera-side?
And that this lens needs such seems obvious. ("seems" again...)
