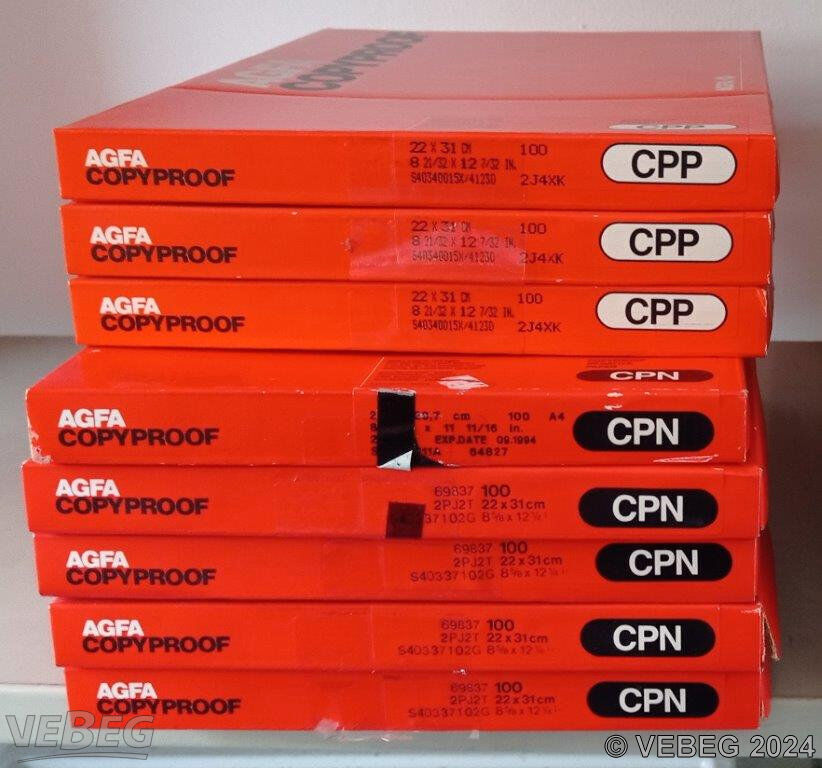

Hello everyone, I know this discussion material is not new. I reviewed a post from 2016 that didn't lead to anything new. That's why I need the community's help to use these papers that I received as a donation.

From what I've researched, this material is completely obsolete and not used anywhere, at least in my country. According to the information I've found on Google, it's material for PMT-type graphic work, using a large static camera that illuminates the CPN negative material and, together with the CPP, is processed in a machine called CP 380. The activator is named CP 286B, which is not a paper developer; it is basically Sodium Thiosulfate with additional chemicals that I have attached in the PDF. I have tried to do all this manually with poor results or almost no results. I wonder if there is another way to use the CPN and CPP material without using rollers and activator. I was thinking about using a pinhole camera, but I haven't found any information.

If you have any idea how to use this process, or if you have a CP 380 machine or the CP 286B activator, I ask for your help to reach the end of all this.


Attachments

  • 2415460.005b.jpg
    119.1 KB · Views: 43
  • s-l1600.jpg
    277.7 KB · Views: 35
  • NSN 6750-01-129-0855 Datasheet (AeroBase Group).pdf
    280.6 KB · Views: 36

MattKing

Moderator
Moderator
Joined
Apr 24, 2005
Messages
52,927
Location
Delta, BC Canada
Format
Medium Format
Thread moved to the general B&W Film, Paper & Chemistry sub-forum. Good luck in your quest.


foc

Subscriber
Joined
Jun 30, 2010
Messages
2,519
Location
Sligo, Ireland
Format
35mm
I wonder if there is another way to use the CPN and CPP material without using rollers and activator.

My understanding is that this system will only work with the rollers and activator. Both sheets must enter the activator bath and are then pressed together by the rollers and the image transfer occurs.

This system was used in the graphic arts and printing industry for making high contrast/lith images.

I used this system over 40 years ago so I hope I have remembered it correctly 🧐
