Tank compatibility for Jobo CPE2

[ac123]

Hi,
I recently acquired a Jobo CPE2 (non-plus) which I am hoping to use for processing chemicals for RA4 printing.
Unfortunately there is no tank so I need to acquire one. I'll be mainly printing 8x10 and so was looking at the Jobo 2830.
Would this be compatible/fit with the CPE2 motor system?
Thanks in advance!



[mshchem]

2830 will work fine. Do you have a lift?



[koraks]

I've run an 2800 on occasion on my CPE2. Works OK, but you need to to use the supporting rollers (the little black bar with the two white wheels on it) as otherwise the magnet won't hold this tank.

Also keep in mind you need the regular lid with the rubber cap and not the cogged one unless you have a lift, as @mshchem also hints at.



[mshchem]

I've run an 2800 on occasion on my CPE2. Works OK, but you need to to use the supporting rollers (the little black bar with the two white wheels on it) as otherwise the magnet won't hold this tank.

Also keep in mind you need the regular lid with the rubber cap and not the cogged one unless you have a lift, as @mshchem also hints at.

And a tank magnet.



[Don_ih]

otherwise the magnet won't hold this tank

Does that mean you use tanks on your Jobo without using support rollers?



[koraks]

Does that mean you use tanks on your Jobo without using support rollers?

No, certainly not! Sorry to be unclear; I meant to say that the support rollers are absolutely crucial in this setup.
And I don't use them at all at the moment. I've done it on occasion, in the past, but presently I wouldn't even know where my single remaining 2830 drum is.



[ac123]

And a tank magnet.

I've run an 2800 on occasion on my CPE2. Works OK, but you need to to use the supporting rollers (the little black bar with the two white wheels on it) as otherwise the magnet won't hold this tank.

Also keep in mind you need the regular lid with the rubber cap and not the cogged one unless you have a lift, as @mshchem also hints at.

Copy that, thanks - unfortunately no lift on this machine.

So I would need a rubber Inversion Lid like this one, that would theoretically be compatible with the 2830?

Would I also need to obtain a tank magnet? Is this something that is attached to the Jobo or the Tank?



[koraks]

So I would need a rubber Inversion Lid like this one

Yes, and the cap that goes with it. There are two caps for these Jobo tanks; one with the cogs, and one with a rim on which you can put the lid you linked to.

Usually it makes more sense to look for a drum with a magnet and the right type of cap for your use than to buy a drum and then hunt down the accessories. You generally end up paying a lot more that way.



[ac123]

Yes, and the cap that goes with it. There are two caps for these Jobo tanks; one with the cogs, and one with a rim on which you can put the lid you linked to.

Usually it makes more sense to look for a drum with a magnet and the right type of cap for your use than to buy a drum and then hunt down the accessories. You generally end up paying a lot more that way.

Thanks!

This here would be the lid and cap you're referring to?

That makes sense- I'll keep an eye out. Ideally I would be looking for a full tank setup that looks like this one ? (Except specifically larger than 10" so that I am able to process 8x10s)

Should I assume all jobo tanks/cap setups to have this magnet?



[mshchem]

Thanks!

This here would be the lid and cap you're referring to?

That makes sense- I'll keep an eye out. Ideally I would be looking for a full tank setup that looks like this one ? (Except specifically larger than 10" so that I am able to process 8x10s)

Should I assume all jobo tanks/cap setups to have this magnet?

The lid you've shown is for the smaller diameter 1500 series tank. I would suggest you get in touch with Catlabs. They may have a used 2830 tank and magnet. The tank needs the correct lid and a cup inside not the funnel.

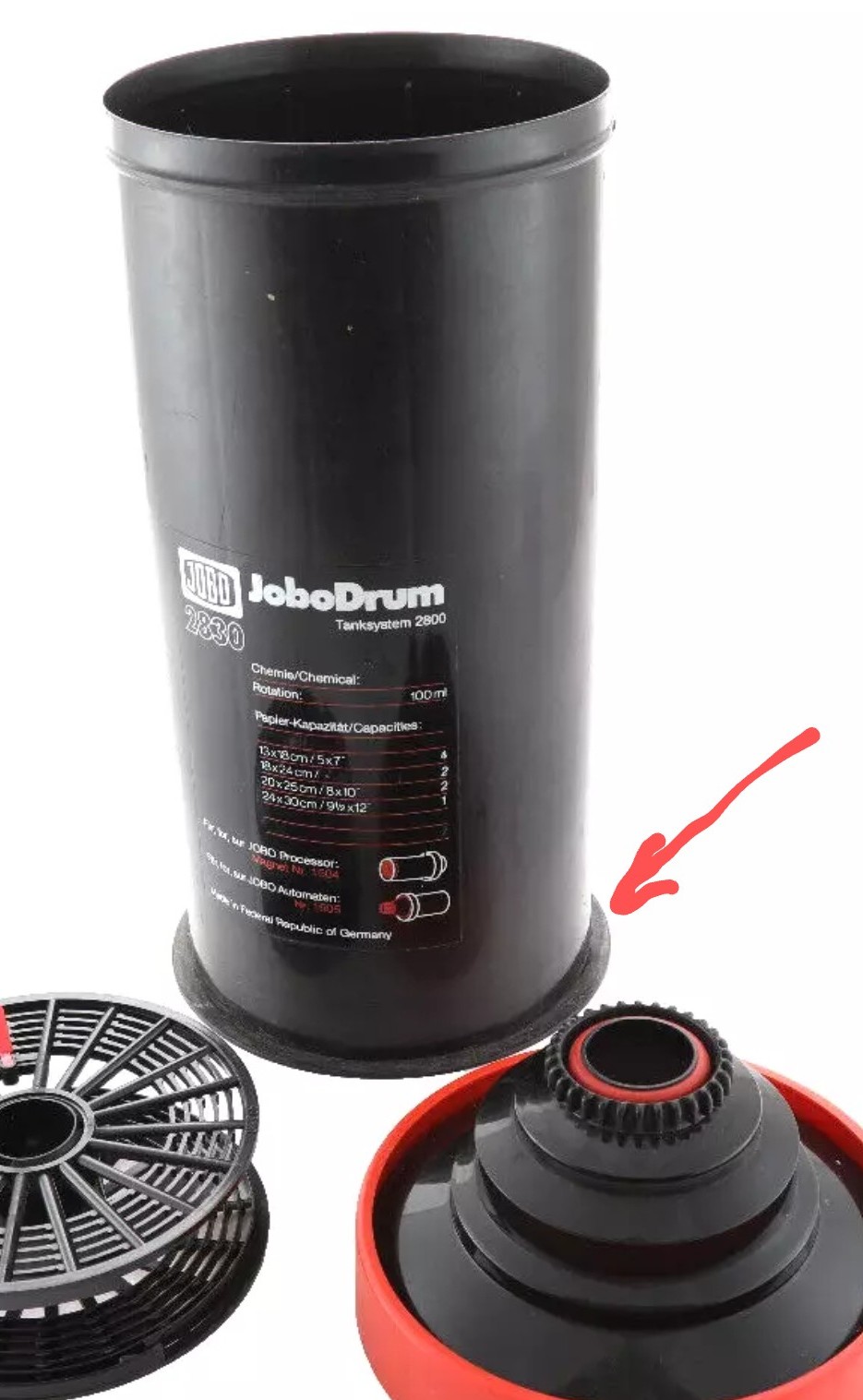

Here's a picture from Catlabs. Last I checked Jobo doesn't make print tanks.

USED Jobo 2830, 2840, AND 2850 Film/Print drum for sheets up to 16X20, 8.5x11 with cog lid

2830 USED: good working condition Generic photos - Labels vary, fill quantity data available online • for film or prints up to 8.5X11 • Inversion...

www.catlabs.info

Again you need ordinary cap with the inside cup.



[ac123]

The lid you've shown is for the smaller diameter 1500 series tank. I would suggest you get in touch with Catlabs. They may have a used 2830 tank and magnet. The tank needs the correct lid and a cup inside not the funnel.
Here's a picture from Catlabs. Last I checked Jobo doesn't make print tanks.

USED Jobo 2830, 2840, AND 2850 Film/Print drum for sheets up to 16X20, 8.5x11 with cog lid

2830 USED: good working condition Generic photos - Labels vary, fill quantity data available online • for film or prints up to 8.5X11 • Inversion...

www.catlabs.info

Again you need ordinary cap with the inside cup.

Thank you for this info!
Catlabs did have the tank/magnet I needed and was able to obtain from them.



[mshchem]

Thank you for this info!
Catlabs did have the tank/magnet I needed and was able to obtain from them.

Very good. Catlabs is a great source for parts and advice on Jobo.
This site is maintained by Catlabs

Welcome to Jobo-USA

Manufacturer of film processors and darkroom accessories

jobo-usa.com



[ac123]

Question for any Jobo bath users - is it OK to use this machine to warm the temperature of the water from room temp (around 70 deg F) to the 84 deg F that I usually print at?

I was under the assumption from something that I read online that you should only use this machine to raise the water temperature at max 3-4 deg F, and that anything more than that would damage it in the longterm.

However I was just reading the manual, and it seems to encourage using this machine to heat up from room temperature over the span of 1-2 hours? If so, this would save a lot of time as I could leave it filled with water overnight rather than having to dump it out and refill with new hot water before the start of every session.



[koraks]

you should only use this machine to raise the water temperature at max 3-4 deg F, and that anything more than that would damage it in the longterm.

I don't see how this would be harmful in any way.
I do know that Jobo manuals tend to warn against filling the machine with pre-warmed water. Supposedly because of the risk of people dumping boiling water into the machine and then mixing some cold into it to speed things up. Full disclosure: when I use my CPE2, I usually fill it partly with cold water from the tap and then dump some boiling water into it that I allow to mix with the cold. Guess what...works fine. Of course, "not recommended" and "no liability accepted".

this would save a lot of time as I could leave it filled with water overnight rather than having to dump it out and refill with new hot water before the start of every session.

Yes, sort of; the problem if you leave water in it for extended periods of time is that you tend to get bacterial and algal growth in there. It's kind of yuckie. It won't happen overnight though, so if you use the machine today and then use it again tomorrow, and then drain it, this should be perfectly fine.



[Don_ih]

I could leave it filled with water overnight

I noticed the room would get pretty steamy after the Jobo had been heating it's tub of water for a few hours. I don't think I'd want it maintaining temperature all night. Water above room temperature readily evaporates. Not as quickly as boiling water does but I bet you'd still need to add a few cups in the morning if you had it on overnight.



[ac123]

Yes, thinking I would turn the machine off overnight, and turn back on in the morning to heat the room temp water back up to working temp


This just eliminates having to dump/refill the tank directly every session since I don't have the Lift.



[grahamp]

The Jobo processors were designed to run at 38C if needed (for C-41). My CPE2+ is rated at 330 Watts for the heater (360 Watts overall), so you should be able to use an outlet timer to bring it up to temperature ahead of planned use. The risk with doing automation is that you can forget to turn it off, and it dries out with the heater on.



[koraks]

I bet you'd still need to add a few cups in the morning if you had it on overnight.

it dries out with the heater on.

It has a thermostat, so it'll keep the bath on whatever temperature you set it to. If you mistakenly leave it on, it'll mean you have a tub of let's say 38C water sitting around. How long it'll take before 5 gallons (or whatever the capacity of the tub is) will evaporate under normal room vapor pressure I wouldn't want to begin to calculate, but I am quite sure it'll take many days at the very least, and likely several weeks.

Things won't get out of hand as quickly as you guys fear. I've had my Jobo on during the (entire) day several times and for several hours pretty much routinely. It won't run dry overnight and not over the course of a couple of nights either. It's a tempered bath, not a steam generator.



[Don_ih]

Yes, and I've run mine for a full day and it made the room quite humid - and quite a bit warmer, also. Having a large open tub of water at 38 degrees do that to a room that's normally around 17. It's not a "fear". I'm suggesting it's not a great idea to needlessly humidify your darkroom to that extent.



[koraks]

I'm suggesting it's not a great idea to needlessly humidify your darkroom to that extent.

It's not a great idea to work extended periods of time in a room that has so little ventilation that running a single Jobo will effectively humidify it. Just your breath alone will raise RH more than a single Jobo, so if the Jobo is a problem, then the root cause of the problem is much more severe.

It's wasteful in power of course.



[Don_ih]

Yes, sir.



[Sirius Glass]

I've run an 2800 on occasion on my CPE2. Works OK, but you need to to use the supporting rollers (the little black bar with the two white wheels on it) as otherwise the magnet won't hold this tank.

Also keep in mind you need the regular lid with the rubber cap and not the cogged one unless you have a lift, as @mshchem also hints at.

The supporting rollers are a must. I use a cog to connect the drum, not the magnet. I use the lift, but the bar was broken off when I received it, so I left the tank by hand.



[halfaman]

Jobo 2000 series tanks had a base allowing to roll them manually on a flat surface like a table, so no processor or set of rolls are needed.
