For Sale Steinheil Orthostigmat 140mm brass lens (Germany, 1898)

[Manual Camera]

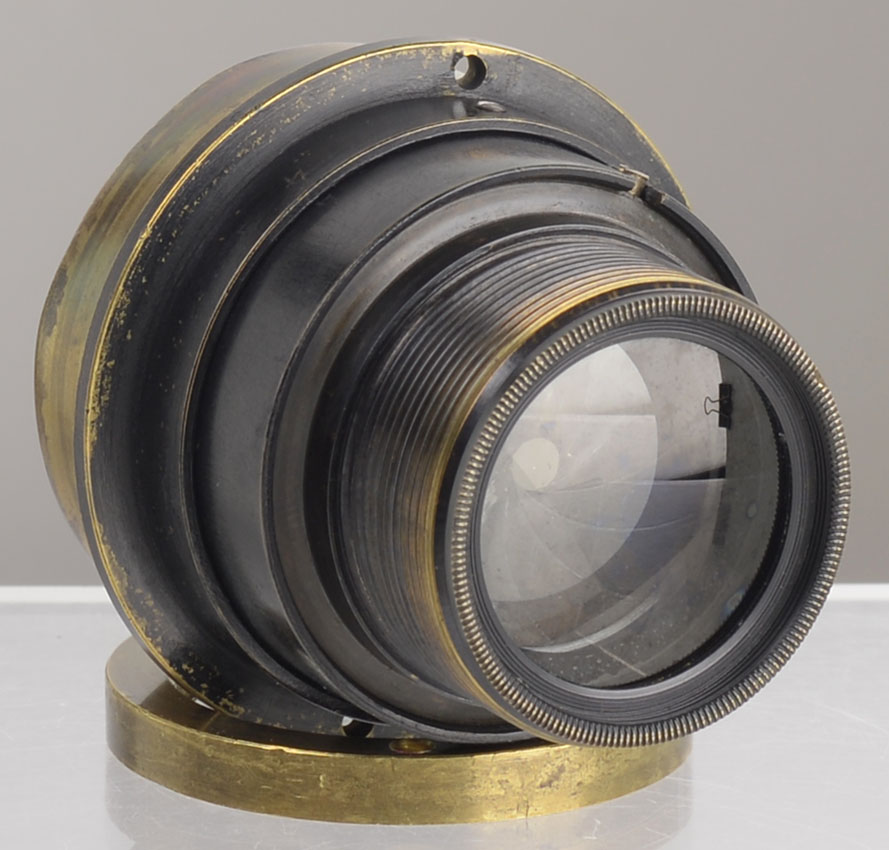

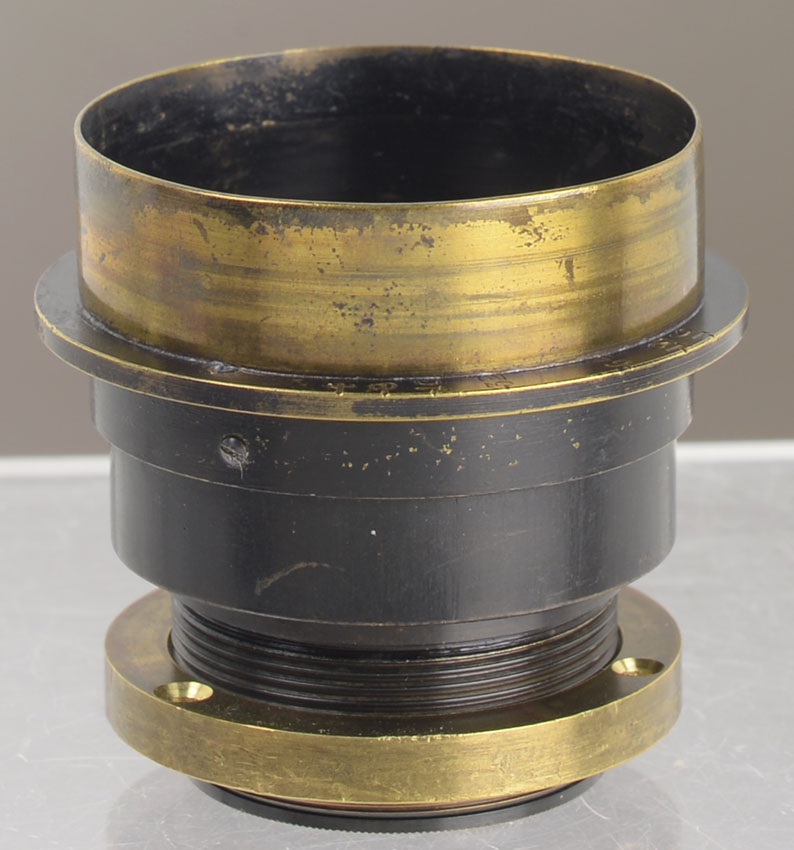

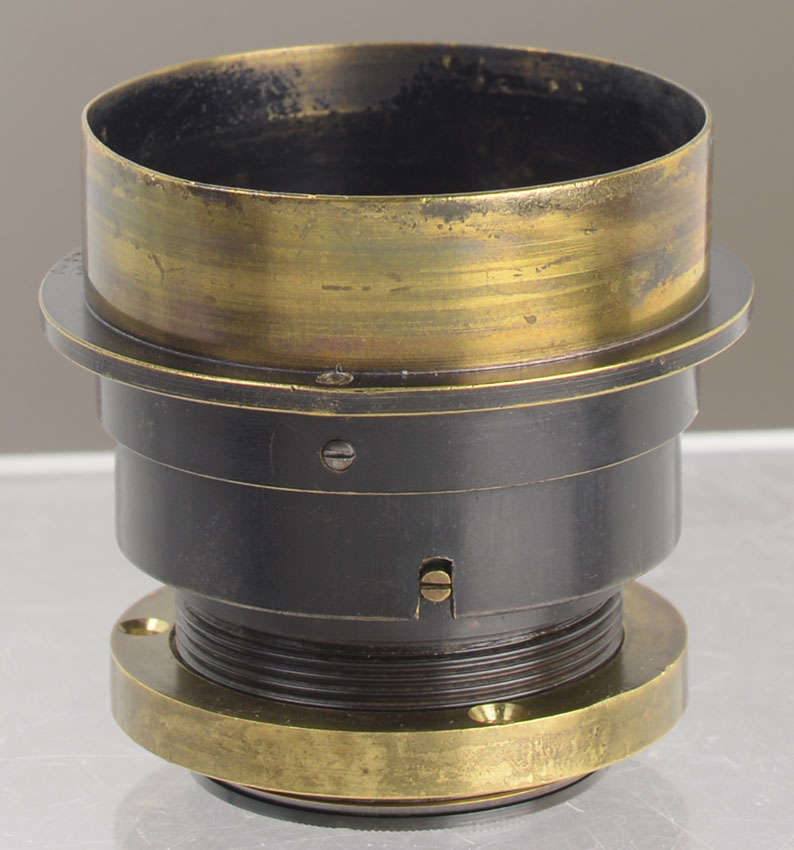

antique brass lens from the renowned German maker Steinheil, established in Munich in 1854
from 1898 according its serial number

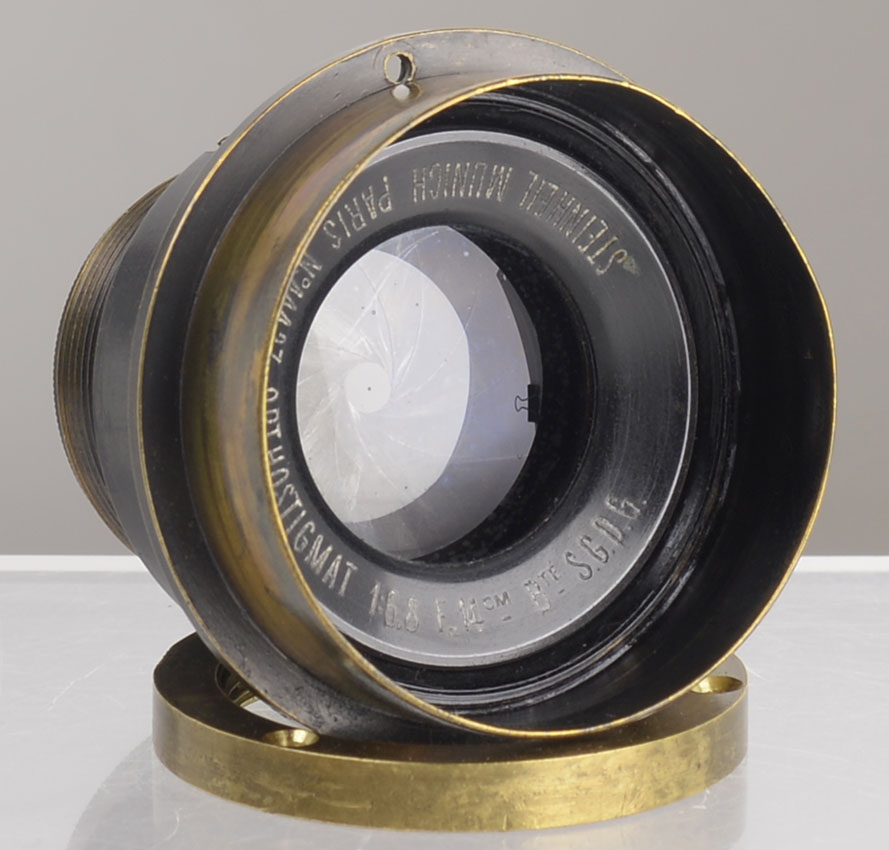

engravings:

Steinheil Munich Paris
Nº 44427
Orthostigmat
1:6,8
F=14cm
Bté. S.G.D.G.​

focal length: 140mm
diaphragm: f/6.8
iris diaphragm with antique scale marked from "4"
height (with lens hood): 45mm
frontal diameter (lens hood): 43mm
image circle: about 20cm
(enough to cover a 5x7" plate with slightly dark corners)
image circle has been taken at infinite with full aperture; at close distances and with small apertures, the image circle can increase
weight (with lens flange): 165g

symmetrical optical design (6 elements, 2 groups), it is a convertible lens: if the the frontal element is unscrewed, the lens gives double focal length and increased coverage

good condition
glasses: clean and clear, there is no fungus, haze or separation
minuscule air bubbles on the glass, as usual on lenses from those times, not affecting performance
the diaphragm is clean and free of oil
diaphragm ring moves smoothly
comes with lens flange

price: 85 euros

Shipping cost:
Europe: 12 EUR
USA, Canada, Australia, China, Japan, and all other countries: 15.60 EUR

parcels shipped from European Union
(insured, registered, with track and trace)

payments:
Bank Transfer preferred (Wise)
PayPal also accepted

__ other antique and collectible cameras and lenses also available, send me a PM for further information __​
