I have a Nikon AI lens that didn't come with the coupling prong ("ears'') installed and I'd like to purchase one and install it. Does anyone know a source for these, other than eBay? I've checked some of the obvious places and didn't have any luck.
Source for Nikon lens coupling prongs?
-
A
- Thread starter logan2z
- Start date
Recent Classifieds
-
For Sale Essentially new in box Nikon FM10
- Started by Gram Nylén
-
For Sale Hasselblad PM90 Finder
- Started by dankapsner
-
For Sale FS: Fujinon-T 400mm f/8 Lens
- Started by B.S.Kumar
-
Sold SOLD! Fujinon-W 250mm f/6.7 Lens
- Started by B.S.Kumar
Forum statistics
Out of curiosity, were there any AI lenses that didn't come from the factory with this part installed? The lens in question is a 28mm/2.8 AI. The mounting holes are present.
Buy a junk lens that has the prongs?
I have never seen a Nikkor without one that wasn't removed by someone. The screws may also be hard to find.
The latest 50mm f/1.8 AIS came from the factory sans bunny ears. There were others.
Probably easiest, cheapest and fastest way to get replacement ears is to scavenge some from a junk lens from eBay.
Probably easiest, cheapest and fastest way to get replacement ears is to scavenge some from a junk lens from eBay.
Might have to resort to that.
Did the lenses that didn't come with the bunny ears have holes in the lens barrel for the screws, or were they sans holes?
No holes...
- Joined
- Sep 21, 2008
- Messages
- 852
- Format
- 4x5 Format
There were quite a few nikon lenses that came with the screw holes but without the rabbit ears. As someone suggested, buy the cheapest junk lens you can find an take the ears off that.
Quick search on the bay shows this.
https://www.ebay.com/itm/F92263-2-O...or-AI-Lens-Replacement-Part-NOS-/203255089745
I wouldn't try anything like this myself, too fumble fingers. I bet Nikon could do this (pre Covid)
https://www.ebay.com/itm/F92263-2-O...or-AI-Lens-Replacement-Part-NOS-/203255089745
I wouldn't try anything like this myself, too fumble fingers. I bet Nikon could do this (pre Covid)
I have an extra prong and screws. Just send me your mailing address and I'll get it out to you Monday. It's free, including shipping, but if you want, you can make a donation to your favorite charity.
EDIT: It seems the screws are stripped, and I can't get them to loosen no matter what I do. They're on a junk Nikkor 50mm f/1.8 lens that I was occasionally using as a loupe. I can ship you the whole lens and you can see what you can do with it.
Let me know.
EDIT: It seems the screws are stripped, and I can't get them to loosen no matter what I do. They're on a junk Nikkor 50mm f/1.8 lens that I was occasionally using as a loupe. I can ship you the whole lens and you can see what you can do with it.
Let me know.
Last edited:
Thanks so much Vincent, much appreciated! PM on the way...
Aha! perseverance pays off. I managed to get the screws loose using a pair of needle nose pliers. No need to ship the lens too.
Excellent, thanks again!
https://www.metricscrews.us/ if you need some.
Thanks, that site might come in handy.

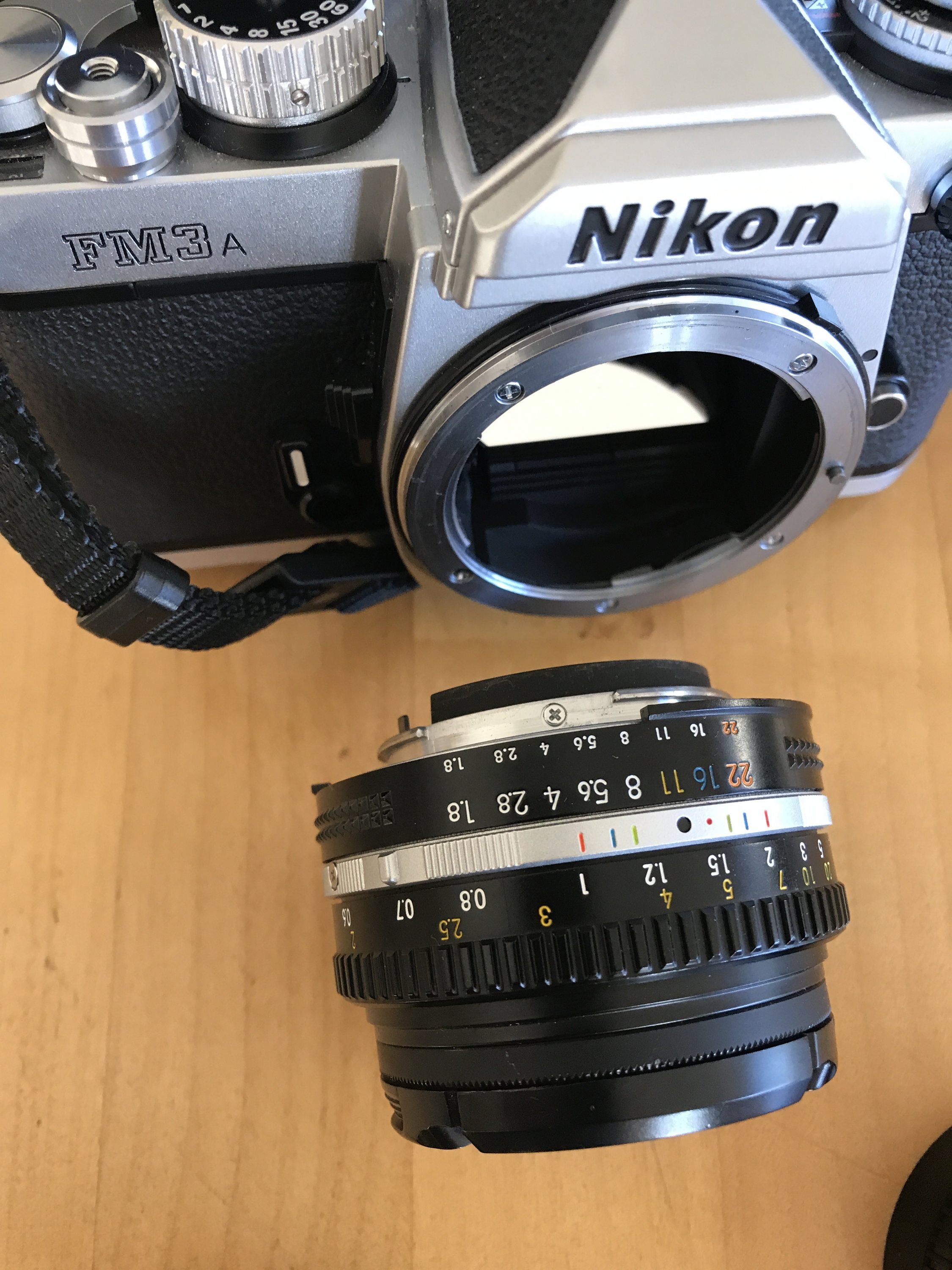

Is that a Series E? That might explain the lack of bunny ears.
Trivia alert! That is the Nikon 50/1.8 AI-S "compact" version that came after the Series E lenses. It is short like the Series E, looks like the Series E second version, and doesn't have a non-AI coupling prong, but it isn't marked Series E. These often came as normal lenses in the FE2/FM2 era. Like this: https://www.destoutz.ch/lens_50mm_f1.8_2257006.html The earlier 50/1.8 AI and AI-S are longer, like this: https://www.destoutz.ch/lens_50mm_f1.8_3209712.html You can browse the versions of these lenses at http://www.photosynthesis.co.nz/nikon/serialno.html#50slow
This 50/1.8 is the only fairly usual Nikon MF lens I commonly see that originally came without a coupling prong, besides the Series E lenses. There are unusual lenses like the PC lenses with a preset aperture ring, which don't have any meter coupling and no prong.
Some later 3rd party manual focus lenses omitted the prong. Some early 3rd party lenses had a prong fastened by only one screw (I have a couple of Vivitars like that, such as the 28/2.5). Many of these have lost their prongs, because small rotations of the prong about the one screw cause it to loosen. Nikon was right to use two screws. They nailed the little details a lot of the time.
This 50/1.8 is the only fairly usual Nikon MF lens I commonly see that originally came without a coupling prong, besides the Series E lenses. There are unusual lenses like the PC lenses with a preset aperture ring, which don't have any meter coupling and no prong.
Some later 3rd party manual focus lenses omitted the prong. Some early 3rd party lenses had a prong fastened by only one screw (I have a couple of Vivitars like that, such as the 28/2.5). Many of these have lost their prongs, because small rotations of the prong about the one screw cause it to loosen. Nikon was right to use two screws. They nailed the little details a lot of the time.
