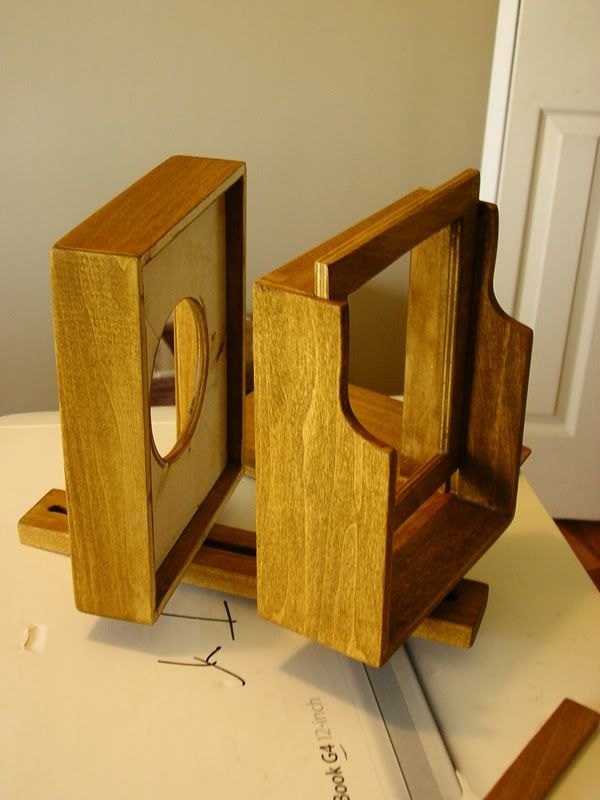

This was originally going to be a simple box pinhole camera to use my 12-shot film magazine, but it grew in complexity so that now it will accommodate extensions from 40mm up to 180mm, will have a bag bellows and limited movements, etc. There's some work yet to be done but it's shaping up now.
Jobs left: attach ground glass (plexiglass) to GG frame. Mask and paint black internal surfaces. Add light trap felt & wood frame at rear for film holder. Glue everything up (plus tiny brass wood screws probably). Add rail & tripod mount. Add eyes & hooks or some other attachment mechanism for protective cover-plate (ie, lid). Fabricate and add bag bellows. Rig linhof technika lens board attachment mechanism.
This is mainly for pinhole use, but it will accomodate up to a 150mm lens, with movements (not sure if I want an elaborate U-shaped standard or just single-axis movement).

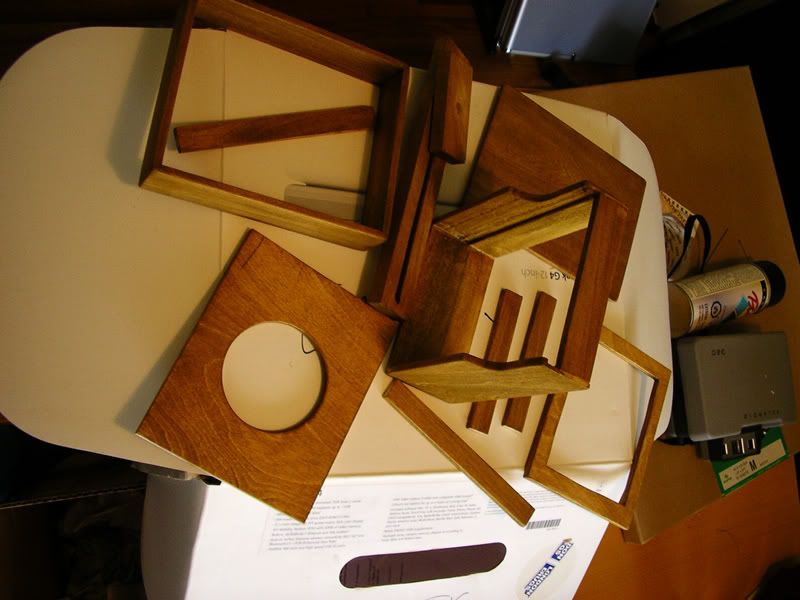

All the bits, unassembled:

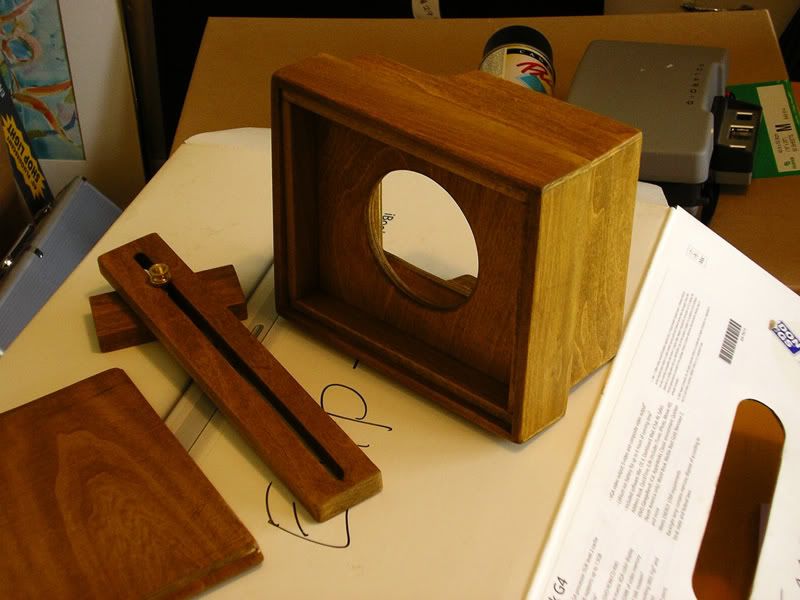

Ground glass frame partially removed:

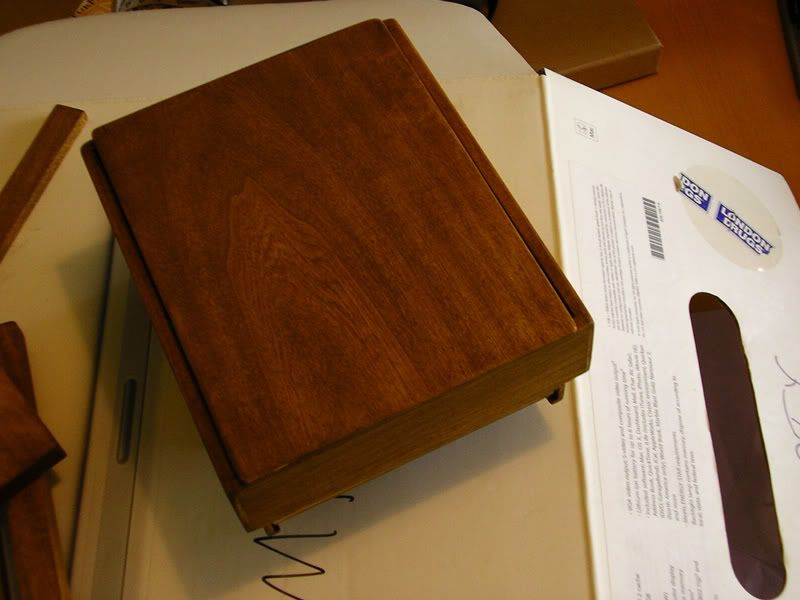

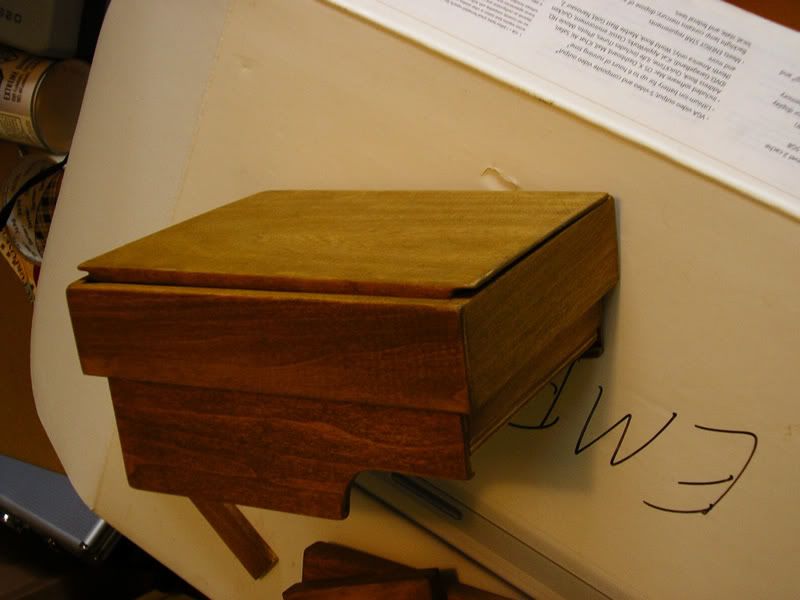

"Lid" installed in folded up configuration:
This is made out of poplar, with a couple of pieces from model airplane birch plywood. The stain was some kind of "classic oak" stain which I think was about the right colour for this. Ideally I would have probably wanted a sort of light green-brown to mimic the natural look of the poplar wood, but I couldn't find stain in that colour in stock.
