Hi, I'm pulling my hair out (if I had any) over this problem. I have just invested in three Mamiya 6x9 film backs the ones with the shutter release built in, all purchased from differing sources. I have the correct cable release for them but I cannot get the button on the film back to depress and activate the shutter. I have tried all of the following but with no luck, the button on the film backs will only depress about 2mm, and seems to be in a locked mode.
Settings tried
Film loaded/not loaded

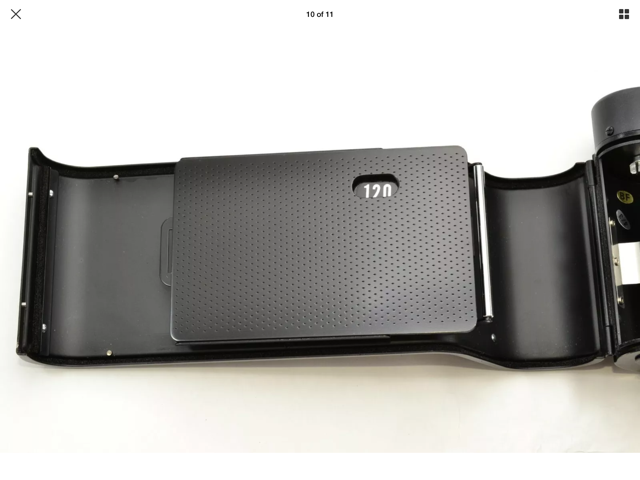

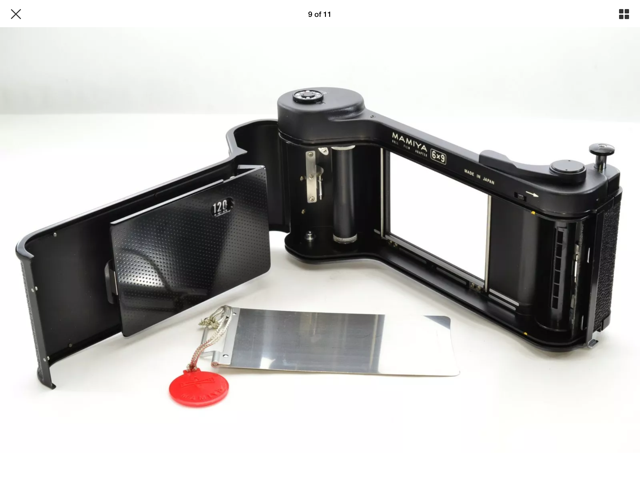

Dark slide in the stored in rear of film back position

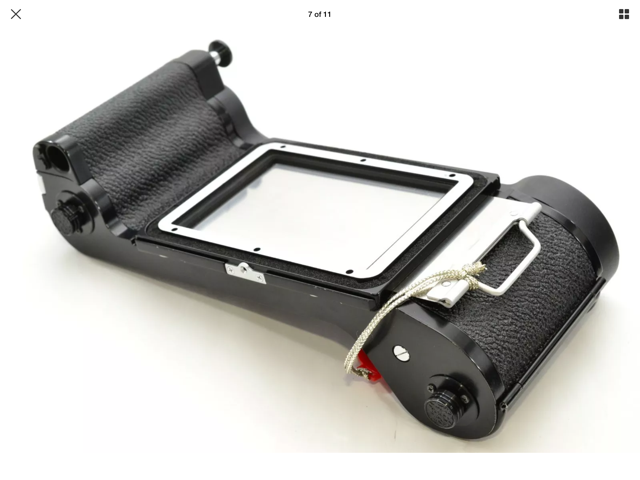

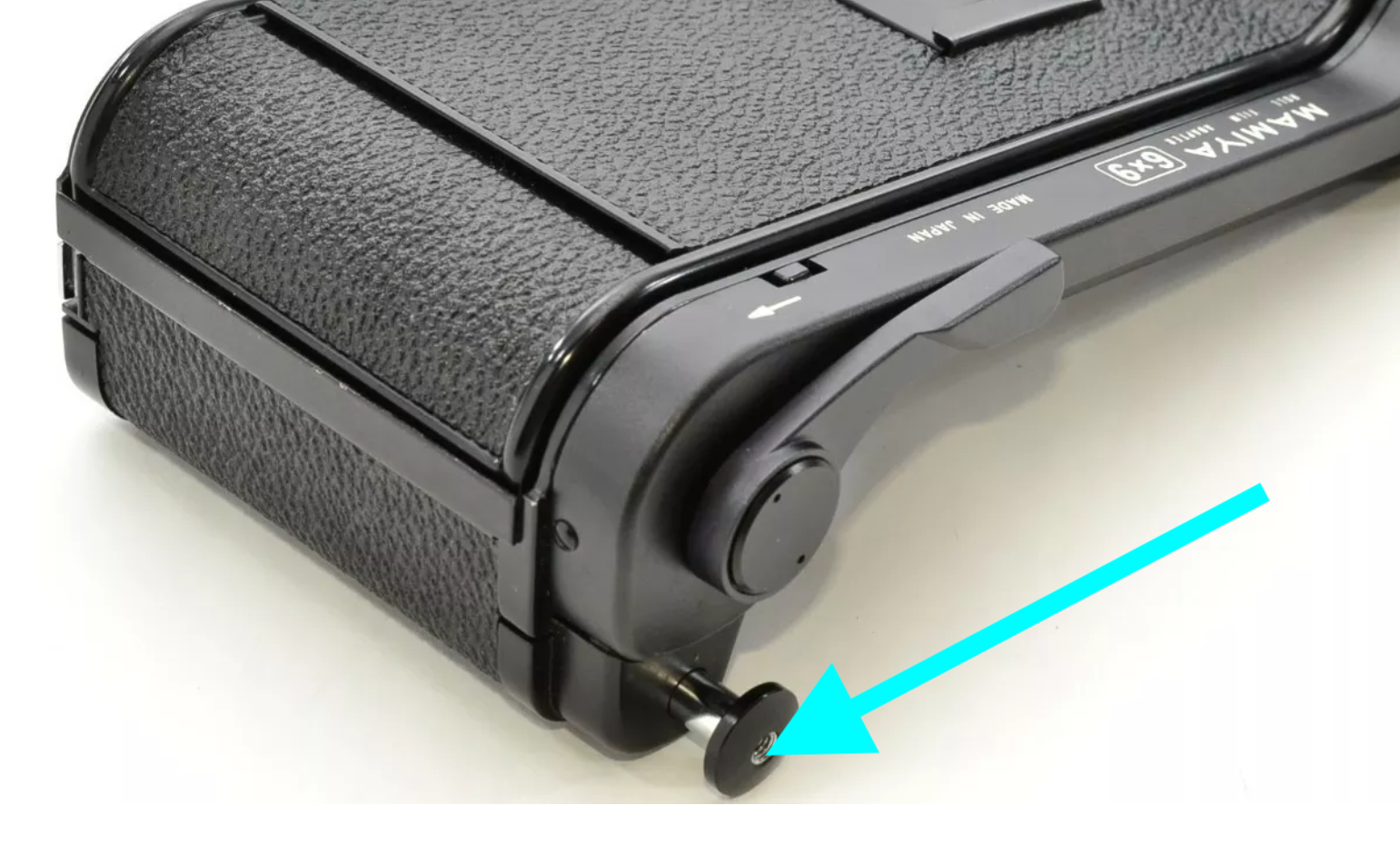

I cannot see any secret catch to make this work. The only catch visible is the one on the base of the film back which unlocks the cable release.
I don't want to force anything so has anyone any ideas please.


Attachments

  • IMG_1170.PNG
    1.1 MB · Views: 482
  • IMG_1170.PNG
    1.1 MB · Views: 141

choiliefan

Member
Joined
Dec 27, 2013
Messages
1,306
Format
Medium Format
I may have missed it but ave you tried it while attached to the camera body?


choiliefan

Member
Joined
Dec 27, 2013
Messages
1,306
Format
Medium Format
It would be great to see other views of the back.
The back's release mechanism has to be coupled to the body so looking at the camera's mating surface can you trip the lens/shutter pressing something that way?
I'm sure an expert will chime in soon.

OP
OP

Imagegb

Member
Joined
Apr 14, 2019
Messages
9
Location
London
Format
Medium Format

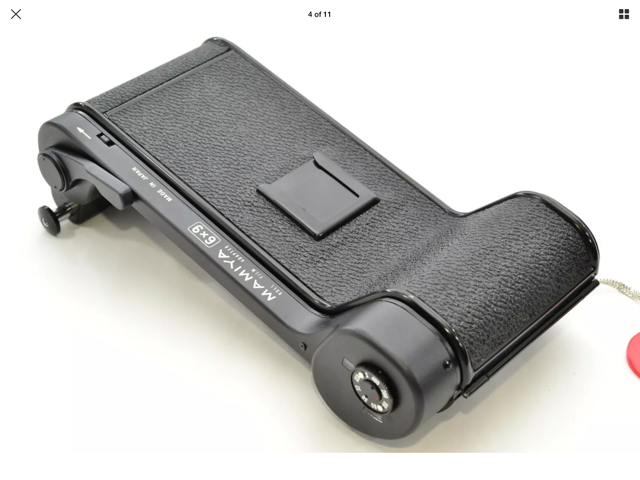

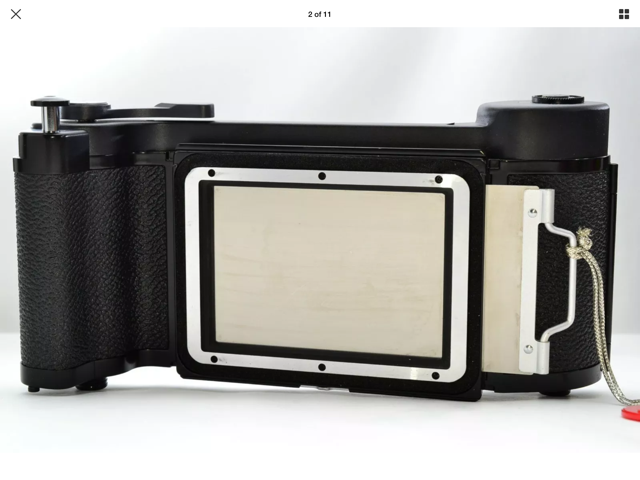

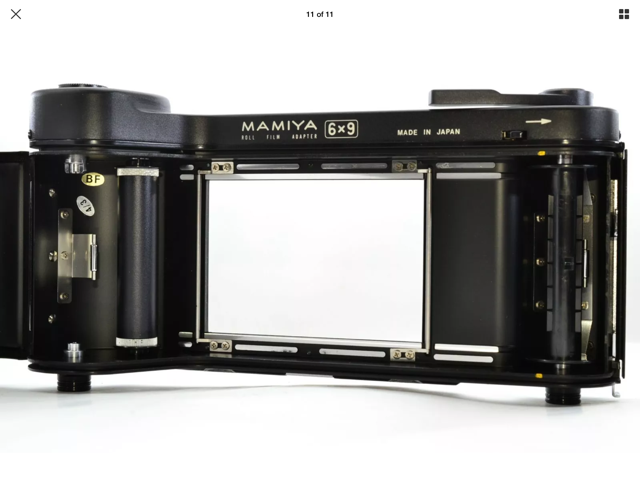

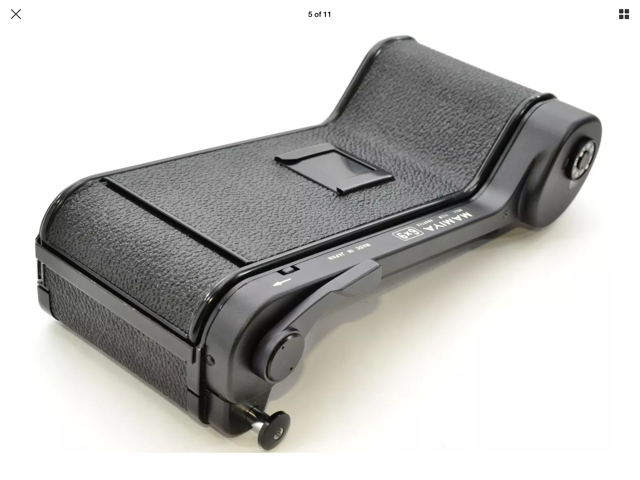

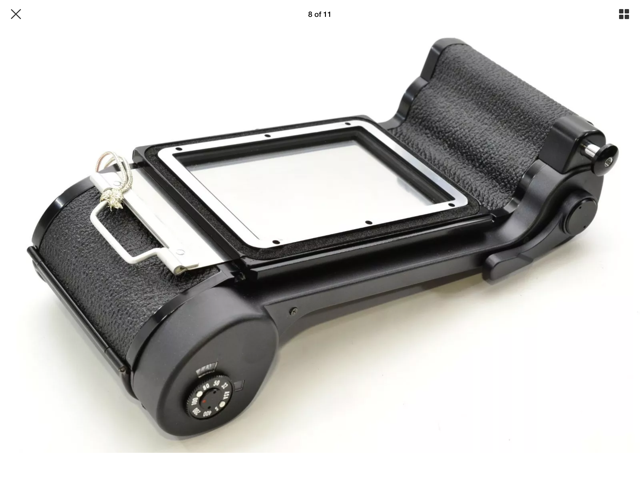

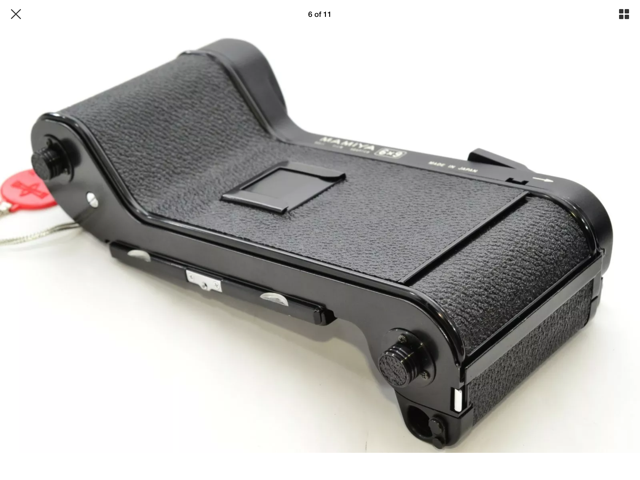

A cable release fits between the film back and the lens, so nothing else required, just the button on the film back to move!! The cable release works fine with the pistol grip.


Attachments

  • IMG_1169.PNG
    228.8 KB · Views: 148
  • IMG_1170.PNG
    225.8 KB · Views: 184
  • IMG_1171.PNG
    244.2 KB · Views: 192
  • IMG_1172.PNG
    221.5 KB · Views: 172
  • IMG_1173.PNG
    225.1 KB · Views: 157
  • IMG_1174.PNG
    199.9 KB · Views: 208
  • IMG_1175.PNG
    203 KB · Views: 136
  • IMG_1176.PNG
    199.2 KB · Views: 208

itsdoable

Member
Joined
Aug 26, 2013
Messages
810
Location
Canada
Format
Medium Format
You could try it with a dummy roll in the back, the shutter release may be interlocked with the film advance.


j_landecker

Member
Joined
Apr 18, 2004
Messages
170
Location
Vancouver, B
Format
Large Format

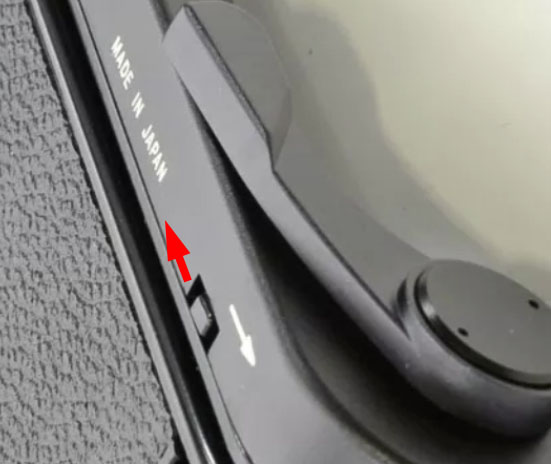

There is an interlock which is supposed to release the shutter button only once on each exposure to prevent double exposure. You may need to have the cable inserted for this to work. There is no coupling with the camera body. I believe you can override the interlock by moving the wind release lever opposite to the arrow. I have one of these somewhere, so I can verify if I can find it...
Edit: I found my back. You need to have film in the back, and at each new exposure the shutter button is free to be depressed all the way down once. The cable release does not need to be installed for it to work, and the interlock override works as I described above. Using the shutter button also has the function of releasing the film winding to wind to the next exposure. Hope that helps!


Attachments

  • Mamiya back.jpg
    Mamiya back.jpg
    51.9 KB · Views: 140
Last edited:
OP
OP

Imagegb

Member
Joined
Apr 14, 2019
Messages
9
Location
London
Format
Medium Format
Thank you for your response, I got quite excited by the possibility of a solution! However, I have just tried this and all my backs (3) when the film is advanced to the next frame the interlock override is hard over to the left of its travel, so it cannot move over further (left). The shutter button also will not depress. When the interlock override is moved to the right the film advance can be operated until it clicks back to its far left position. With no film in the back the interlock override sits in the middle position. Back to the drawing board!!!


j_landecker

Member
Joined
Apr 18, 2004
Messages
170
Location
Vancouver, B
Format
Large Format
When my back is wound to a new exposure, the interlock lever does indeed sit to the left, and with no film it is in the middle. I assume you're doing this without the cable release connected to a lens (which needs to be cocked). If all else fails, you might need to take the top cover off the back and see what's going on inside.

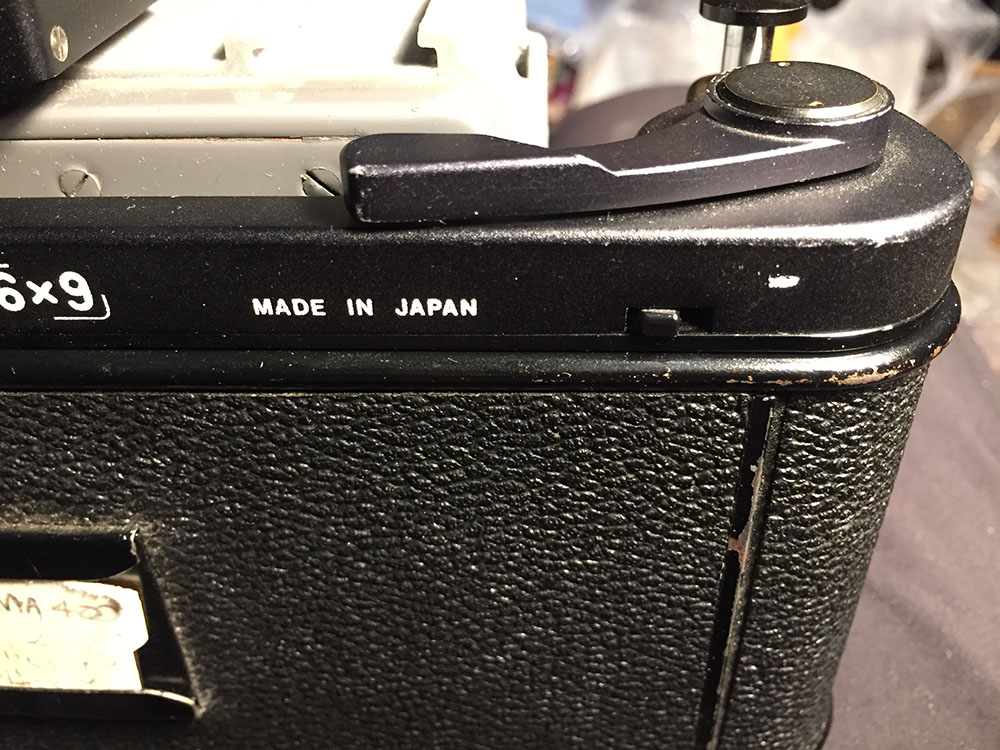

ps. One more thing... the darkslide does need to be out to operate the shutter button. Even with no film in the back, the override function will let the shutter button depress if the darkslide is out.


Attachments

  • Mamiya back_01.jpg
    Mamiya back_01.jpg
    221.7 KB · Views: 223
Last edited:
OP
OP

Imagegb

Member
Joined
Apr 14, 2019
Messages
9
Location
London
Format
Medium Format
Hi, definitely something odd going on, three backs all from different sources all behave the same. Incidentally I have tried with/without cable release, on/off the camera, shutter cocked/not cocked. Thanks again though for your suggestions.


j_landecker

Member
Joined
Apr 18, 2004
Messages
170
Location
Vancouver, B
Format
Large Format
Another point - for the override to work, the lever needs to be held to the left as you start to press the shutter button. Once the button is part way down, you can let go of the lever.

OP
OP

Imagegb

Member
Joined
Apr 14, 2019
Messages
9
Location
London
Format
Medium Format
Youv’e solved the problem, brilliant. It’s the dastardly dark slide!! So you have to remove dark slide, hold the interlock switch to the left, half press the shutter button, release interlock switch, take image!!, blimey, Complex or what? Really big thank you for solving the puzzle, I don’t think I will be using it though, a simple cable release direct to the lens will suffice. Thanks again for your advice, I can stop pulling my hair out!


JPD

Member
Joined
Mar 24, 2007
Messages
2,143
Location
Sweden
Format
Medium Format
There is a hole under the film back. Is a cable release supposed to go in there to connect the shutter release on the back to the one on the lens?

OP
OP

Imagegb

Member
Joined
Apr 14, 2019
Messages
9
Location
London
Format
Medium Format
Yes, the unique cable release fits there and connects to the lens. Thanks to “j.landecker” who has solved my question.


j_landecker

Member
Joined
Apr 18, 2004
Messages
170
Location
Vancouver, B
Format
Large Format
Well, with film in the back, you shouldn't need to use the override lever. You should be able to wind, cock the shutter, and then shoot using the button. Glad you figured it out though - with 3 backs doing the same there had to be a simple explanation. Because it's a modular system without connection between the pieces, it ends up being a fiddly system, and the cable release is not all that smooth.


RobbieMaynard

Member
Joined
Feb 19, 2024
Messages
1
Location
Massachusetts
Format
Medium Format
Just breaking into this for a new question - I just picked up this back and I am getting it in a few days. The cable is unlike any that I have seen before so I want to know as much as I can about connecting it before it gets here. Which side goes into the film back? I assume the silver side and the screw mount will go onto the lens release but I don't really understand where it attaches inside the film back. Any advice, articles, etc would be super helpful. Thanks!


crgrove

Member
Joined
Apr 26, 2024
Messages
2
Location
Michigan
Format
Medium Format
Hi all! I just received my Model 3 film back. HOWEVER, I didn't realize that they didn't come with the cable release and that that was a separate purchase. So, I went online to see if I could find one but to NO AVAIL! Is there an item number for that specific cable release? Any ideas where to purchase one? I can't see one anywhere on ebay or elsewhere. Depressing! <-Not a pun.

  • gordrob
  • Deleted
  • Reason: duplicate post

gordrob

Subscriber
Joined
Jan 29, 2005
Messages
990
Location
Western Cana
Format
Multi Format
Hi all! I just received my Model 3 film back. HOWEVER, I didn't realize that they didn't come with the cable release and that that was a separate purchase. So, I went online to see if I could find one but to NO AVAIL! Is there an item number for that specific cable release? Any ideas where to purchase one? I can't see one anywhere on ebay or elsewhere. Depressing! <-Not a pun.

I don't know if a part number will help you in your search for the cable release but the number I have for it is M5476-16851


Chuck1

Member
Joined
Jul 4, 2022
Messages
601
Location
Arlington ma
Format
Multi Format
Just out of curiosity, if anyone has the cable release I'd love to see a picture(especially where it connects to the back, but not connected)
Thanks
