Rollei parts identification help please

[EdColorado]

I need to ask for some help here. A while back I was given the contents of a shutting down camera repair shop. Boxes and boxes of old cameras, parts, screws, junk and trash. I pretty much just emptied the shop. I've been going through it all as time permits and today have a few parts that I'd like to identify. Problem is, I'm not much of a Rollei guy in that I just don't know much about them. I do however have a Rolleiflex I really like...

So anyhow, I have some pictures here, if anyone can tell me what camera these would be for I'd appreciate it. The box these came out of was marked "Rollei shutters, hoods, and backs".

To keep it simpler I'll split this into separate posts.

Thanks in advance for your time and help!



[EdColorado]

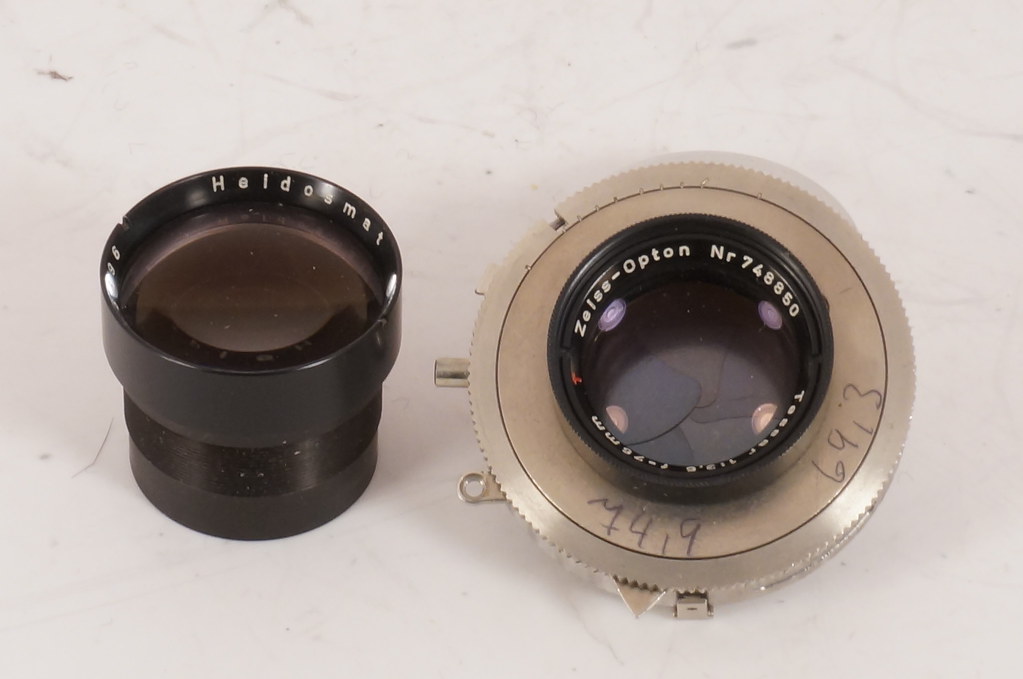

OK, first up. I have two sets like this. Lens and shutters and what looks like a matching viewing lens. Tessar, Zeiss-Opton, 75mm f3.5. these are very clean, I'd say unused and all speeds seem to work.



[EdColorado]

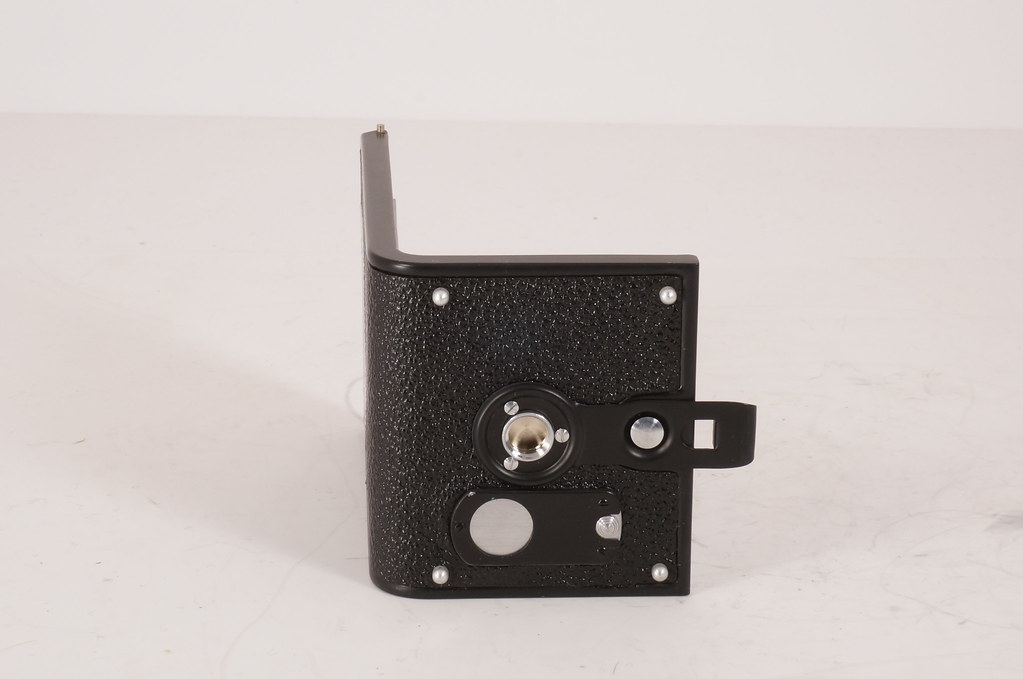

I have two of these backs, again looking like they are unused. I think maybe off a 4A?



[EdColorado]

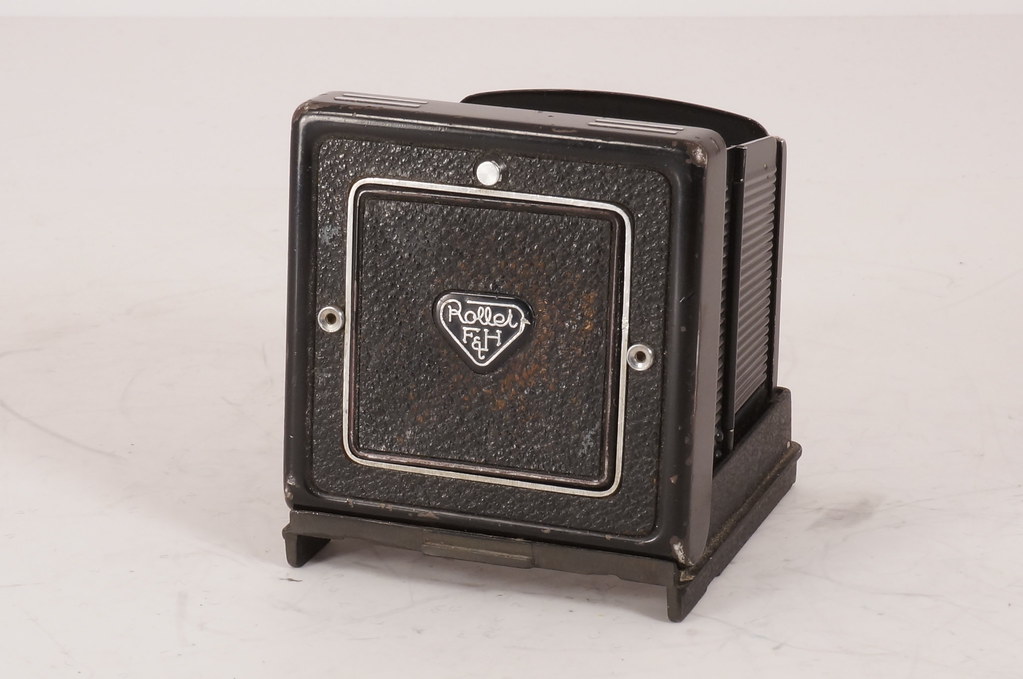

I have a few hoods too.



[EdColorado]

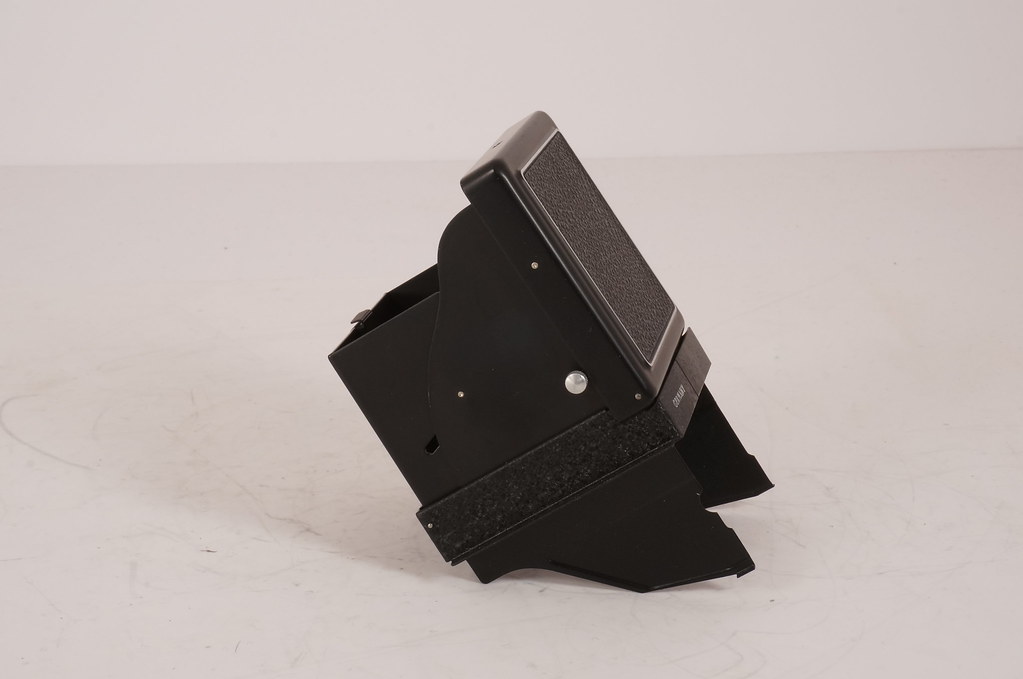

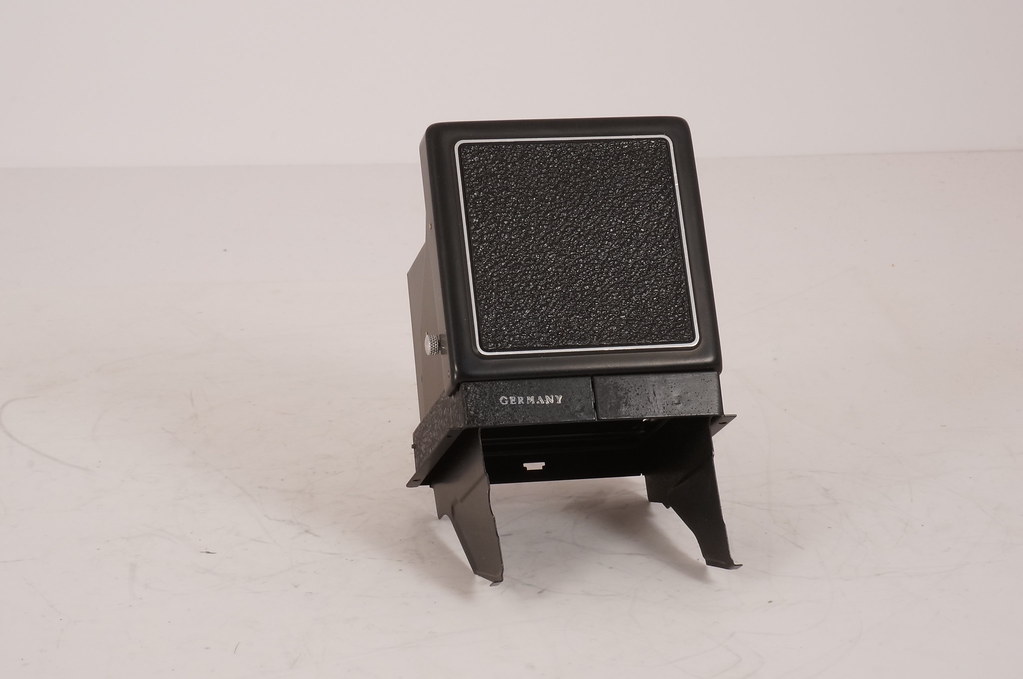

And these hoods too. Couple of these, looking like new. These have a side lever to flip up the internal mirror for eye level viewing. No logos but made in Germny. Are these Rollei parts?



[AgX]

"No logos but "Germany". Are these Rollei parts?"

This viewing hood seems to have the same stamp print as your back.



[elcabezagrande]

I have two of these backs, again looking like they are unused. I think maybe off a 4A?

These are Rolleicord backs from the early I series.



[elcabezagrande]

And these hoods too. Couple of these, looking like new. These have a side lever to flip up the internal mirror for eye level viewing. No logos but made in Germny. Are these Rollei parts?

Replacement hoods for the K4 Automats. K4B, K4B2, or K4/50



[elcabezagrande]

I have a few hoods too.

Possibly 3.5E or Rolleicord V. Possibly Rollei Magic.



[elcabezagrande]

OK, first up. I have two sets like this. Lens and shutters and what looks like a matching viewing lens. Tessar, Zeiss-Opton, 75mm f3.5. these are very clean, I'd say unused and all speeds seem to work.

Again, K4B, K4B2, or K4/50. I'm not sure if the Opton lenses were on any of the MX or MX-EVS cameras



[EdColorado]

"No logos but "Germany". Are these Rollei parts?"

This viewing hood seems to have the same stamp print as your back.

Yes, makes me think Rollei.



[EdColorado]

Possibly 3.5E or Rolleicord V. Possibly Rollei Magic.

Ok thanks. I'll do some googling and find some pictures, and thanks for the lead on the lens sets too!



[EdColorado]

Very nice load of junk. Probably worth a bundle.

Most of the stuff really is junk, but there have been a few shinning stars that made the few days of labor well worth it.



[EdColorado]

These are Rolleicord backs from the early I series.

Really? I'll have to admit that I haven't looked at mine for a while now but just pulled it out of its case to look. Yep, seems the same. I have a 1b/3. I really didn't remember that my camera had the exposure guide on the back, but its pretty much always in its leather case. Thanks, I guess I now have a spare back!



[Brett Rogers]

Possibly 3.5E or Rolleicord V. Possibly Rollei Magic.

They're not for the Rolleicord V. None of the Rolleicords had a rear focus eyepiece, only a sports finder, and the side plates were rigid not hinged. Looks more like a finder for a later Flex, maybe E, F or T perhaps?



[Harry Stevens]

They're not for the Rolleicord V. None of the Rolleicords had a rear focus eyepiece, only a sports finder, and the side plates were rigid not hinged. Looks more like a finder for a later Flex, maybe E, F or T perhaps?

It may be interchangeable between the flex and the cord as in the Youtube video 0.29sec to 1.29 in.



[elcabezagrande]

They're not for the Rolleicord V. None of the Rolleicords had a rear focus eyepiece, only a sports finder, and the side plates were rigid not hinged. Looks more like a finder for a later Flex, maybe E, F or T perhaps?

You are right about the rear focus, but the removable viewfinder on the V does have hinged side plates. But yes, most likely for a type 2 or 3 E, or for an F or T.



[Helinophoto]

I would pick up the phone to Fleenor and check if he is interested in spare-parts



[Dan Daniel]

I seem to remember that the stock Rolleiflex T did not have the focusing mirror and eyepiece for sports focusing. One of the many ways it was a lesser model.



[JPD]

Really? I'll have to admit that I haven't looked at mine for a while now but just pulled it out of its case to look. Yep, seems the same. I have a 1b/3. I really didn't remember that my camera had the exposure guide on the back, but its pretty much always in its leather case. Thanks, I guess I now have a spare back!

It should fit and work well, but it's actually for the Rolleicord II since the exposure table goes from 3,5. The first series had 4,5 or 3,8 lenses. But all the Rolleicord I, Ia and II models need the red window on the bottom. Not sure what you mean by 1b/3? Maybe a collectors book used names like that to differentiate between the models.



[JPD]

The first viewing hood fits all the pre-war Rolleiflex Automats, and the second one fits the 3,5 and 2,8 F, E2, E3 and T, plus the Rolleicord Vb. (I don't like to use the internal factory names like "K4" or whatever, since it's confusing).



[EdColorado]

...Not sure what you mean by 1b/3? Maybe a collectors book used names like that to differentiate between the models.

Typo on my part too. I looked again and according to the Rolleiclub.com site, its a Ia Model 3, or a K3. Like this, (but this one isn't mine)



[JPD]

Typo on my part too. I looked again and according to the Rolleiclub.com site, its a Ia Model 3, or a K3. Like this, (but this one isn't mine)

Ah, I have that one too. Nice sharp Triotar. I also have the special ordered version for the german police, but it's in bad shape.



[Brett Rogers]

It may be interchangeable between the flex and the cord as in the Youtube video 0.29sec to 1.29 in.

No, it may not. The Rolleicord in the video is a Vb. In order to remove the finder from a V it is necessary to extract four small screws from around the perimeter of the finder base. It's not made to accept a pentaprism, optionally. Unlike the Vb.



[Brett Rogers]

You are right about the rear focus, but the removable viewfinder on the V does have hinged side plates. But yes, most likely for a type 2 or 3 E, or for an F or T.

The viewfinder of the V definitely does not have hinged side plates. The only one that does is the Vb.

Here are two current ebay listings for Rolleicord V types chosen at random.
One;
Two.

Please note the viewfinder construction. Both these examples wear the correct finder for the Rolleicord V model. No hinged sides.
