Removing a vintage lens from a lens board


A

  • 0
  • 0
  • 4
Shannon Falls.jpg

D
Shannon Falls.jpg

  • 3
  • 0
  • 58
Trail

Trail

  • 1
  • 0
  • 81

A

  • 1
  • 1
  • 158
Carved bench

A
Carved bench

  • 1
  • 3
  • 191

Recent Classifieds

Forum statistics

Threads
198,075
Messages
2,769,264
Members
99,556
Latest member
TyPierce
Recent bookmarks
1

brianentz

Member
Joined
Jul 28, 2011
Messages
195
Location
Southern California
Format
Multi Format

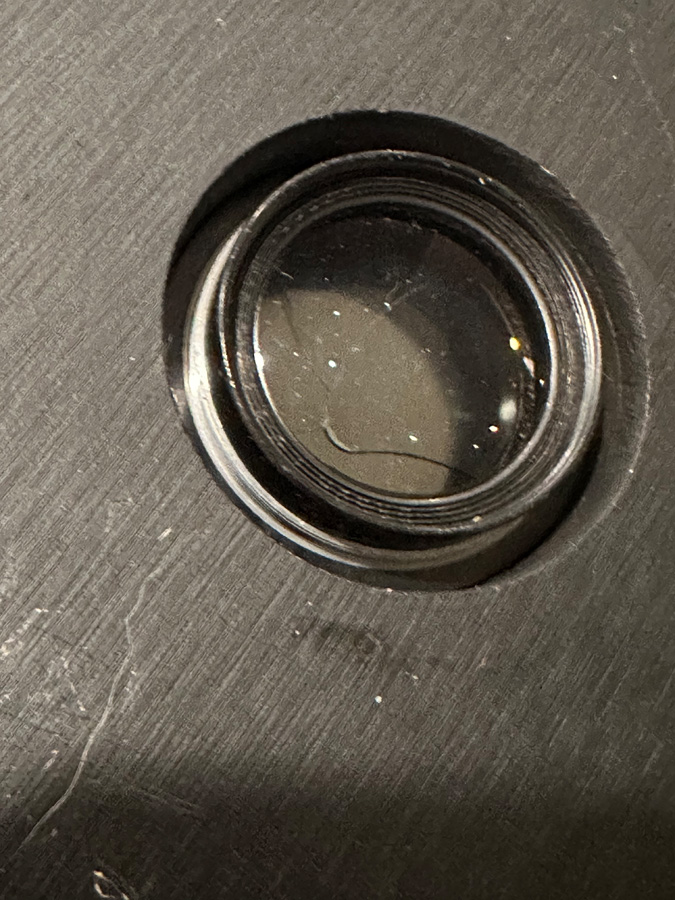

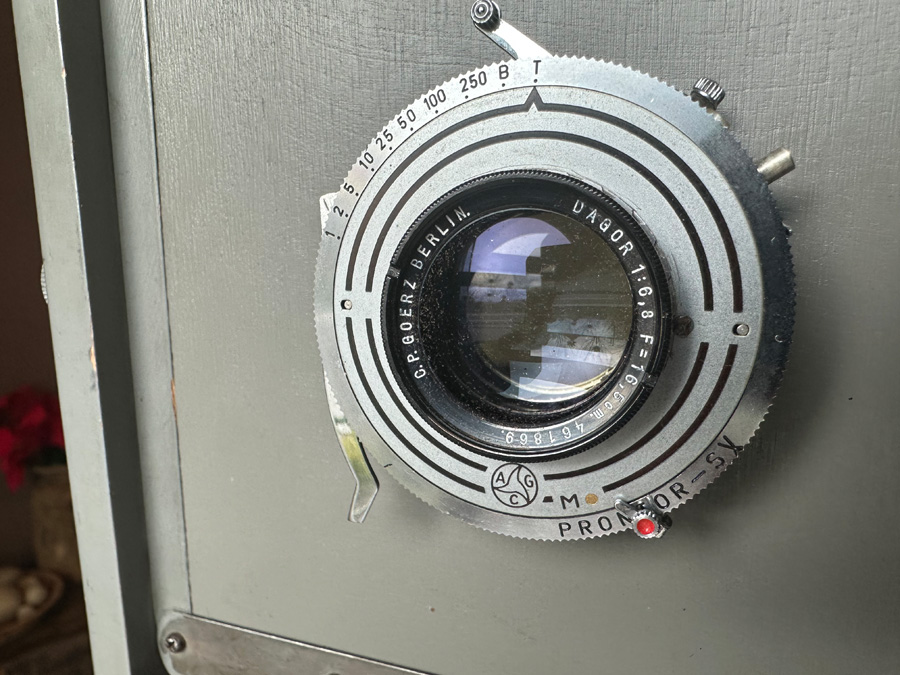

I am looking to sell an old Goerz Dagor 210mm lens but was hoping to remove it from the lens board before doing so. It won't provide coverage for 5x7" which is what I intend to use this camera for. Not having dealt with this type of lens before I can't see how to remove it from the lens board and don't want to damage it in the process. Can anyone give me any advice? Perhaps I should sell it attached to the lens board?
