Overlapping frame in Medium format

[scorpion7]

Why does this overlapping happen in my medium format camera? I have Kowa Six camera. Please check the samples to see what I mean. How can I fix this problem? The thing is that this overlapping happened in different sizes but some of them don't have such an issue!



[Sirius Glass]

Please merge the same thread in Camera Building with this thread.



[moto-uno]

Is it a Kowa six without the removable backs , or the Super 66 model ? Peter



[scorpion7]

Is it a Kowa six without the removable backs , or the Super 66 model ? Peter

Thanks for your reply. Yes, it's Kowa 6 with removable back



[Chrismat]

Thanks for your reply. Yes, it's Kowa 6 with removable back

The Kowa Super 66 is the model that has the removable backs.



[RalphLambrecht]

Why does this overlapping happen in my medium format camera? I have Kowa Six camera. Please check the samples to see what I mean. How can I fix this problem? The thing is that this overlapping happened in different sizes but some of them don't have such an issue!

This is an issue with the film-transport mechanism in your camera or film back.Either or both must be CLAed. You need to find a camera technishn.



[Andy38]

Hello,
Does the counter work ?

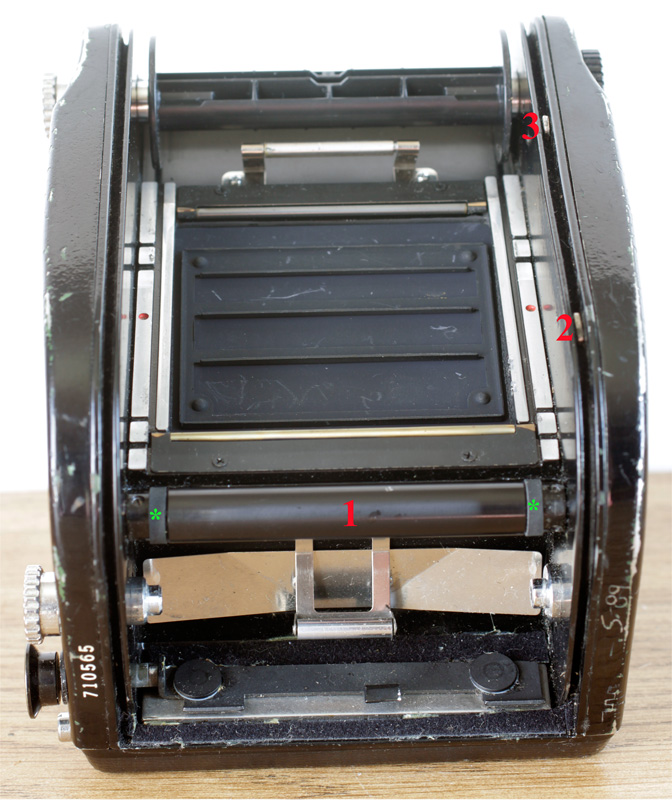

When the film advances, a roll (n°1 on the pic) rotates at the bottom of the back.
If it doesn't rotate, some functions are defective : counter, film transport.
If you press the push buttons (2 and 3 on pic) and turn the roller, counter has to work.
Perhaps the roll is jammed...



[moto-uno]

^ The roller illustrated above has come completely covered in deposits of all 3 backs I have , start there . One of my backs also had
a gear which has another gear pressed onto it and although they're supposed to be locked , it would slip . A squeeze in a vice fixed it.
it's got quite the convoluted gear train inside the back . Peter



[moto-uno]

Curious if Scorpion7 has had any luck with this Kowa Super 66 back ? Peter
