Nitrate Film Combustion Test

[Stephen Frizza]

I have recently obtained a huge cache of 1930/40 Eastman Kodak Company Nitrate Film. I have had it lectured into me about how extremely flammable this film is and how this film is able to self ignite. well curiosity got the better of me and so i took a square cm and tried to light it with an ember stick. it didn't ignite, Disappointment. So I took another square cm and this time applied raw flame it took a fraction of a second and the material ignited briefly in a lemon yellow and then the flame produced by the film went out leaving nothing but a brittle ash. so i took 4 inches of the film and lit one end of it on a gauze. the film only burnt about 3 inches before self extinguishing. Disappointment.

I conducted one final test by rolling 30cm (1foot) of the film and tying it with a wire. I then lit this roll of the film. the result was stunning it lit really well burning at a good speed in a bright yellow until all the film was consumed.

But it has led me to ask questions. It took me exposing the film to a naked flame to get it to ignite, and it didn't burn with explosive force like say a balloon full of hydrogen does, it wasn't a flame as vicious as say that of magnesium ribbon when you burn it. is the whole fear of this film type simply a film library driven fear when you have hundreds of reels sitting in a room?

These reports I read of the film self igniting is it possible its just one reel every couple of million? like human spontaneous combustion?

has anyone else here actually experimented with the combustibility of this material?



[fschifano]

No, I don't think it's one in a million. Ask some film conservators and they can tell you some horror stories. I've spoken to one at NY MoMA, which has a very extensive library of historic films. The problem is real. Chances are you don't have what you think you have.



[mike c]

I'd heard that the gassing of the stored film in large amounts in a hot room was a real problem.

mike c.



[Stephen Frizza]

i am about to scan the least graphic segment of the film i can find to show the rebate stating it as kodak NITRATE film



[Photo Engineer]

Steve;

The biggest danger, as you saw, is in the rolled up film. Second, once started burning, water will not extinguish it and this is the biggie! It keeps on going.

PE



[Stephen Frizza]

Thanks pe I thought this was the case that rolled up it was a danger. but unrolled when u light one end it didnt seem a drama.



[removed account4]

stephen

i have done the same test with collodion, it burned white and hot
and fast, just like it is "supposed to."
not sure if have heard of the cleveland clinic or the fire that was there
but in 1929 a light bulb's heat and xray film ( non safety film ) started a
huge fire and a lot of people died.

http://www.ohiohistorycentral.org/entry.php?rec=490

be careful with your tests ...



[PHOTOTONE]

I am wondering if your "Nitrate" in the rebate is a print through from the negative? This is movie film correct? The tests you conducted indicate that the film you have is not Nitrate, but "slow burning stock" or Safety film.
Nitrate will ignite easily and self-burn quickly if in good condition. Deteriorated nitrate even easier. Oh I see once you tried burning a small roll, it burned well. You probably have Nitrate. But..the Nitrate in the rebate can also be a print through from a camera negative if this is movie film. The key fact to know is that Nitrate based film stocks are unstable, and do deteriorate, and in the deteriorated state can be more dangerous.



[railwayman3]

i am about to scan the least graphic segment of the film i can find to show the rebate stating it as kodak NITRATE film

If it's a positive print, might it be a nitrate negative printed onto safety stock, and the edge printing has come through from the original neg?

I had a few inches of old worthless nitrate film a while back, and it burned very quickly and brightly, quite different to present-day film.



[Stephen Frizza]

There is no segment on the films indicating it as saftey films. This film only has Kodak Nitrate printed on the rebate and occasionally some numbers.

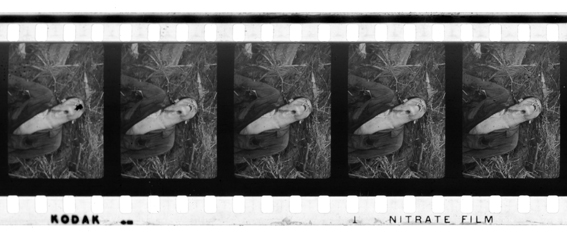

The EKC rusted Tins have kodak labels for Kodak nitrate film on them and film enclosed says Kodak Nitrate Film on the rebate. I have scanned a sample of thew film. This is the least graphic segment on the film i could find. i have 7 tins of these films all about 25cm across.



[gordrob]

I was concerned about some older B&W negatives I had from family pictures in the early 1900s and checked out some sites for information. There seems to be more data on motion picture film and the attached sites will give you a good idea about the dangers related to the nitrate film and what not to do when you try a burn test.

http://www.hse.gov.uk/pubns/cellulose.pdf
http://www.movieeditor.com/2005/nitrate.fire.html
http://www.amianet.org/groups/interest/nitrate/documents/NitrateIGNov08.pdf

Gord



[Stephen Frizza]

the movie editor link is awesome his first two tests are large scale results of what i did.



[pgomena]

Nitrate film is not likely to spontaneously self-ignite. Keep it cool and dry. Metal cans are not ideal for storage. Plastic is better, but seeing that you have historic artifacts, I'd keep the cans to help with identification. Just keep them cool and dry until you can turn them over to a knowledgeable restorer.

Peter Gomena



[Kino]

Loose fitting cans, well ventilated, in a cool, dry (no more than 50% humidity) room.

Let it breathe. Don't smoke around it.

Don't eat it or smoke it...

Filling your car with gasoline is far more dangerous than handling nitrate.



[Removed Account]

Stephen, you said you had to find the "least graphic" segment of the film to provide a scan. What are the films of?



[bdial]

See Stephen's other thread from today.



[Stephen Frizza]

The motion films are a 1930's collection of people being tortured and murdered in a variety of very brutal ways. From acts of being shot through the head at close range to being beheaded or gutted or to having their neck broken and then buried alive with only the bare ass remaining out of the ground...
and a list of other revoltingly disturbing acts.



[L Gebhardt]

The motion films are a 1930's collection of people being tortured and murdered in a variety of very brutal ways. From acts of being shot through the head at close range to being beheaded or gutted or to having their neck broken and then buried alive with only the bare ass remaining out of the ground...
and a list of other revoltingly disturbing acts.

Any idea who shot it? Is it special effects, or real?



[Stephen Frizza]

its one hundred percent real, there are defiantly not special effects.



[PHOTOTONE]

There is no segment on the films indicating it as saftey films. This film only has Kodak Nitrate printed on the rebate and occasionally some numbers.

The EKC rusted Tins have kodak labels for Kodak nitrate film on them and film enclosed says Kodak Nitrate Film on the rebate. I have scanned a sample of thew film. This is the least graphic segment on the film i could find. i have 7 tins of these films all about 25cm across.

These appear to be standard 35mm motion picture film. Are they positives?-or Negatives? There is no soundtrack present, but the camera aperture mask allowed for a soundtrack as there is a dark stripe between one edge of the image and the sprocket holes. Standard SMPTE format.

If they are positives, then that means they were printed from negatives somewhere, and that may help indicate their intended use. Do you think they were from World War 2??



[Stephen Frizza]

Im sorry I don't know their origin. and on one in the images is wearing army uniforms nor are they using what I imagine army weapons would have been.



[Anscojohn]

The motion films are a 1930's collection of people being tortured and murdered in a variety of very brutal ways. From acts of being shot through the head at close range to being beheaded or gutted or to having their neck broken and then buried alive with only the bare ass remaining out of the ground...
and a list of other revoltingly disturbing acts.

*********
Such things happened, I am told, during the Japanese war on China. Somewhat earlier, late 1920s, the Koumintang "suppression" of the communists was awfully brutal. Both were filmed.



[Kino]

Use the edge codes to tell the age:

http://www.sabucat.com/?pg=datecodechart

What appear to be the nationality of the people?


*************

OK, I went back in the thread and looked at the low rez image you posted. You may have Japanese atrocity footage from Japanese invasion of China in WWII.

I'd contact Screensound Australia (now the National Film and Sound Archive) if you want it identified and/or preserved; it may be unique footage.

http://www.nfsa.gov.au/about_us/contact_us.html

Here's a good resource for handling it...

http://www.nfsa.gov.au/preservation/film_handbook/



[Stephen Frizza]

thanks so much for this code info

according to that table and the codes on these films they are from two dates

Rochester USA as the tins the film are also indicating (double circle 1939)
and the second lot (circle Square 1942)



[Kino]

Bet it is footage of the Japanese subjugation of Formosa (Taiwan).

BTW: your footage was shot with camera with an academy aperture, so it was intended to be integrated into a sound production -- for what it is worth.

A lot of the early WWII footage is Full Aperture and shot with cameras of the Silent Era, so the maker was well-heeled.
