1

removedacct2

Member
Joined
May 26, 2018
Messages
366
I found a FED Trudkommuna from 1938 near Białystok and received it today.
Particularity is: added straps lugs, and a PC socket. Tested with a flash at all speeds but doesn't work. I could disassemble and check the contacts if I have time to waste. I will need to check it anyway, RF patch missing.
Wondering if these modifications are frequent:



4season

Member
Joined
Jul 13, 2015
Messages
1,929
Format
Plastic Cameras
Isaac Maizenberg’s book includes information on how to add (bulb?) flash synchronization to a FED-1.


Alan Johnson

Subscriber
Joined
Nov 16, 2004
Messages
3,234

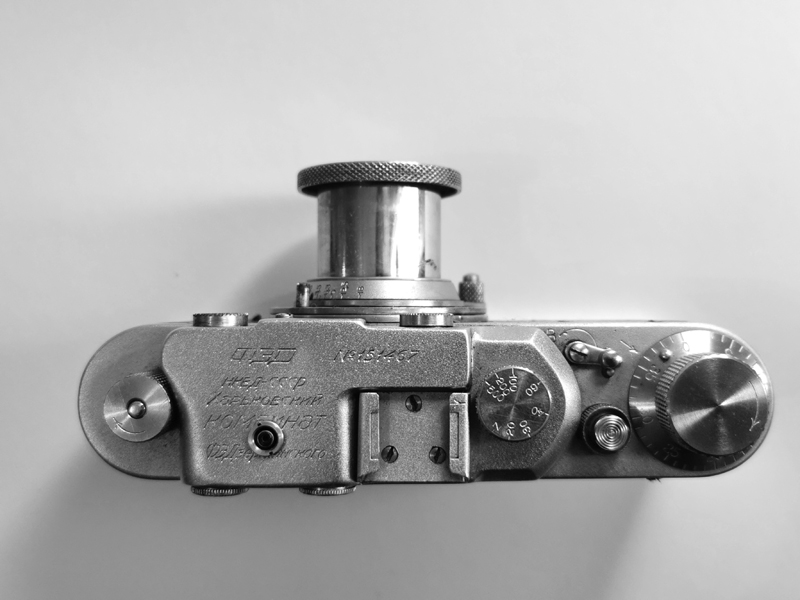

Mine has the flash sync connection on the top. It does fire electronic flash but dates from the flashbulb era, IDK if it fires at the right time.
Yours is only the second one I have seen apart from mine with flash sync and the sync connections were all in different places.
They seem quite rare so modified.


Attachments

  • FED sync.jpg
    FED sync.jpg
    175.3 KB · Views: 121
Last edited:

henryvk

Member
Joined
Feb 14, 2021
Messages
380
Location
Europe
Format
Medium Format
I've recently seen two of these being offered by a German eBay-seller. Never noticed one with flash-sync before, even though I frequently browse so I'd say they can't be very common. Afaik these mods are a DIY thing, hence the varying placement.

OP
OP

removedacct2

Member
Joined
May 26, 2018
Messages
366
Mine has the flash sync connection on the top. It does fire electronic flash but dates from the flashbulb era, IDK if it fires at the right time.
Yours is only the second one I have seen apart from mine with flash sync and the sync connections were all in different places.
They seem quite rare so modified.

I remember vaguely some Zorki with flash sync on top but FED never, nor on top nor on body shell. Nor strap lugs.

Isaac Maizenberg’s book includes information on how to add (bulb?) flash synchronization to a FED-1.

on the 1964 edition, pp. 172-175, indeed, and as it is on mine fig 142:



and the contact:


OP
OP

removedacct2

Member
Joined
May 26, 2018
Messages
366
Afaik these mods are a DIY thing, hence the varying placement.

the instructions in Maizenberg are fun, page 172 (on previous comment): "Фотомастерские получают штепсельные гнезда на заводах. Фотолюбители могут сделать их сами следующим образом: вытачивают цилиндрическую латунную трубку— (рис. 141)"

simple, grab a piece of brass pipe and make your own socket, etc.


Minox

Member
Joined
Oct 25, 2022
Messages
357
Location
Europe
Format
Multi Format
Mine is a Zorki, not FED, a 1955 camera. It does have a flash sync socket installed on the top plate, in the flash shoe. Obviously, a custom thing. The camera has been fully refurbished in Russia, some 10 or 12 yrs ago, complete with as-new patch and also leather instead of the vulcanite.

No strap lugs though.



georg16nik

Member
Joined
Aug 3, 2010
Messages
1,101
Format
Multi Format
The body shell – vulcanite with black metal rim – is from Zorki I type c with added straps lugs, and a PC socket.
The FED I body shell vulcanite never had metal rim – just like Leica II.

The addition of straps lugs, and a PC socket are some of the usual customization of the day for early FED, Zorkis


Minox

Member
Joined
Oct 25, 2022
Messages
357
Location
Europe
Format
Multi Format
the instructions in Maizenberg are fun, page 172 (on previous comment): "Фотомастерские получают штепсельные гнезда на заводах. Фотолюбители могут сделать их сами следующим образом: вытачивают цилиндрическую латунную трубку— (рис. 141)"

simple, grab a piece of brass pipe and make your own socket, etc.

How does one make and attach the strap lugs this way?

OP
OP

removedacct2

Member
Joined
May 26, 2018
Messages
366
How does one make and attach the strap lugs this way?

well that quote of Maizenberg book is not about strap lugs, but about DIY PC socket...

strap lugs I do add not on FED bodies but on Zenit-V by carefully boring holes and then inserting lugs from some salvaged camera, with strong epoxy. That's a simple way to do it.
