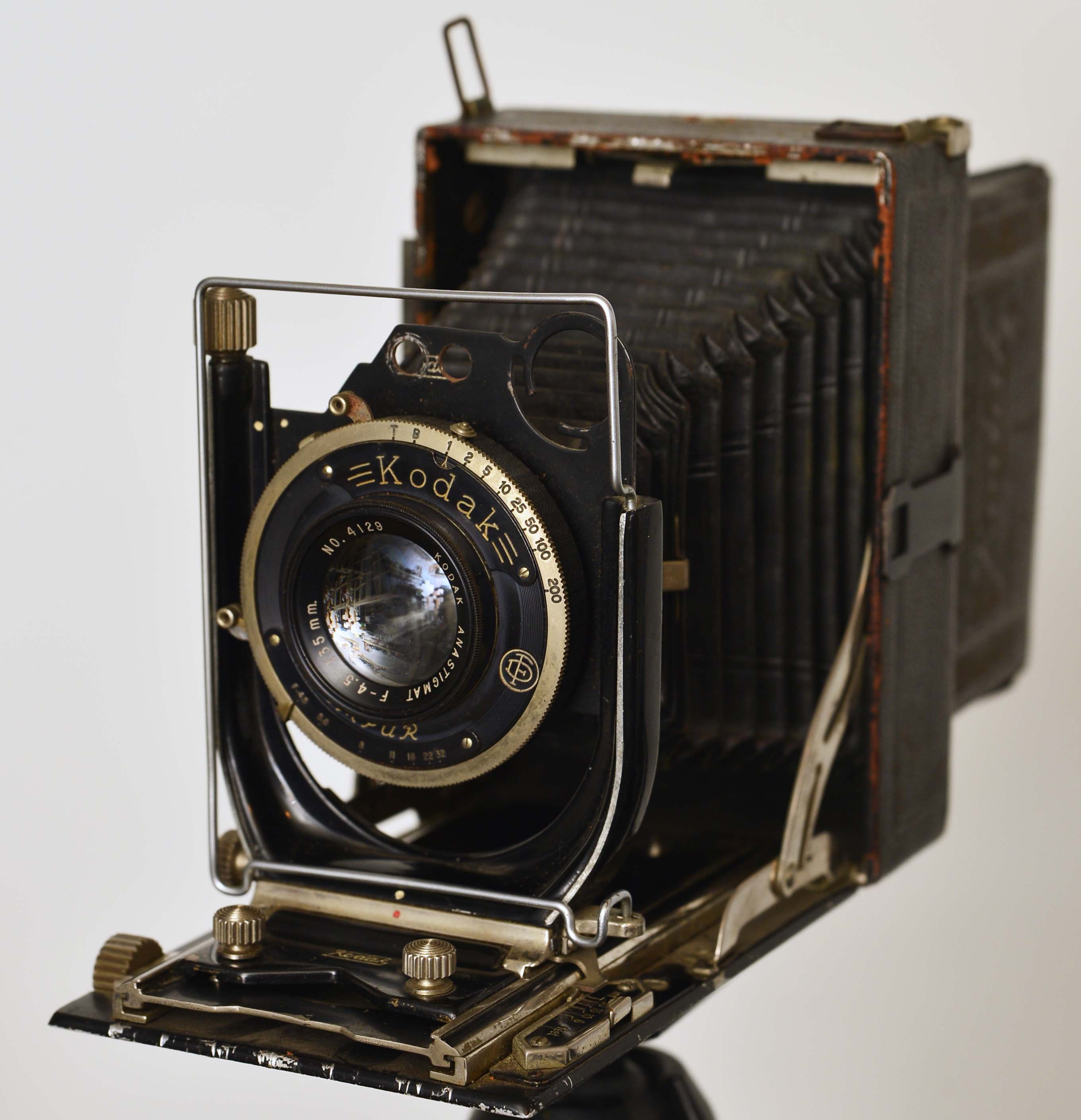

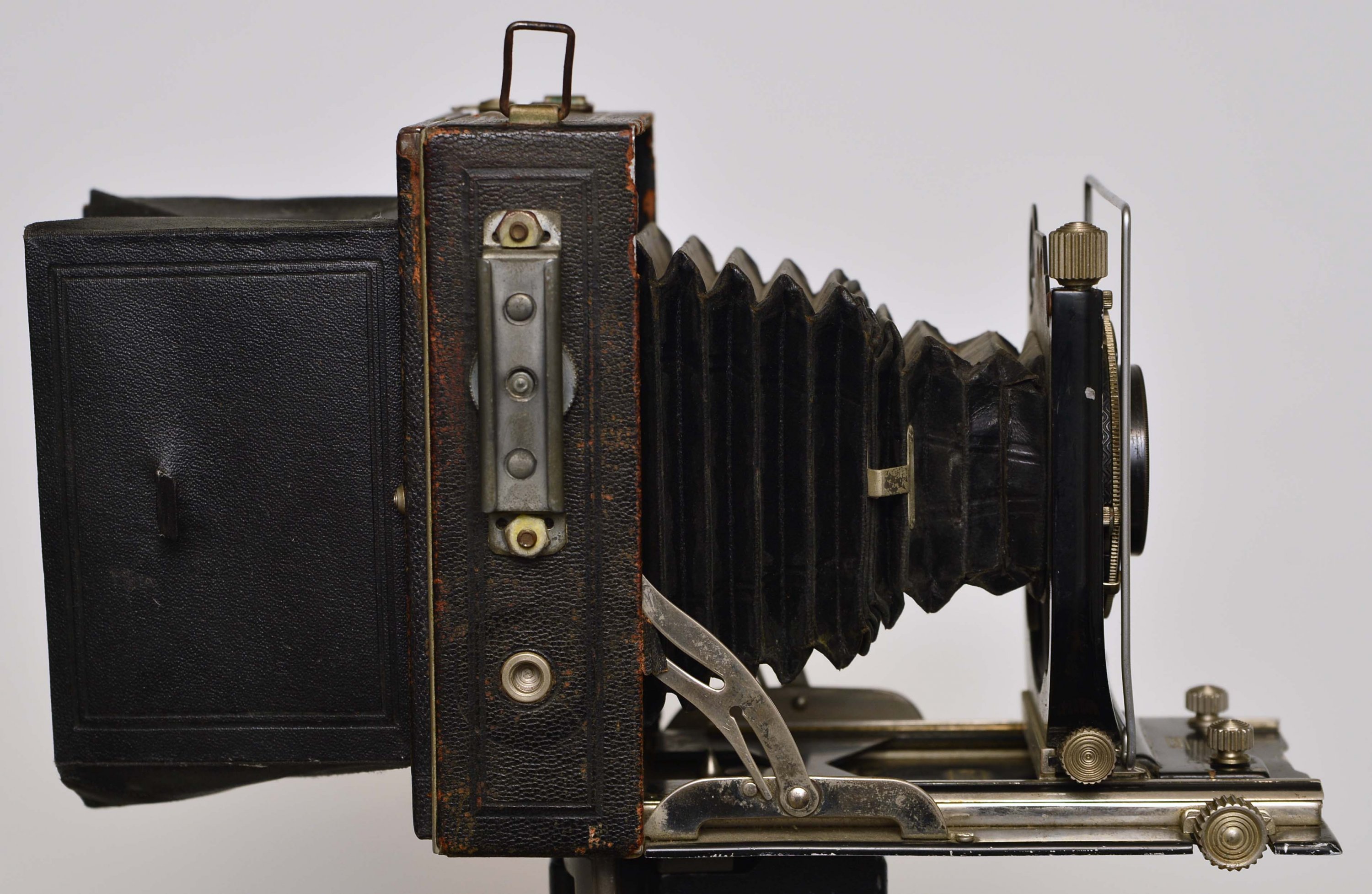

I was looking over a few folding cameras I have had for a while and started thinking about the possibility of taking some photos with an old Kodak Recomar camera I have. It uses 3-1/4 x 4-1/4 film. The lens surprisingly is in very good condition and the shutter speeds are not too terrible, unless you use slower ones. I found it at a yard sale years ago along with several film holders. It has a scale for focusing on the front lens standards, but I would prefer using the ground glass. The glass needs to be replaced because it was broken in several pieces and taped back together by a previous owner. Has anyone here ever used film of that size? Could 4x5 be cut down to fit? I still need to replace the ground glass before I even consider buying film.


Attachments

  • _DSC0001.JPG
    667.4 KB · Views: 114
  • _DSC0003_edited-1.jpg
    284 KB · Views: 121

JPD

Member
Joined
Mar 24, 2007
Messages
2,143
Location
Sweden
Format
Medium Format
Many plate cameras have groundglasses made from the same size glass as the photographic plates. I bought plate holders for my Voigtländer cameras and some of them had glass plates in them. I removed the emulsions from them and ground them, and they fit the groundglass holders perfectly and look and work exactly the same as the originals. So grind a 9 x 12 plate. It should have the correct size and thickness and be perfectly optically flat. 600 or 800 grit corundom or carborundom should be good.


nosmok

Subscriber
Joined
Jun 11, 2010
Messages
678
Format
Multi Format
If you're not opposed to quick and dirty, a sheet of translucent plastic works OK too, and is easier to cut rough to get one going (depending on the plastic, an X-Acto knife will work).


John Koehrer

Subscriber
Joined
Apr 3, 2004
Messages
8,275
Location
Aurora, Il
Format
Multi Format
I've got a 9X12 GG that looks to be unused.
It measures 102X128mm with 1/4" grid and an X for actual center. $12.00 shipped 1st class to US.


JPD

Member
Joined
Mar 24, 2007
Messages
2,143
Location
Sweden
Format
Medium Format
I've got a 9X12 GG that looks to be unused.
It measures 102X128mm with 1/4" grid and an X for actual center. $12.00 shipped 1st class to US.

The thickness is important as well. If it's thicker than a glass plate it might not be possible to slide it into the gg holder.

Joined
May 10, 2006
Messages
37
Format
Large Format Pan
B&H has film. It was the "other" standard size for Crown Graphic cameras. Holders and film hangers are out there too.
