Kodak Duo-620 shutter?

[marcusverger]

Hi,

I have recently acquired a Kodak Duo-620 camera (Series II model), taking 6 x 4.5 negatives on 120 film.
The camera is in really good cosmetic condition.
The optics seem clear and the shutter speeds of 1/125, 1/100, 1/50, 1/25 plus B & T are good except for the slow speed of 1/25 is sticking badly.

Serial number inside camera is - 138684K.

The lens says - " Kodak Anastigmat f4.5 F=7.5 "

My question is - What is the shutter? Kodak S, Compur or Compur Rapid??

Thanks,



[BrianShaw]

Compur Rapid. At least mine is. Picture of your?

a very fun camera that is photographically Speaking... highly capable.



[BrianShaw]

And I know you didn’t ask but... seriously consider seeking out the correct size Series V slip-on adapter, hood and a few contrast filters.



[marcusverger]

Thanks Brian! I am having difficulty uploading photos at present, don't know what is going on!

All it says on front of lens is - >>KODAK<< with shutter speeds above it (125, 100, 50, 25, B T). AT bottom, it has ACG or is it AGC Logo!

Hope this helps.

Marcus



[marcusverger]

And I know you didn’t ask but... seriously consider seeking out the correct size Series V slip-on adapter, hood and a few contrast filters.

What is correct size filter - 27mm??



[BrianShaw]

Yes, 27mm series V adapter. The filters themselves are “drop-in”... unthreaded. Held in place with either a retaining ring or a Series V shade. Contact Tim at filterfind.net if you want easy, reliable, and fast service.

Mine, BTW, is marked “Compur Rapid” on the shutter’s faceplate.



[BrianShaw]

Read this:

http://camera-wiki.org/wiki/Kodak_Duo_Six-20

Apparently it was released with 2 different shutters. ACG means Gauthier if I’m not mistaken.



[Dan Daniel]

All it says on front of lens is - >>KODAK<< with shutter speeds above it (125, 100, 50, 25, B T). AT bottom, it has ACG or is it AGC Logo!

Marcus

AGC is the marking on Prontor shutters. I guess for 'Alfred Gauthier, Calmbach.'

http://camera-wiki.org/wiki/Gauthier



[marcusverger]

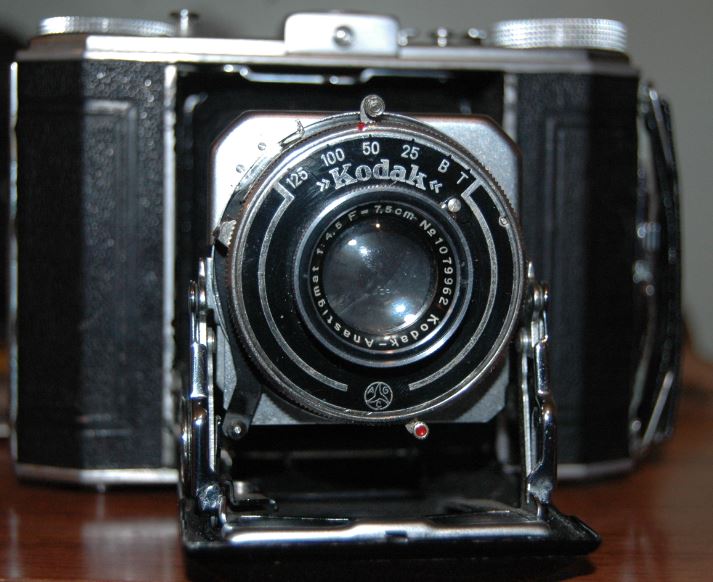

At last, here are some photo's of the camera & lens !!

What do you think??



[BrianShaw]

Ah... interesting. The Compur Rapid goes to 1/400 shutter speed.



[BrianShaw]

Have you seen this?

https://www.photrio.com/forum/threads/prontor-shutters.147184/



[marcusverger]

The info I found says it should be either a Kodak S, Compur or Compur Rapid.
Or is this something else??
Definitely a Kodak lens !!



[BrianShaw]

Dan knows his stuff. Please don’t be offended by this quote (I would have tried being more diplomatic):

“Shutters were either Compur or Compur Rapid, with an El-Cheapo 4-speed Gauthier available for the f4.5 KA lens Bargain Basement version.”

Source: http://kodak.3106.net/index.php?p=302&cam=914

Yours, BTW, is the first I’ve seen in that shutter. Despite a lot of looking on bay, though, I might not have noticed because until this discussion I thought they all had Compur Rapid shutters.



[marcusverger]

No offence taken ! That is why I find it good to ask questions on a site like this.

I would rather be told what something is or isn't by people in the know...(Google search can be a bit limited at times...)

I bought it in Brighton, UK, for £20 last week. Have yet to run a film through it.



[BrianShaw]

That’s a great price! If the shutter runs, re-roll some film onto 620 spool and enjoy!



[removedacct1]

At last, here are some photo's of the camera & lens !!

What do you think??

Yeah, that's the cheaper Gauthier shutter. It was the "discount" version. The Compur shutters have the Compur name on the front plate.



[marcusverger]

Thanks to all of you. Now I know what I have - 4 Speed, Gauthier Shutter. Dated to c. 1937 - 1939.
Shame the 1/25 is playing up, but, hey, you get what you pay for.

I will get around to putting some film through soon and sow you all the results.

Thanks again to all of you!
