Hi,

The rotation motor in my ATL-1000 is making strange noises. It still works, but it's probably a good idea to start looking for a replacement.

The question is: Where can I get one?

In the past I've got parts from Klaus Seynsche, but his website is down (www.fotolaborservice.de), so I wonder if he's still in business. Catlabs is an option too I suppose, but I'll first try to find one closer to home.

Also: Do anyone know the manufacturer and parts number for the motor?

Thanks,
Trond

OP
OP
Trond

Trond

Subscriber
Joined
Jul 21, 2004
Messages
854
Location
Harestua, Norway
Format
Multi Format

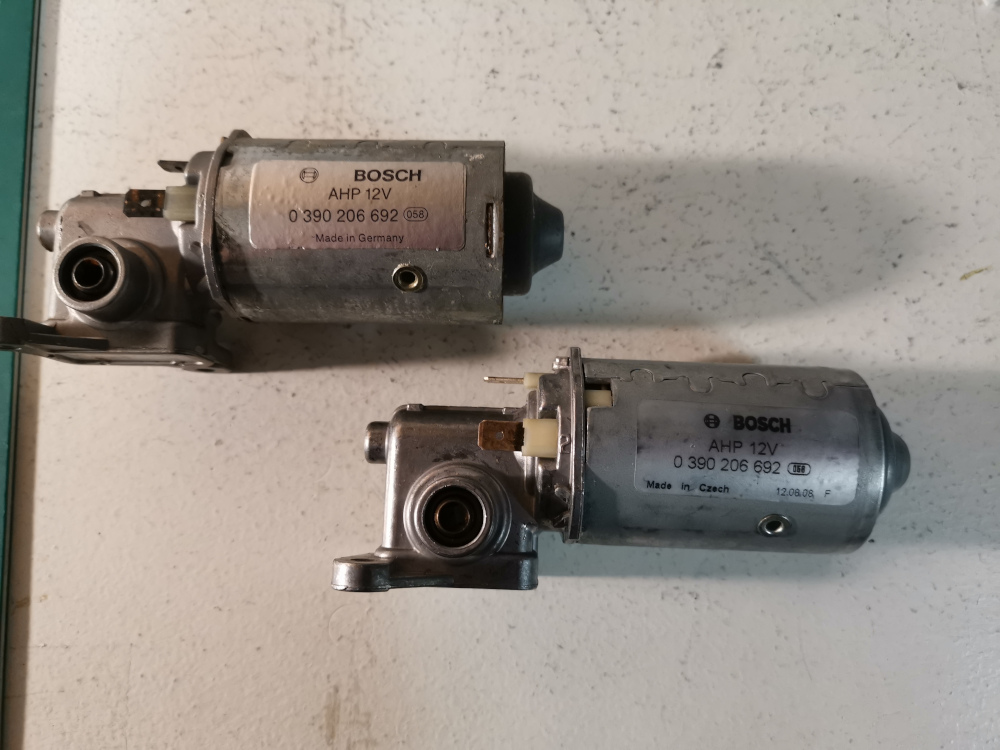

I can probably answer my own question. I found this post: https://www.photrio.com/forum/threads/what-are-those-jobo-parts.74633/ which refers to "Bosch 0 390 206 692". A quick search reveals that this motor is used, among other things, as a head rest motor on some Mercedes cars. Found one on eBay which I bought: https://www.ebay.com/itm/original-B...369611&hash=item3b25e57ebb:g:-qgAAOSwXyBcIVOV

A search on eBay for "Mercedes w124 head rest motor" results in several motors made by Brose, which look very similar to the Bosch.

Trond

OP
OP
Trond

Trond

Subscriber
Joined
Jul 21, 2004
Messages
854
Location
Harestua, Norway
Format
Multi Format
Hi,

Still waiting for the new motor, but I expect to pick it up tomorrow.

I also got a reply from Klaus Seynsche (kds@fotolaborservice.de). He has the motor in stock, and lots of other parts for Jobo-processors.

Trond

OP
OP
Trond

Trond

Subscriber
Joined
Jul 21, 2004
Messages
854
Location
Harestua, Norway
Format
Multi Format

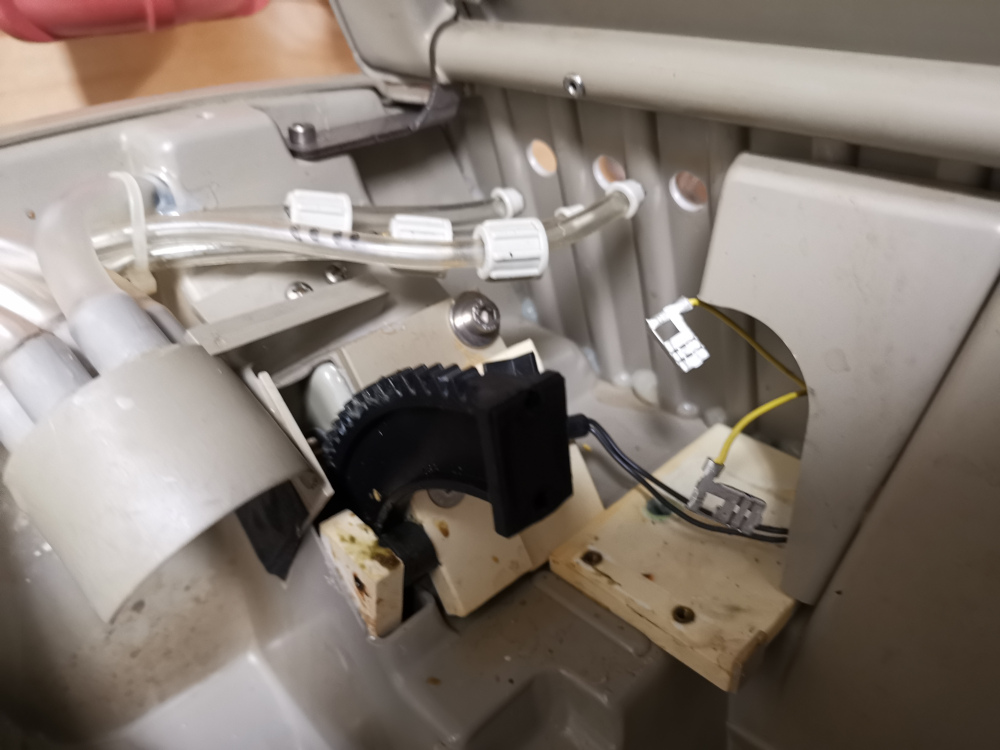

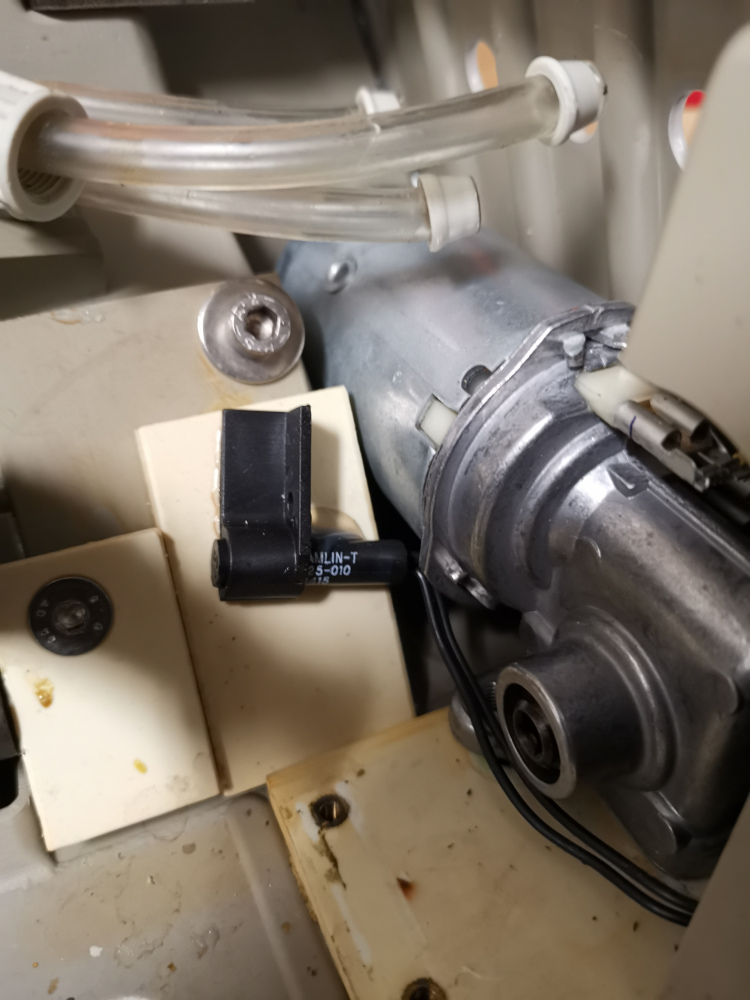

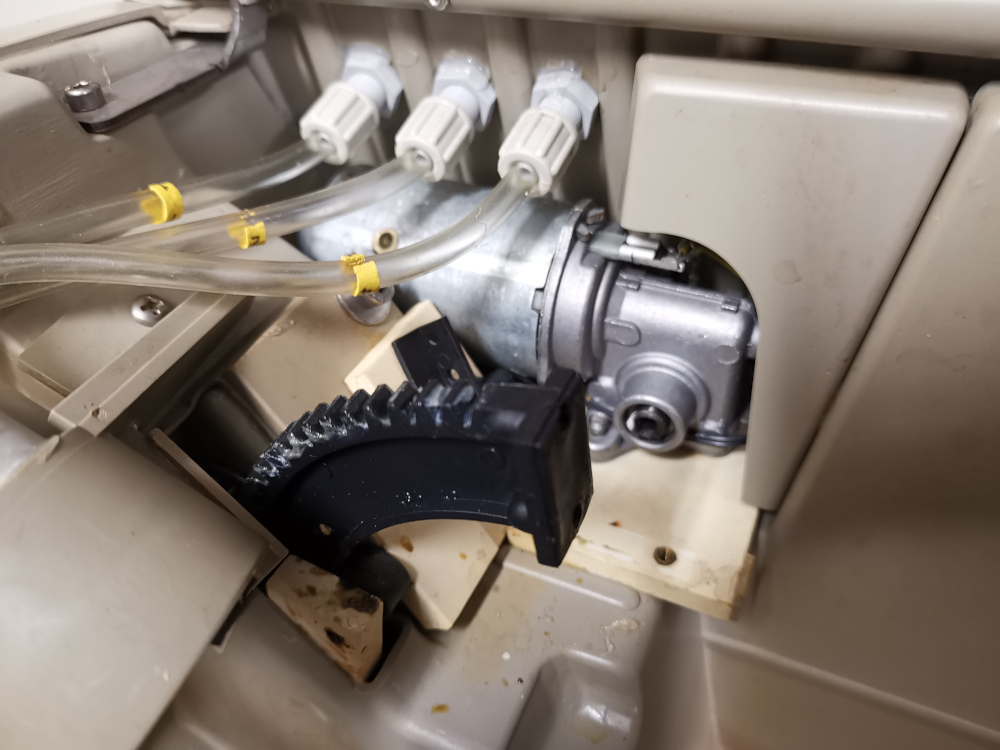

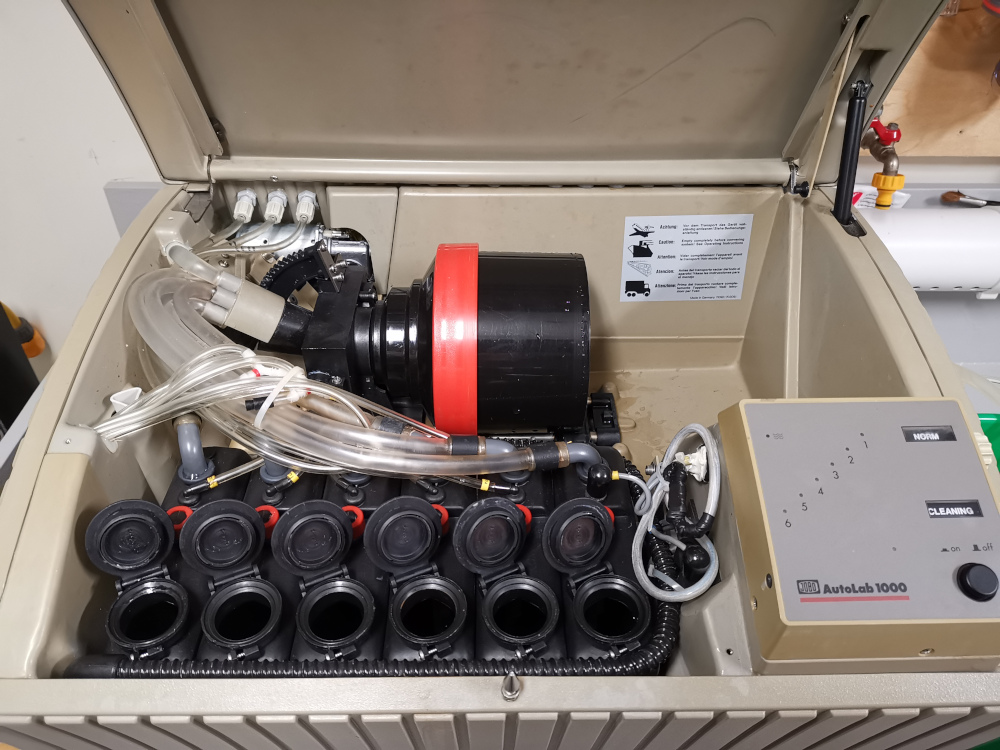

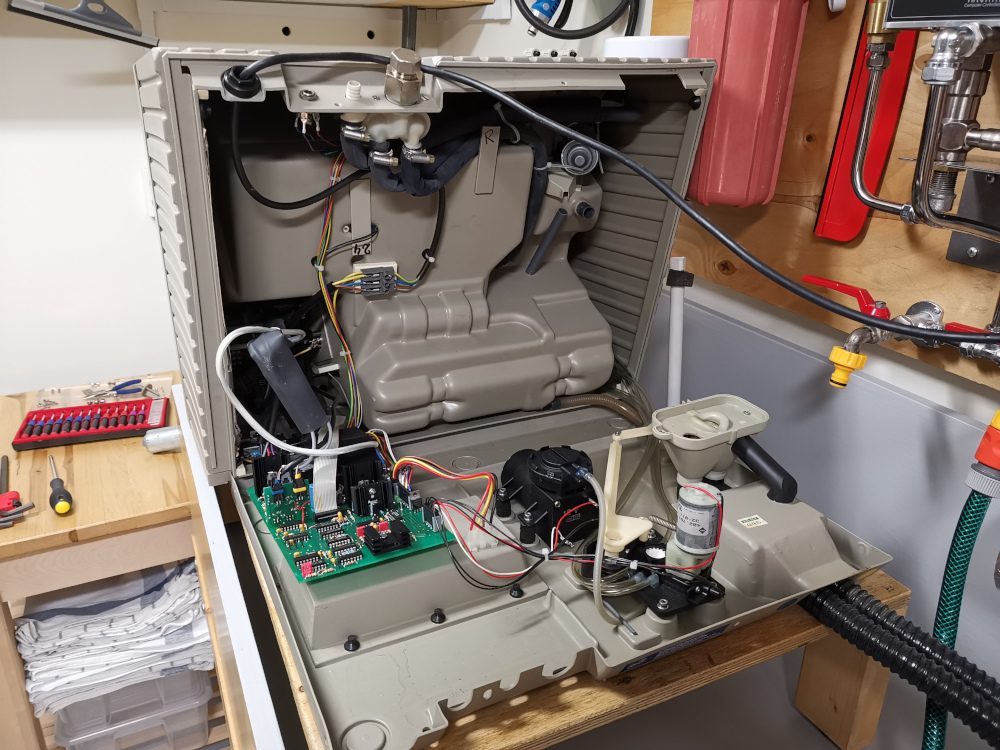

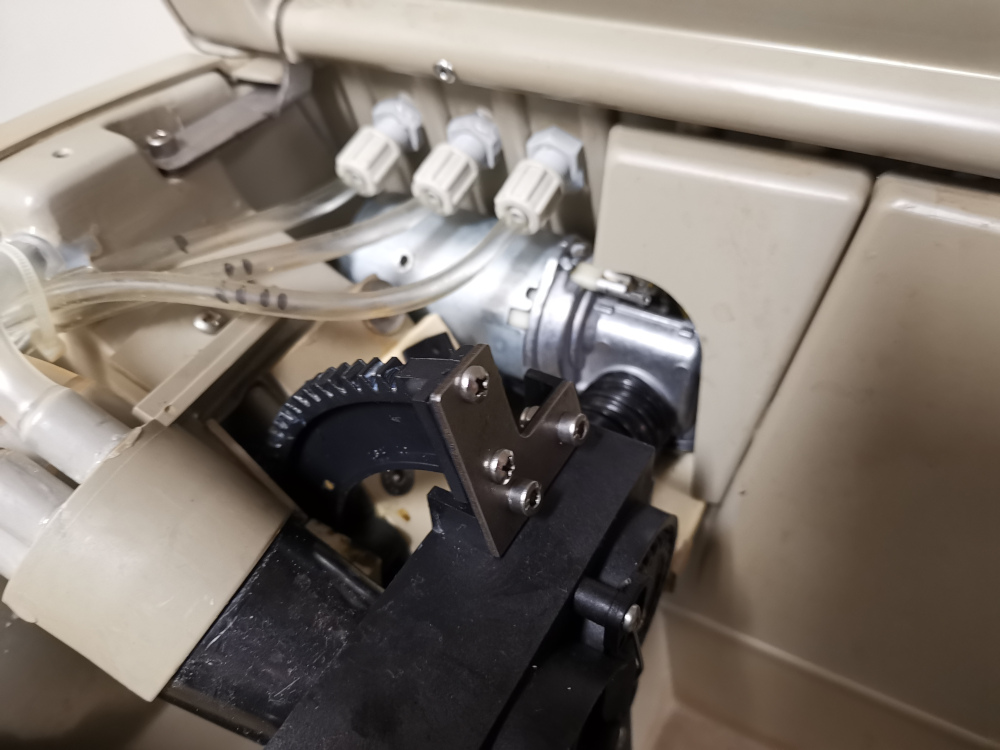

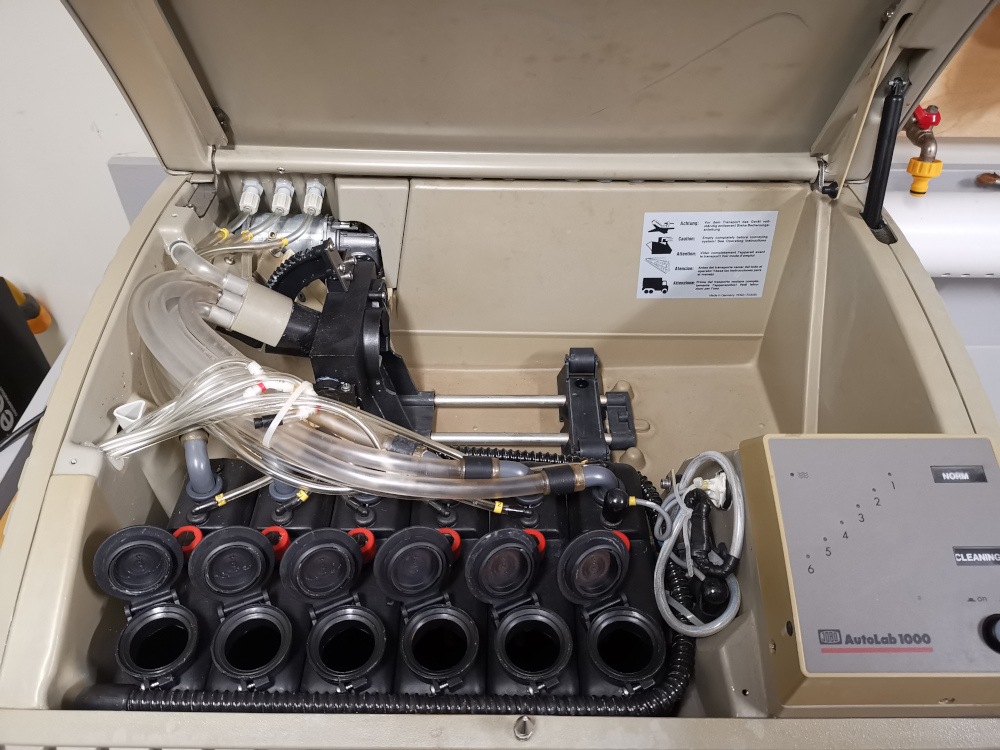

Collected the motor yesterday, and I have now replaced the motor in my Jobo. It took about two hours, and was relatively easy to do.

Trond
01.jpg 02.jpg 03.jpg 04.jpg 05.jpg 06.jpg 07.jpg 08.jpg


Cicero Lima

Member
Joined
Jan 5, 2017
Messages
1
Location
Brazil
Format
35mm
Hi Trond!

I have a similar issue, but the motor doesn’t make a strange sound. Just slow down, most from one side rotation.

I’m thinking about caps, relay or the rotation motor.

Could you please help me?

I’m looking on eBay for parts to. Found the motor! And here in Brazil i’ve Found other parts, but not the relay.

Do you know which part is the relay?

Thanks!



Collected
motor yesterday, and I have now replaced the motor in my Jobo. It took about two hours, and was relatively easy to do.

Trond
View attachment 216744 View attachment 216745 View attachment 216746 View attachment 216747 View attachment 216748 View attachment 216749 View attachment 216750 View attachment 216751
