This is in the category of one-thing-leads-to-another.

I put a 3-cell liop in my Rolleiflex 6008i and it worked so well, I put one in my Rollei e36 flash. Now that the flash works, I can use my Polaroid 250 camera. But, in the mean time the film is discontinued. So, what to do.

Thus this project: Make an Instax 6x9 Graflok film back for the Horseman VH-R.

I have done much of the on-line research for the project already, and am ready to start buying stuff.

Dead Link Removed

Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format
For the Graflok connection, I'll use either parts from a Horseman rollfilm back or a 6x9 film holder.

Horseman 6x9 or 6x7 rollfilm back. Many variations out there. Will have to look around.
Also, Singer made a 6x6 back that might be better, since it might match the instax film size better.

NOTE: even though the Horseman has a back I'm calling Graflok, not all 6x9cm are the same. Many are interchangeable, but just to make sure everything fits, I'm concentrating on getting a Horseman branded film back for the parts.

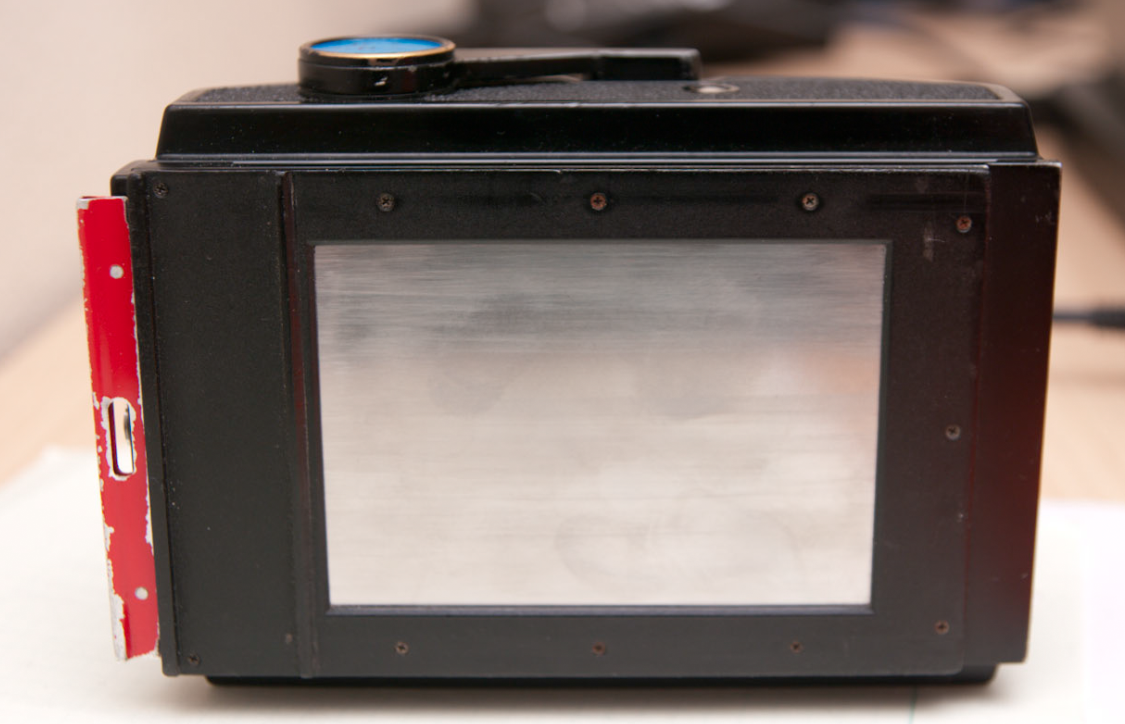

Here is the portion of the Horseman back I need.

Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format
Here is the Singer 6x6 back. I think this also fits the Horseman.
graflex-singer-rh-12-6x6-120-roll-film-back-holder-rh12-2x3-369-1cec3eb820a3b81fe457be600ccbf5f8.jpg

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format
Instax Belair.jpg
There are two film backs out there for instax. One is the Lomo Belair Instax Wide back with hand crank. The other is a smaller one for the Diana and thier own little Instax plastic camera.

The Instax Wide Belair looked to be just the thing, however I found this Instax Belair (hand crank) example photo. Maybe the hand crank is no good and you need the motor. Also, it turns out the Instax Belair back may be out of production. I can't find it for sale anywhere.


Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format

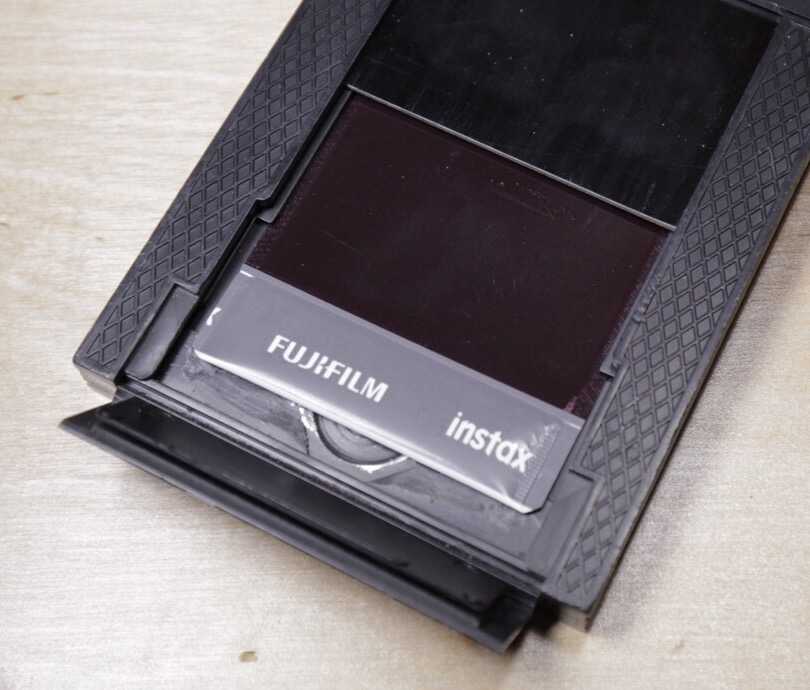

Just saw this, looks like the Instax film might fit in my 6x9cm film holders. It can then be put back in a instax camera and use the instax camera like the old Polaroid sheet film processors.
So, another twist on this project would be to modify a cheap instax camera in to just a film processor that does not need to make the Graflok connection. Just expose all the instax film in 6x9 film holders like the Polaroid or Impossible sheet film.

Last edited:
OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format
The more I think about it, using the Instax film like sheet film in the 6x9cm holders is brilliant. One would need just 5 holders and the entire 10-pack of film can be loaded and exposed. Then, the instax cartridge can be re-loaded with the exposed film and the camera will spit them out for processing one-by-one.
Seems almost too good to be true. A real big plus is the instax film will be positioned at the correct focal plane as conventional film, so no modifications to the camera are needed.


jacaquarie

Member
Joined
Jan 25, 2009
Messages
173
Format
Medium Format
I want to know how this works out!!
A Baby (2x3) Speed Graphic, instax film and processing, you just may be on to something great!
Keep me in the loop.
You may have discovered the solution for the demise of other instant products.

Thanks

Aj

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format

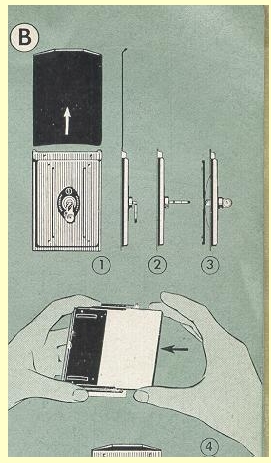

Looking at the size, I suspect the instax film will also fit in the Rolleiflex TLR sheet film back, in the special holders.
Rollei sheet film.jpeg

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format

mweintraub

Subscriber
Joined
Dec 22, 2008
Messages
1,725
Location
Dallas, TX
Format
Medium Format
Just saw this, looks like the Instax film might fit in my 6x9cm film holders. It can then be put back in a instax camera and use the instax camera like the old Polaroid sheet film processors.
So, another twist on this project would be to modify a cheap instax camera in to just a film processor that does not need to make the Graflok connection. Just expose all the instax film in 6x9 film holders like the Polaroid or Impossible sheet film.

You're mixing formats. The Belair back is for Instax Wide and this one above is for Instax Mini. FYI


hsandler

Subscriber
Joined
Oct 2, 2010
Messages
471
Location
Ottawa, Canada
Format
Multi Format
What we really need is a Graflok back for a 4x5 camera that takes Instax wide (the mini stuff is just too small for a good scan) and a processing motor or good manual rollers built in. I'm putting Instax wide in 4x5 holders, but the transfer back and forth to an Instax cartridge in the dark and an Instax camera for "developing" is fiddly. More important, it means development is not truly instant. The problem with Instax film is the limited exposure range. I frequently make exposure errors, and what I really need is instant feedback out in the field so I can take another shot then and there.

OP
OP
ic-racer

ic-racer

Member
Joined
Feb 25, 2007
Messages
16,509
Location
USA
Format
Multi Format
You're mixing formats. The Belair back is for Instax Wide and this one above is for Instax Mini. FYI
Instax wide is 62 x 99mm, so it is bigger than the nominal "6x9" frame opening, but the Horseman is capable of exposing up to 4x5" film with the appropriate back. So the Horseman VH-R should be able to expose the entire Instax Wide film.
I had forgotten about the Square and WIde film because I'm pretty happy with the little images at this time. The instant processing is pretty amazing when you think about it. The maximum number of sheet films I can process is ten, and it takes 15 minutes just to set up and fill the processor.

In the field I use a common changing bag to manipulate the un-processed film and get it into the 'processing' camera. I keep the camera in the bag and open-close the back in between processing each film. Opening and closing the back after each print is processed resets the camera so the shutter won't open and the flash won't fire when processing the next image; the camera thinks it is spitting out the dark slide each time.

That is so much easer than when I was doing wet plate in a portable darkroom in the field.


peter k.

Member
Joined
Nov 27, 2011
Messages
1,404
Location
Sedona Az.
Format
Multi Format
Well been looking around for a used Instax Wide camera and got one today, a 210, so need to get some film to try this out with the 4x5.
See a mess of it on e-bay... were does one look for the expiration date? It must be printed on the boxes somewhere, so to know it its fresh?

I frequently make exposure errors, and what I really need is instant feedback out in the field so I can take another shot then and there.
We plan to expose the 'Film' in a 4x5 film holder, and then place it in a dark bag, and process it in the Fugi Instax wide camera in the field.
We tried this with my MF Speed, with the Instax mini, .. and it worked well.


hsandler

Subscriber
Joined
Oct 2, 2010
Messages
471
Location
Ottawa, Canada
Format
Multi Format
Well been looking around for a used Instax Wide camera and got one today, a 210, so need to get some film to try this out with the 4x5.
See a mess of it on e-bay... were does one look for the expiration date? It must be printed on the boxes somewhere

It's on the side of the box of two cartridges. But I found the best price was fresh film from B&H in NYC. $14.88 for a box of two wide cartridges, 20 sheets. Almost the same price per sheet for wide as mini.

Last edited:
Photrio.com contains affiliate links to products. We may receive a commission for purchases made through these links.
To read our full affiliate disclosure statement please click Here.

PHOTRIO PARTNERS EQUALLY FUNDING OUR COMMUNITY:
