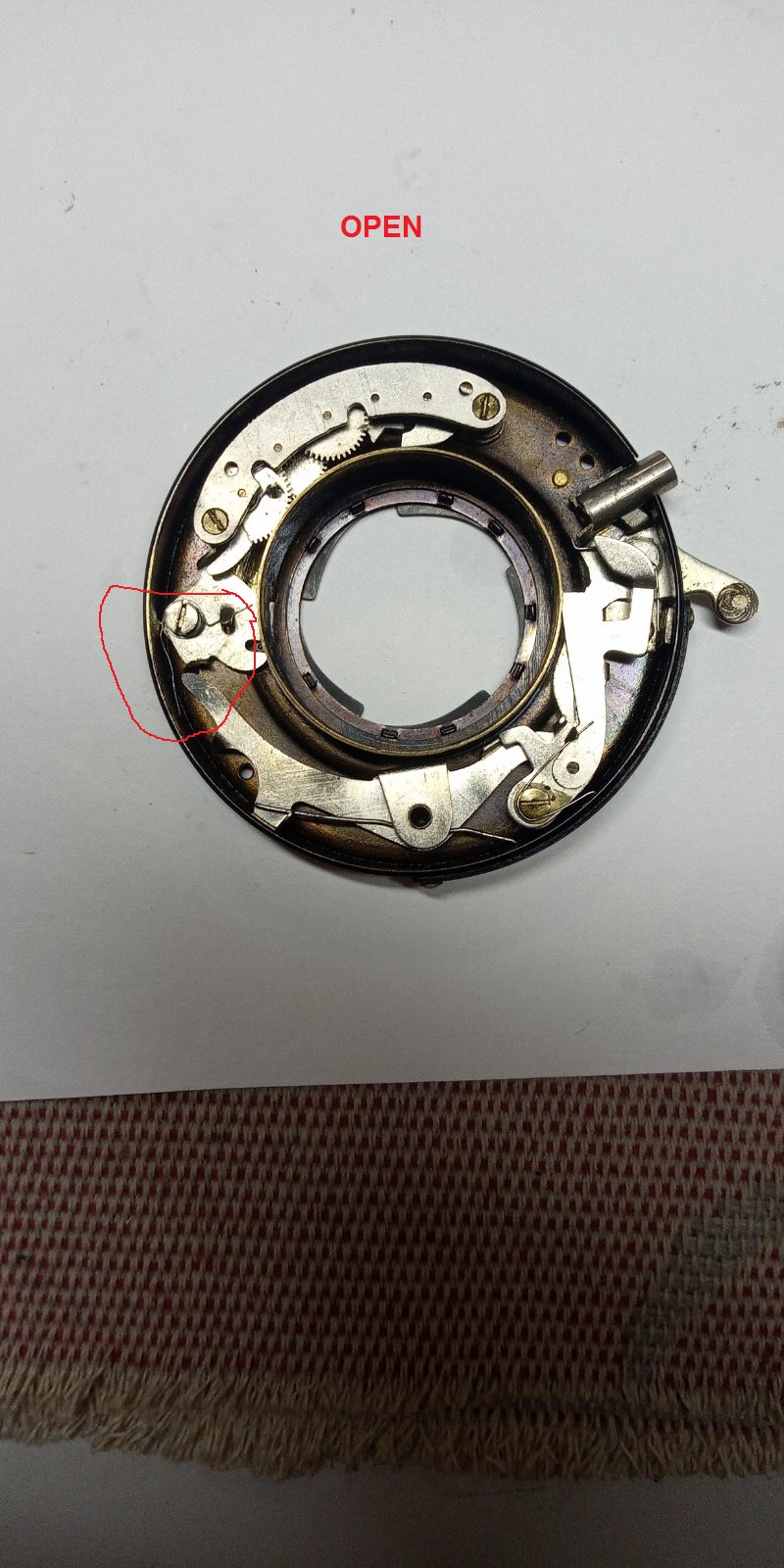

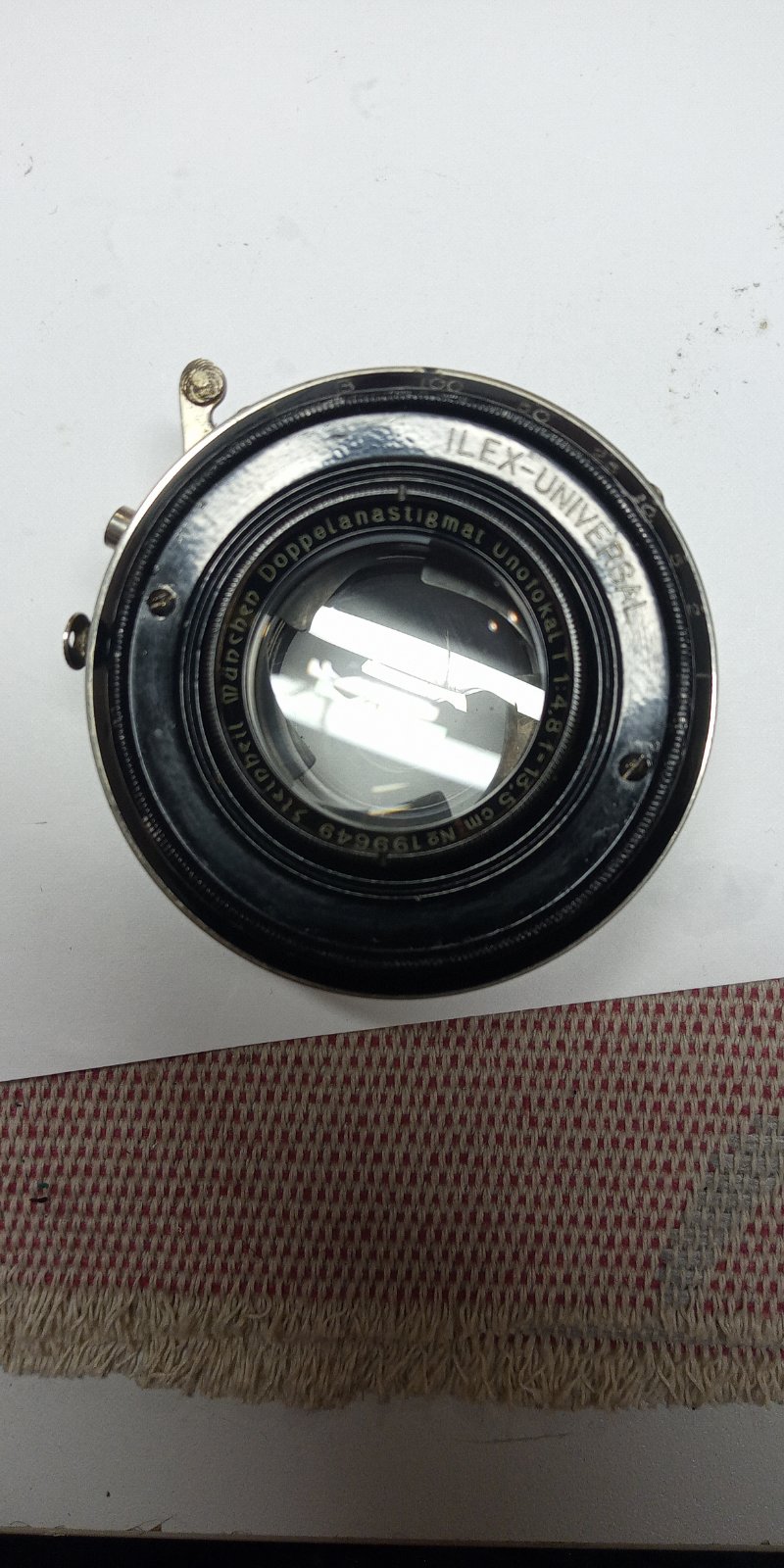

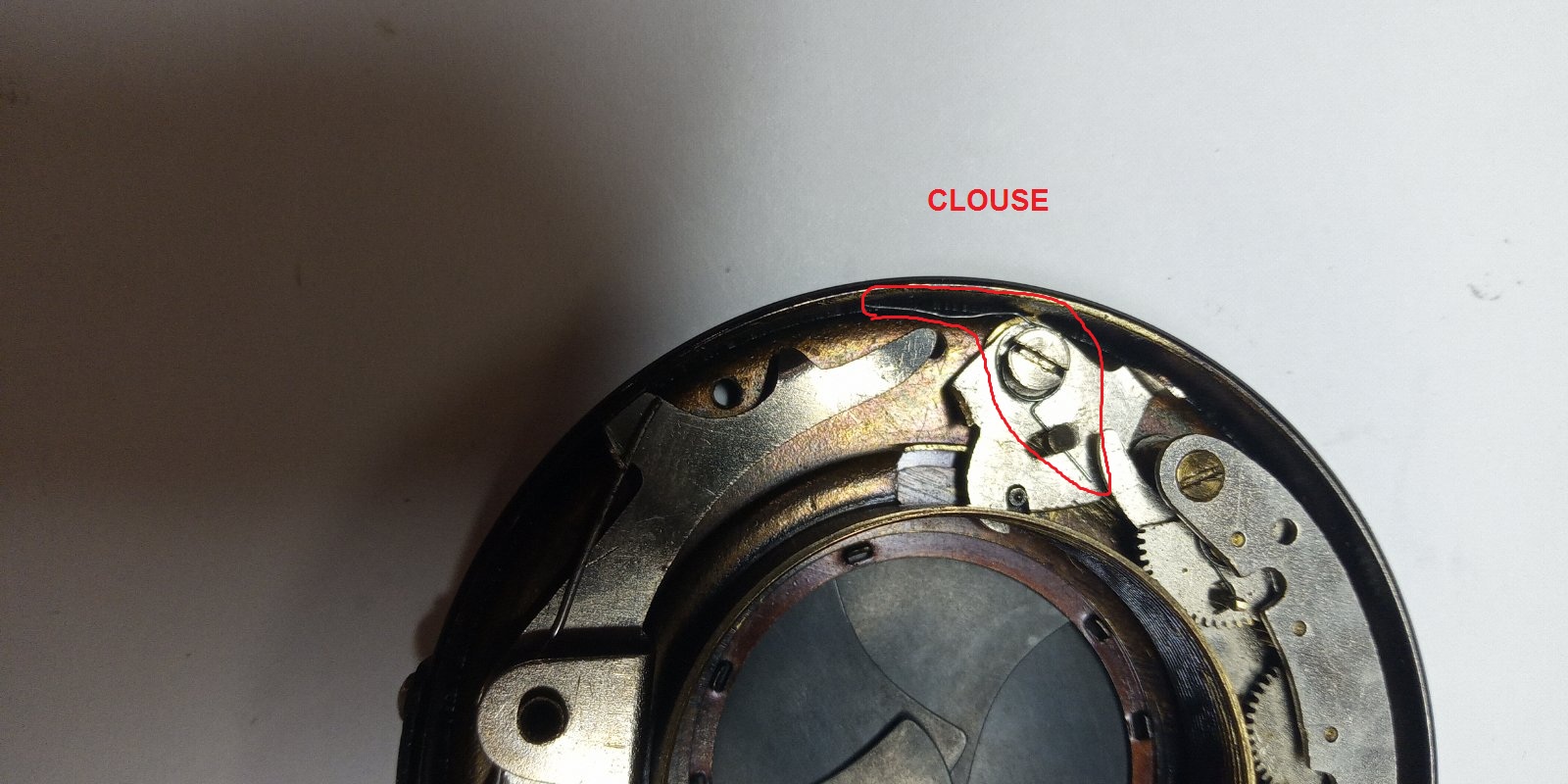

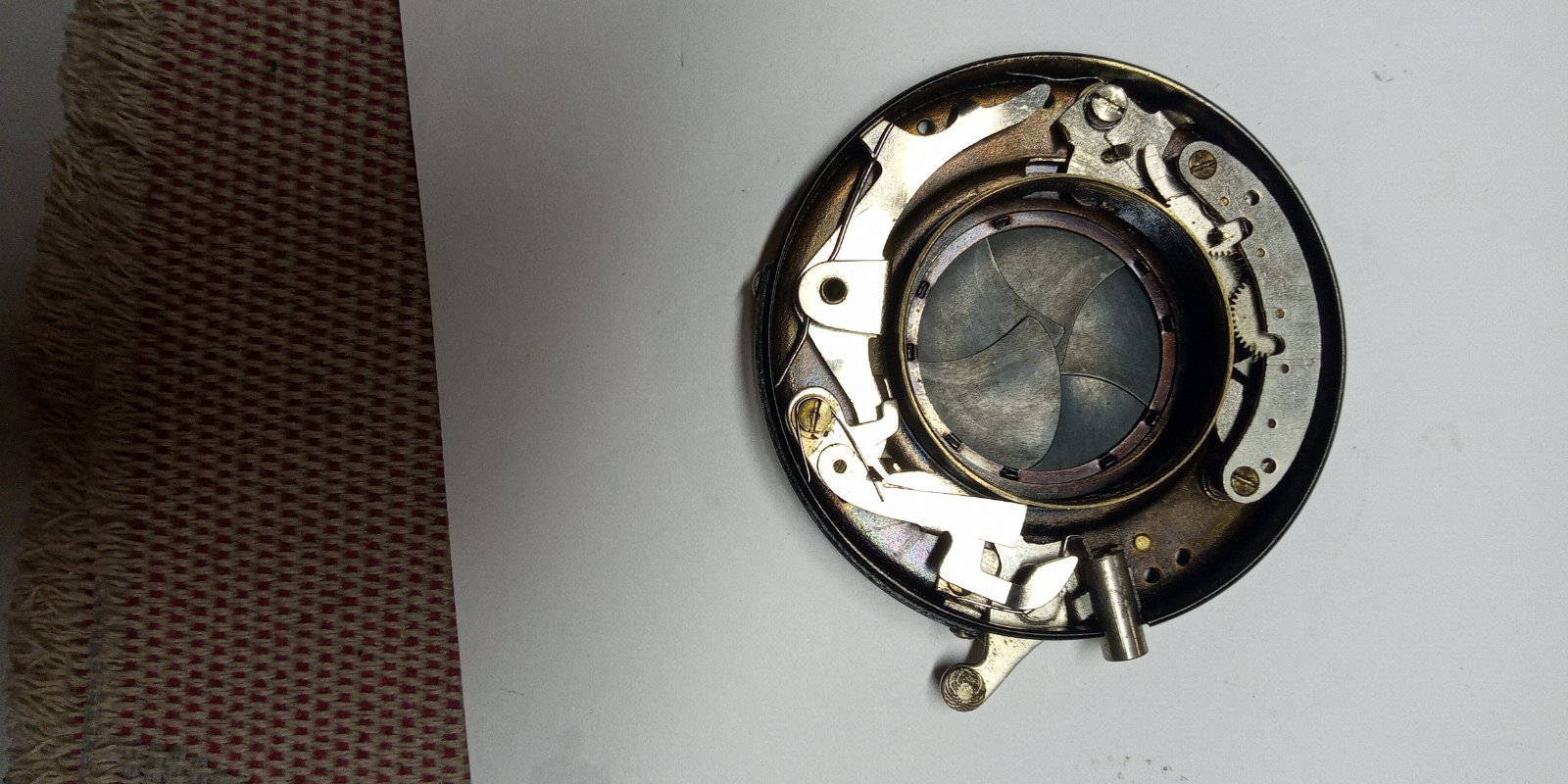

Dear friends. I have a camera with an Iles Universal lens. Until recently, it worked, but yesterday when I turned on the T shutter speed, something clicked and the shutter stopped working. I disassembled it, washed it with alcohol, checked all the springs, and found out that one spring was not strong enough to close the bolt until the end. If you put a more powerful spring, then there is no force to open it. All shutter blades move without friction, easily. Perhaps someone can tell where the problem is? And how to solve it. 2.jpg


Attachments

  • 1.jpg
    291.7 KB · Views: 86
  • 3.jpg
    230.4 KB · Views: 94
  • 4.jpg
    221.5 KB · Views: 95

BrianShaw

Member
Joined
Nov 30, 2005
Messages
16,459
Location
La-la-land
Format
Multi Format
It’s dirty. Dirty and dry. Did you disassemble to clean? If not, it sometimes takes several flushes to get a shutter clean enough.
