eddie

Member
Joined
Jul 24, 2005
Messages
3,258
Location
Northern Vir
Format
Multi Format

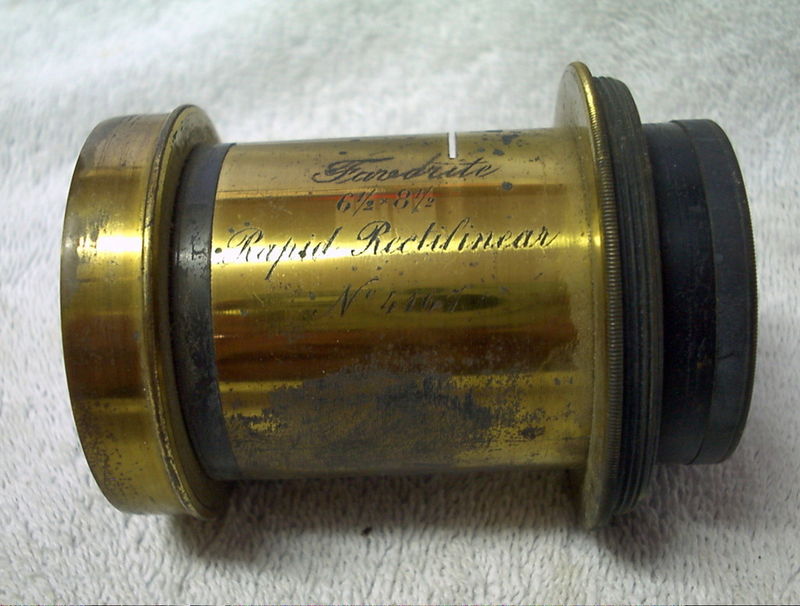

I've wanted to try vintage lenses for quite awhile. I received this one yesterday. It's engraved " Faredrite 6 1/2 x 8 1/2 Rapid Rectilinear. I'm planning on using it on my 5x7. There's a slot for Waterhouse Stops. Anyone have any idea how old it is? Any other info would be appreciated, too.


Attachments

  • KGrHqJHJBIE72JCqFSBPGK7DlE-g60_3.JPG
    73.6 KB · Views: 97

pgomena

Member
Joined
Jun 25, 2003
Messages
1,391
Location
Portland, Or
I have a similar lens that dates to 1895. These were very common lenses and turn up frequently. They were older technology at that time and less expensive to produce, so they were popular. Mine is a less-than-spectacular performer, but I think it may have been disassembled and reassembled incorrectly at some point in its life. Rapid Rectilinear lenses generally are decent performers. (I own a different RR lens that is quite sharp.) They tend to be a little soft at the corners, but since you are using it for a smaller format than it was built for, that may not be a problem. Figure your maximum aperture to be about f/8. I find that darkslide material from a broken slide makes good material for fabricating Waterhouse stops. Have fun with it - there's nothing like using an old lens.

Peter Gomena

OP
OP
eddie

eddie

Member
Joined
Jul 24, 2005
Messages
3,258
Location
Northern Vir
Format
Multi Format
Thanks, Peter. I'm looking forward to mounting it on a board, and seeing what it can do.
