Format
35mm RF

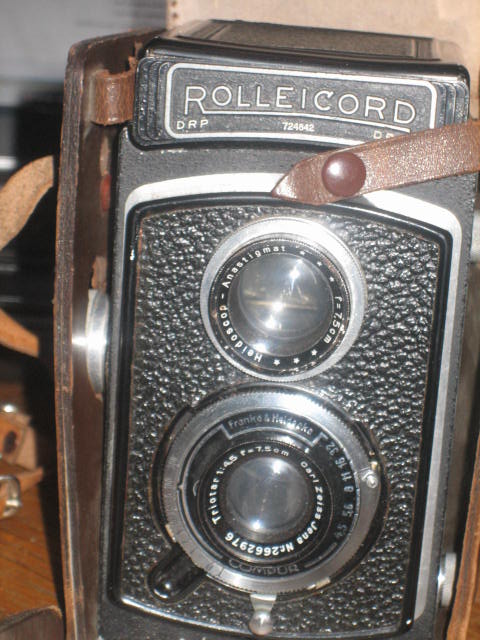

I have a Rolleicord and dont the the model or date. I searched the web and the closest match i could find was a limited police edition of 500 but im sure this is not that one, i wish i could be that lucky! The seial number 742xxx, viewing lens is Heidoscop - Anastigmat f=7.5cm, Taking lens Carl Zeiss Jena Nr2662976. The camera is in rough shape with only one shutterspeed.

When i checked the web it seemed every taking lens was a Heidosmat but mine is a Heidoscop

Thank you


Attachments

  • 032.JPG
    81.4 KB · Views: 139
  • 033.JPG
    60.7 KB · Views: 124
  • 036.JPG
    65.3 KB · Views: 137

Ian Grant

Subscriber
Joined
Aug 2, 2004
Messages
23,250
Location
West Midland
Format
Multi Format
It's an earlish Rollei camera, the lens of importance is the Triotar taking lens, I had a very similar Rolliecord II with a Triotar it was surprisingly good lens for a Triplet, once stopped down.

The lens is of WWII manufacture 1940, but it's not the usual Compur face plate that I'm used to, the Rollei Club website shows you its a Rolliecord II model 3. Apart from the shutter aperture scale plate it's absolutely identical to my old II.

Ian

OP
OP
KPT

KPT

Member
Joined
Jul 14, 2008
Messages
158
Format
35mm RF
It's an earlish Rollei camera, the lens of importance is the Triotar taking lens, I had a very similar Rolliecord II with a Triotar it was surprisingly good lens for a Triplet, once stopped down.

The lens is of WWII manufacture 1940, but it's not the usual Compur face plate that I'm used to, the Rollei Club website shows you its a Rolliecord II model 3. Apart from the shutter aperture scale plate it's absolutely identical to my old II.

Ian

Ian, Thank you very much for your reply! I was searching the rolleiclub and found this info. The model i think is Rolleicord Ia Model 3 - Model K3 - 531.
http://www.rolleiclub.com/cameras/tlr/info/rolleicord.shtml Line 22

Last edited by a moderator:
OP
OP
KPT

KPT

Member
Joined
Jul 14, 2008
Messages
158
Format
35mm RF
After looking further into this i have found it to be, Rolleicord Ia Model 3 - Model K3 - 531. Its not the police edition because that edition had the 3.5. I guess i will just put this one on the shelf to look at.


JPD

Member
Joined
Mar 24, 2007
Messages
2,149
Location
Sweden
Format
Medium Format
Yes, it's a Rolleicord Ia, type 3.

I have the police model, and it's just a little different. 3,5 Triotar, and "Franke & Heidecke Braunschweig" engraved under the name plate.


Chazzy

Member
Joined
Jan 17, 2004
Messages
2,942
Location
South Bend,
Format
Multi Format
I've heard that the Triotar is good for portraiture, although I'm not fond of portraits taken from a waist-level position and looking up the nostrils.


Claire Senft

Member
Joined
Dec 7, 2004
Messages
3,239
Location
Milwaukee, W
Format
35mm
What a relief! You just wanted to know how old your camera is. I thought "What? Arrange a date with a camera? The next thing you know we would end up being marriage counselors."


Lee L

Member
Joined
Nov 17, 2004
Messages
3,281
Format
Multi Format
What a relief! You just wanted to know how old your camera is. I thought "What? Arrange a date with a camera? The next thing you know we would end up being marriage counselors."
I was going to suggest that dating those you work with is problematic, especially across brands. But I thought better of it.

Lee

Joined
Apr 20, 2003
Messages
1,626
Location
Southern Cal
Format
Large Format
My thought was: The Diaphram was probably a bit to small.
