Fuji GSW 690 II wind lever stuck

[roadster55]

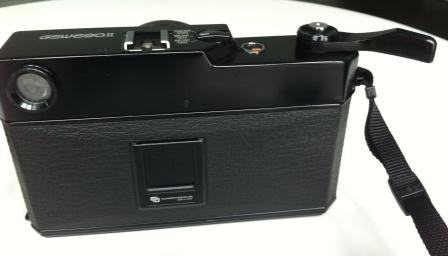

Got my hands on a Fuji GSW 690 II and was running a test roll through it. Everything was working fine and at the end of the roll was doing the last few strokes to disengage the film from the supply spool. The film disengaged right at the end of a wind stroke but after that the wind lever would not return back to a neutral position, it got stuck at the far right end of the stroke (see pic).



This thing feels like a tank so I did not think there was a danger of overwinding. Does anyone have any suggestions for a quick fix or is this professional job? Thanks.



[Newt_on_Swings]

Not sure, I luckily have not had happen, and my cameras are so far trouble free. I am guessing if you remove the bottom plate, or maybe the top plate you can see where its jammed up. What I have read online says its only a few screws, and a locking collar ring around the wind lever thats holding the top plate on.

If anyone has a copy of the repair/service manual I would love to have a copy, just in case.



[jmccl@yahoo.com]

Try Flickr groups

There are some FLICKR groups for the 690 that you could join and maybe get some help.

http://www.flickr.com/groups/fuji-gw690/

http://www.flickr.com/groups/fujimf/

Or, you could just declare it a disaster and send it to me to use

Good luck



[Sahebnazar]

This happened to me once on my own GW690II. Sent it out for repairs. Turned out it was a problem with shutter being jammed, which in turn, blocked the mechanism for arming. The camera had been dropped, however, which doesn't seem to be your case...



[roadster55]

Thanks for the comments and suggestions so far. Yes, it looks like 4 screws and the collar ring will get the top plate off but man, that collar ring is hard to get a grip on. Having said that, with a closer look, that ring has seen some past action (scratches, grip marks) so while I've not dropped the camera, perhaps this is not an isolated incident.

Repairman it may have to be since I just got it. Not had much luck with my last few used gear purchases.



[norm123]

I just bought one (GSW 690) with the same problem for 65$. I brought it to my favorite camera repairman who decline to work on it. But before that, I opened the back and I saw that the plate was on 220 position...maybe the former owner put a film 120 and the position of the plate at 220, I don't know. Anyway, I sended the camera to Nippon Photographic Service in New York one week ago and I'm waiting to get some news about it.

Normand



[toyotadesigner]

Not sure, I luckily have not had happen, and my cameras are so far trouble free. I am guessing if you remove the bottom plate, or maybe the top plate you can see where its jammed up. What I have read online says its only a few screws, and a locking collar ring around the wind lever thats holding the top plate on.

If anyone has a copy of the repair/service manual I would love to have a copy, just in case.

You can buy the repair manuals @ ebay.



[grooves1200]

I just bought one (GSW 690) with the same problem for 65$. I brought it to my favorite camera repairman who decline to work on it. But before that, I opened the back and I saw that the plate was on 220 position...maybe the former owner put a film 120 and the position of the plate at 220, I don't know. Anyway, I sended the camera to Nippon Photographic Service in New York one week ago and I'm waiting to get some news about it.

Normand

Did you ever get info from Nippon?



[norm123]

Did you ever get info from Nippon?

Yes



[grooves1200]

Thanks for the comments and suggestions so far. Yes, it looks like 4 screws and the collar ring will get the top plate off but man, that collar ring is hard to get a grip on. Having said that, with a closer look, that ring has seen some past action (scratches, grip marks) so while I've not dropped the camera, perhaps this is not an isolated incident.

Repairman it may have to be since I just got it. Not had much luck with my last few used gear purchases.

I've been unable to remove the collar ring. What have others done to get it off?



[sixby45]

Hi There - for some good disassembly instructions :

https://www.google.com/amp/s/stillt...your-fuji-rangefinder-in-under-5-minutes/amp/

I believe the steps are covered to remove the top plate



[grooves1200]

I don't have a vise grip. Removing the screws from the top plate was not an issue.



[Huss]

I don't have a vise grip. Removing the screws from the top plate was not an issue.

"Since the shutter collar is smooth, it can be difficult to remove. I use a visegrip along with a couple of pads of rubber. Using a wrench without rubber would work, but it would chew up the chrome."

Or you could get this. $12.

https://www.amazon.com/PH-165-Non-m...948550&s=gateway&sprefix=rubber+vise+,aps,190
