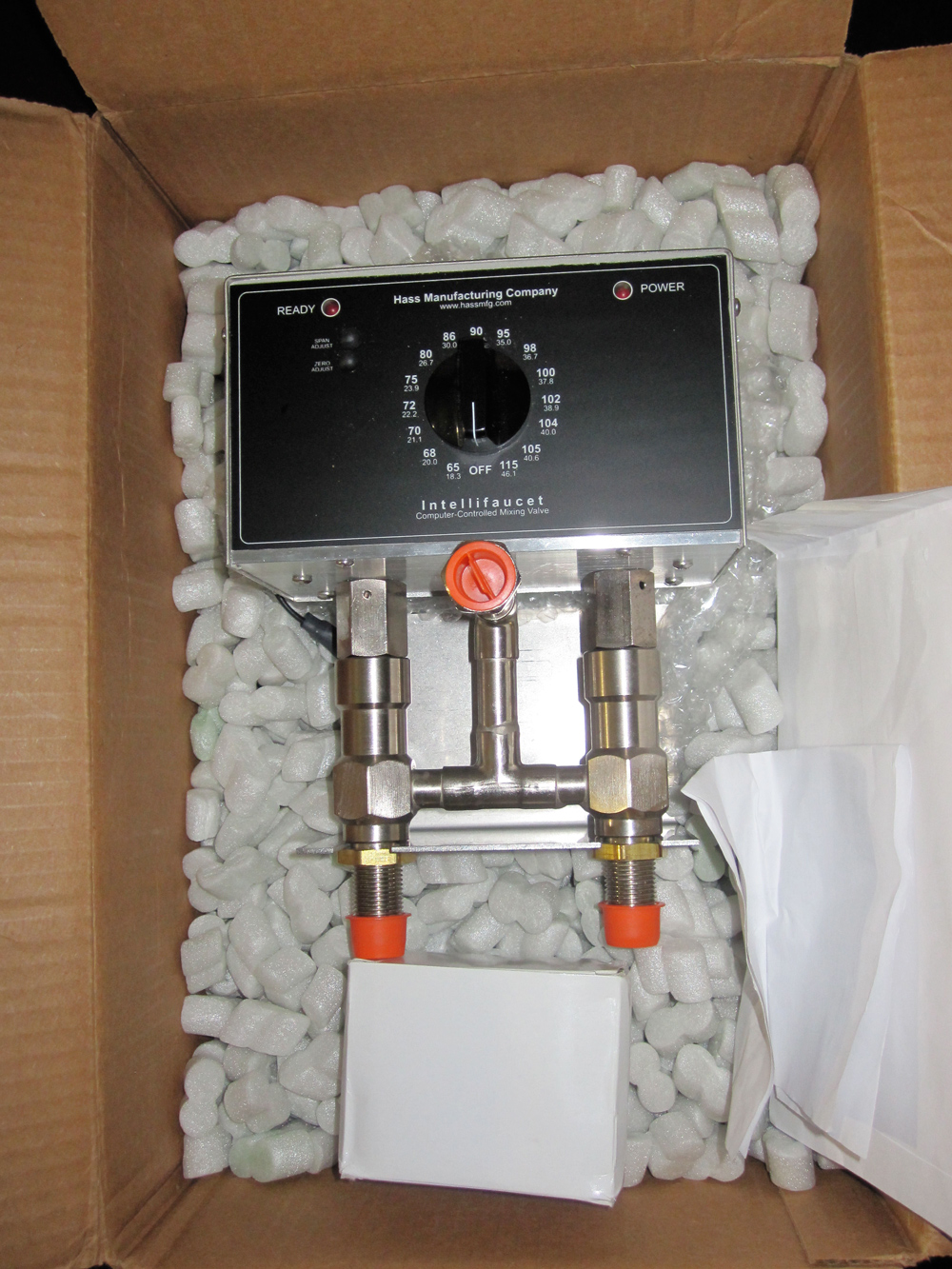

Hass Intellifaucet D250, new condition never used. I purchased this about 1 1/2 years ago and never got to install it. It is in new condition and as shipped from Hass. Asking $450.00 shipping included. For sale to USA customers only.
Payment method: check, money order or Amazon Payments
(no PayPal)
http://www.hassmfg.com/search.pl/1309544336-57420?keyword=1092&submit=Search
Description
The Intellifaucet D250 is a fully automatic hot and cold water mixing valve which is convenient to use, economical, accurate, and reliable.
Convenient. Unlike thermostatic mixing valves, the Intellifaucet is fully automatic. Simply set the water temperature to one of the 15 preset temperatures. The rotary knob clicks at each setting. The water reaches the set temperature within seconds and stays there regardless of pressure or temperature fluctuations in the hot and cold water supplies. There is no need to constantly monitor and adjust the temperature setting.
Economical. The "D" Series cost about the same as quality thermostatic mixing valves. This low cost has been achieved by simplifying the electronics, using fewer parts, manufacturing in higher-volumes, and using state-of-the-art computer-controlled production machinery. The Intellifaucet does not need expensive annual or semi-annual rebuilding.
Accurate. The Intellifaucet will keep the water temperature within ±0.5 °F of the setting unless there is a severe upset in the supplies. Water temperature is checked 60 times per second by a fast response temperature sensor. The built-in microprocessor performs calculations and repositions the hot and cold water valves 10 times per second to keep the output water temperature constant. Each Intellifaucet is tested and calibrated to ±0.2 °F at two widely separated temperatures. Reference thermometers are traceable to the National Institute of Standards and Technology.
Reliable. Intellifaucets have been keeping water temperature constant since 1987. The Intellifaucet is built from solid brass, stainless steel, aluminum, engineered plastics and high-quality semiconductors. Quality construction features include: heavy gauge stainless steel cover; oversized motor driver power transistors; double buffered microprocessor outputs; overvoltage protection circuitry; heavy-duty aluminum wall bracket; glass-filled teflon valve seals; and teflon bearings for smooth valve operation. Precision regulating valves feature a simple, rugged, maintenance-free design. The valves and seals exceed 3 million cycles without failure.
Each Intellifaucet comes complete with AC power adaptor, wall bracket, mounting hardware and owners manual.
All Hass Manufacturing Company products are backed by a Five Year Warranty.
Specifications
Flow range at 50 psi: 0.25 - 5 GPM (Low Flow programming is now standard)
Flow adjustment: none (must use external valve)
Valve port size: 1/4 inch
Valve Cv: 0.7
Inlet size: 1/2 NPT male on 4 inch centers
Outlet size: 1/2 NPT female
Valve body material: Brass with Type 303ss seat
Valve trim materials: Type 303 stainless steel
Inlet pressure: 10 - 100 psi
Inlet temperature: 35 - 180 °F (1.7 - 82.2 °C)
Power requirements: 12 - 16 VDC (AC power adaptor included)
(International Power Supplies available - specify voltage and frequency)
Power consumption: 23 Watts maximum
Control accuracy: ± 0.2 °F (0.1 °C)
Step response time: less than 2 seconds
Control temperature range: 65 - 115 °F (18.3 - 46.1 °C)
Operating Environment
Temperature range: 40 - 140 °F (4.4 - 60 °C)
Humidity range: 10 - 90 % relative humidity
Standards: Exceeds ASSE Standard 1016
Preset Temperatures
°F: 65, 68, 70, 72, 75, 80, 86, 90, 95, 98, 100, 102, 104, 105, 115
°C: 18.3, 20, 21.1, 22.2, 23.9, 26.7, 30, 32.2, 35.0, 36.7, 37.8, 38.9, 40, 40.6, 46.1
