It looks usable, although the purple colour would be a deal killer in my household!


darkroommike

Subscriber
Joined
Mar 22, 2007
Messages
1,726
Location
Iowa
Format
Multi Format
Looks OK except for one thing, most film drying cabinets use an air filter to keep dust off the negatives. I see no such provision on the screen dryer.


AgX

Member
Joined
Apr 5, 2007
Messages
29,973
Location
Germany
Format
Multi Format
Now I understand what you are referring to.
(At silk screen print shops I only saw plain drying racks.)


nsurit

Subscriber
Joined
Jan 27, 2005
Messages
1,808
Location
Texas Hill Country
Format
Multi Format
Might be worth watching craigslist. I found my California Stainless one for $60 a few years ago.


Diapositivo

Subscriber
Joined
Nov 1, 2009
Messages
3,257
Location
Rome, Italy
Format
35mm
I suggest looking for a second-hand Jobo Mistral 2.
Simple yet effective. 2 warm air temperatures plus ambient temperature. Filter for air, easily replaceable. Very light and practical to move. Can accomodate several films. Faster and more effective than a DIY solution IMHO.

OP
OP

Michael Firstlight

Subscriber
Joined
Mar 2, 2017
Messages
460
Location
Western North Carolina
Format
Multi Format

Diapositivo

Subscriber
Joined
Nov 1, 2009
Messages
3,257
Location
Rome, Italy
Format
35mm
Like this one? http://www.ebay.com/itm/like/282416779687?lpid=82&chn=ps&ul_noapp=true

Too pricey for me! Its a fan an a plastic bag!

Mike

https://www.flickr.com/photos/raulm/7493598376

It's a fan, a filter holder, a heater, and a tent with magnetic stops and a bottom. If you don't find a second-hand one for cheap (good sign: that means analogue photography is rocking again...) you might copy the idea as a DIY project. I find the design simple and effective. A rigid cupboard would be more practical but less moveable. This can be sent by mail very easily.

OP
OP

Michael Firstlight

Subscriber
Joined
Mar 2, 2017
Messages
460
Location
Western North Carolina
Format
Multi Format
https://www.flickr.com/photos/raulm/7493598376

It's a fan, a filter holder, a heater, and a tent with magnetic stops and a bottom. If you don't find a second-hand one for cheap (good sign: that means analogue photography is rocking again...) you might copy the idea as a DIY project. I find the design simple and effective. A rigid cupboard would be more practical but less moveable. This can be sent by mail very easily.

Yes, I've look at some clothes bags from Home depot with heater/fans from growing tent providers and DIY filters. By the time you add it all up, the one I referenced in my original post is a more elegant option at the same cost for something well built and portable- at least that's what I'm concluding. Now if I come across a Jobo Mistral 2 in decent condition at a reasonable price, that would suffice.

Regards,
Mike


rpavich

Member
Joined
Aug 24, 2015
Messages
1,520
Location
West virginia, USA
Format
35mm
After doing this searching I found the solution that works great.

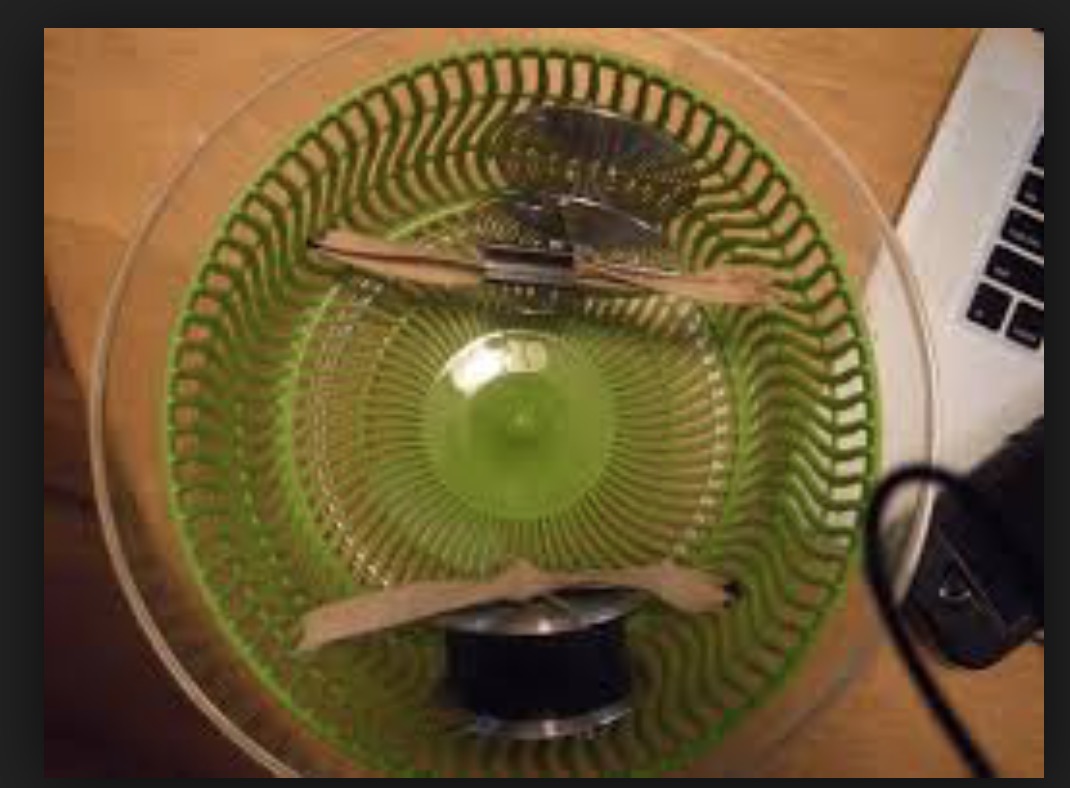

Buy a salad spinner. (for getting 90% of the water off before you start drying)

Get a 1 foot long piece of 4" diameter PVC pipe.

Get a "duct fan" of the same 4" diameter.

Buy a package of filters that go over furnace grates to keep the dust down.

Mount the fan in one end of the tube, tape a filter to the end of the fan.

Put the reel of film in the salad spinner and spin for 20 or 30 seconds.

Take the reel from the salad spinner and put in the end of the tube opposite the fan.


Plug it in and in 50 minutes to 1 hour you will have perfectly dry film.





Attachments

  • Screen Shot 2017-04-04 at 8.46.18 AM.jpg
    Screen Shot 2017-04-04 at 8.46.18 AM.jpg
    127.2 KB · Views: 146

mgb74

Subscriber
Joined
Jan 24, 2005
Messages
4,774
Location
MN and MA US
Format
Multi Format
Computer fans, with filter, are a good option if you need airflow.


nbagno

Subscriber
Joined
Oct 19, 2012
Messages
748
Location
SF Bay Area
Format
4x5 Format
After doing this searching I found the solution that works great.

Buy a salad spinner. (for getting 90% of the water off before you start drying)

Get a 1 foot long piece of 4" diameter PVC pipe.

Get a "duct fan" of the same 4" diameter.

Buy a package of filters that go over furnace grates to keep the dust down.

Mount the fan in one end of the tube, tape a filter to the end of the fan.

Put the reel of film in the salad spinner and spin for 20 or 30 seconds.

Take the reel from the salad spinner and put in the end of the tube opposite the fan.


Plug it in and in 50 minutes to 1 hour you will have perfectly dry film.



I have something like that, a Senrac rapid roll dryer. Hate the curl so I only use it to dry my reels if I'm doing multiple rolls. I really like the $75.00 cabinet I bought, there's a thread on that. Don't even need the heater just let it hang.


rpavich

Member
Joined
Aug 24, 2015
Messages
1,520
Location
West virginia, USA
Format
35mm
I have something like that, a Senrac rapid roll dryer. Hate the curl so I only use it to dry my reels if I'm doing multiple rolls. I really like the $75.00 cabinet I bought, there's a thread on that. Don't even need the heater just let it hang.
After I made this I found two Honeywell dryers for very cheap and so I use them.

OP
OP

Michael Firstlight

Subscriber
Joined
Mar 2, 2017
Messages
460
Location
Western North Carolina
Format
Multi Format
After doing this searching I found the solution that works great.

Buy a salad spinner. (for getting 90% of the water off before you start drying)

Get a 1 foot long piece of 4" diameter PVC pipe.

Get a "duct fan" of the same 4" diameter.

Buy a package of filters that go over furnace grates to keep the dust down.

Mount the fan in one end of the tube, tape a filter to the end of the fan.

Put the reel of film in the salad spinner and spin for 20 or 30 seconds.

Take the reel from the salad spinner and put in the end of the tube opposite the fan.


Plug it in and in 50 minutes to 1 hour you will have perfectly dry film.




Nifty! Though I did get a laugh thinking about the salad spinner and thought - should I add Blue Cheese or Thousand Island? :tongue:


Richard Man

Member
Joined
Sep 24, 2005
Messages
1,301
Format
Multi Format
I purchased a Jobo Mistral from a friend who was getting out film (he moved to a P45,then to P65, then to the 50MP CMOS back...). Anyway, one of the best purchases.


frobozz

Subscriber
Joined
Feb 19, 2010
Messages
1,458
Location
Mundelein, IL, USA
Format
35mm
I dispute your original assertion that commercial film drying cabinets are large heavy and expensive. I picked mine up off of CL in the Chicago area a few years ago. It's tall, but the footprint is like a foot square. Fits anywhere! Weighs nothing - it's just thin sheet metal. And I think I paid like $50 for it.

Duncan


rpavich

Member
Joined
Aug 24, 2015
Messages
1,520
Location
West virginia, USA
Format
35mm
I dispute your original assertion that commercial film drying cabinets are large heavy and expensive. I picked mine up off of CL in the Chicago area a few years ago. It's tall, but the footprint is like a foot square. Fits anywhere! Weighs nothing - it's just thin sheet metal. And I think I paid like $50 for it.

Duncan
I guess I should go for it and say: Just because A person got A film cabinet that wasn't "large, heavy, and expensive" doesn't mean that his general statement is invalid...right?

Check ebay at any given time and you will find that 90% of the film cabinets listed are heavy, large and expensive...just like he said.

That's the normal situation, however as you mentioned...there are sometimes exceptions to the norm.


frobozz

Subscriber
Joined
Feb 19, 2010
Messages
1,458
Location
Mundelein, IL, USA
Format
35mm
Well OK sure but every film drying cabinet I've ever seen (3 of them) has been the same construction - wafer-thin metal that weighs next to nothing. And yes, buying one of them new from Adorama would be expensive (over $1000!!!) but there have to be just piles of them out there used from school darkrooms that shut down over the last 10+ years.

Duncan


rpavich

Member
Joined
Aug 24, 2015
Messages
1,520
Location
West virginia, USA
Format
35mm
Well OK sure but every film drying cabinet I've ever seen (3 of them) has been the same construction - wafer-thin metal that weighs next to nothing. And yes, buying one of them new from Adorama would be expensive (over $1000!!!) but there have to be just piles of them out there used from school darkrooms that shut down over the last 10+ years.

Duncan
If there are...I haven't seen them. When I looked they were...well...heavy, expensive, and large. (that's why I made my own)
Even if one was "fairly cheap" it was so large and bulky and heavy that shipping was outrageous.
